HQB
CONNECTOR
1.5mm
(.0.59") pitch
Board - to - board Connectors
Features ––––––––––––––––––––––––

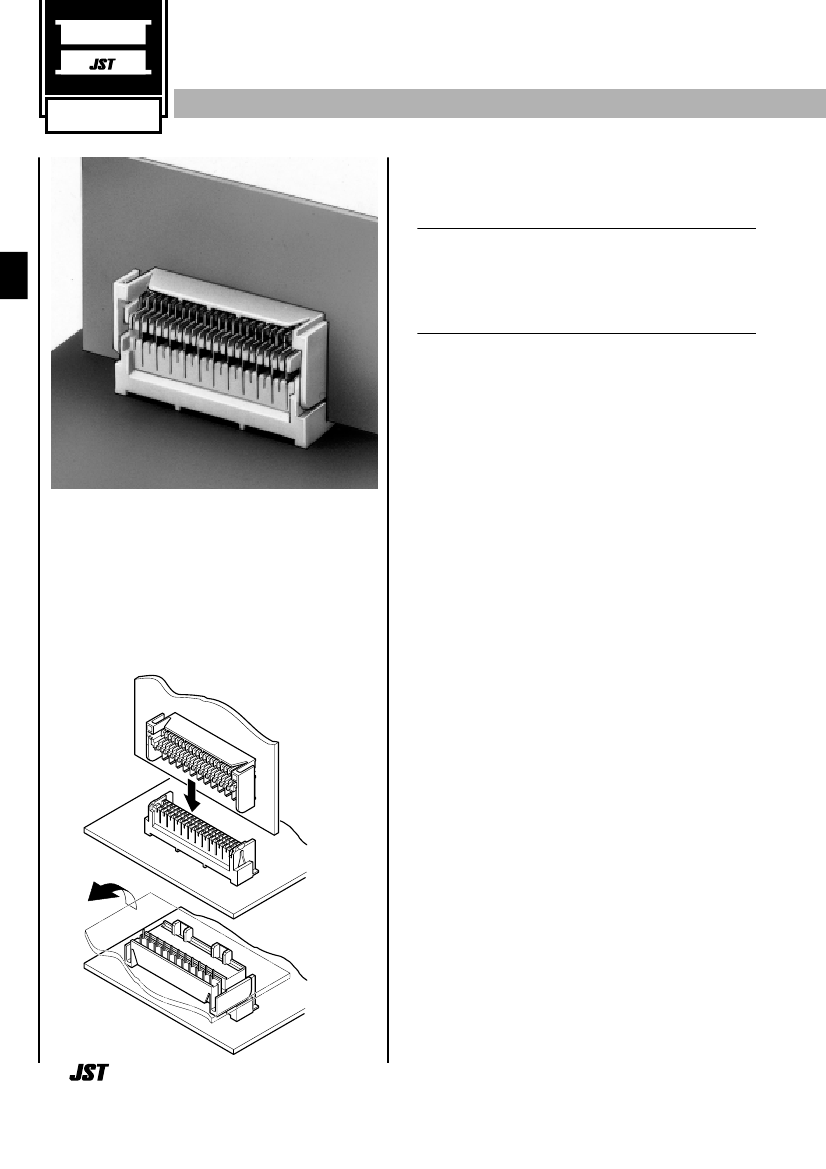

• Flexible connection by absorbing circuit
board misalignment
The hinge compensates for slight misalignments between
circuit boards to assure a secure connection even if the boards
are out of line up to 0.5mm (.020"). This design and circuit
checks can be as easily made as opening a door.
• Hinged connection
With hinge construction, the HQB connector features flexibility.
Thus this board to board connector allows mated PCB's to
move 90˚ in respect to one another while electricity is turned on.
Hinge type board to board connectors
which allow mated PCB's to move 90˚ in
respect to one another while electricity is
turned on. The hinge compensates for
slight misalignments between circuit
boards to assure a secure connection
even if the boards are laterally out of line
up to 0.5mm (.020"). Header leads are
staggered for easy board design.
1
H JST
22
Specifications –––––––––––––––––––
• Current rating: 1.0A AC, DC
• Voltage rating: 50V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/30m Ω max.
After environmental testing/60m Ω max.
• Insulation resistance:
1000M Ω min.
• Withstanding voltage: 1000V AC/minute
• Applicable PC board thickness: 1.6mm(.063")
* Contact JST for details.
Standards ––––––––––––––––––––––
314
0
1
Recognized E60389
Certified LR20812
HQB
CONNECTOR

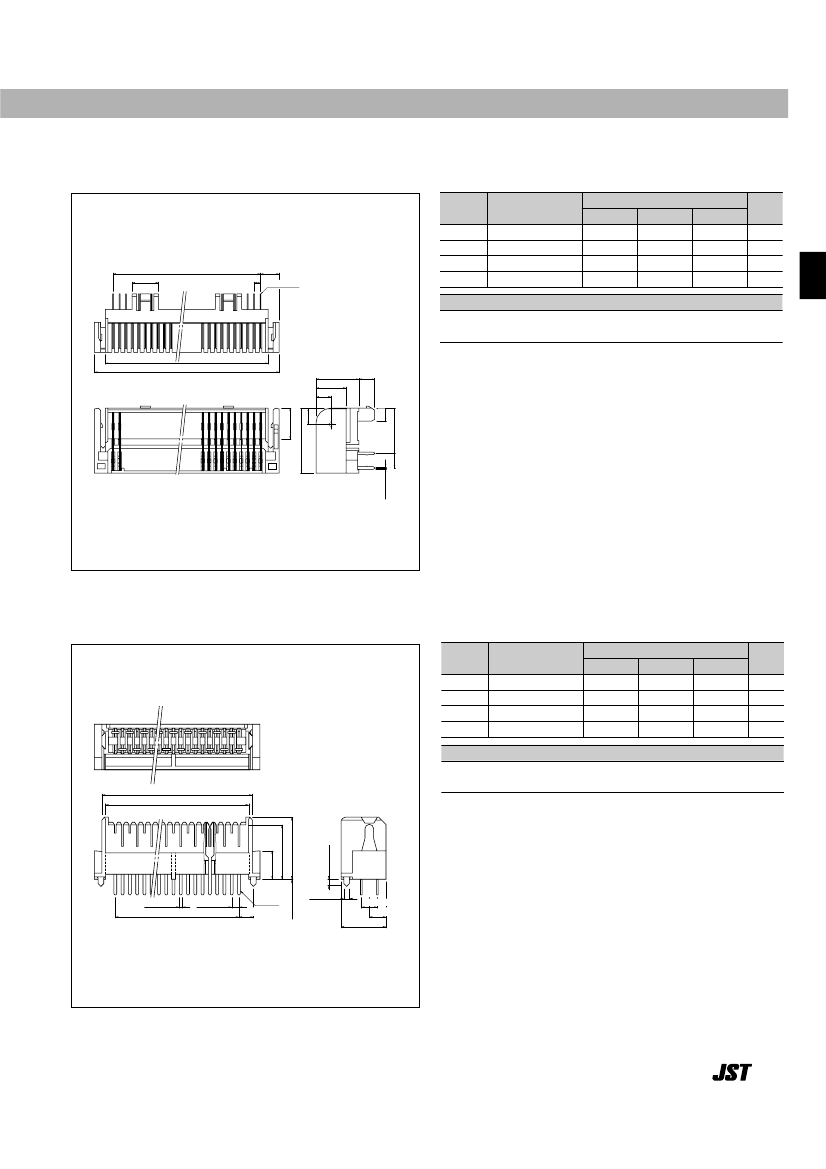

Plug ––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Circuits
22
24
A
6.0(.236)
[4.3(.169)]
1.5(.059)
Circuit No.1
Model No.
22P-HQBSS
24P-HQBSS
30P-HQBSS
36P-HQBSS
Dimensions mm(in.)
A
31.5(1.240)
34.5(1.358)
43.5(1.713)
52.5(2.067)
B
40.1(1.579)
43.1(1.697)
52.1(2.051)
61.1(2.406)
C
34.9(1.374)
37.9(1.492)
46.9(1.846)
55.9(2.201)
Q'ty /
box
50
45
40
35
30
36
Material and Finish
Contact: Copper alloy, tin-plated
Housing: Nylon 66, UL94V-0, natural (white)
C
B
15(.591)
[3.8(.150)]
H JST
Receptacle –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Circuits
22
24
30
36
0.6(.024)
3.5(.138)
3(.118)
10.4(.409)
10(.394) 3.5(.138)
7.0(.276)
3.5
(.138)
7.1(.280)
B
C
5.7(.224)
11.7(.461)
3.3(.130)
12.7(.500)
0.6(.024)
A
1.5(.059)
Circuit
No.1
3.0(.118)
1.2
(.047)dia.
1.5(.059)
1
36
Model No.
22R-HQBSS
24R-HQBSS
30R-HQBSS
36R-HQBSS
Dimensions mm(in.)
A
31.5(1.240)
34.5(1.358)
43.5(1.713)
52.5(2.067)
B
37.1(1.461)
40.1(1.579)
49.1(1.933)
58.1(2.287)
C
35.5(1.398)
38.5(1.516)
47.5(1.870)
56.5(2.224)
Q'ty /
box
50
45
40
35
Material and Finish
Contact: Phosphor bronze, tin-plated
Housing: Nylon 66, UL94V-0, natural (white)
3.5(.138)
3.5(.138)
9.5(.374)
315
HQB
CONNECTOR
PC board layout
(viewed from component side)
––––––––––––––––––––––––––––––––––––
Plug
3.5
±
0.05(.138
±
.002)
Receptacle
1.5
±
0.05
(.059
±
.002)
Circuit No.1
A
±
0.05(.002)
3.0
±
0.05
(.118
±
.002)
3.0
±
0.05
(.118
±
.002)
17 to 17.5(.669 to .689)
A
±
0.05(.002)
3.0
±
0.05
(.118
±
.002)
3.3
+0.1
0
(.130
+.004
)
0
10.55
(.415)
+ 0.1
+.004
8.0(.315) 0.8
0
(.031
0
)dia.
B
±
0.1(.004)
C
±
0.1(.004)
1.5
±
0.05
(.059
±
.002)
0.8
+0.1
(.032
+.004
)dia.
0
0
Daughter board
Circuits
22
24
30
36
Dimensions mm(in.)
A
31.5(1.240)
34.5(1.358)
43.5(1.713)
52.5(2.067)
B
7.5(.295)
7.5(.295)
10.5(.413)
12.0(.472)
C
16.5( .650)
19.5( .768)
22.5( .886)
28.5(1.122)
Note:
1. Tolerances are non-cumulative: ±0.05mm(±.002") for all centers.
2. Hole dimensions differ according to the kind of PC board and piercing
method. The dimensions above should serve as a guideline.
Contact JST for details.
Assembly layout ––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
9.5(.374)
316
20.7(.815)
3.5
±
0.05
(.138
±
.002)
3.0
±
0.05
(.118
±
0.02)
Circuit No.1
3.0
±
0.05(.118
±
.002)
4.5(.177)
1.6
+0.1
(.063
+.004
)dia.
0
0
