PHOTO-INTERRUPTER
KTIR0711S
Features
!
Compact
!
Visible
!
High
Package Dimensions
and thin
light cut-of f type
sensitivity
Applications
!
Cassette
!
Floppy
!
Various
tape recorders,VCRs.
disk drives.
microcomputerized control equipment.
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.25(0.01")
unless otherwise noted.
3. Lead spacing is measured where the lead emerge package.
4. Specifications are subject to change without notice.
Absolute Maximum Ratings (T
=
=25°C)
°
Par am et er
Forward current
Input
Reverse voltage
Power dissipation
Collector-emitter voltage
Output
Emitter-collector voltage
Collector current
Collector power dissipation
Operating temperature
Storage temperature
Soldering temperature(1/16 inch from body for 5 seconds)
Sy m b o l
I
F
V
R
P
V
C EO
V
EC O
I
C
P
C
Topr
Tstg
Tsol
Rat in g
50
5
75
30
5
20
75
-25~+85
-40~+100
260
Un it
mA
V
mW
V
V
mA
mW
°C
°C
°C
SPEC NO: KDA0661
APPROVED: J.Lu
REV NO: V.1
CHECKED :
DATE: OCT/31/2001
DRAWN: X.H.FU
PAGE: 1 OF4
Electro-optical Characteristics (T
=
=25°C)
°
Par am et er
Forward voltage
Input
Reverse current
Output
Collector dark current
*1
Sy m b o l
V
F
I
R
I
C EO
I
c
I
LE A K
Co n d it io n s
I
F
=20mA
V
R
=5V
V
CE
=20V
V
CE
=2V,I
F
=4mA
V
CE
=2V,I
F
=4mA
Min .
_
_
_
_
_
_
_
Ty p .
1.2
_
10
-9
10 0
_
20
20
Max .
1.5
10
10
-7
_
0.1
10 0
100
Un it
V
µA
A
µA
µA
µ
sec
µ
sec
Collector current
Leak current
Rise time
Transfer
charact-
eristics
*2
t
r
t
f
Response time
Fall time
V
CE
=2V,I
C
=100uA
R
L
=1K
Ω
,d=1mm
*1 The condition and arrangment of the reflective object are shown below
*2 Without reflective object
Fig.1 Forward Current vs.
Forward Voltage
Fig.2 Collector Current vs.
Forward Current
Fig.3 Collector Current vs.
Collector-emitter Voltage
Fig.4 Relative Collector Current vs.
Ambient Temperature
SPEC NO: KDA0661
APPROVED: J.Lu
REV NO: V.1
CHECKED :
DATE: OCT/31/2001
DRAWN: X.H.FU
PAGE: 2 OF4

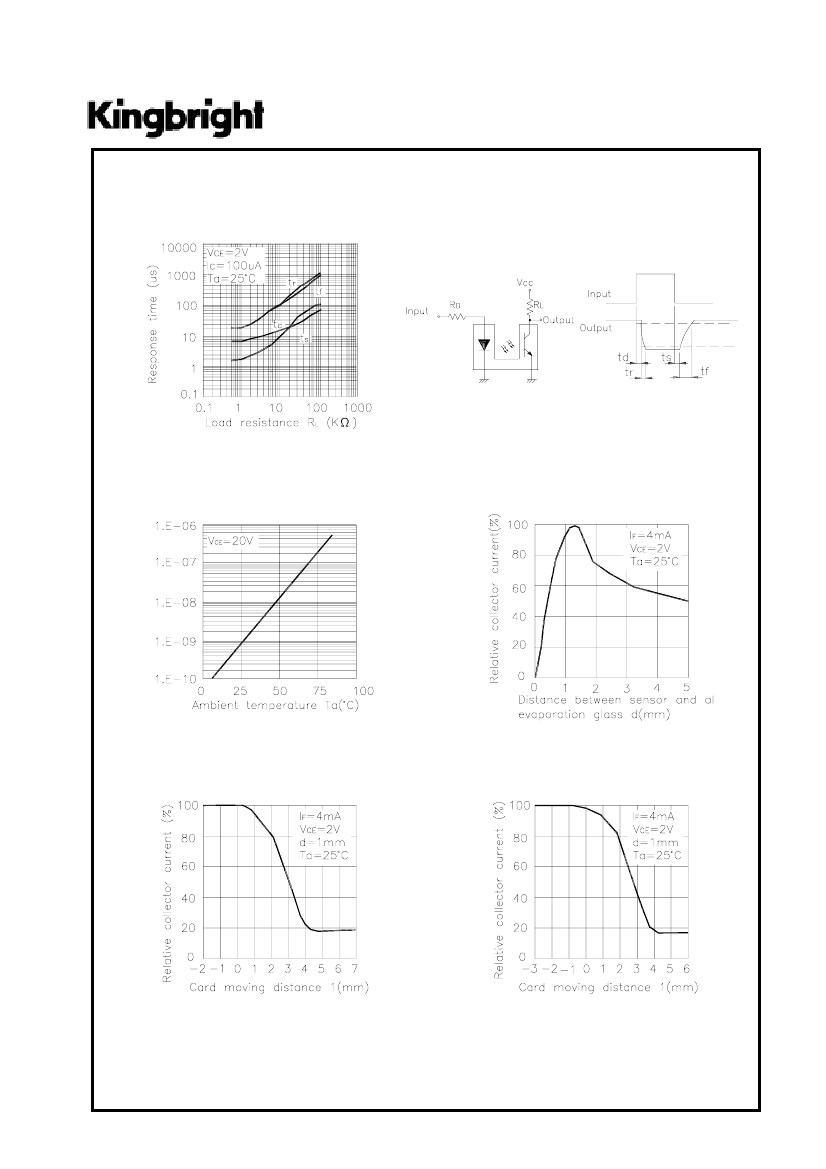

Fig.5 Response Time vs.
Load Resistance
Test Circuit for Response Time
Fig.6 Collector Dark Current vs.
Ambient Temperature
Fig.7 Relative Collector Current vs.
Distance between Sensor and
Al Evaporation Glass
Fig.8 Relative Collector Current vs.
Card Moving Distance (1)
Fig.9 Relative Collector Current vs.
Card Moving Distance (2)
SPEC NO: KDA0661
APPROVED: J.Lu
REV NO: V.1
CHECKED :
DATE: OCT/31/2001
DRAWN: X.H.FU
PAGE: 3 OF4
The Condition for Distance&Detecting
Position Characteristics
Correpond to Fig.7
Correpond to Fig.8
Test condition
Correpond to Fig.9
Test condition
SPEC NO: KDA0661
APPROVED: J.Lu
REV NO: V.1
CHECKED :
DATE: OCT/31/2001
DRAWN: X.H.FU
PAGE: 4 OF4
