54AC569DM datasheet, PDF - EEWORLD Datasheet

54AC569DM: DescriptionBinary Counter, AC Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, CMOS, CDIP20, CERAMIC, DIP-20; Categorylogic; File Size265KB，9 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric View All

54AC569DM Overview

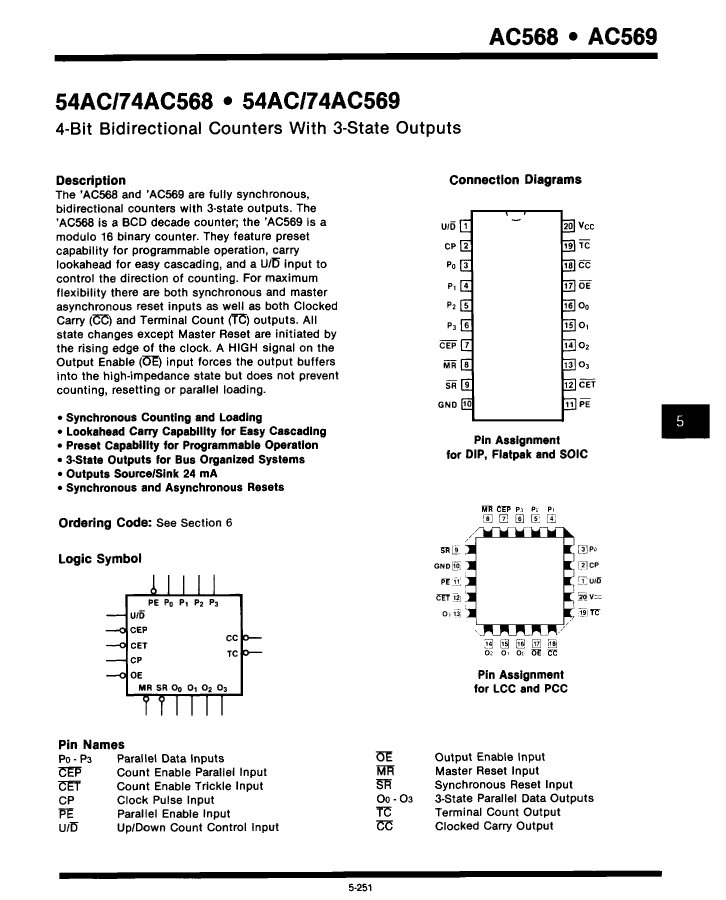

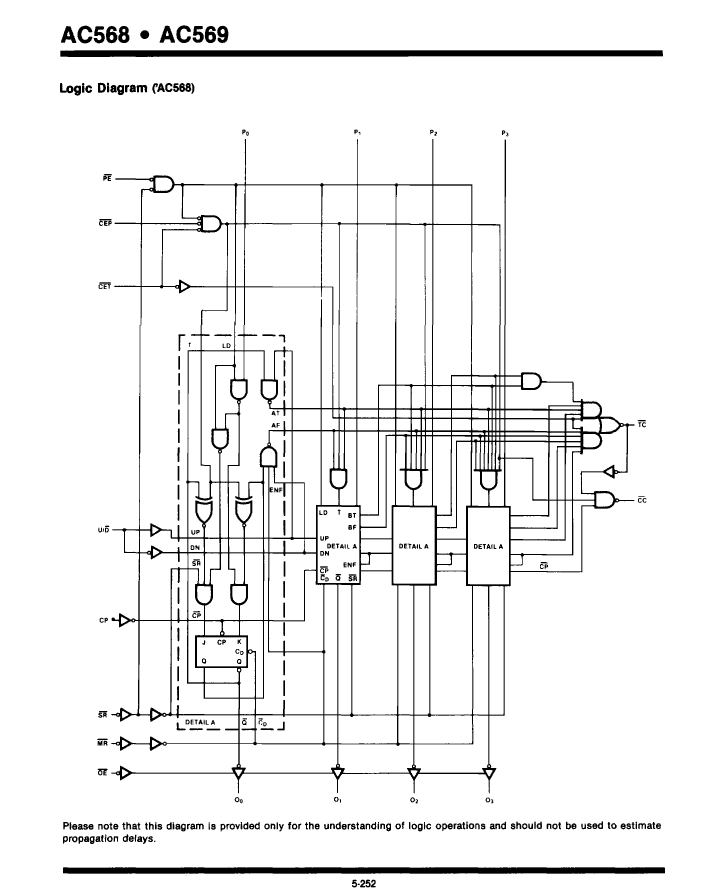

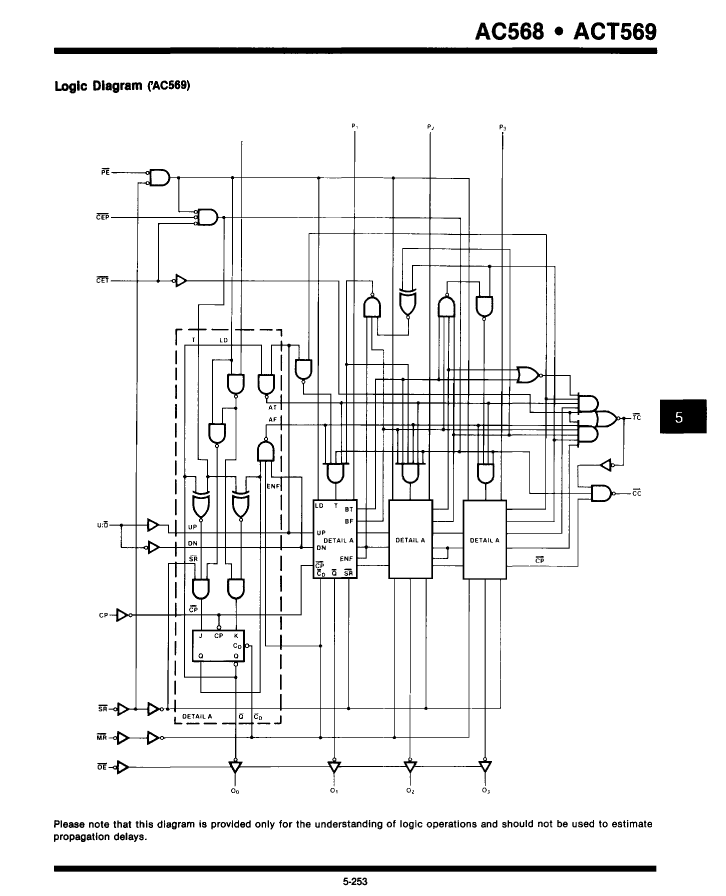

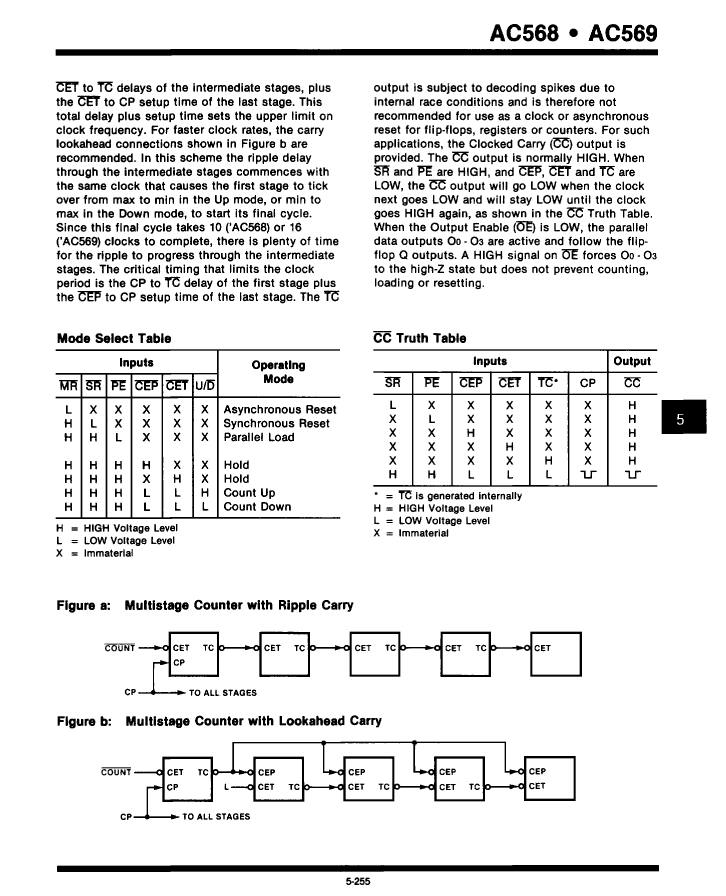

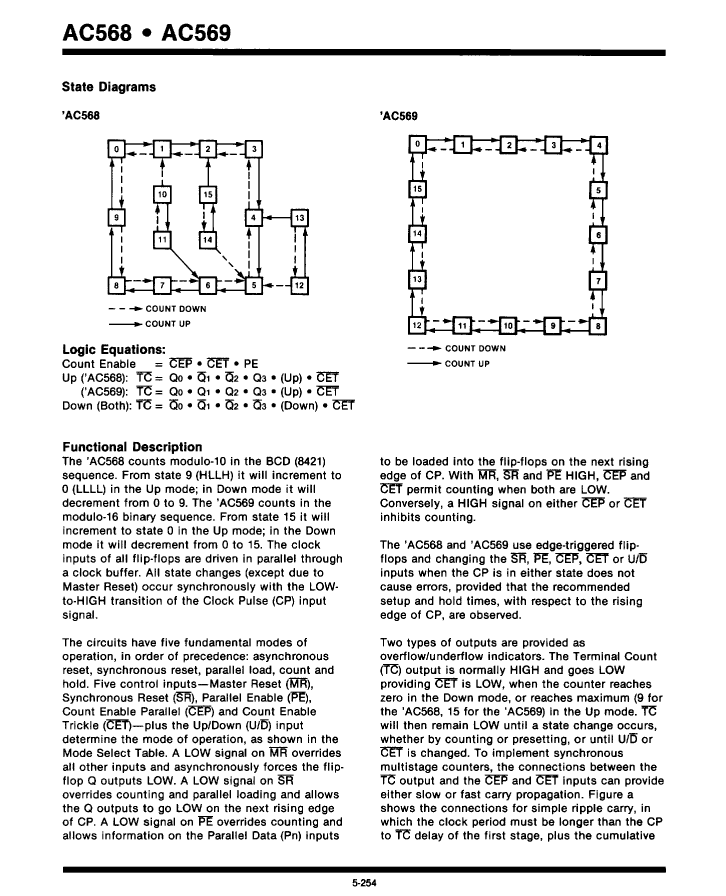

Binary Counter, AC Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, CMOS, CDIP20, CERAMIC, DIP-20

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
Parts packaging code	DIP
package instruction	DIP, DIP20,.3
Contacts	20
Reach Compliance Code	unknown
Counting direction	BIDIRECTIONAL
series	AC
JESD-30 code	R-GDIP-T20
JESD-609 code	e0
Load capacitance (CL)	50 pF
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
MaximumI(ol)	0.024 A
Operating mode	SYNCHRONOUS
Number of digits	4
Number of functions	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.3/5 V
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	POSITIVE EDGE
width	7.62 mm
Base Number Matches	1
