5962-8982503PX datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The power supply circuit> 5962-8982503PX

5962-8982503PX: DescriptionIC 1-OUTPUT THREE TERM VOLTAGE REFERENCE, 10 V, CDIP8, CERDIP-8, Voltage Reference; CategoryThe power supply circuit; File Size44KB，3 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

5962-8982503PX Overview

IC 1-OUTPUT THREE TERM VOLTAGE REFERENCE, 10 V, CDIP8, CERDIP-8, Voltage Reference

5962-8982503PX Parametric

Parameter Name	Attribute value
Maker	ADI
Parts packaging code	DIP
package instruction	DIP, DIP8,.3
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	THREE TERMINAL VOLTAGE REFERENCE
JESD-30 code	R-GDIP-T8
JESD-609 code	e0
Number of functions	1
Output times	1
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output voltage	10.005 V
Minimum output voltage	9.995 V
Nominal output voltage	10 V
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Qualified
Filter level	MIL-PRF-38535 Class B
Maximum seat height	5.08 mm
Maximum supply current (Isup)	4 mA
Maximum supply voltage (Vsup)	36 V
Minimum supply voltage (Vsup)	13.5 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Maximum voltage temperature coefficient	5 ppm/°C
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Fine-tuning/adjustable output	YES
Maximum voltage tolerance	0.5%
width	7.62 mm
Base Number Matches	1

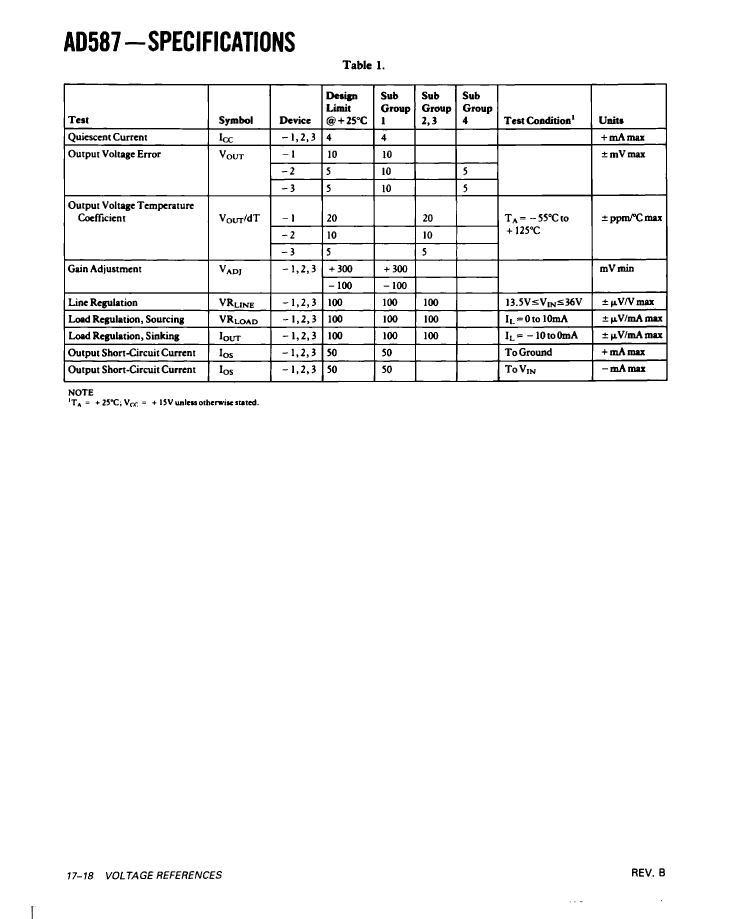

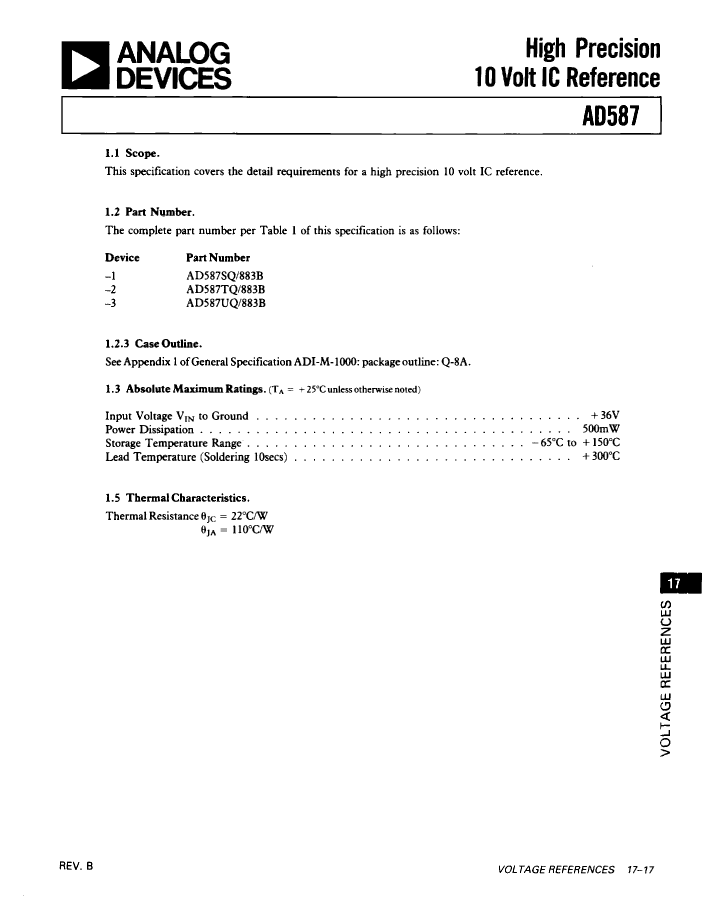

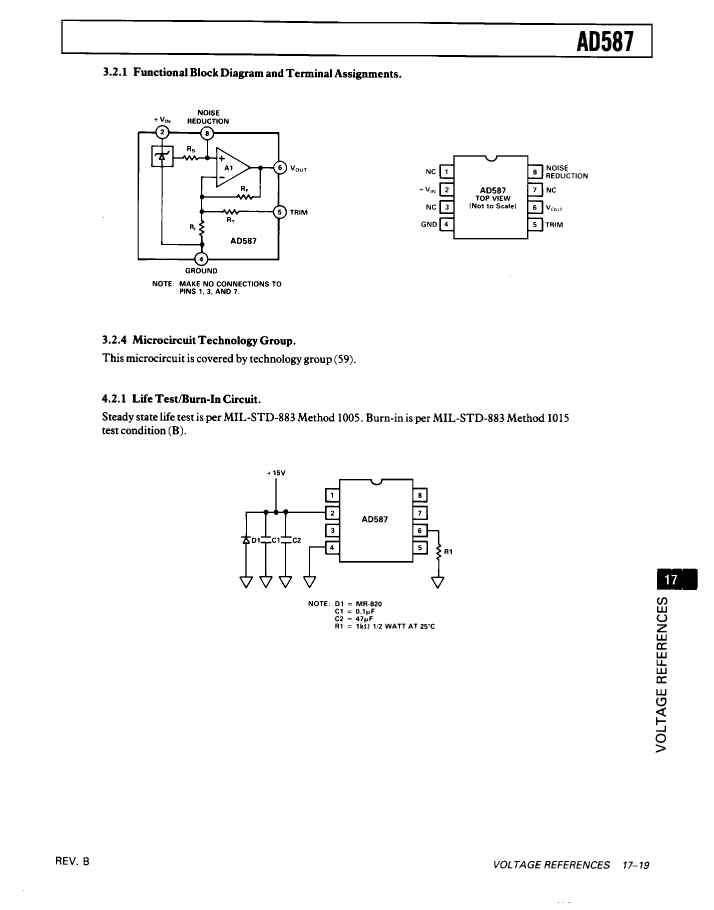

Preview

Download Datasheet

View All

5962-8982503PX Related Products

	5962-8982503PX	AD587TQ/883B	AD587UQ/883B	2104D100M0000KBK	5962-8982502PX	AD587SQ/883B
Description	IC 1-OUTPUT THREE TERM VOLTAGE REFERENCE, 10 V, CDIP8, CERDIP-8, Voltage Reference	IC 1-OUTPUT THREE TERM VOLTAGE REFERENCE, 10 V, CDIP8, CERDIP-8, Voltage Reference	IC 1-OUTPUT THREE TERM VOLTAGE REFERENCE, 10 V, CDIP8, CERDIP-8, Voltage Reference	CMOS Output Clock Oscillator,	IC 1-OUTPUT THREE TERM VOLTAGE REFERENCE, 10 V, CDIP8, CERDIP-8, Voltage Reference	IC 1-OUTPUT THREE TERM VOLTAGE REFERENCE, 10 V, CDIP8, CERDIP-8, Voltage Reference
Reach Compliance Code	compliant	compliant	unknown	compliant	not_compliant	unknown
Maximum operating temperature	125 °C	125 °C	125 °C	70 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-20 °C	-55 °C	-55 °C
surface mount	NO	NO	NO	YES	NO	NO
Maker	ADI	ADI	ADI	-	ADI	ADI
Parts packaging code	DIP	DIP	DIP	-	DIP	DIP
package instruction	DIP, DIP8,.3	DIP, DIP8,.3	CERDIP-8	-	CERDIP-8	DIP, DIP8,.3
Contacts	8	8	8	-	8	8
ECCN code	EAR99	EAR99	EAR99	-	EAR99	EAR99
Analog Integrated Circuits - Other Types	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE	-	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE
JESD-30 code	R-GDIP-T8	R-GDIP-T8	R-GDIP-T8	-	R-GDIP-T8	R-GDIP-T8
Number of functions	1	1	1	-	1	1
Output times	1	1	1	-	1	1
Number of terminals	8	8	8	-	8	8
Nominal output voltage	10 V	10 V	10 V	-	10 V	10 V
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	-	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP	DIP	-	DIP	DIP
Encapsulate equivalent code	DIP8,.3	DIP8,.3	DIP8,.3	-	-	DIP8,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	-	IN-LINE	IN-LINE
Certification status	Qualified	Not Qualified	Not Qualified	-	Qualified	Not Qualified
Maximum supply current (Isup)	4 mA	4 mA	4 mA	-	-	4 mA
Maximum supply voltage (Vsup)	36 V	36 V	36 V	-	36 V	36 V
Minimum supply voltage (Vsup)	13.5 V	13.5 V	13.5 V	-	13.5 V	13.5 V
technology	BIPOLAR	BIPOLAR	BIPOLAR	-	-	BIPOLAR
Maximum voltage temperature coefficient	5 ppm/°C	10 ppm/°C	5 ppm/°C	-	10 ppm/°C	20 ppm/°C
Temperature level	MILITARY	MILITARY	MILITARY	-	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	-	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	-	-	2.54 mm
Terminal location	DUAL	DUAL	DUAL	-	DUAL	DUAL
Fine-tuning/adjustable output	YES	YES	YES	-	YES	YES
Maximum voltage tolerance	0.5%	0.2%	0.2%	-	-	0.2%
Base Number Matches	1	1	1	-	1	-
