3SK301 datasheet, PDF - EEWORLD Datasheet

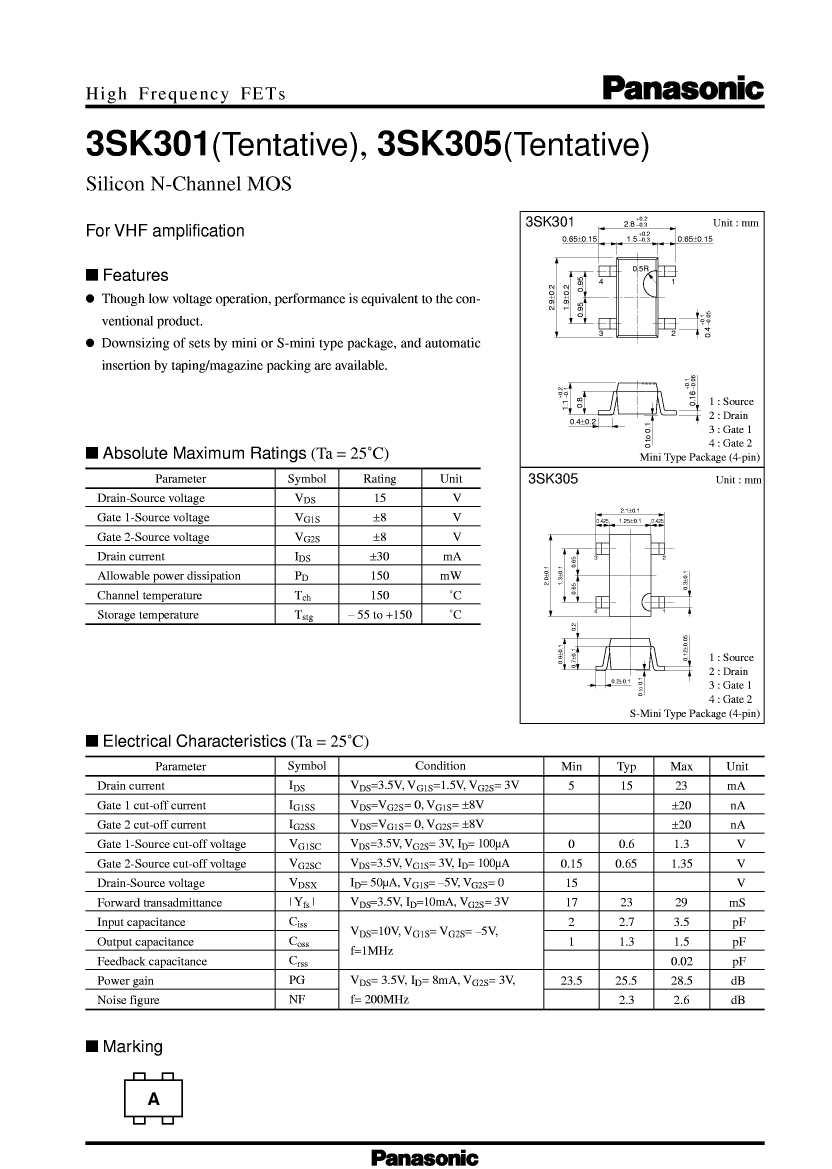

3SK301: DescriptionRF Small Signal Field-Effect Transistor, 1-Element, Very High Frequency Band, Silicon, N-Channel, Metal-oxide Semiconductor FET, MINI PACKAGE-4; CategoryThe transistor; File Size72KB，1 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric Compare View All

3SK301 Overview

RF Small Signal Field-Effect Transistor, 1-Element, Very High Frequency Band, Silicon, N-Channel, Metal-oxide Semiconductor FET, MINI PACKAGE-4

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Panasonic
package instruction	SMALL OUTLINE, R-PDSO-G4
Contacts	4
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	SINGLE
Minimum drain-source breakdown voltage	15 V
Maximum drain current (Abs) (ID)	0.03 A
Maximum drain current (ID)	0.03 A
FET technology	METAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss)	0.02 pF
highest frequency band	VERY HIGH FREQUENCY BAND
JESD-30 code	R-PDSO-G4
JESD-609 code	e0
Number of components	1
Number of terminals	4
Operating mode	DUAL GATE, ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	N-CHANNEL
Minimum power gain (Gp)	23.5 dB
Certification status	Not Qualified
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Base Number Matches	1

	3SK301	3SK305
Description	RF Small Signal Field-Effect Transistor, 1-Element, Very High Frequency Band, Silicon, N-Channel, Metal-oxide Semiconductor FET, MINI PACKAGE-4	RF Small Signal Field-Effect Transistor, 1-Element, Very High Frequency Band, Silicon, N-Channel, Metal-oxide Semiconductor FET, S-MINI PACKAGE-4
package instruction	SMALL OUTLINE, R-PDSO-G4	SMALL OUTLINE, R-PDSO-G4
Contacts	4	4
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Configuration	SINGLE	SINGLE
Minimum drain-source breakdown voltage	15 V	15 V
Maximum drain current (Abs) (ID)	0.03 A	0.03 A
Maximum drain current (ID)	0.03 A	0.03 A
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss)	0.02 pF	0.02 pF
highest frequency band	VERY HIGH FREQUENCY BAND	VERY HIGH FREQUENCY BAND
JESD-30 code	R-PDSO-G4	R-PDSO-G4
Number of components	1	1
Number of terminals	4	4
Operating mode	DUAL GATE, ENHANCEMENT MODE	DUAL GATE, ENHANCEMENT MODE
Maximum operating temperature	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	N-CHANNEL	N-CHANNEL
Minimum power gain (Gp)	23.5 dB	23.5 dB
Certification status	Not Qualified	Not Qualified
surface mount	YES	YES
Terminal form	GULL WING	GULL WING
Terminal location	DUAL	DUAL
transistor applications	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON
Base Number Matches	1	1
