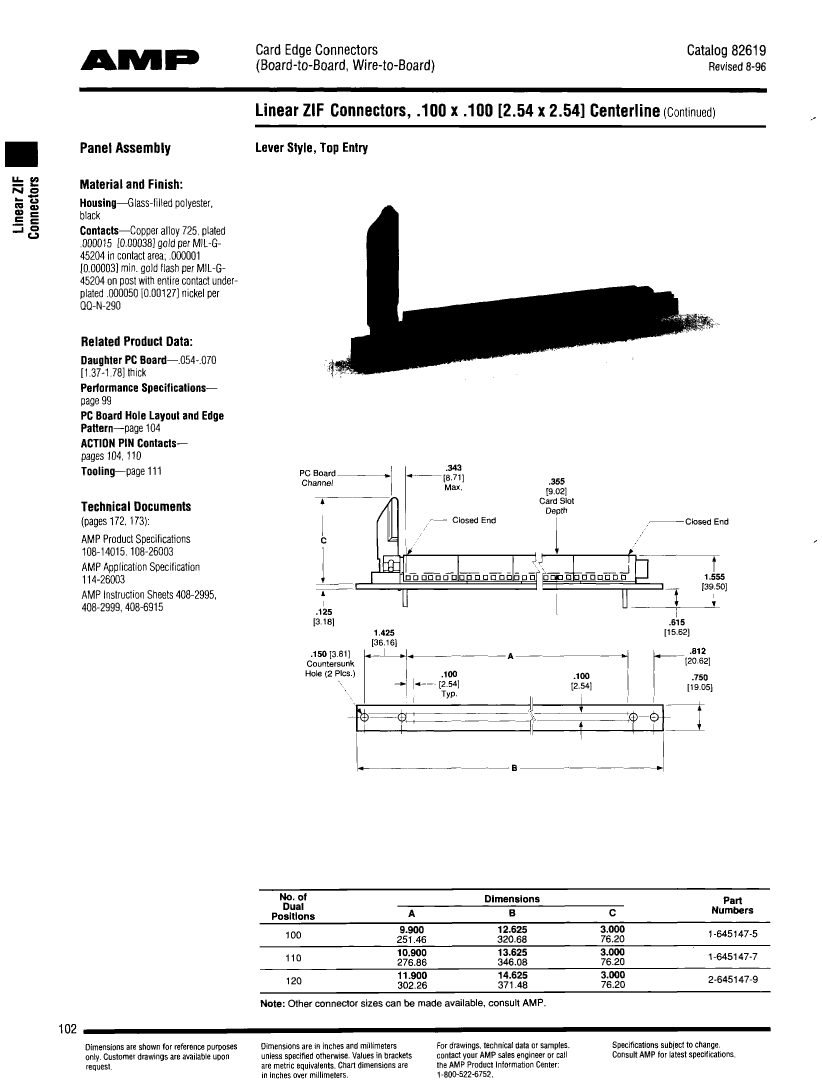

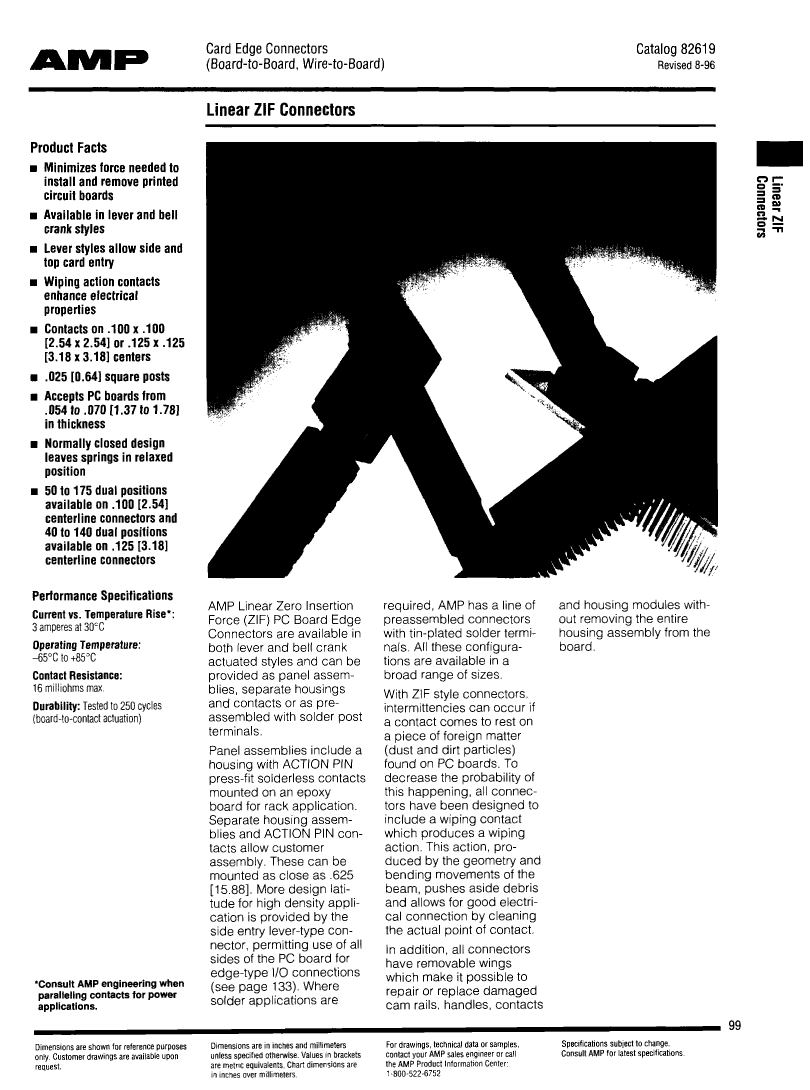

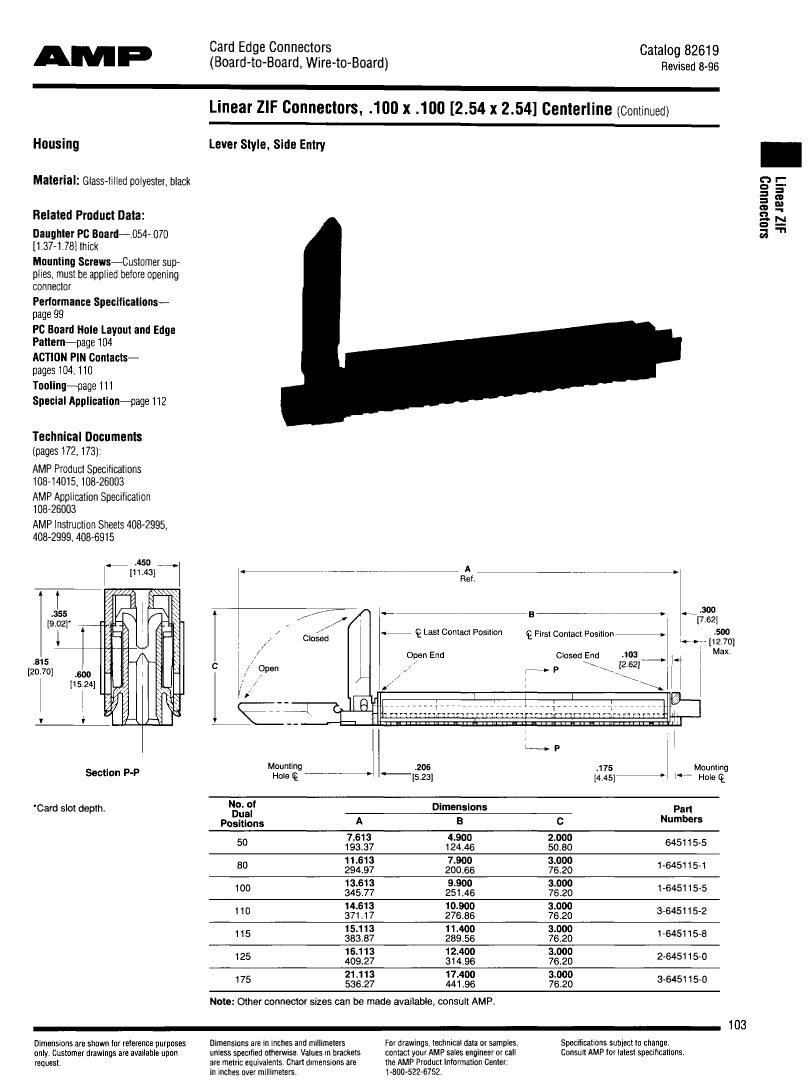

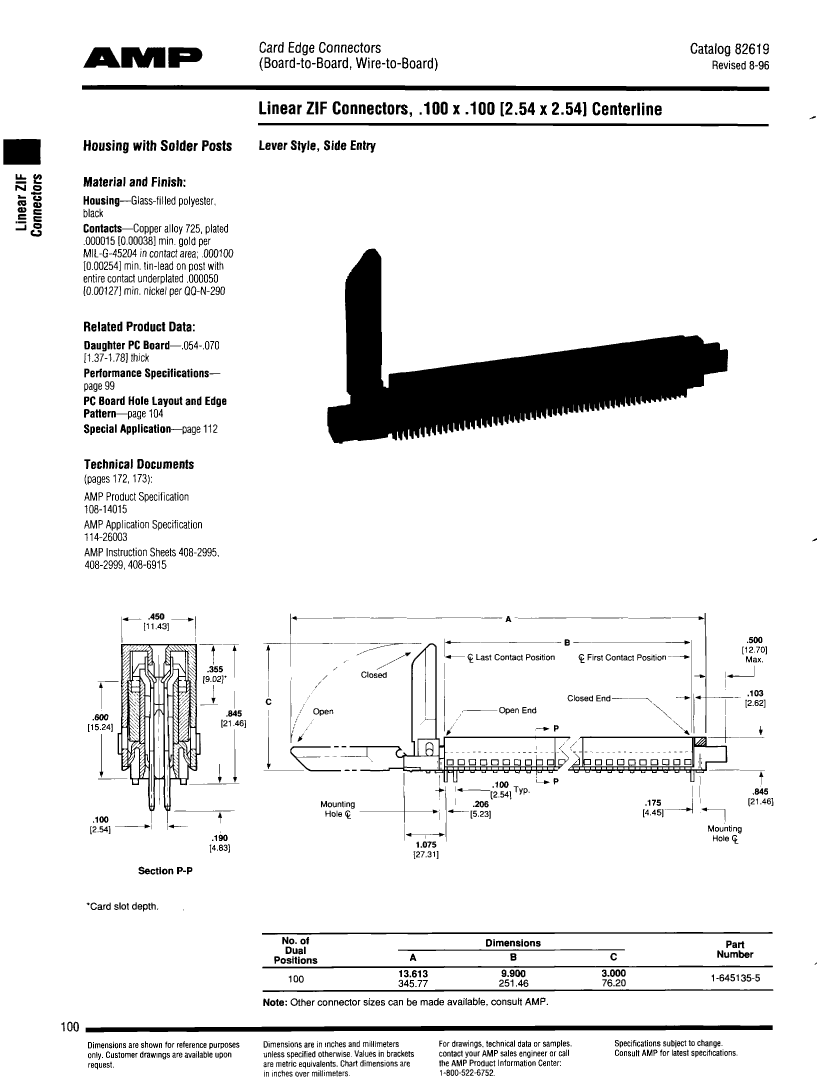

Preview

2-645142-3: DescriptionEDGE CONNECTOR,PCB MNT,RECEPT,112 CONTACTS,0.125 PITCH,WRAP POST TERMINAL; CategoryThe connector; File Size513KB，14 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

2-645142-3 Overview

EDGE CONNECTOR,PCB MNT,RECEPT,112 CONTACTS,0.125 PITCH,WRAP POST TERMINAL

2-645142-3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	compliant
Other features	NONE
body width	0.475 inch
subject depth	0.815 inch
body length	15.562 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
contact mode	RECTANGULAR
Contact resistance	16 mΩ
Contact style	BELLOWED TYPE
Durability	250 Cycles
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
Plug contact pitch	0.125 inch
Match contact row spacing	0.125 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.175 mm
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	1.49 inch
Terminal pitch	3.175 mm
Termination type	WIRE WRAP
Total number of contacts	112
Base Number Matches	1

Preview

Download Datasheet

View All

2-645142-3 Related Products

	2-645142-3	1-645147-5	645142-8	2-645147-9
Description	EDGE CONNECTOR,PCB MNT,RECEPT,112 CONTACTS,0.125 PITCH,WRAP POST TERMINAL	EDGE CONNECTOR,PCB MNT,RECEPT,100 CONTACTS,0.1 PITCH,WRAP POST TERMINAL	EDGE CONNECTOR,PCB MNT,RECEPT,52 CONTACTS,0.125 PITCH,WRAP POST TERMINAL	CONNECTOR, 240 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN
Reach Compliance Code	compliant	unknown	compliant	unknown
Other features	NONE	NONE	NONE	ACTION PIN, COMPATIBLE CONTACTS: 4-119311-1; 119196-6
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2
Terminal pitch	3.175 mm	2.54 mm	3.175 mm	2.54 mm
Total number of contacts	112	100	52	240
Is it Rohs certified?	conform to	conform to	conform to	-
body width	0.475 inch	0.75 inch	0.475 inch	-
subject depth	0.815 inch	0.94 inch	0.815 inch	-
body length	15.562 inch	12.625 inch	9.062 inch	-
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	-
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Contact resistance	16 mΩ	16 mΩ	16 mΩ	-
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	-
Durability	250 Cycles	250 Cycles	250 Cycles	-
Insulator color	BLACK	BLACK	BLACK	-
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	-
Plug contact pitch	0.125 inch	0.1 inch	0.125 inch	-
Match contact row spacing	0.125 inch	0.1 inch	0.125 inch	-
Number of connectors	ONE	ONE	ONE	-
PCB row number	2	2	2	-
Maximum operating temperature	85 °C	85 °C	85 °C	-
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
PCB contact row spacing	3.175 mm	2.54 mm	3.175 mm	-
Rated current (signal)	3 A	3 A	3 A	-
Guideline	UL	UL	UL	-
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	-
Terminal length	1.49 inch	2 inch	1.49 inch	-
Termination type	WIRE WRAP	WIRE WRAP	WIRE WRAP	-
