3-1437267-9

Description
56 CONTACT(S), FEMALE, RIGHT ANGLE SINGLE PART CARD EDGE CONN, SOLDER
CategoryThe connector
File Size117KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric View All

3-1437267-9 Online Shopping

Suppliers Part Number Price MOQ In stock
3-1437267-9 - - View Buy Now

3-1437267-9 Overview

56 CONTACT(S), FEMALE, RIGHT ANGLE SINGLE PART CARD EDGE CONN, SOLDER

3-1437267-9 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerTE Connectivity
Reach Compliance Codecompliant
Connector typeCARD EDGE CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
DIN complianceNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of rows loaded2
OptionsGENERAL PURPOSE
Terminal pitch3.96 mm
Termination typeSOLDER
Total number of contacts56
UL Flammability Code94V-0
Base Number Matches1

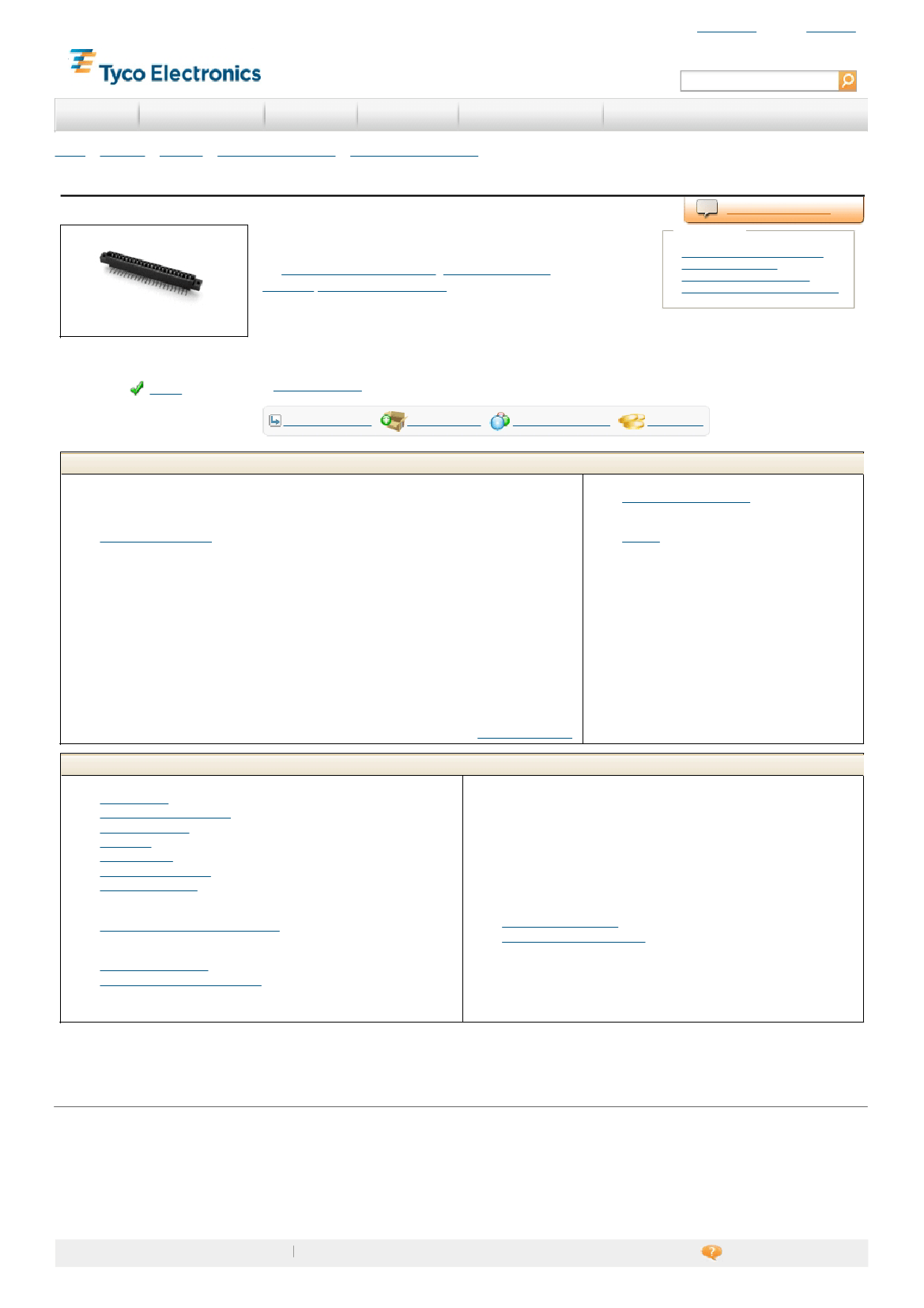

My Account
Tyco Electronics
(C hange)
Se a rch by Ke yword or Pa rt #
Products
Documentation
Resources
My Account
Customer Support
Home
>
Products
>
By Type
>
> .050 Inch C enterline
>
Product Feature Selector
> Product Details
A6D28RA29E Product Details
Live Product Chat
.100, .125, .156 Centerline Modified Bellows
Connectors
5 of 6 EU R oHS/ELV C om plia nt
(
Find R oHS C om plia nt
Alte rna te s
/
Sta te m e nt of C om plia nce
)
Quick Links
C heck Pricing & Availability
Search for Tooling
Product Feature Selector
C ontact Us About This Product
A6D28RA29E
(3-1437267-9)
T E I nternal N umber: 3 - 1 4 3 7 2 6 7 - 9
Product Highlights:
l
C onnector
l
3.96 mm C enterline
l
Row-to-Row Spacing = 5.08 mm
l
28 Dual Positions
l
PC B Mount Angle = Right Angle
View all Features
A dd to M y P art L is t
Reques t Sample
Find Similar P roduc ts
Buy P roduc t
Active
Documentation & Additional Information
Product Drawings:
l
None Available
Catalog Pages/Data Sheets:
l
card edge connectors
(PDF, English)
Product Specifications:
l
None Available
Application Specifications:
l
None Available
Instruction Sheets:
l
None Available
CAD Files:
l
None Available
List all Documents
Product Features
(Please use the Product Drawing for all design activity)
Product Type Features:
l
Product Type
= C onnector
l
Number of Dual Positions
= 28
l
PC B Mount Angle
= Right Angle
l
Post Type
= Solder
l
Mounting Ears
= With
l
Mounting Ear Position
= C entered
l
Mounting Ear Style
= With 3.18 [.125] C ross-Drilled Hole
Termination Related Features:
l
Termination Post Length (mm [in])
= 3.56 [0.140]
Body Related Features:
l
C enterline (mm [in])
= 3.96 [0.156]
l
Row-to-Row Spacing (mm [in])
= 5.08 [0.200]
l
C ard Slot Depth (mm [in]) = 7.62 [0.300]
Contact Related Features:
l
C ontact Base Material = High Strength C opper Alloy
l
C ontact Plating, Mating Area, Material = Gold (30)
Housing Related Features:
l
Housing Material = Thermoplastic - GF
l
Housing C olor = Black
l
Housing Flammability Rating = UL 94V-0
Industry Standards:
l
RoHS/ELV C ompliance
= ELV compliant, 5 of 6 C ompliant
l
Lead Free Solder Processes
= Wave solder capable to 240?C
Other:
l
Brand = Tyco Electronics
Additional Information:
l
Product Line Information
Related Products:
l
Tooling
