Product Specification
PE83502
Product Description
The PE83502 is a high-performance monolithic
UltraCMOS™
prescaler with a fixed divide ratio of 4. Its operating frequency
range is 1.5 GHz to 3.5 GHz. The PE83502 operates on a
nominal 3 V supply and draws only 12 mA. It is packaged in a
small 8-lead MSOP and is ideal for microwave PLL synthesis
solutions.
The PE83502 is manufactured on Peregrine’s UltraCMOS™
process, a patented variation of silicon-on-insulator (SOI)
technology on a sapphire substrate, offering the performance
of GaAs with the economy and integration of conventional
CMOS.

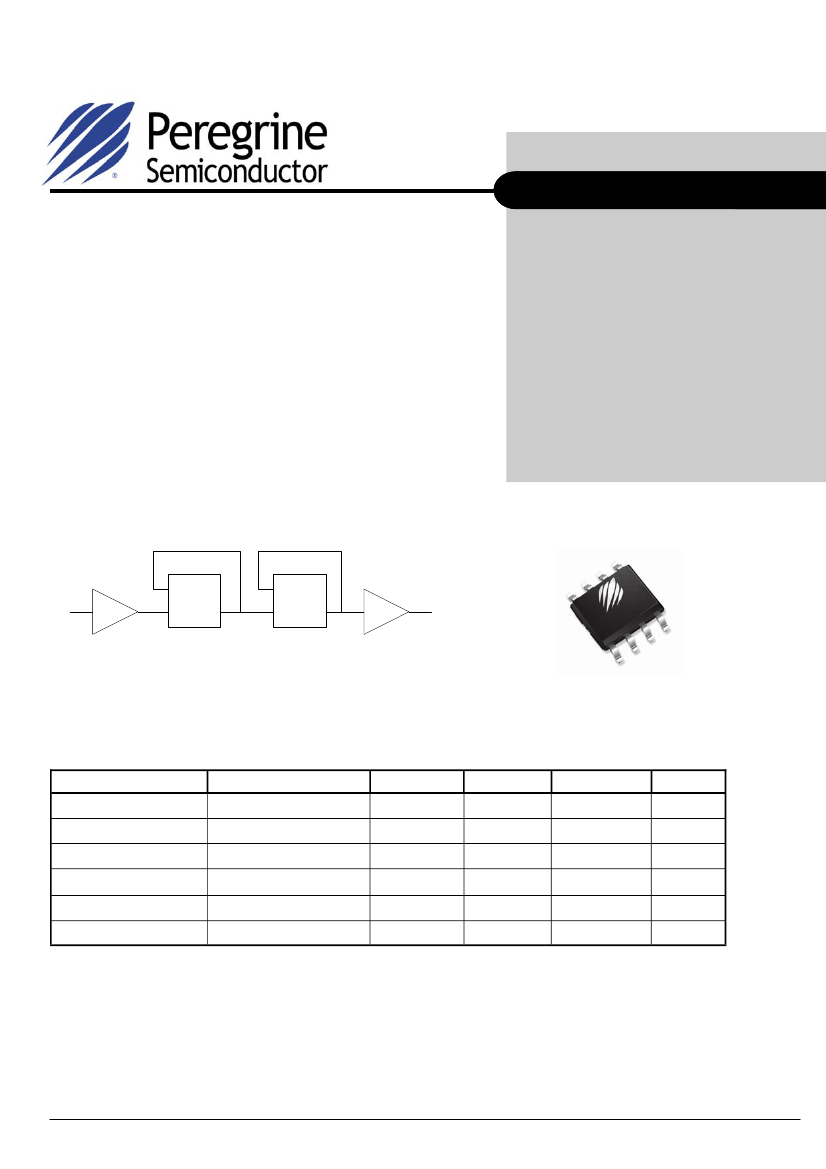

Figure 1. Functional Schematic Diagram
3.5 GHz Low Power UltraCMOS™
Divide-by-4 Prescaler
Military Operating Temperature Range
Features
•
High-frequency operation:
1.5 GHz to 3.5 GHz
•
Fixed divide ratio of 4
•
Low-power operation: 12 mA typical
@ 3 V across frequency
•
Small package: 8-lead MSOP
•
Low Cost
Figure 2. Package Type
8-lead MSOP
D
IN
Pre-Amp
Q
D
Q
OUT
Output
Buffer
CLK QB
CLK QB
Table 1. Electrical Specifications
(Z
S
= Z
L
= 50
Ω
)
2.85 V
≤
V
DD
≤
3.15 V; -55° C
≤
T
A
≤
125° C, unless otherwise specified
Parameter
Supply Voltage
Supply Current
Input Frequency (F
IN
)
Input Power (P
IN
)
Conditions
Minimum
2.85
Typical
3.0
13
Maximum
3.15
19
3.5
+10
+10
Units
V
mA
GHz
dBm
dBm
dBm
1.5
1500 MHz
≤
F
in
≤
3200 MHz
3200 MHz < F
in
≤
3500 MHz
-5
0
-5
Output Power
Document No. 70-0125-02
│
www.psemi.com
©2003-2006 Peregrine Semiconductor Corp. All rights reserved.
Page 1 of 8
PE83502
Product Specification
Figure 3. Pin Configuration (Top View)
Electrostatic Discharge (ESD) Precautions
When handling this UltraCMOS™ device, observe
the same precautions that you would use with
other ESD-sensitive devices. Although this device
contains circuitry to protect it from damage due to
ESD, precautions should be taken to avoid
exceeding the rating specified in Table 3.
Latch-Up Avoidance
Unlike conventional CMOS devices, UltraCMOS™
devices are immune to latch-up.
V
DD
1
8
GND
IN
2
7
OUT
PE83502
DEC
3
6
GND
GND
4
5
GND
Table 2. Pin Descriptions
Pin
No.
1
2
Pin
Name
V
DD
IN
Description
Power supply pin. Bypassing is required.
Input signal pin. Should be coupled with a
capacitor (eg 15 pF)
Power supply decoupling pin. Place a
capacitor as close as possible and connect
directly to the ground plane (eg 10 nF and
10 pF).
Ground pin. Ground pattern on the board
should be as wide as possible to reduce
ground impedance.
Ground pin.
Ground pin.
Divided frequency output pin. This pin
should be coupled with a capacitor (eg 100
pF).
Ground pin.
Device Functional Considerations
The PE83502 takes an input signal frequency
from 1.5 GHz to 3.5 GHz and produces an output
signal frequency one-fourth that of the supplied
input. In order for the prescaler to work properly,
several conditions need to be adhered to. It is
crucial that pin 3 be supplied with a bypass
capacitor to ground. In addition, the input and
output signals (pins 2 & 7, respectively) need to
be AC coupled via an external capacitor as shown
in the test circuit in Figure 4.
The ground pattern on the board should be made
as wide as possible to minimize ground
impedance.
3
DEC
4
5
6
7
8
GND
GND
GND
OUT
GND
Table 3. Absolute Maximum Ratings
Symbol
V
DD
T
ST
T
OP
V
ESD
P
INMAX
Parameter/Conditions
Supply voltage
Storage temperature
range
Operating temperature
range
ESD voltage (Human
Body Model)
Maximum input power
Min
Max
4.0
Units
V
°C
°C
V
dBm
-65
-55
150
125
250
15
Absolute Maximum Ratings are those values
listed in the above table. Exceeding these values
may cause permanent device damage. Exposure
to absolute maximum ratings for extended periods
may affect device reliability.
©2003-2006 Peregrine Semiconductor Corp. All rights reserved.
Page 2 of 8
Document No. 70-0125-02
│
UltraCMOS™ RFIC Solutions
PE83502
Product Specification
Figure 4. Test Circuit Block Diagram
VDD
3 V +/- 0.15 V
+
-
10 pF
1000 pF
1
8
7
100 pF
50 Ω
Spectrum
Analyzer
50 Ω
15 pF
2
PE83502
3
Signal Generator
4
5
6
10 nF
10 pF
Figure 5. High Frequency System Application
The wideband frequency of operation of the
PE83502
makes it an ideal part for use in a
DBS downconverter system.
INPUT FROM
DBS 1
ST
IF
BPF
SAW
AGC
FM
DEMOD
BASEBAND
OUTPUT
DIVIDE-BY-4
PE3293
PE83502
LOW NOISE
PLL SYNTH
LPF
Document No. 70-0125-02
│
www.psemi.com
©2003-2006 Peregrine Semiconductor Corp. All rights reserved.
Page 3 of 8
PE83502
Product Specification

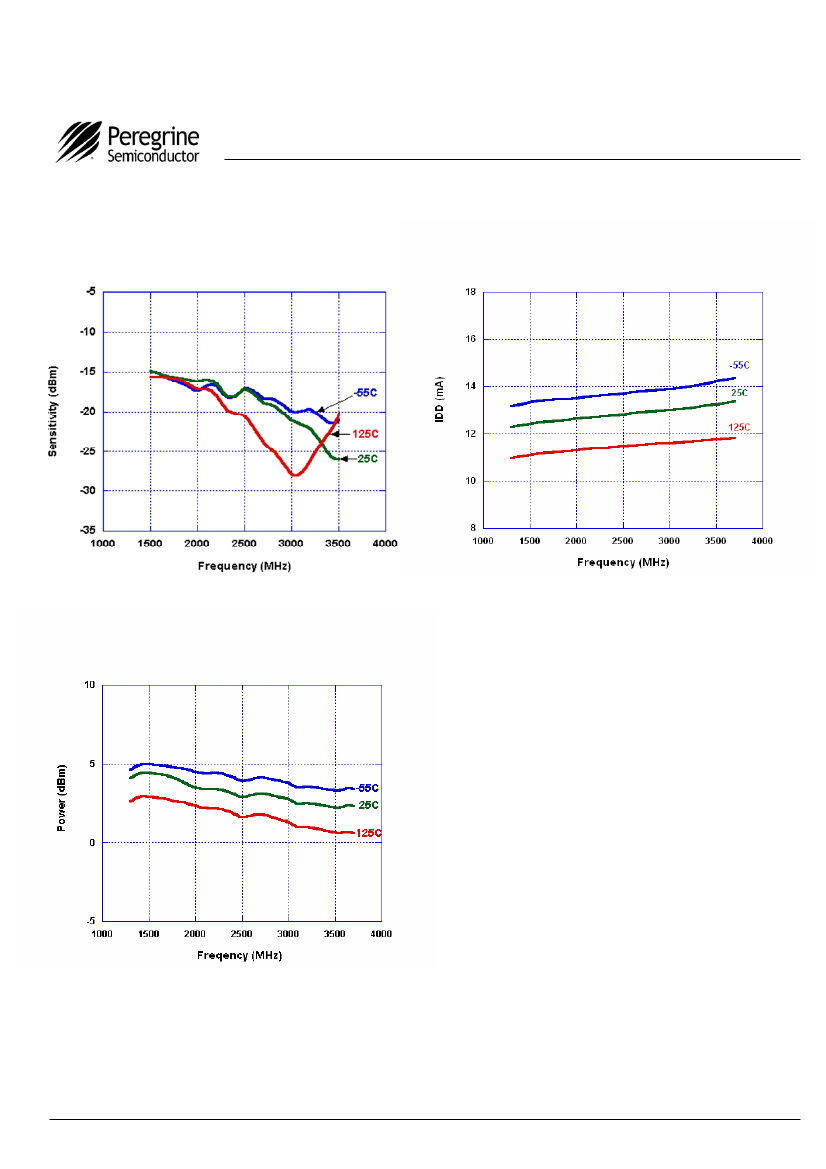

Typical Performance Data: V
DD
= 3.0 V
Figure 6. Input Sensitivity
Figure 7. Device Current
Figure 8. Output Power
©2003-2006 Peregrine Semiconductor Corp. All rights reserved.
Page 4 of 8
Document No. 70-0125-02
│
UltraCMOS™ RFIC Solutions
PE83502
Product Specification
Evaluation Kit
Evaluation Kit Operation
The MSOP Prescaler Evaluation Board was designed
to help customers evaluate the
PE83502
Divide-by-4
Prescaler. On this board, the device input (pin 2) is
connected to connector J1 through a 50
Ω
transmission
line. A series capacitor (C3) provides the necessary
DC block for the device input. It is important to note
that the value of this capacitance will impact the
performance of the device. A value of 15pF was found
to be optimal for this board layout; other applications
may require a different value.
The device output (pin 7) is connected to connector J3
through a 50
Ω
transmission line. A series capacitor
(C1) provides the necessary DC block for the device
output. Note that this capacitor must be chosen to
have a low impedance at the desired output frequency
the device. The value of 100pF was chosen to provide
a wide operating range for the evaluation board.
The board is constructed of a two-layer FR4 material
with a total thickness of 0.031”. The bottom layer
provides ground for the RF transmission lines. The
transmission lines were designed using a coplanar
waveguide above ground plane model with trace width
of 0.030”, trace gaps of 0.007”, dielectric thickness of
0.028”, metal thickness of 0.0014” and
ε
r
of 4.4. Note
that the predominate mode for these transmission lines
is coplanar waveguide.
J2 provides DC power to the device. Starting from the
lower left pin, the second pin to the right (J2-3) is
connected to the device VDD pin (1). Two decoupling
capacitors (10 pF, 1000 pF) are included on this trace.
It is the responsibility of the customer to determine
proper supply decoupling for their design application.
The DEC pin (3) must be connected to a low
impedance AC ground for proper device operation. On
the board, two decoupling capacitors (C6 = 10 nF, C4 =
10 pF), located on the back of the board, perform this
function.
Applications Support
If you have a problem with your evaluation kit or if you
have applications questions call (858) 731-9400 and
ask for applications support. You may also contact us
by fax or e-mail:
Fax:
(858) 731-9499
E-Mail:
help@psemi.com

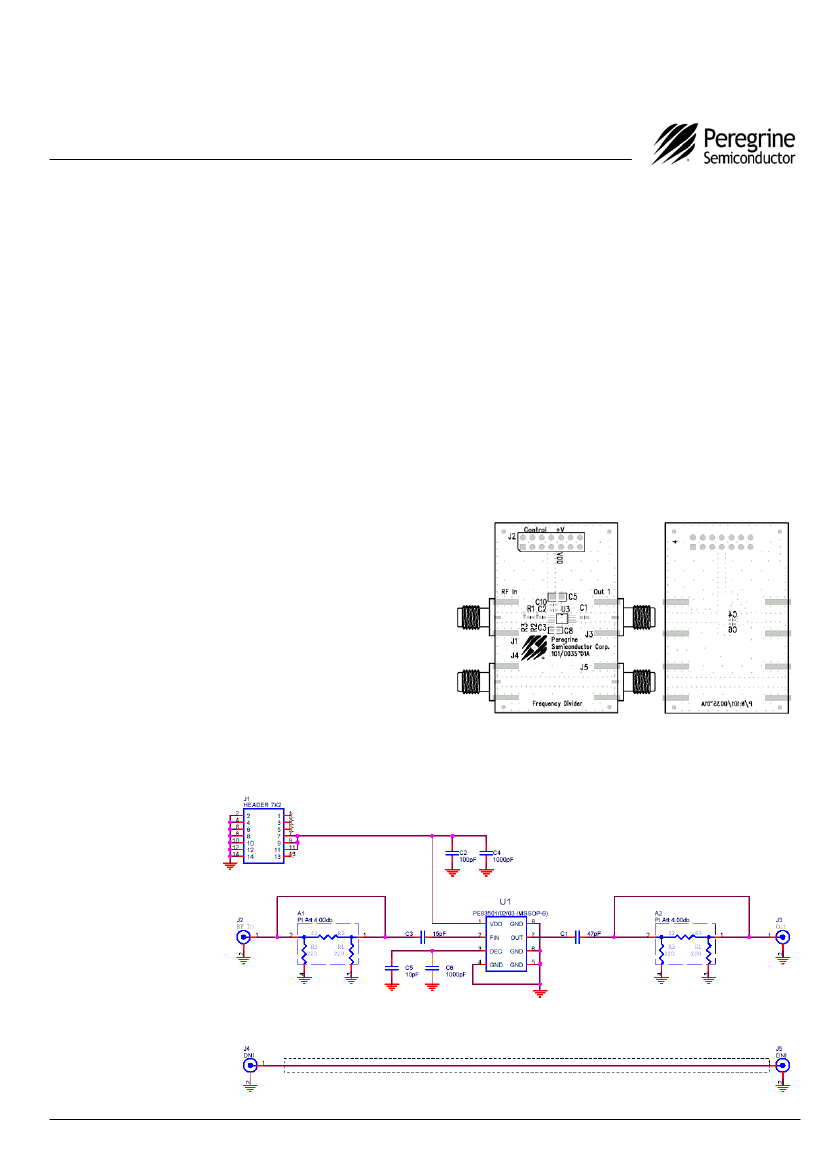

Figure 9. Evaluation Board Layouts
Peregrine Specification 101/0035
Figure 10. Evaluation Board Schematic
Peregrine Specification 102/0200
Document No. 70-0125-02
│
www.psemi.com
©2003-2006 Peregrine Semiconductor Corp. All rights reserved.
Page 5 of 8
