74AC11828N datasheet, PDF - EEWORLD Datasheet

74AC11828N: DescriptionBus Driver, 1-Func, 10-Bit, Inverted Output, CMOS, PDIP28; Categorylogic; File Size245KB，5 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

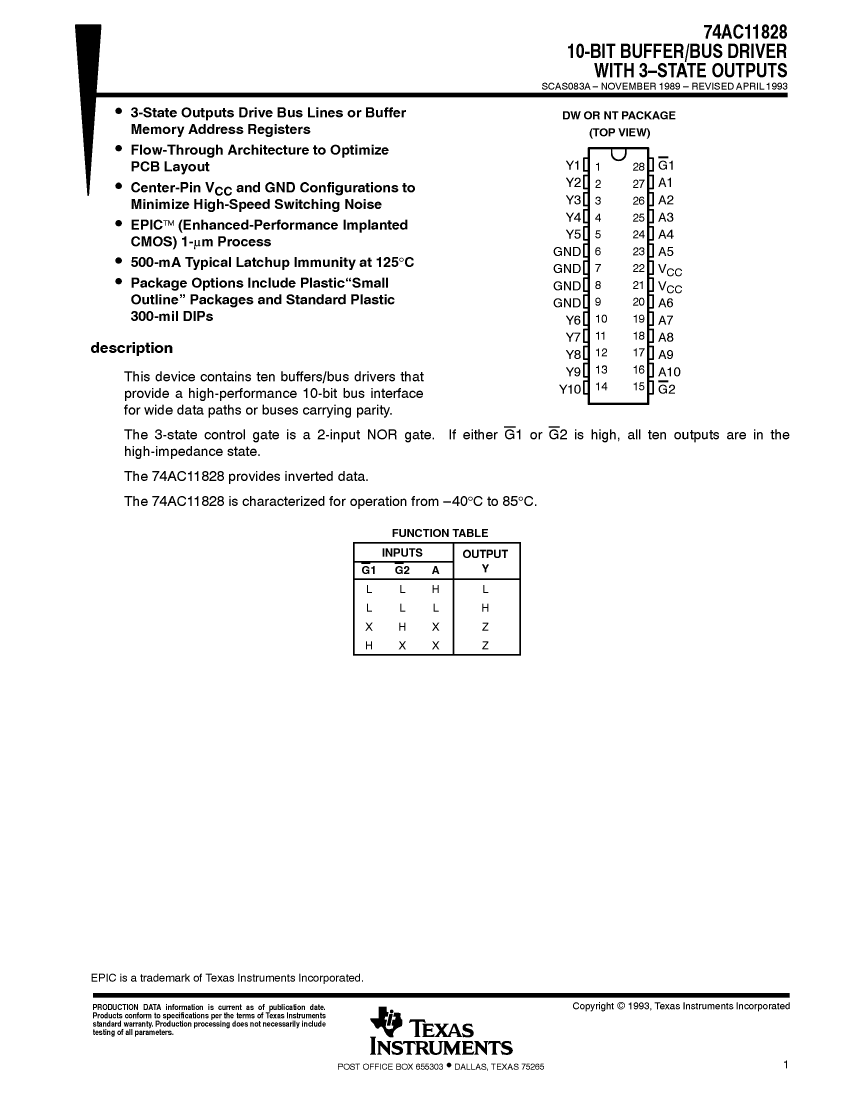

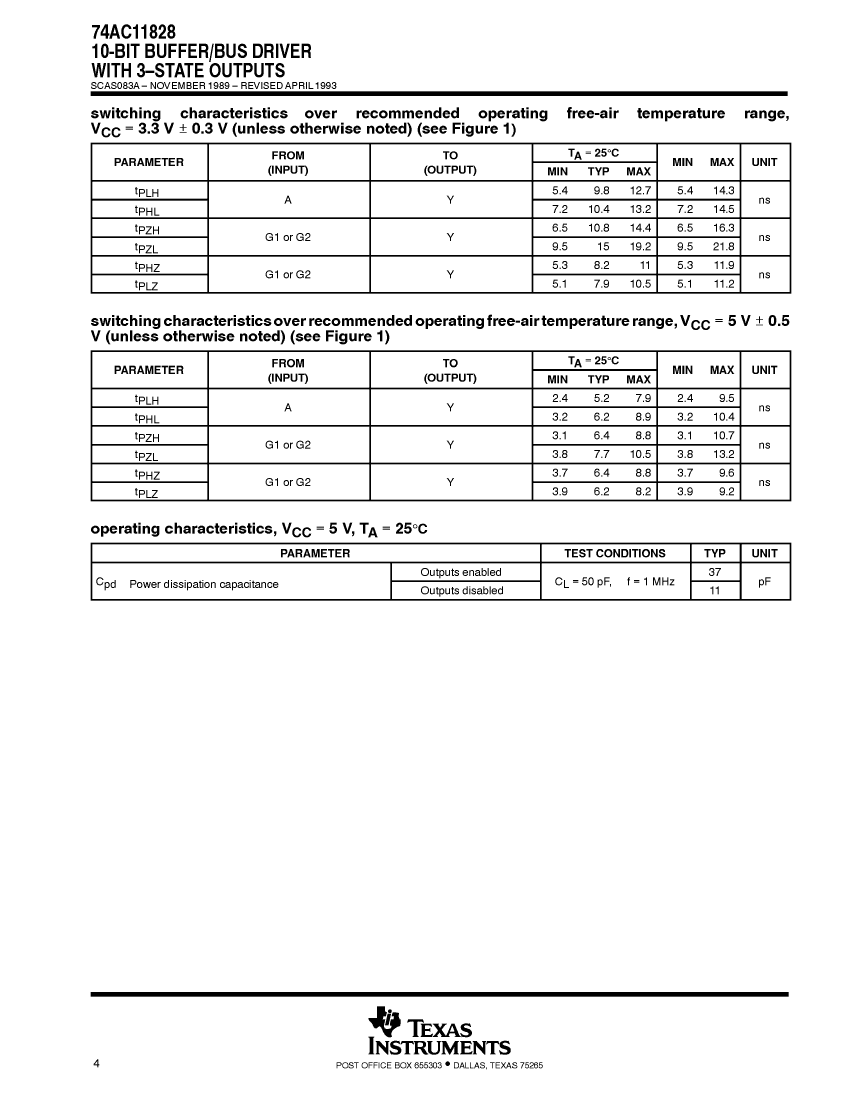

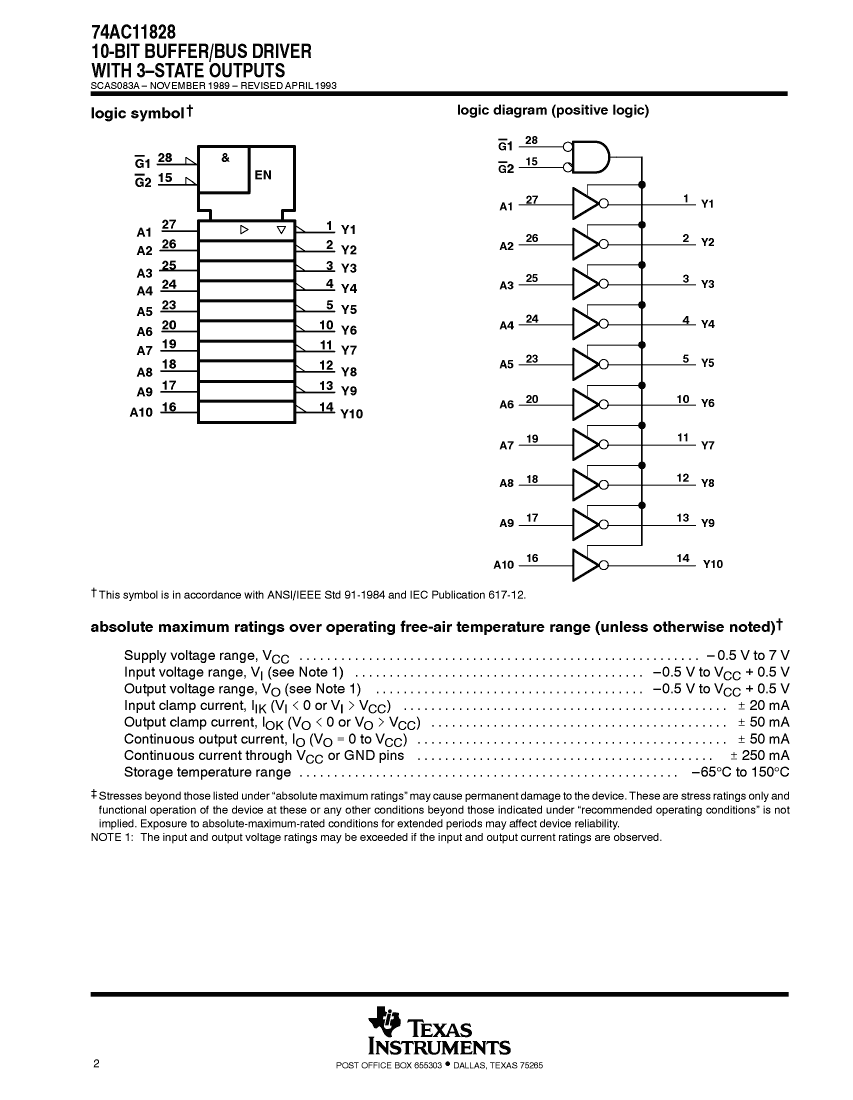

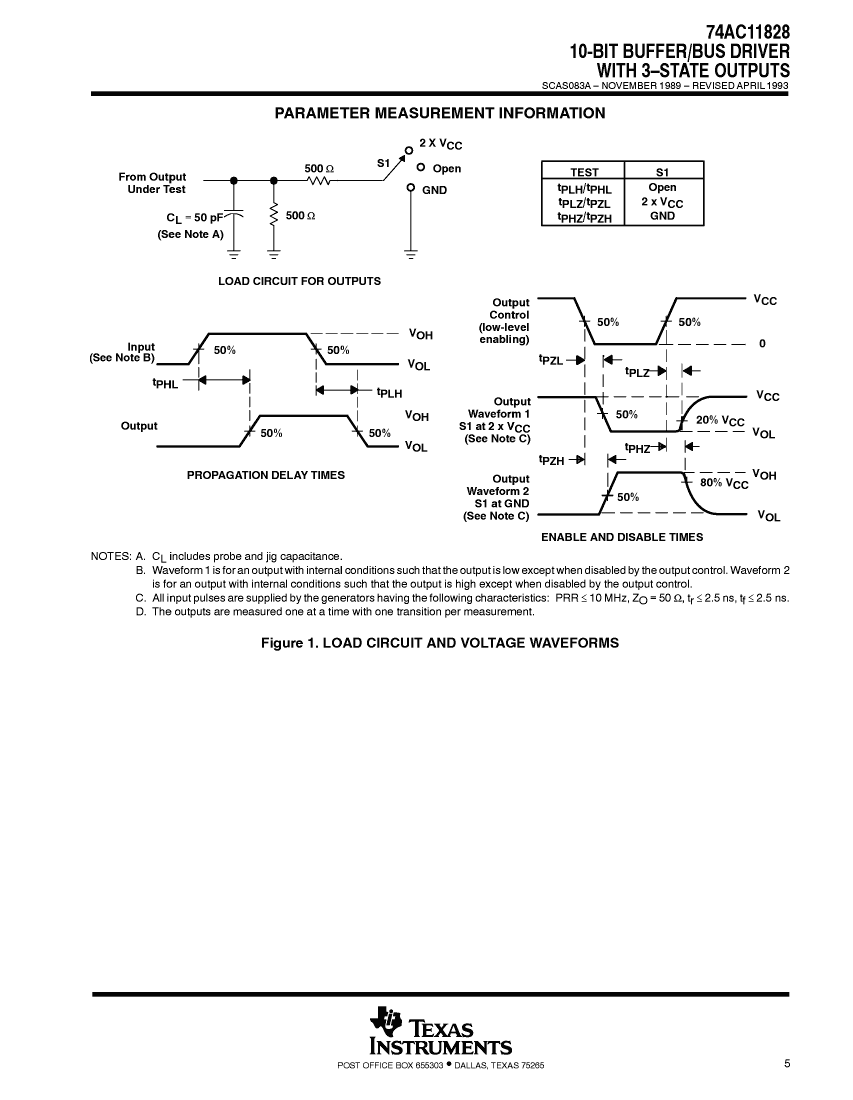

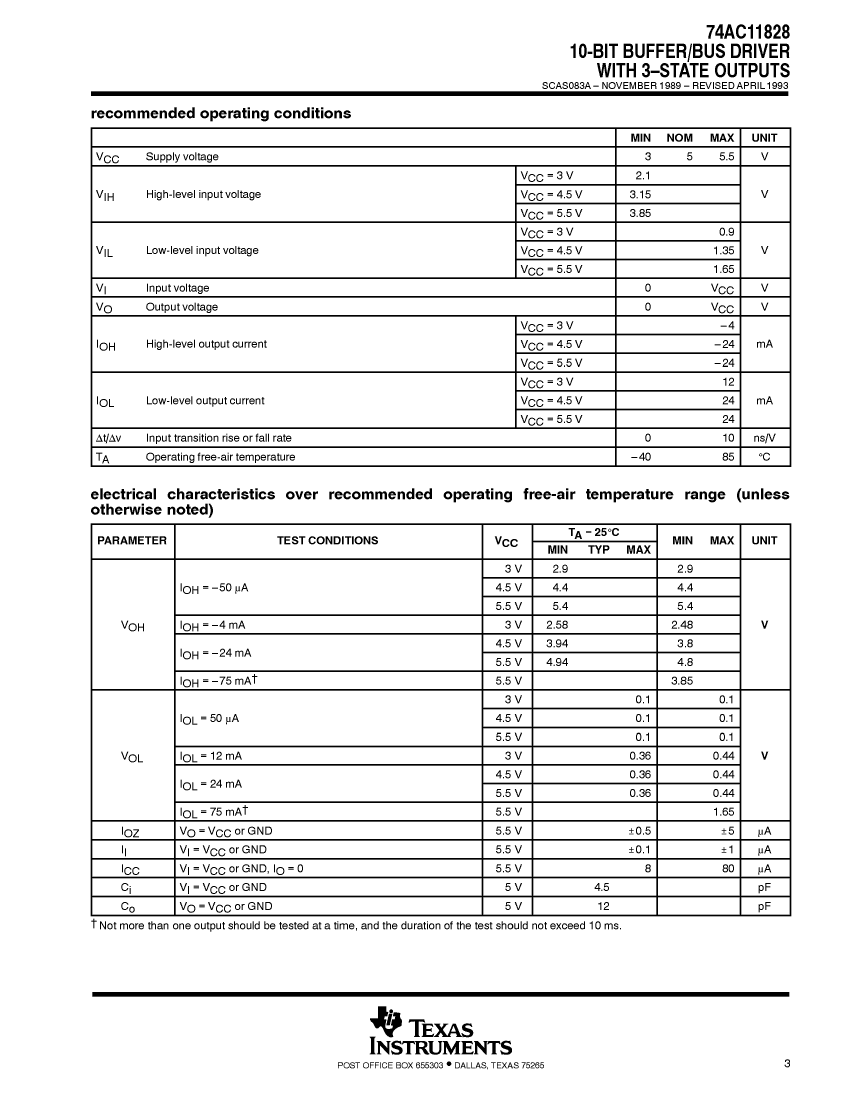

74AC11828N Overview

Bus Driver, 1-Func, 10-Bit, Inverted Output, CMOS, PDIP28

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	DIP, DIP28,.6
Reach Compliance Code	unknown
Control type	ENABLE LOW
JESD-30 code	R-PDIP-T28
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.024 A
Number of digits	10
Number of functions	1
Number of terminals	28
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	3.3/5 V
Prop。Delay @ Nom-Sup	14.5 ns
Certification status	Not Qualified
Minimum supply voltage (Vsup)	3 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

	74AC11828N	74AC11828J
Description	Bus Driver, 1-Func, 10-Bit, Inverted Output, CMOS, PDIP28	Bus Driver,
Maker	Rochester Electronics	Rochester Electronics
Reach Compliance Code	unknown	unknown
Logic integrated circuit type	BUS DRIVER	BUS DRIVER
Base Number Matches	1	1
