7010.1880.12: DescriptionElectric Fuse, Very Fast Blow, 3A, 250VAC, 125VDC, 50A (IR), Through Hole, ROHS COMPLIANT; CategoryCircuit protection; File Size123KB，1 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

7010.1880.12 Overview

Electric Fuse, Very Fast Blow, 3A, 250VAC, 125VDC, 50A (IR), Through Hole, ROHS COMPLIANT

7010.1880.12 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SCHURTER
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	RATED BREAKING CAPACITY AT 125 VDC: 300 A
Fusing characteristics	VERY FAST
body height	10 mm
Body length or diameter	3.8 mm
Circuit protection type	ELECTRIC FUSE
JESD-609 code	e3
Joule integral nominal	1 J
Installation features	THROUGH HOLE
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	BAG
physical size	3.8mm x 10mm
Pre-discharge time - minutes	100 ms
Rated breaking capacity	50 A
Rated current	3 A
Rated voltage (AC)	250 V
Rated voltage (DC)	125 V
Guideline	CSA; UL
surface mount	NO
Terminal surface	Tin (Sn)
Terminal shape	PIN WIRE
Base Number Matches	1

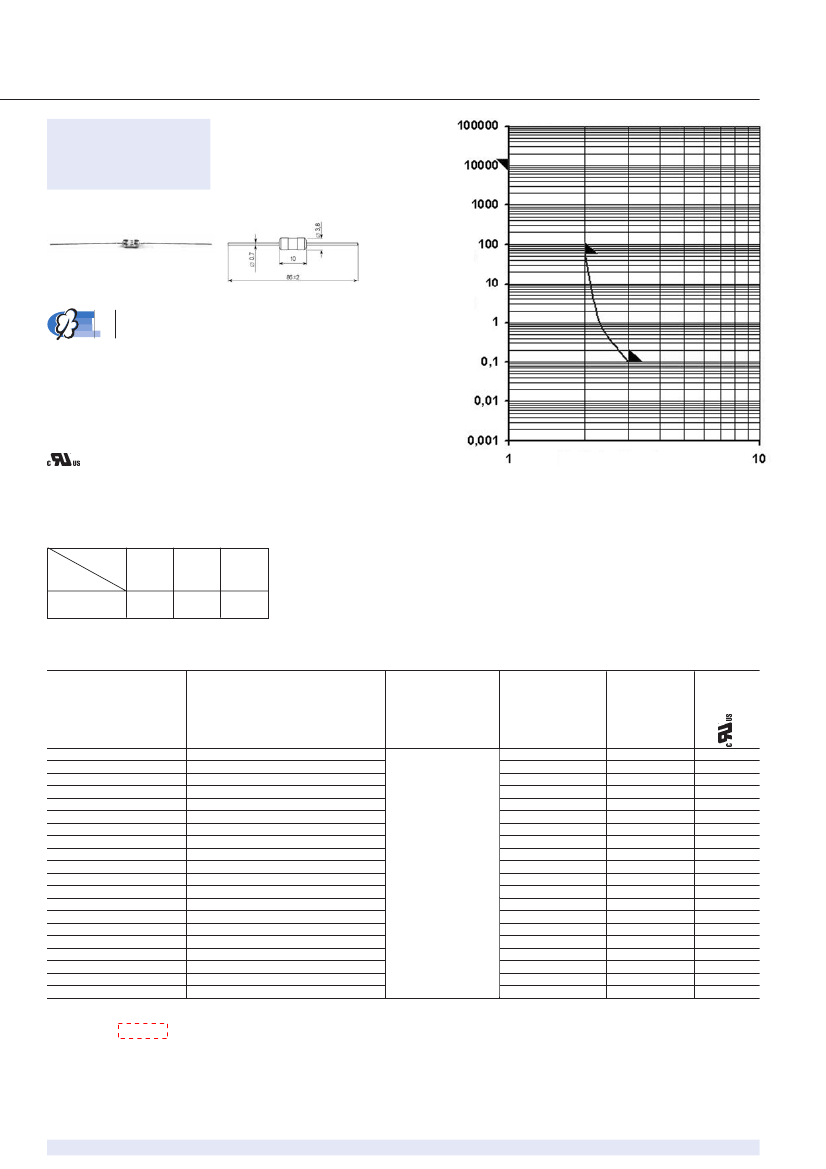

Preview

Download Datasheet

View All

FUSES

/ SICHERUNGEN

Non resettable fuses

Subminiature Fuses

Type 172593

quick-acting F

172593

100

Standards

UL 248-14

Approvals

Pre-arcing time in seconds t

Multiple of rated current I

Pre-arcing time/current characteristic (at T

23 °C)

Rated

current I

n · I

1 · I

t>4h

2 · I

3 · I

Time

≤

60 s t

≤

0,1 s

Order No.

Rated current I

Rated voltage U

Breaking capacity

Voltage drop

/ bei

1150

735

950

875

870

545

520

920

725

205

150

185

125

135

110

145

220

130

105

Pre-arcing l

max. 10 · I

0,00011

0,00035

0,00039

0,00079

0,0013

0,0029

0,0071

0,021

0,057

0,069

0,059

0,095

0,12

0,29

0,48

0,95

1,2

1,8

3,4

7,7

Approvals

7010.1740.XX

7010.1750.XX

7010.1760.XX

7010.1770.XX

7010.1780.XX

7010.1790.XX

7010.1910.XX

7010.1920.XX

7010.1930.XX

7010.1800.XX

7010.1810.XX

7010.1820.XX

7010.1830.XX

7010.1840.XX

7010.1850.XX

7010.1860.XX

7010.1870.XX

7010.1880.XX

7010.1890.XX

7010.1900.XX

Index for packaging

Packaging see page 81

100

125

150

200

300

400

500

600

800

1,25

1,6

2,5

mA / 250 V

A / 250 V

50 A / 250 V AC

p.f. /

cos 0,95

50 A / 125 V DC

p.f. /

cos 0,95

300 A / 125 V AC

p.f. /

cos 0,95

300 A / 125 V DC

p.f. /

cos 1

•

www.schurter.com

7010.1880.12 Related Products

	7010.1880.12	7010.1830.12	7010.1750.12	7010.1800.12	7010.1870.12	7010.1890.12	7010.1930.12	7010.1900.12	8104LBMB080GTN38F0
Description	Electric Fuse, Very Fast Blow, 3A, 250VAC, 125VDC, 50A (IR), Through Hole, ROHS COMPLIANT	Electric Fuse, Very Fast Blow, 1A, 250VAC, 125VDC, 50A (IR), Through Hole, ROHS COMPLIANT	Electric Fuse, Very Fast Blow, 0.063A, 250VAC, 125VDC, 50A (IR), Through Hole, ROHS COMPLIANT	Electric Fuse, Very Fast Blow, 0.5A, 250VAC, 125VDC, 50A (IR), Through Hole, ROHS COMPLIANT	Electric Fuse, Very Fast Blow, 2.5A, 250VAC, 125VDC, 50A (IR), Through Hole, ROHS COMPLIANT	Electric Fuse, Very Fast Blow, 4A, 250VAC, 125VDC, 50A (IR), Through Hole, ROHS COMPLIANT	Electric Fuse, Very Fast Blow, 0.4A, 250VAC, 125VDC, 50A (IR), Through Hole, ROHS COMPLIANT	Electric Fuse, Very Fast Blow, 5A, 250VAC, 125VDC, 50A (IR), Through Hole, ROHS COMPLIANT	CAP,AL2O3,100MF,10VDC,20% -TOL,20% +TOL
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	,
Reach Compliance Code	compliant	compli	compliant	compliant	compliant	compliant	compliant	compliant	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
method of packing	BAG	BAG	BAG	BAG	BAG	BAG	BAG	BAG	Bulk
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	-
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	-
Maker	SCHURTER	-	SCHURTER	SCHURTER	SCHURTER	SCHURTER	SCHURTER	SCHURTER	-
Other features	RATED BREAKING CAPACITY AT 125 VDC: 300 A	RATED BREAKING CAPACITY AT 125 VDC: 300 A	RATED BREAKING CAPACITY AT 125 VDC: 300 A	RATED BREAKING CAPACITY AT 125 VDC: 300 A	RATED BREAKING CAPACITY AT 125 VDC: 300 A	RATED BREAKING CAPACITY AT 125 VDC: 300 A	RATED BREAKING CAPACITY AT 125 VDC: 300 A	RATED BREAKING CAPACITY AT 125 VDC: 300 A	-
Fusing characteristics	VERY FAST	VERY FAST	VERY FAST	VERY FAST	VERY FAST	VERY FAST	VERY FAST	VERY FAST	-
body height	10 mm	10 mm	10 mm	10 mm	10 mm	10 mm	10 mm	10 mm	-
Body length or diameter	3.8 mm	3.8 mm	3.8 mm	3.8 mm	3.8 mm	3.8 mm	3.8 mm	3.8 mm	-
Circuit protection type	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	-
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	-
Installation features	THROUGH HOLE	THROUGH HOLE	THROUGH HOLE	THROUGH HOLE	THROUGH HOLE	THROUGH HOLE	THROUGH HOLE	THROUGH HOLE	-
physical size	3.8mm x 10mm	3.8mm x 10mm	3.8mm x 10mm	3.8mm x 10mm	3.8mm x 10mm	3.8mm x 10mm	3.8mm x 10mm	3.8mm x 10mm	-
Pre-discharge time - minutes	100 ms	100 ms	100 ms	100 ms	100 ms	100 ms	100 ms	100 ms	-
Rated breaking capacity	50 A	50 A	50 A	50 A	50 A	50 A	50 A	50 A	-
Rated current	3 A	1 A	0.063 A	0.5 A	2.5 A	4 A	0.4 A	5 A	-
Rated voltage (AC)	250 V	250 V	250 V	250 V	250 V	250 V	250 V	250 V	-
Rated voltage (DC)	125 V	125 V	125 V	125 V	125 V	125 V	125 V	125 V	-
Guideline	CSA; UL	CSA; UL	CSA; UL	CSA; UL	CSA; UL	CSA; UL	CSA; UL	CSA; UL	-
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	-
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	-
Terminal shape	PIN WIRE	PIN WIRE	PIN WIRE	PIN WIRE	PIN WIRE	PIN WIRE	PIN WIRE	PIN WIRE	-
Base Number Matches	1	1	1	1	1	1	1	1	-
