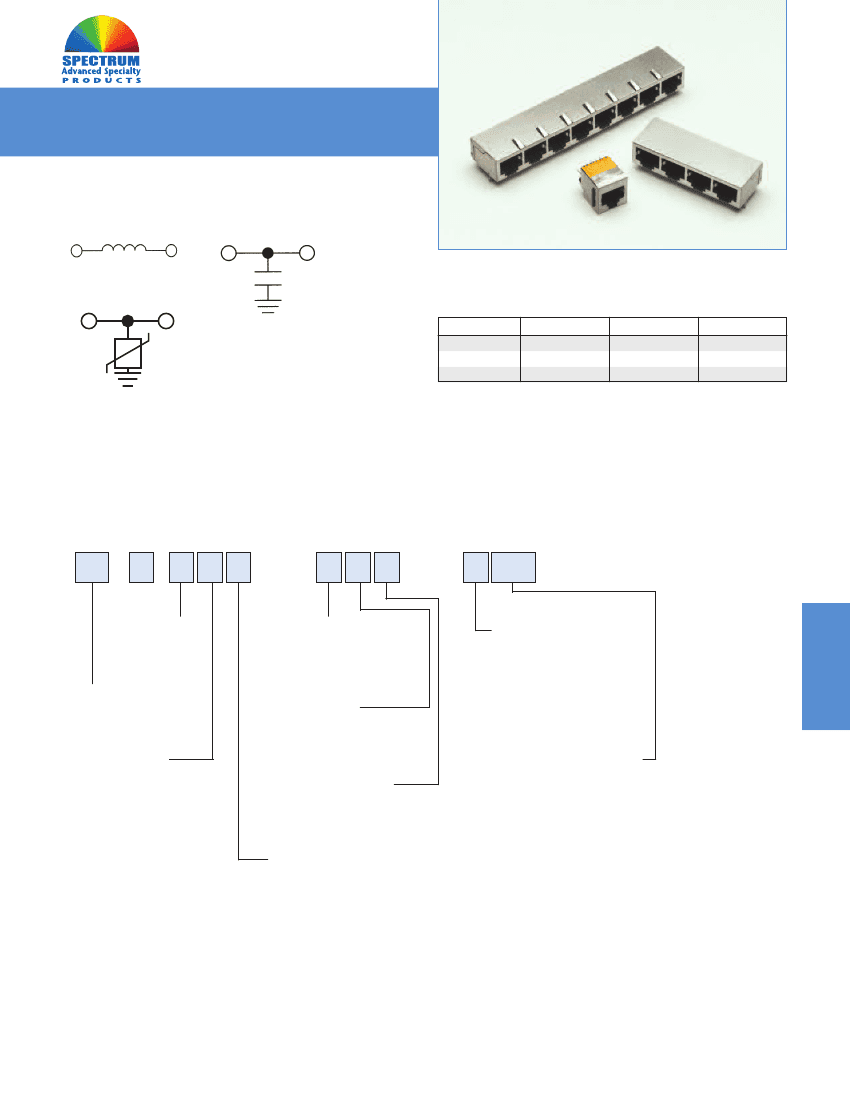

Filtered Modular
Jack Connectors
Protecting signals from electromagnetic interference
(EMI) is now more important than ever. Spectrum gives
you more choices in keeping your signals clean and free
of EMI. Whatever the level of protection your application
requires, we offer signal conditioning products that meet
varied levels of price and performance.
These compact, low-cost, filtered printed circuit
board RJ45 modular jack connectors from Spectrum
offer an inexpensive way to protect equipment from
conducted and radiated electromagnetic interference
(EMI), while meeting all appropriate performance
requirements. Offering compact size and high reliability,
these new connectors are fully intermateable and
interchangeable with existing standard product. The
low profile and narrow width of the multi-port style
allows more ports to be packed into less space.
Filtered versions can be supplied in shielded or
unshielded versions. Redundant shielding tabs ensure
that a low impedance ground path is maintained
across the interface. These flame retardant polyester
thermoplastic connectors are compatible with wave
solder environments, and utilize duplex plated
contacts with solder tails.
Modular jack connectors assist with FCC Part 15
A & B; and CISPR 22 compliance.
Applications for this type of connector are widely
diversified and include: LANs, WANs, network cards,
broadband transmission equipment, workstations,
peripherals, fax/modems, copy machines and
multiplexing.

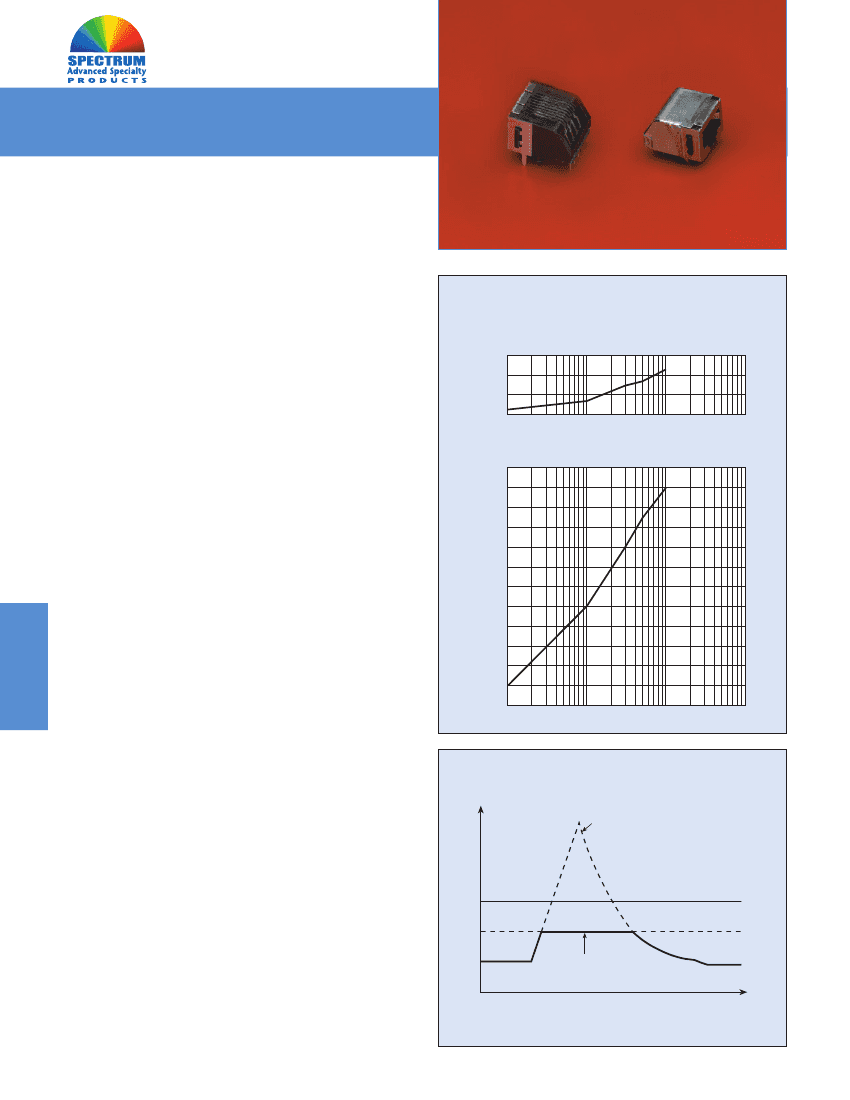

Typical Impedance vs. Frequency
(Ferrite Version)
Impedance (ohm)
30
20
10
0
1
10
100
Frequency (MHz)
1000
8-Position
120
110
100
90
80
70
60
Impedance (ohm)
50
40
30
20
10
0
1
Multi-Port
Features
I
I
I
I
I
I
I
I
I
Voltage
RoHS compliant
Lower installed cost
Assists with FCC Part 15 A & B; and CISPR 22
compliance
Drop-in replacement, matched footprint
All circuit lines protected
Inductor, capacitor or ESD versions
Unshielded or shielded versions
Select lead versions available
High temperature versions available
for reflow processes
10
100
Frequency (MHz)
1000
Filtered Connectors
Typical Time Voltage Curves
(ESD Version)
ESD Transient Spike
Waveform
System Voltage Limit
Clamping Voltage
Clamped Waveform
Time
Typical Time-Voltage Curve of Transient Spike on Integrated
Protected Connector with Capacitance (Parts with Working
Voltage Code starting with 0)
189
SPECTRUM ADVANCED SPECIALTY PRODUCTS
• 8061 Avonia Rd. • Fairview, PA 16415 • Ph: 814-474-1571 • Fax: 814-474-3110 • www.SpecEMC.com
SPECTRUM CONTROL GmbH
• Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58
Filtered Modular
Jack Connectors
Equivalent Circuit
Ferrite Version
Capacitive Version
ESD Version
Minimum Insertion Loss (dB)
(Capacitive Version)
Part Number
20pF
50pF
100pF
100MHz
––
––
4
500MHz
4
11
15
1000MHz
8
15
20
This part number represents a RoHS compliant 8 position/
1 port filtered modular jack connector that can be mounted
at a right angle. It has panel stops, is shielded, has 50u gold
contact plating and provides capacitive filtering with a value
of 100pF and a tolerance of ±20%.
Ordering Information
Example:
56FA1A-111-2003
56
F
A 1 A
-
1
1 1
-
2 003
0
= None
1
= Ferrite****
2
= Capacitive
3
= ESD***
4
= Custom/Special
Modular
Jack
0
= Without Panel Stops
1
= With Panel Stops**
0
= Unshielded*
1
= Shielded
0
= Standard - 15u Gold
1
= 50u Gold
A
= Right Angle
B
= Vertical (single port only)*
Panel Stops
Filtering
RoHS
Compliant
Shielding
1
= 8 Position/1 Port
2
= 8 Position/2 Port
3
= 8 Position/4 Port
4
= 8 Position/6 Port
5
= 8 Position/8 Port
Shell Size
Contact Plating
Configuration
000
= None
001
= 20 pF ±20%
002
= 50 pF ±20%
003
= 100 pF ±20%
1XX=
Capacitive Select Load
2XX=
ESD Select Load
3XX=
Custom/Special
Capacitance/ESD Value
* Capacitive and ESD option not available for vertical and unshielded mod jacks
** Not available on multiport versions
*** Customer to specify working voltage or clamping voltage for protected lines
***
Vertical configurations & versions without panel stops are not available with ferrite.
Note 1: Other capacitance values are available. Consult factory.
Note 2: Consult factory for mechanical drawing of part and PCB layout.
