5962-8984105LA datasheet, PDF - EEWORLD Datasheet

5962-8984105LA: DescriptionIC EE PLD, 15 ns, CDIP24, CERAMIC, DIP-24, Programmable Logic Device; CategoryProgrammable logic Programmable logic devices; File Size496KB，13 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

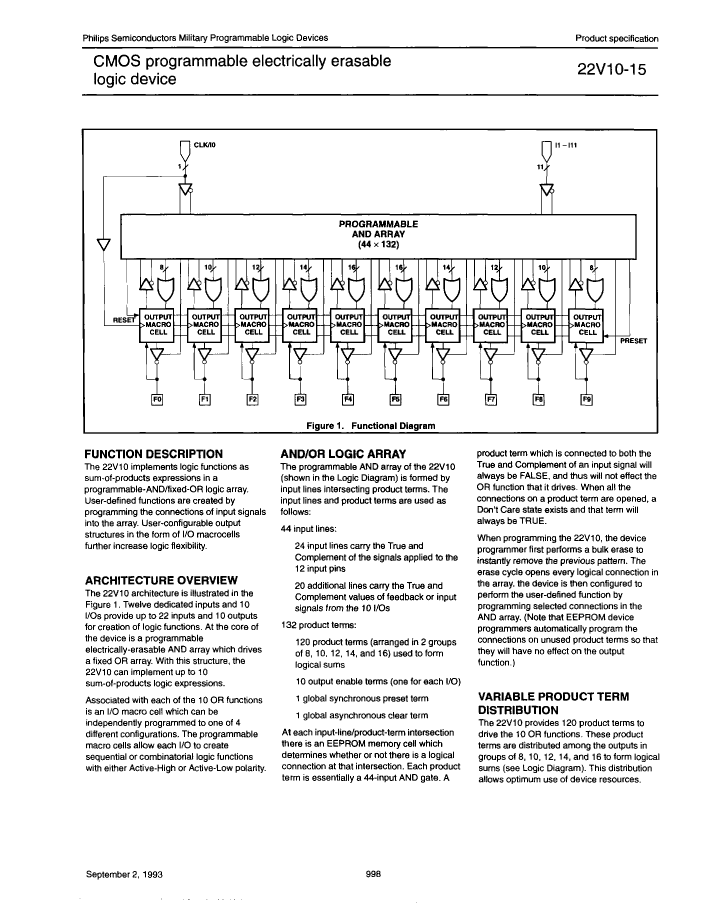

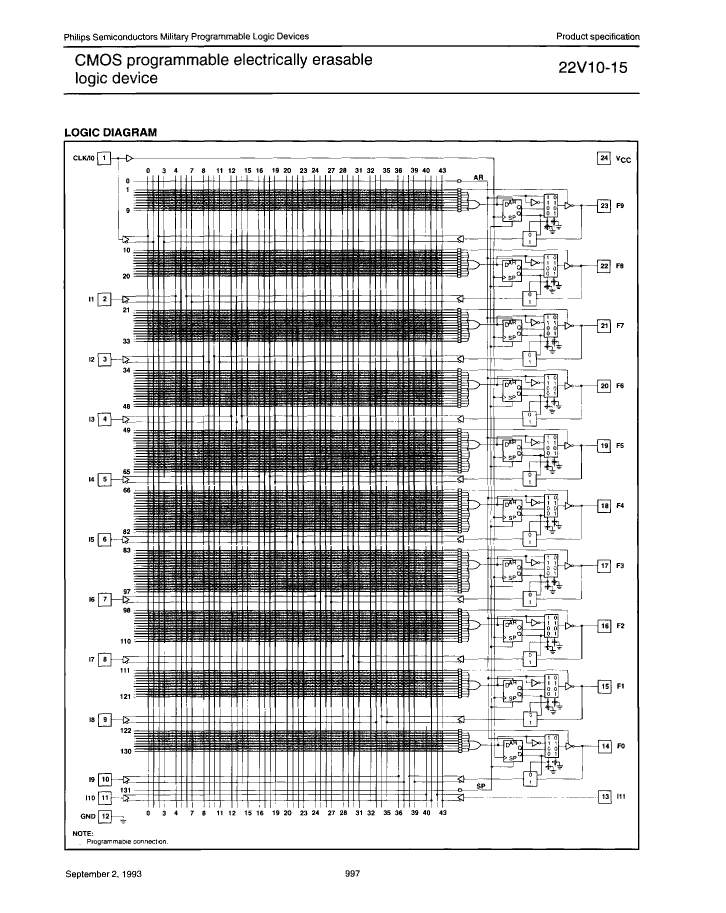

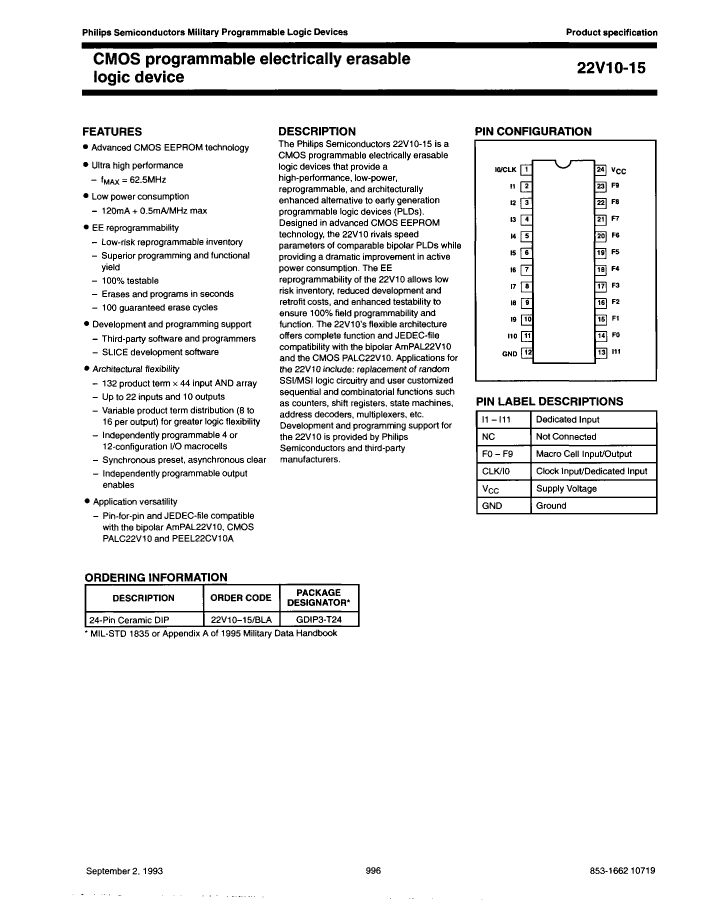

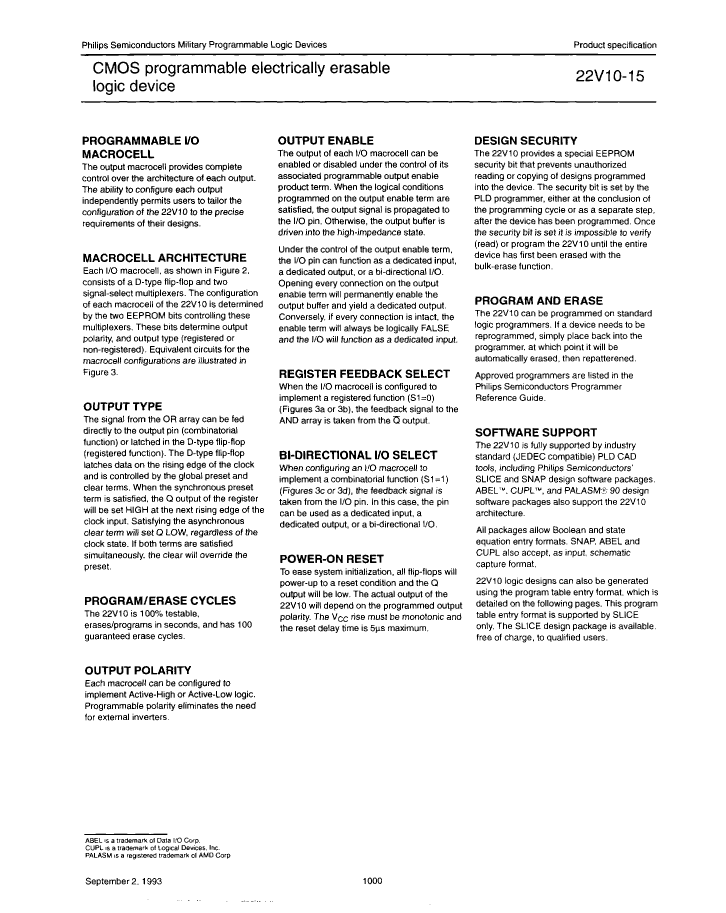

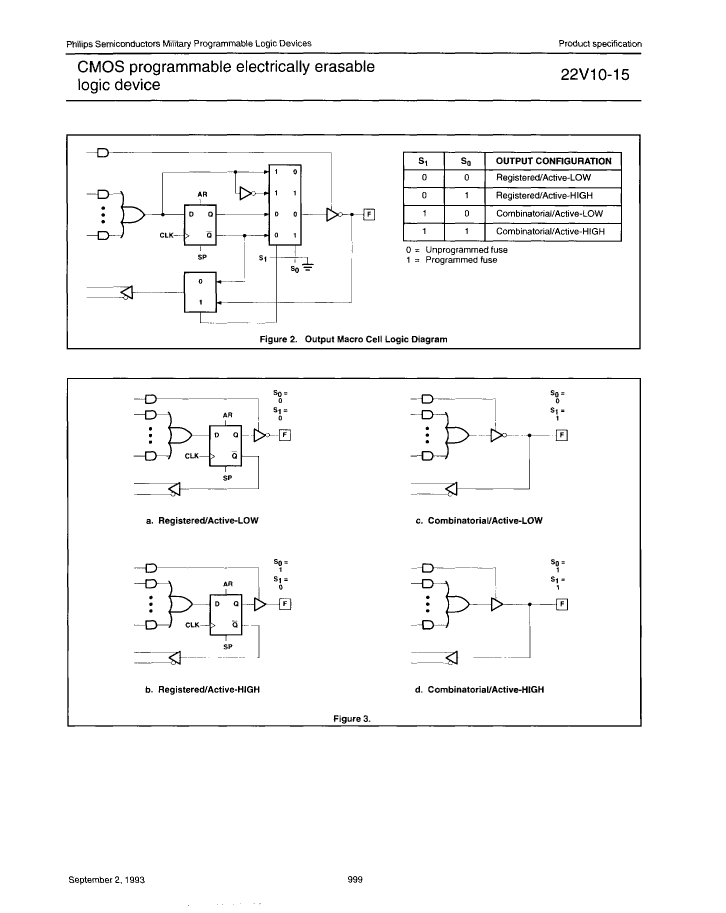

5962-8984105LA Overview

IC EE PLD, 15 ns, CDIP24, CERAMIC, DIP-24, Programmable Logic Device

Parameter Name	Attribute value
Maker	NXP
Parts packaging code	DIP
package instruction	DIP,
Contacts	24
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
maximum clock frequency	42 MHz
JESD-30 code	R-GDIP-T24
JESD-609 code	e0
Dedicated input times	11
Number of I/O lines	10
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	11 DEDICATED INPUTS, 10 I/O
Output function	MACROCELL
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Programmable logic type	EE PLD
propagation delay	15 ns
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	5.08 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

	5962-8984105LA	22V10-15/BLA
Description	IC EE PLD, 15 ns, CDIP24, CERAMIC, DIP-24, Programmable Logic Device	IC EE PLD, 15 ns, CDIP24, CERAMIC, DIP-24, Programmable Logic Device
Parts packaging code	DIP	DIP
package instruction	DIP,	DIP,
Contacts	24	24
Reach Compliance Code	unknown	unknow
ECCN code	3A001.A.2.C	3A001.A.2.C
maximum clock frequency	42 MHz	50 MHz
JESD-30 code	R-GDIP-T24	R-GDIP-T24
Dedicated input times	11	11
Number of I/O lines	10	10
Number of terminals	24	24
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
organize	11 DEDICATED INPUTS, 10 I/O	11 DEDICATED INPUTS, 10 I/O
Output function	MACROCELL	MACROCELL
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Programmable logic type	EE PLD	EE PLD
propagation delay	15 ns	15 ns
Certification status	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	5.08 mm
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	NO	NO
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
width	7.62 mm	7.62 mm
Base Number Matches	1	1
