DOMINANT
Semiconductors
Innovating Illumination
TM
DATA SHEET:
SPNovaLED
TM
RGB : 250
SPNovaLED
TM

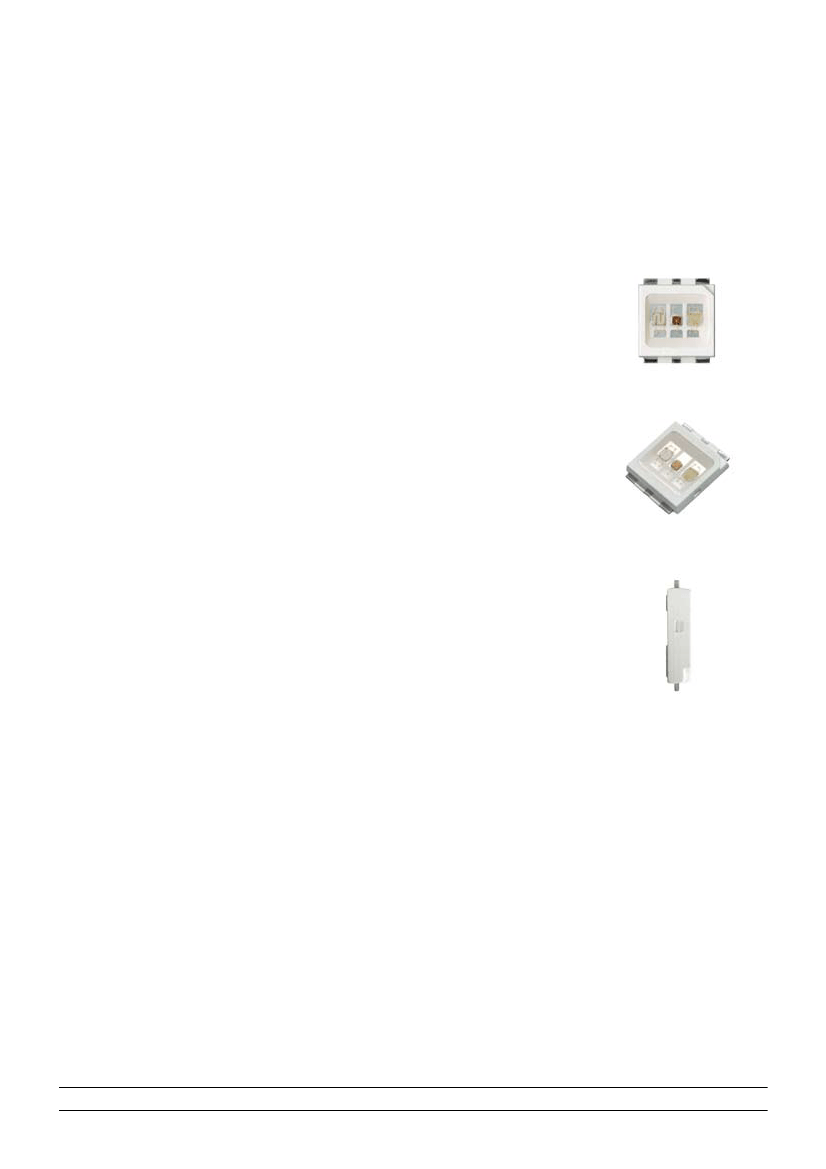

Featuring a staggering brilliance and significant flux output, the
SPNovaLED™ showcases the latest technological advent in this
range. With its extremely high level of brightness and the ultra
low high profile, which is only 1.5 mm are highly suitable for both
conventional lighting and specialized application such as auto-
motive signal lights, traffic lights, channel lights, tube lights and
garden lights among others.
Features:
> Super high brightness surface mount LED.
> High flux output.
> 130° viewing angle.
> Compact package outline (LxWxH) of 6.0 x 6.0 x 1.5mm.
> Ultra low height profile - 1.5 mm.
> Designed for high current drive; typically 250 mA.
> Low junction-to-solder point thermal resistance; R
TH js
= 50 K/W
.
> Qualified according to JEDEC moisture sensitivity Level 2.
> Compatible to IR reflow soldering.
> Environmental friendly; RoHS compliance.
> SP NovaLED are Class 1M LED products. Do not view directly with
optical instrument.
Applications:
>
>
Signage: Illuminated advertising, special effect lighting.
Lighting: garden light, architecture lighting, general lighting, etc
© 2005 SPNovaLED is a trademark of DOMINANT Semiconductors.
All rights reserved. Product specifications are subject to change without notice.
1
08/02/2007 V1.0
DOMINANT
TM
Semiconductors
Innovating Illumination
RGB SPNovaLED : 250
Optical Characteristics at Ta=25˚C, If = 250mA
Part Number
NMRTB-USS-1
• Red
• True Green
• Blue
Z2
AA
AB
AC
X2
Y1
Radiant intensity is measured with an accuracy of ± 11%.
IV Bin
Intensity @ If=250mA (mcd)
Min.
Max.
5,600
7,150
9,000
11,250
2,240
2,850
7,150
9,000
11,250
14,000
2,850
3,550
Viewing
Angle˚
130
Wavelength Grouping at Ta=25˚C
Color
Red
True Green
Group
Full
A
B
C
Wavelength distribution (nm)
620 - 630
521 - 526
526 - 531
531 - 536
465 - 470
470 - 475
Blue
Dominant wavelength is measured with an accuracy of ± 1 nm.
A
B
Electrical Characteristics at Ta=25˚C
Part Number
NMRTB-USS-1
• Red
• True Green
• Blue
2.2
3.2
3.2
2.5
3.5
3.4
2.8
3.8
3.8
2.6
3.7
3.6
Vf @ If = 250mA
Min. (V)
Typ. (V)
Max. (V)
Vf @ If = 350mA
Typ. (V)
Forward voltage, Vf is measured with a current pulse of 1 ms and an accuracy of ± 0.1V.
2
08/02/2007 V1.0
DOMINANT
TM
Semiconductors
Innovating Illumination
RGB SPNovaLED : 250
Correlation Between Luminous Intensity And Luminous Flux
Color
Red
IV Bins
Z2
AA
Luminous Intensity (mcd)
Min.
5,600
7,150
9,000
11,250
2,240
2,850
Luminous Flux (lm)
Min.
16.8
21.5
26.1
32.6
5.94
7.55
Max.
7,150
9,000
11,250
14,000
2,850
3,550
Max.
21.5
27.0
32.6
40.6
7.55
9.41
True Green
AB
AC
Blue
X2
Y1
Note: Data provided above is based on approximation
Material
Material
Lead-frame
Package
Encapsulate
Soldering Leads
Note: Product has no lead (Pb) content.
Cu Alloy With Ag Plating
High Temperature Resistant Plastic, PPA
Silicone Resin
Sn-Sn Plating
Absolute Maximum Ratings
Maximum Value
DC forward current (per chip)
Peak pulse current (per chip). (D <= 10%; Tp <= 10 msec)
Reverse Voltage
ESD Threshold (HBM)
LED junction temperature
Operating temperature
Storage temperature
250
500
Not designed for reverse bias drive
2
125
-40 … +100
-40 … +100
Unit
mA
mA
V
kV
˚C
˚C
˚C
3
08/02/2007 V1.0
DOMINANT
TM
Semiconductors
Innovating Illumination
RGB SPNovaLED : 250
Forward Current Vs Forward Voltage (Red)
500
Forward Current Vs Forward Voltage (Blue and True Green)
500
400
300
200
100
0
Forward Current, mA
300
200
100
0
2
2.2
2.4
2.6
2.8
Forward Current, mA
400
2.5
3
3.5
4
4.5
Forward Voltage, V
Forward Voltage, V
Wavelength Shift Vs Forward Current (True Green)
16
Wavelength Shift Vs Forward Current (Blue)
6
Wavelength Shift, nm
Wavelength Shift, nm
12
4
8
2
4
0
0
-4
0
100
200
300
400
500
-2
0
100
200
300
400
500
Forward Current, mA
Forward Current, mA
Maximum Current Vs Solder Point Temperature
300
Maximum Pulse Current Vs Duty Cycle
1000
Maximum Current, mA
250
200
150
100
50
0
0
10
20
30
40
50
60
70
80
90
100
Maximum Pulse Current, mA
100
1
10
100
Solder Point Temperature, Ts
Duty (%); Tp <= 10 msec
4
08/02/2007 V1.0
DOMINANT
TM
Innovating Illumination
Semiconductors
RGB SPNovaLED : 250
Radiation Pattern
30
o
20
o
10
o
0
o
1.0
40
o
0.8
50
o
60
70
o
0.6
0.4
o
0.2
80
o
90
o
0
5
08/02/2007 V1.0
