1.5SMCJ8.2A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 1.5SMCJ8.2A

1.5SMCJ8.2A: DescriptionTrans Voltage Suppressor Diode, 1500W, 7.02V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, SMCJ, 2 PIN; CategoryDiscrete semiconductor diode; File Size939KB，4 Pages; ManufacturerMicro Commercial Components (MCC)

Download Datasheet Parametric View All

1.5SMCJ8.2A Overview

Trans Voltage Suppressor Diode, 1500W, 7.02V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, SMCJ, 2 PIN

1.5SMCJ8.2A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DO-214AB
package instruction	R-PDSO-C2
Contacts	2
Reach Compliance Code	compli
ECCN code	EAR99
Maximum breakdown voltage	8.61 V
Minimum breakdown voltage	7.79 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-214AB
JESD-30 code	R-PDSO-C2
JESD-609 code	e0
Maximum non-repetitive peak reverse power dissipation	1500 W
Number of components	1
Number of terminals	2
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240
polarity	UNIDIRECTIONAL
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	7.02 V
surface mount	YES
technology	AVALANCHE
Terminal surface	TIN LEAD
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	30
Base Number Matches	1

Preview

Download Datasheet

View All

MCC

Features

omponents

20736 Marilla Street Chatsworth

!"#

$ % !"#

1.5SMCJ6.8(C)A

THRU

1.5SMCJ550(C)A

Transient

Voltage Suppressor

6.8 to 550 Volts

1500 Watt

DO-214AB

(SMCJ) (LEAD FRAME)

For surface mount applicationsin in or der to optimize

boar d space

L ow pr ofil e package

Fast response time: typical less than 1.0ps from 0 volts to

minimum

Low inductance

Excellent clamping capability

Mechanical Data

CASE: JEDEC DO-214AB

Terminals: solderable per MIL-STD-750, Method 2026

Polarity: Color band denotes posit ive end (cathode)

except Bidirectional

Maximum soldering temperature: 250 C for 10 seconds

Maximum Ratings @ 25

C Unless Otherwise Specified

Peak Pulse Current on

See Table 1 Note: 1

10/1000us waveform

Peak Pulse Power

1500W Note: 1,

Dissipation

Peak Forward Surge

FSM)

200A

Note: 3

Current

Operation And Storage T

, T

STG

Temperature Range

-55

C to

+150

DIMENSIONS

INCHES

MIN

.079

.108

.002

.006

.030

..305

.260

.220

MIN

2.00

2.75

0.051

0.152

0.76

7.75

6.60

5.59

DIM

MAX

.103

.128

.008

.012

.050

.320

.280

.245

MAX

2.62

3.25

0.203

0.305

1.27

8.13

7.11

6.22

NOTE

SUGGESTED SOLDER

PAD LAYOUT

0.185

NOTES:

0.121”

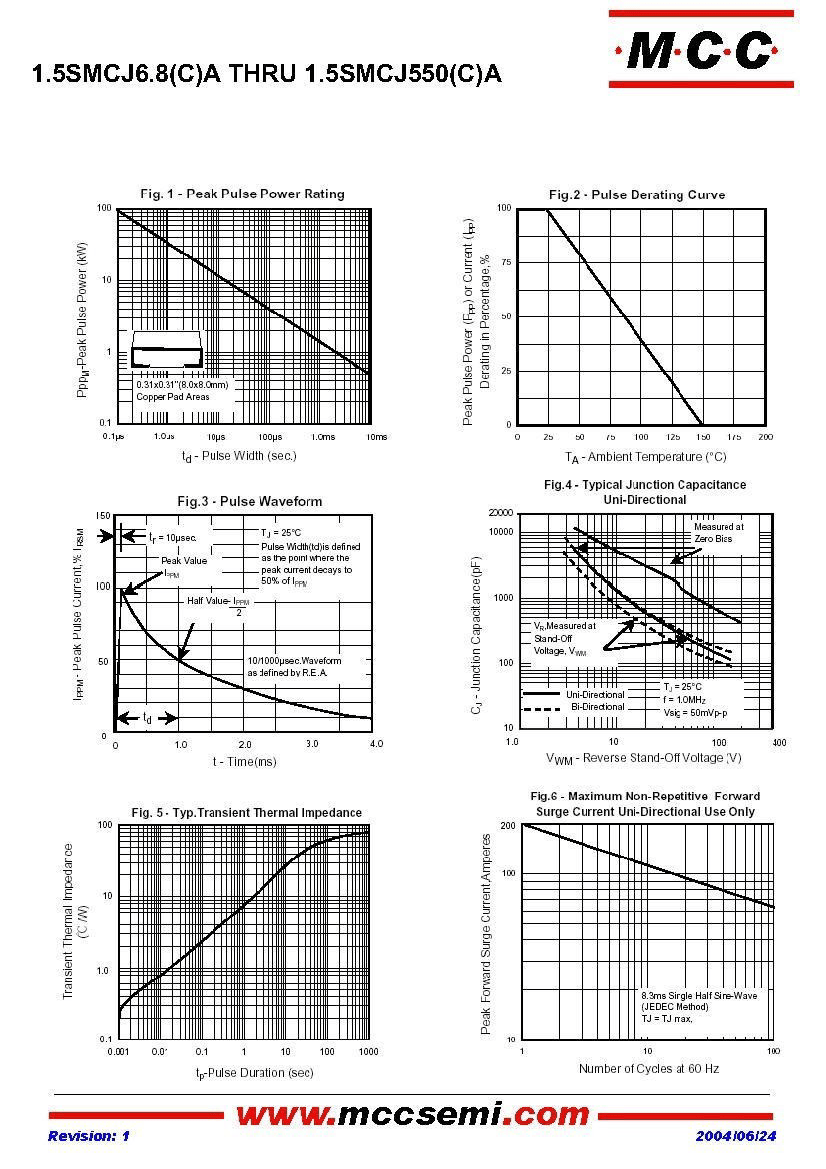

Non-repetitive current pulse, per Fig.3 and derated above

=25 C per Fig.2.

Mounted on 8.0mm copper pads to each terminal.

8.3ms, single half sine wave duty cycle=4 pulses per. Minute

maximum.

0.060”

www.mccsemi.com

Revision: 1

2004/06/24
