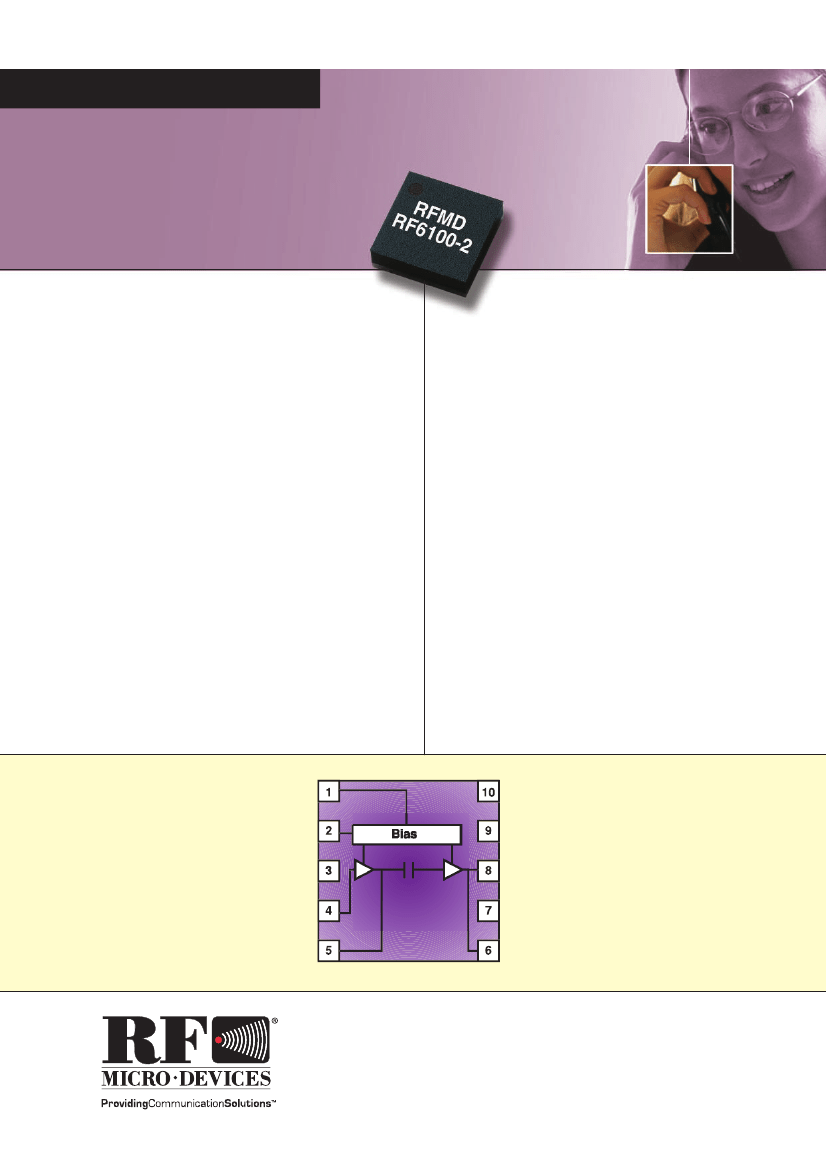

RF6100-2 Linear Amplifier

RF Micro Devices

3V 900 MHz

Linear Amplifier

The RF6100-2 is a high-power, high-efficiency linear amplifier

module specifically designed for 3V handheld systems. The

device is manufactured on an advanced third-generation

GaAs HBT process and has been designed for use as the final

RF amplifier in 3V IS-95/CDMA 2000 1x/AMPS handheld

digital cellular equipment, spread-spectrum systems and other

applications in the 824 MHz to 849 MHz band. The RF6100-2

has a digital control line for low power applications in order

to lower quiescent current. The device is self-contained with

50Ω input and output that is matched to obtain optimum

power, efficiency and linearity. The module is an ultra-small

4x4mm land grid array with backside ground. The RF6100-2

is footprint compatible with industry standard 4x4mm CDMA

modules and requires only one decoupling capacitor.

Features

➔

Advanced third-generation GaAs HBT process

Ω

➔

4x4mm 50Ω internally matched package

➔

28 dBm linear output power

➔

40% power added efficiency

➔

54% AMPS power added efficiency

➔

-50 dBc adjacent channel power rejection

➔

3V regulated voltage

➔

55mA quiescent current (up to 28 dBm)

➔

29 dB linear gain

Typical Applications

➔

3V CDMA/AMPS cellular handsets

➔

3V CDMA 2000 1x cellular handsets

➔

Spread spectrum systems

VREF

GND

VMODE

GND

RF OUT

RF6100-2

Application Schematic

RF IN

VCC1

GND

VCC2

For sales or technical support, contact RFMD at

336-678-5570 or callcenter@rfmd.com.

7628 Thorndike Road, Greensboro, NC 27409-9421

Phone 336-664-1233 • Fax 336-931-7454

www.rfmd.com

RF MICRO DEVICES

, RFMD
