DOMINANT
Semiconductors
Innovating Illumination
TM
DATA SHEET:
DomiLED
TM

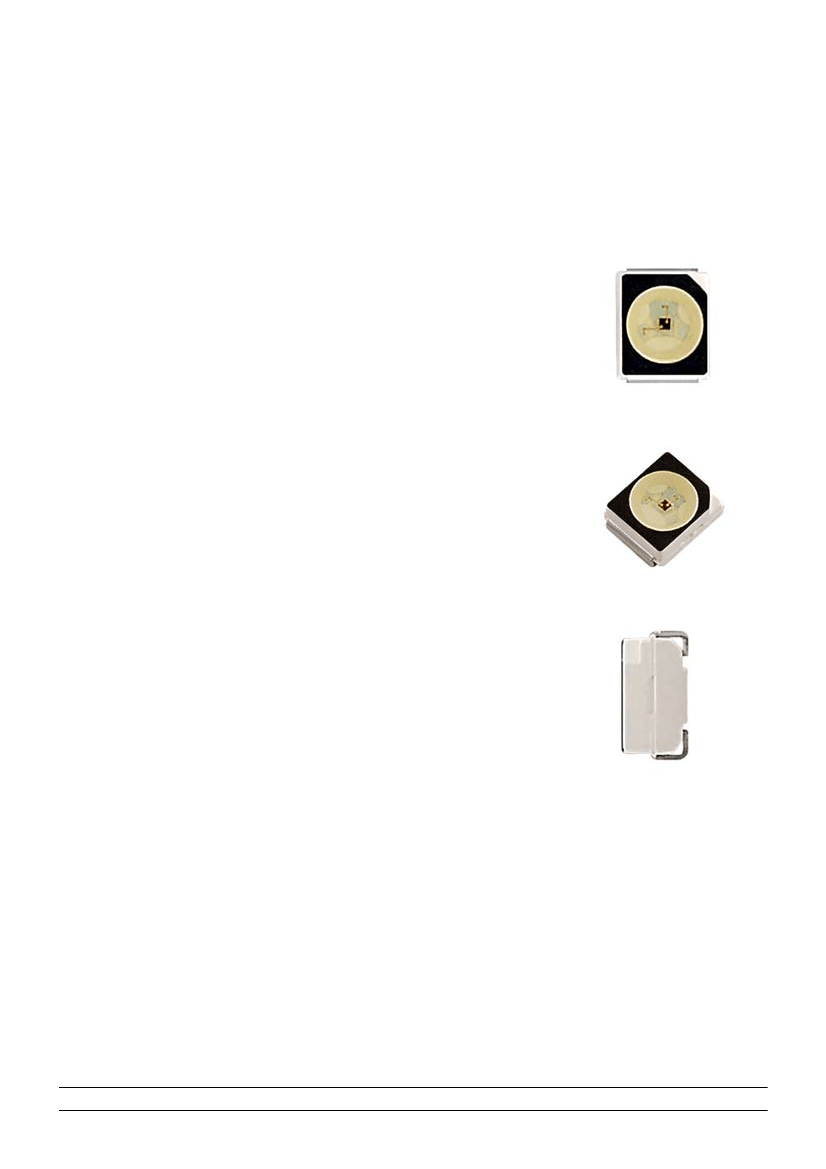

Colored Resin : DDx-EJE
DomiLED
TM
TM
Synonymous with function and performance, the
DomiLED
series is
perfectly suited for a variety of cross-industrial applications due to its
small package outline, durability and superior brightness.
Features:
>
>
>
>
>
>
High brightness surface mount LED using thin film technology.
120° viewing angle.

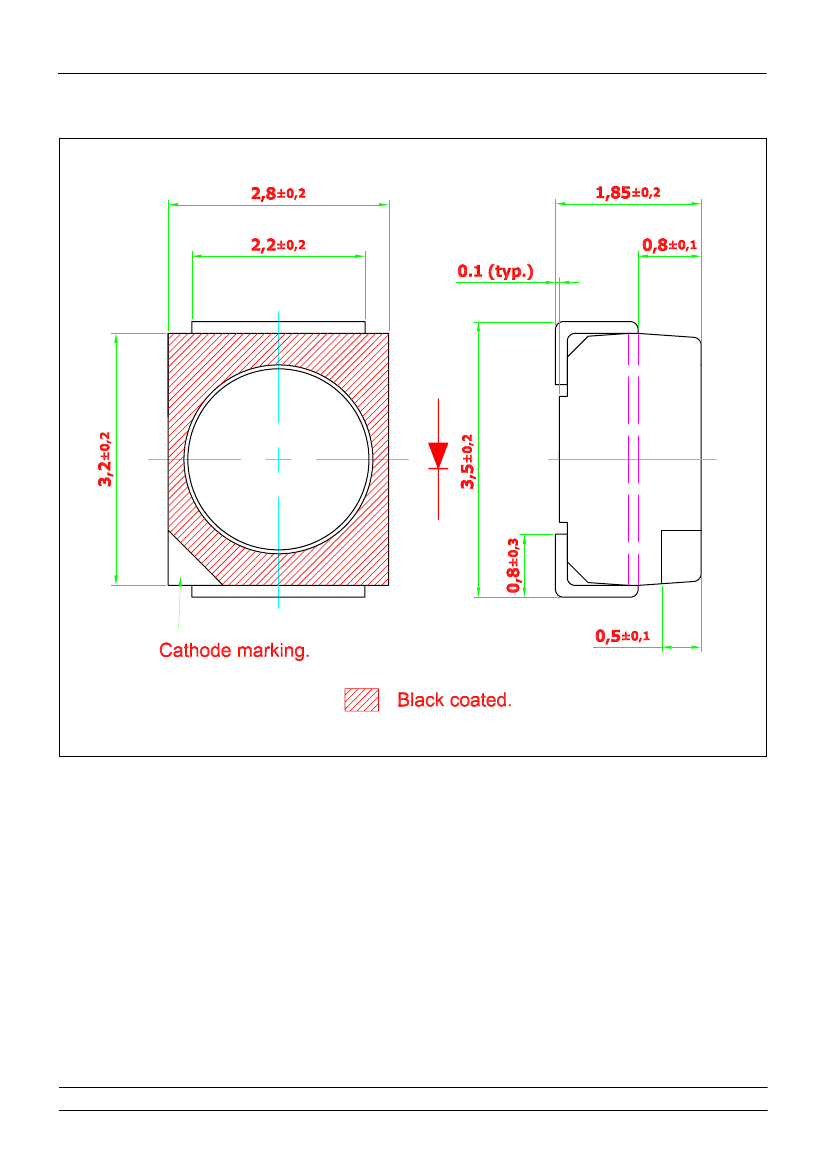

Small package outline (LxWxH) of 3.2 x 2.8 x 1.8mm.
Qualified according to JEDEC moisture sensitivity Level 2.
Compatible to both IR reflow soldering and TTW soldering.
Environmental friendly; RoHS compliance.
Applications:
>
>
>
>
>
Automotive: interior applications, eg: switches, telematics,
climate control system, dashboard, etc.
Consumer Appliances: LCD illumination as in PDAs, LCD TV.
Communication: indicator and backlight in mobilephone.
Display: full color display video notice board.
Industry: white goods (eg: Oven, microwave, etc.).
© 2005 DomiLED is a trademark of DOMINANT Semiconductors.
All rights reserved. Product specifications are subject to change without notice.
1
11/05/2007 V1.0
DOMINANT
TM
Semiconductors
Innovating Illumination
Colored Resin : DDx-EJE
Part Ordering
Number
DDY-EJE-T2U-1
• DDY-EJE-T2
• DDY-EJE-U1
• DDY-EJE-U2
DDY-EJE-UV2-1
• DDY-EJE-U1
• DDY-EJE-U2
• DDY-EJE-V1
• DDY-EJE-V2
Chip Technology
/ Color
AlIGaP
Yellow, 587nm
Viewing
Angle˚
120
Luminous Intensity @
IF = 20mA IV (mcd)
355.0 - 715.0
355.0 - 450.0
450.0 - 560.0
560.0 - 715.0
450.0 - 1125.0
450.0 - 560.0
560.0 - 715.0
715.0 - 900.0
900.0 - 1125.0
NOTE
1. All part number above comes in a quantity of 2000 units per reel.
2. Other luminious intensity groups are also available upon request.
3. Luminous intensity is measured with an accuracy of ± 11%.
4. Wavelength binning is carried for all units as per the wavelength-binning table. Only one wavelength group is allowed for each reel.
5. An optional Vf bining is also available upon request. Bining scheme is as per following table.
Wavelength Grouping
Color
DDY; Yellow
Group
Full
W
X
Y
Z
Wavelength distribution (nm)
582 - 594
582 - 585
585 - 588
588 - 591
591 - 594
Dominant wavelength is measured with an accuracy of ± 1 nm.
2
11/05/2007 V1.0
DOMINANT
TM
Semiconductors
Innovating Illumination
Colored Resin : DDx-EJE
Forward Voltage (V)
Forward Voltage (V) AlInGaP
1.55 ... 2.65
1.55 ... 1.85
1.85 ... 2.15
2.15 ... 2.45
2.45 ... 2.65
Vf Bining (Optional)
Vf @ If = 20mA
Standard
01
02
03
04
Forward Voltage, Vf is measured with an accuracy of ± 0.1V.
Please consult sales and marketing for special part number to incorporate Vf binning.
Absolute Maximum Ratings
Maximum Value
DC forward current
Peak pulse current; (tp ≤ 10µs, Duty cycle = 0.005)
Reverse voltage
ESD threshold (HBM)
LED junction temperature
Operating temperature
Storage temperature
Power dissipation (at room temperature)
30
1000
5
2000
125
-40 … +100
-40 … +100
75
Unit
mA
mA
V
V
˚C
˚C
˚C
mW
3
11/05/2007 V1.0
DOMINANT
TM
Semiconductors
Innovating Illumination
Colored Resin : DDx-EJE

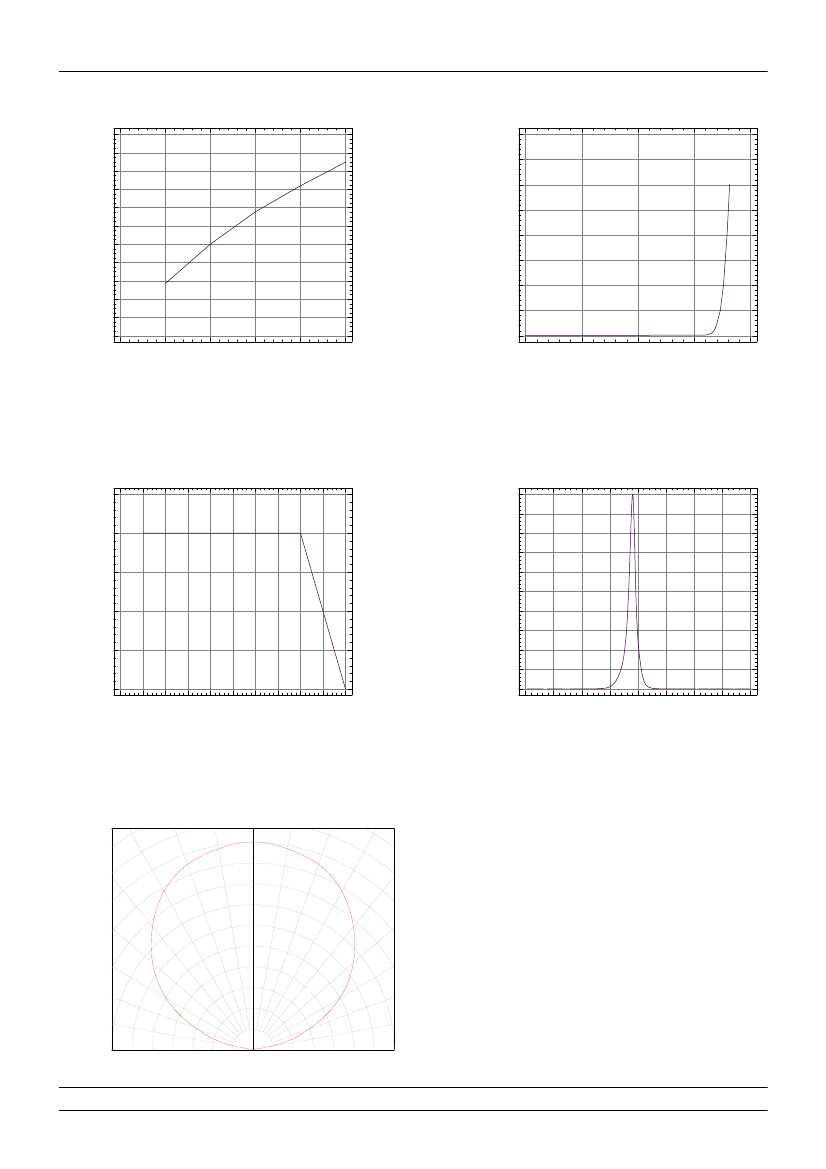

Forward Current Vs Forward Voltage
40
35
Relative Luminous Intensity Vs Forward Current
Relative Intensity; Normalized at 20mA
2.2
2
1.8
1.6
1.4
1.2
1
0.8
0.6
0.4
0.2
0
0
10
20
30
40
50
Forward Current, mA
Relative Intensity
30
25
20
15
10
5
0
0
0.5
1
1.5
2
Forward Current, mA
Forward Voltage, V
Maximum Current Vs Temperature
35
30
1
0.9
0.8
Relative Intensity Vs Wavelength
Forward Current, mA
Relative Intensity
0
10
20
30
40
50
60
70
80
90 100
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
400
450
500
550
600
650
700
750
800
25
20
15
10
Ambient Temperature
Wavelength, nm
Radiation Pattern
30°
20°
10°
0°
1.0
40°
0.8
50°
0.6
60°
70°
80°
90°
0.4
0.2
0
4
11/05/2007 V1.0
