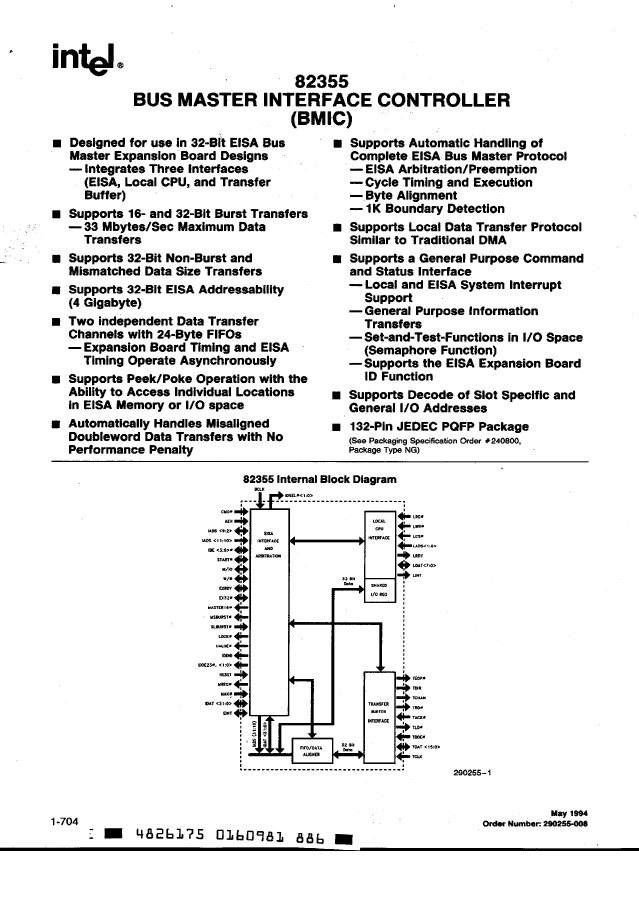

82355 datasheet, PDF - EEWORLD Datasheet

82355: DescriptionEISA Bus Controller, CMOS, PQFP132, PLASTIC, QFP-132; CategoryMicrocontrollers and processors; File Size3MB，86 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric Compare View All

82355 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	82355	-	-	View	Buy Now

EISA Bus Controller, CMOS, PQFP132, PLASTIC, QFP-132

Parameter Name	Attribute value
Maker	Intel
Parts packaging code	QFP
package instruction	BQFP,
Contacts	132
Reach Compliance Code	unknown
Address bus width	2
External data bus width	8
JESD-30 code	S-PQFP-G132
length	24.13 mm
Number of terminals	132
Maximum operating temperature	55 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	BQFP
Package shape	SQUARE
Package form	FLATPACK, BUMPER
Certification status	Not Qualified
Maximum seat height	4.32 mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	QUAD
width	24.13 mm
uPs/uCs/peripheral integrated circuit type	BUS CONTROLLER, EISA
Base Number Matches	1

	82355	NG82355
Description	EISA Bus Controller, CMOS, PQFP132, PLASTIC, QFP-132	EISA Bus Controller, MOS, PQFP132, PLASTIC, QFP-132
Maker	Intel	Intel
Parts packaging code	QFP	QFP
package instruction	BQFP,	PLASTIC, QFP-132
Contacts	132	132
Reach Compliance Code	unknown	compliant
Address bus width	2	2
External data bus width	8	8
JESD-30 code	S-PQFP-G132	S-PQFP-G132
length	24.13 mm	24.13 mm
Number of terminals	132	132
Maximum operating temperature	55 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	BQFP	BQFP
Package shape	SQUARE	SQUARE
Package form	FLATPACK, BUMPER	FLATPACK, BUMPER
Certification status	Not Qualified	Not Qualified
Maximum seat height	4.32 mm	4.32 mm
Maximum supply voltage	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V
surface mount	YES	YES
technology	CMOS	MOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING
Terminal pitch	0.635 mm	0.635 mm
Terminal location	QUAD	QUAD
width	24.13 mm	24.13 mm
uPs/uCs/peripheral integrated circuit type	BUS CONTROLLER, EISA	BUS CONTROLLER, EISA
Base Number Matches	1	1
