5962-9154503MXX datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Programmable logic> Programmable logic devices> 5962-9154503MXX

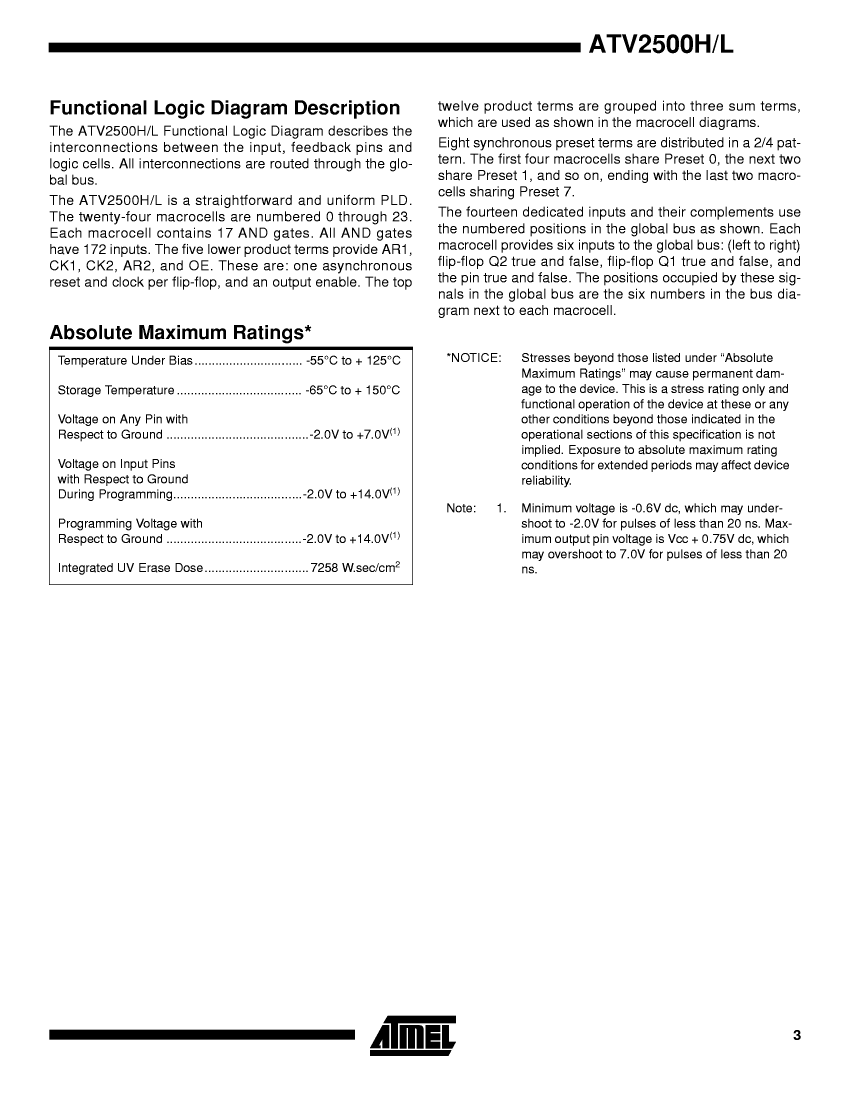

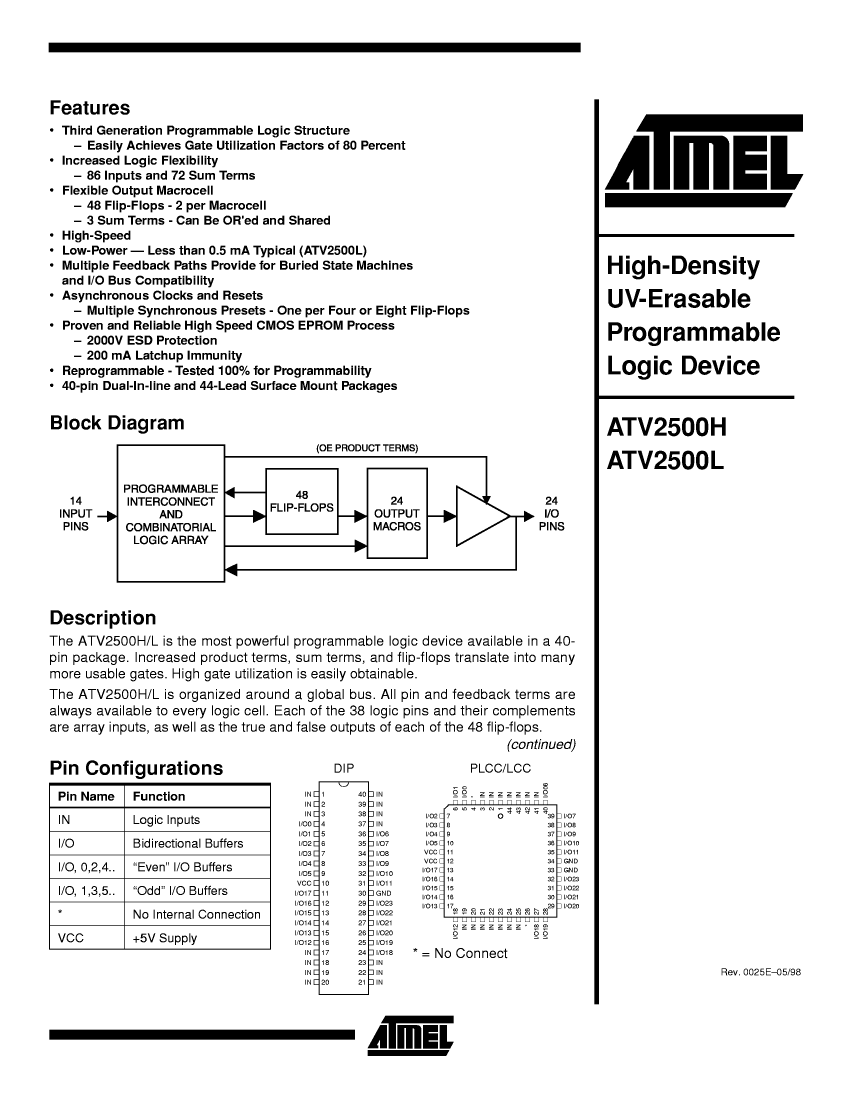

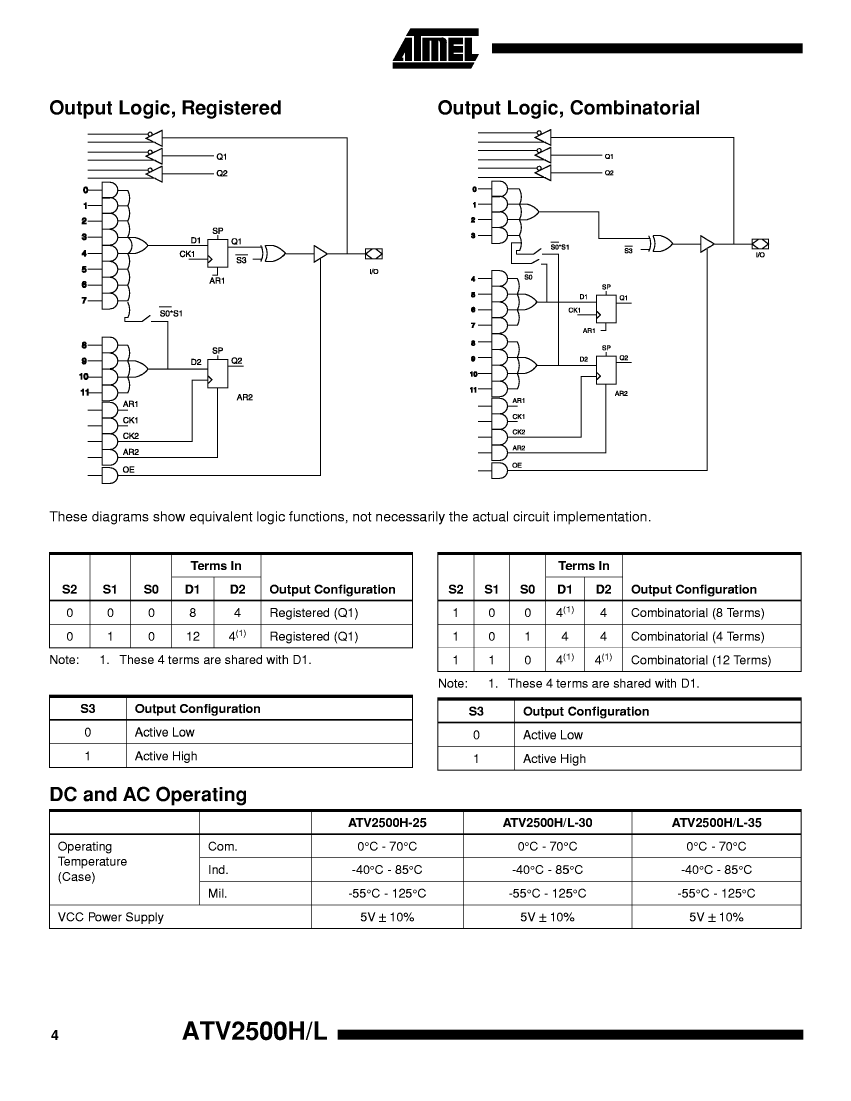

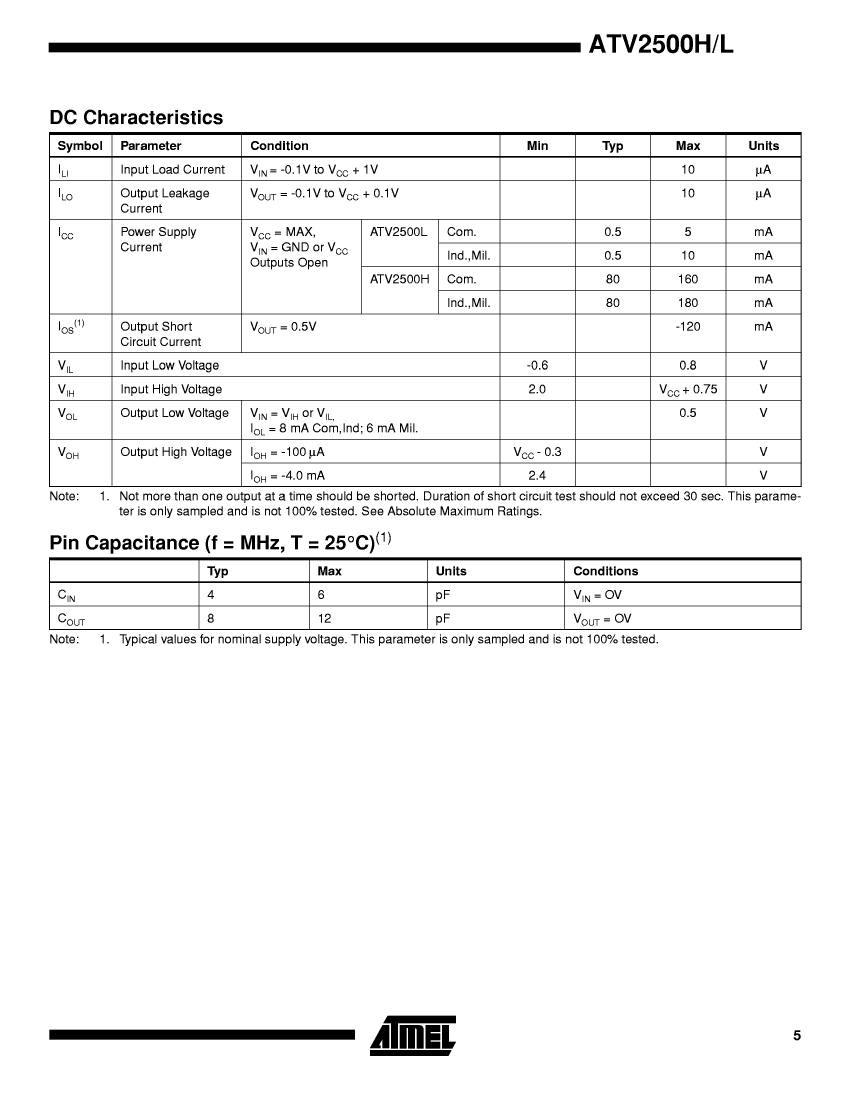

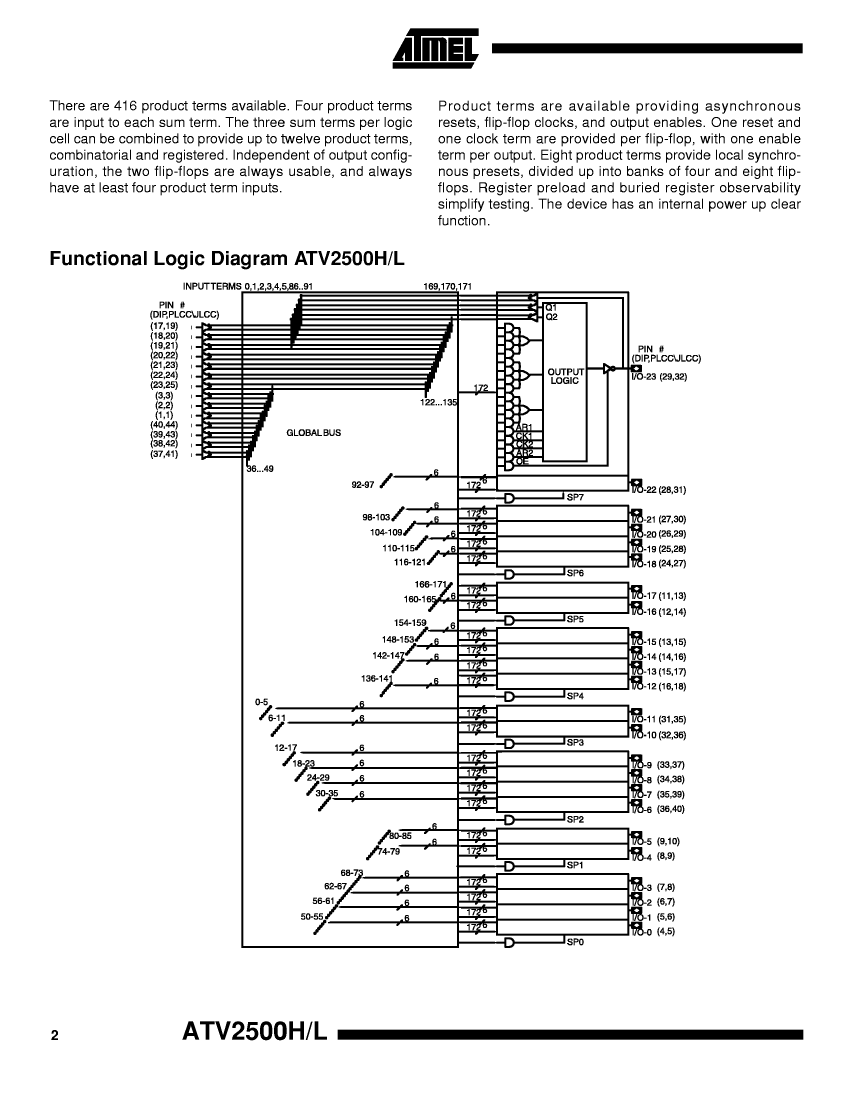

Preview

5962-9154503MXX: DescriptionUV PLD, 30ns, 24-Cell, CMOS, CQCC44, WINDOWED, CERAMIC, LCC-44; CategoryProgrammable logic Programmable logic devices; File Size481KB，15 Pages; ManufacturerAtmel (Microchip)

Download Datasheet Parametric Compare View All

5962-9154503MXX Overview

UV PLD, 30ns, 24-Cell, CMOS, CQCC44, WINDOWED, CERAMIC, LCC-44

5962-9154503MXX Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Atmel (Microchip)
Parts packaging code	LCC
package instruction	WQCCN, LCC44,.65SQ
Contacts	44
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Other features	NO
maximum clock frequency	33 MHz
In-system programmable	NO
JESD-30 code	S-CQCC-N44
JTAG BST	NO
length	16.51 mm
Humidity sensitivity level	1
Dedicated input times	14
Number of I/O lines	24
Number of macro cells	24
Number of terminals	44
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	14 DEDICATED INPUTS, 24 I/O
Output function	MACROCELL
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	WQCCN
Encapsulate equivalent code	LCC44,.65SQ
Package shape	SQUARE
Package form	CHIP CARRIER, WINDOW
Peak Reflow Temperature (Celsius)	225
power supply	5 V
Programmable logic type	UV PLD
propagation delay	30 ns
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	3.05 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	16.51 mm
Base Number Matches	1

Preview

Download Datasheet

View All

5962-9154503MXX Related Products

	5962-9154503MXX	5962-9154503MQA	5962-9154502MQA	5962-9154502MYX	5962-9154502MXX	5962-9154503MYX
Description	UV PLD, 30ns, 24-Cell, CMOS, CQCC44, WINDOWED, CERAMIC, LCC-44	UV PLD, 30ns, CMOS, CDIP40, 0.600 INCH, WINDOWED, CERDIP-40	UV PLD, 25ns, CMOS, CDIP40, 0.600 INCH, WINDOWED, CERDIP-40	UV PLD, 25ns, 24-Cell, CMOS, CQCC44, WINDOWED, CERAMIC, JLCC-44	UV PLD, 25ns, 24-Cell, CMOS, CQCC44, WINDOWED, CERAMIC, LCC-44	UV PLD, 30ns, 24-Cell, CMOS, CQCC44, WINDOWED, CERAMIC, JLCC-44
Maker	Atmel (Microchip)	Atmel (Microchip)	Atmel (Microchip)	Atmel (Microchip)	Atmel (Microchip)	Atmel (Microchip)
Parts packaging code	LCC	DIP	DIP	LCC	LCC	LCC
package instruction	WQCCN, LCC44,.65SQ	WDIP,	WDIP,	WQCCJ, LDCC44,.7SQ	WQCCN, LCC44,.65SQ	WQCCJ, LDCC44,.7SQ
Contacts	44	40	40	44	44	44
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
Other features	NO	24 MACROCELLS	24 MACROCELLS	NO	NO	NO
maximum clock frequency	33 MHz	33 MHz	40 MHz	40 MHz	40 MHz	33 MHz
JESD-30 code	S-CQCC-N44	R-GDIP-T40	R-GDIP-T40	S-CQCC-J44	S-CQCC-N44	S-CQCC-J44
length	16.51 mm	52.45 mm	52.45 mm	16.5862 mm	16.51 mm	16.5862 mm
Dedicated input times	14	14	14	14	14	14
Number of I/O lines	24	24	24	24	24	24
Number of terminals	44	40	40	44	44	44
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
organize	14 DEDICATED INPUTS, 24 I/O	14 DEDICATED INPUTS, 24 I/O	14 DEDICATED INPUTS, 24 I/O	14 DEDICATED INPUTS, 24 I/O	14 DEDICATED INPUTS, 24 I/O	14 DEDICATED INPUTS, 24 I/O
Output function	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	WQCCN	WDIP	WDIP	WQCCJ	WQCCN	WQCCJ
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER, WINDOW	IN-LINE, WINDOW	IN-LINE, WINDOW	CHIP CARRIER, WINDOW	CHIP CARRIER, WINDOW	CHIP CARRIER, WINDOW
Programmable logic type	UV PLD	UV PLD	UV PLD	UV PLD	UV PLD	UV PLD
propagation delay	30 ns	30 ns	25 ns	25 ns	25 ns	30 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883
Maximum seat height	3.05 mm	5.72 mm	5.72 mm	4.57 mm	3.05 mm	4.57 mm
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	J BEND	NO LEAD	J BEND
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	DUAL	DUAL	QUAD	QUAD	QUAD
width	16.51 mm	15.24 mm	15.24 mm	16.5862 mm	16.51 mm	16.5862 mm
Base Number Matches	1	1	1	1	1	1
Is it Rohs certified?	incompatible	-	-	incompatible	incompatible	incompatible
In-system programmable	NO	-	-	NO	NO	NO
JTAG BST	NO	-	-	NO	NO	NO
Humidity sensitivity level	1	-	-	1	1	1
Number of macro cells	24	-	-	24	24	24
Encapsulate equivalent code	LCC44,.65SQ	-	-	LDCC44,.7SQ	LCC44,.65SQ	LDCC44,.7SQ
Peak Reflow Temperature (Celsius)	225	-	-	225	225	225
power supply	5 V	-	-	5 V	5 V	5 V
Maximum time at peak reflow temperature	NOT SPECIFIED	-	-	30	30	30
JESD-609 code	-	e0	e0	e0	e0	e0
Terminal surface	-	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
