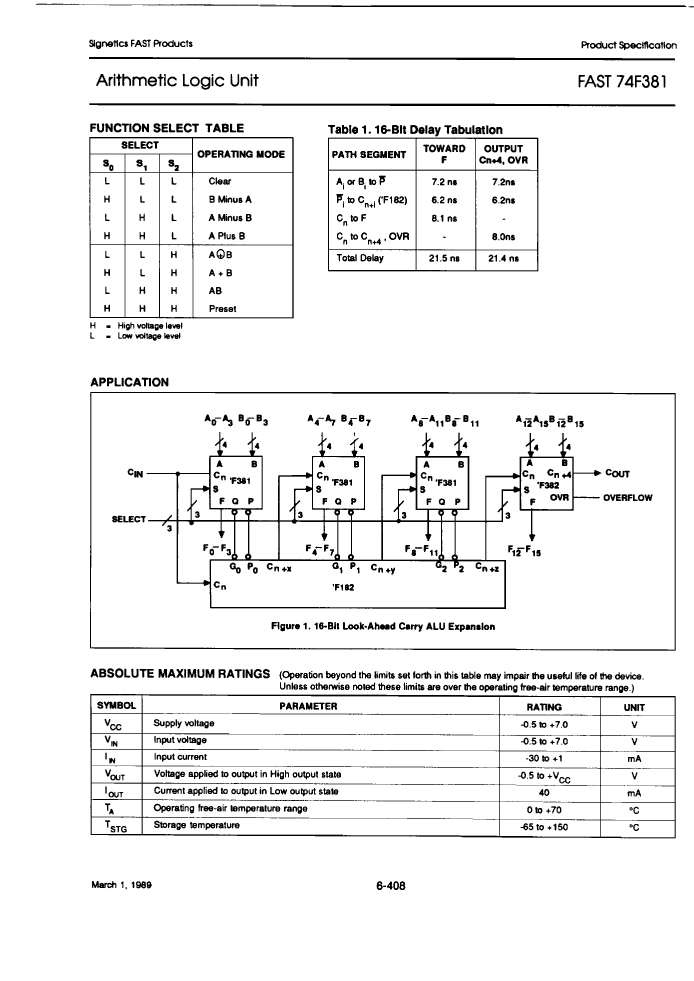

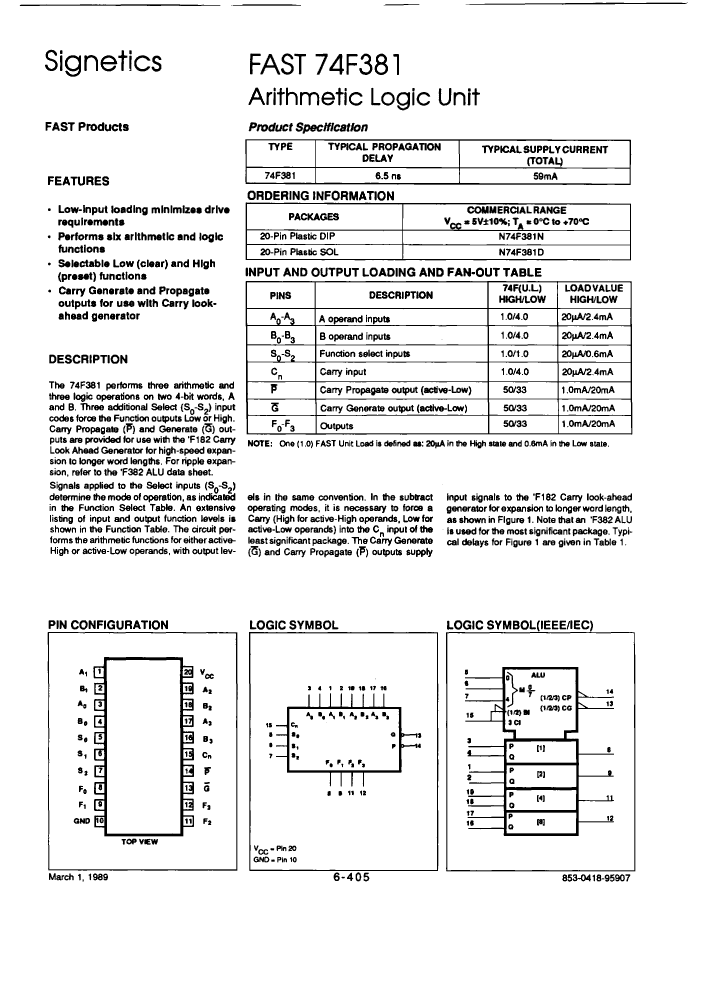

Arithmetic Logic Unit, F/FAST Series, 4-Bit, TTL, PDSO20,

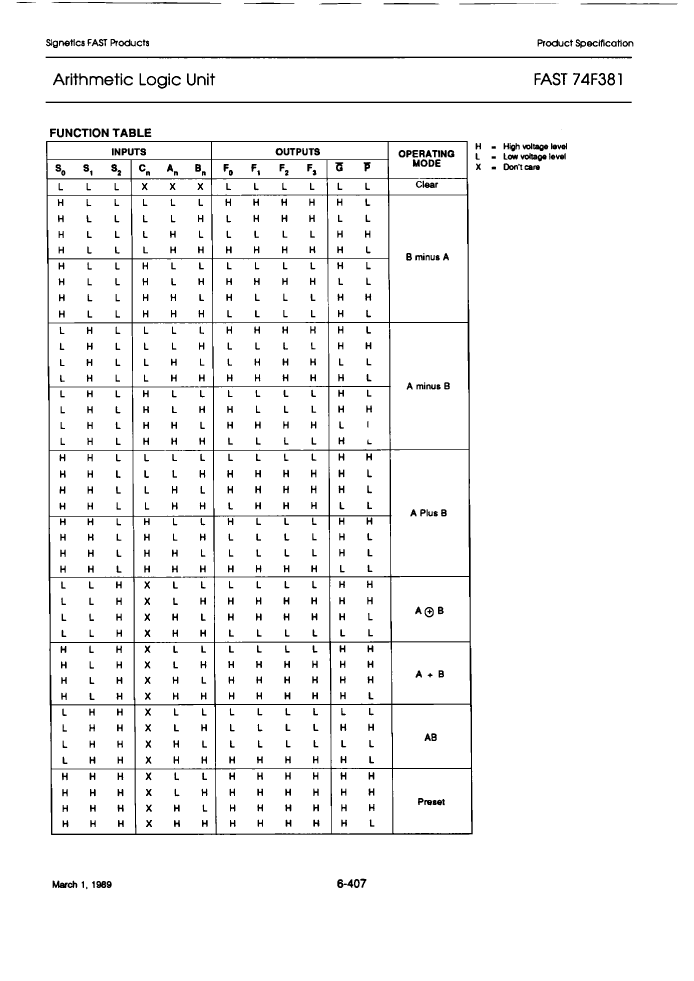

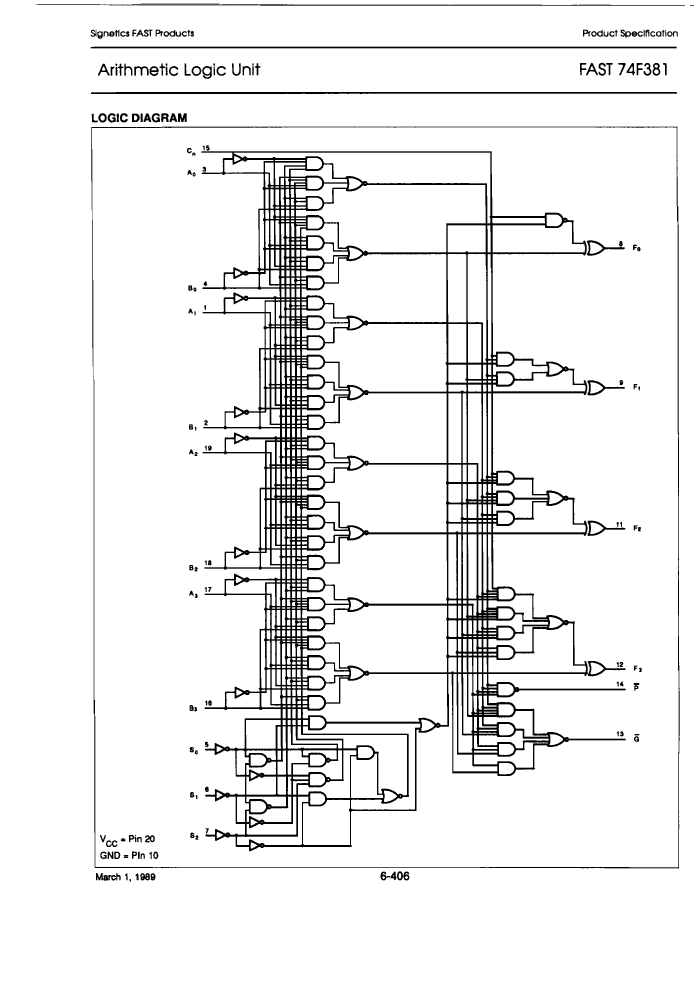

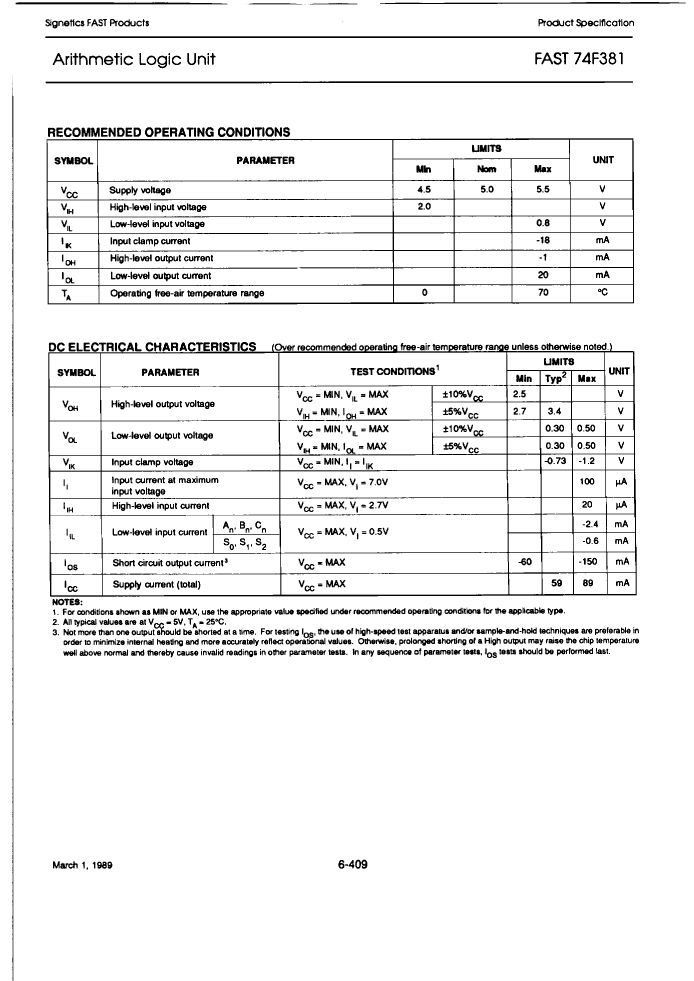

| Parameter Name | Attribute value |
| Maker | YAGEO |
| package instruction | , |
| Reach Compliance Code | unknown |
| Other features | CAPABLE OF 3 LOGIC & ARITHMETIC OPERATIONS |
| series | F/FAST |
| JESD-30 code | R-PDSO-G20 |
| Logic integrated circuit type | ARITHMETIC LOGIC UNIT |
| Number of digits | 4 |
| Number of functions | 1 |
| Number of terminals | 20 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| propagation delay (tpd) | 10 ns |
| Certification status | Not Qualified |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | COMMERCIAL |
| Terminal form | GULL WING |
| Terminal location | DUAL |
| Base Number Matches | 1 |
| 74F381D | 74F381N | 74F381D-T | N74F381D | N74F381D-T | N74F381N | |
|---|---|---|---|---|---|---|
| Description | Arithmetic Logic Unit, F/FAST Series, 4-Bit, TTL, PDSO20, | Arithmetic Logic Unit, F/FAST Series, 4-Bit, TTL, PDIP20, | Arithmetic Logic Unit, F/FAST Series, 4-Bit, TTL, PDSO20, | Arithmetic Logic Unit, F/FAST Series, 4-Bit, TTL, PDSO20, | Arithmetic Logic Unit, F/FAST Series, 4-Bit, TTL, PDSO20, | Arithmetic Logic Unit, F/FAST Series, 4-Bit, TTL, PDIP20, |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| Other features | CAPABLE OF 3 LOGIC & ARITHMETIC OPERATIONS | CAPABLE OF 3 LOGIC & ARITHMETIC OPERATIONS | CAPABLE OF 3 LOGIC & ARITHMETIC OPERATIONS | CAPABLE OF 3 LOGIC & ARITHMETIC OPERATIONS | CAPABLE OF 3 LOGIC & ARITHMETIC OPERATIONS | CAPABLE OF 3 LOGIC & ARITHMETIC OPERATIONS |
| series | F/FAST | F/FAST | F/FAST | F/FAST | F/FAST | F/FAST |
| JESD-30 code | R-PDSO-G20 | R-PDIP-T20 | R-PDSO-G20 | R-PDSO-G20 | R-PDSO-G20 | R-PDIP-T20 |
| Logic integrated circuit type | ARITHMETIC LOGIC UNIT | ARITHMETIC LOGIC UNIT | ARITHMETIC LOGIC UNIT | ARITHMETIC LOGIC UNIT | ARITHMETIC LOGIC UNIT | ARITHMETIC LOGIC UNIT |
| Number of digits | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 20 | 20 | 20 | 20 | 20 | 20 |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | IN-LINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | IN-LINE |
| propagation delay (tpd) | 10 ns | 10 ns | 10 ns | 10 ns | 10 ns | 10 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | NO | YES | YES | YES | NO |
| technology | TTL | TTL | TTL | TTL | TTL | TTL |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal form | GULL WING | THROUGH-HOLE | GULL WING | GULL WING | GULL WING | THROUGH-HOLE |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 |
| Maker | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | - |
