AL05N40BM

Description
General Purpose Inductor, 0.0004uH, 0.1%, 0402
Categoryinductor    Fixed inductance
File Size183KB，2 Pages
ManufacturerAAC [American Accurate Components]
Websitehttp://www.aacix.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

AL05N40BM Overview

General Purpose Inductor, 0.0004uH, 0.1%, 0402

AL05N40BM Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerAAC [American Accurate Components]
package instruction0402
Reach Compliance Codeunknown
ECCN codeEAR99
uppercase and lowercase codes0402
structureChip
DC Resistance0.1 Ω
Nominal inductance(L)0.0004 µH
Inductor typeGENERAL PURPOSE INDUCTOR
JESD-609 codee3
Manufacturer's serial numberAL05(C,B,STOL)
Package height0.35 mm
Package length1 mm
Package formSMT
Package width0.5 mm
method of packingTR
Minimum quality factor (at nominal inductance)13
Maximum rated current0.8 A
self resonant frequency6000 MHz
seriesAL05(C,B,S TOL)
Terminal surfaceMatte Tin (Sn) - with Nickel (Ni) barrier
Tolerance0.1%
Base Number Matches1

Preview

Download Datasheet

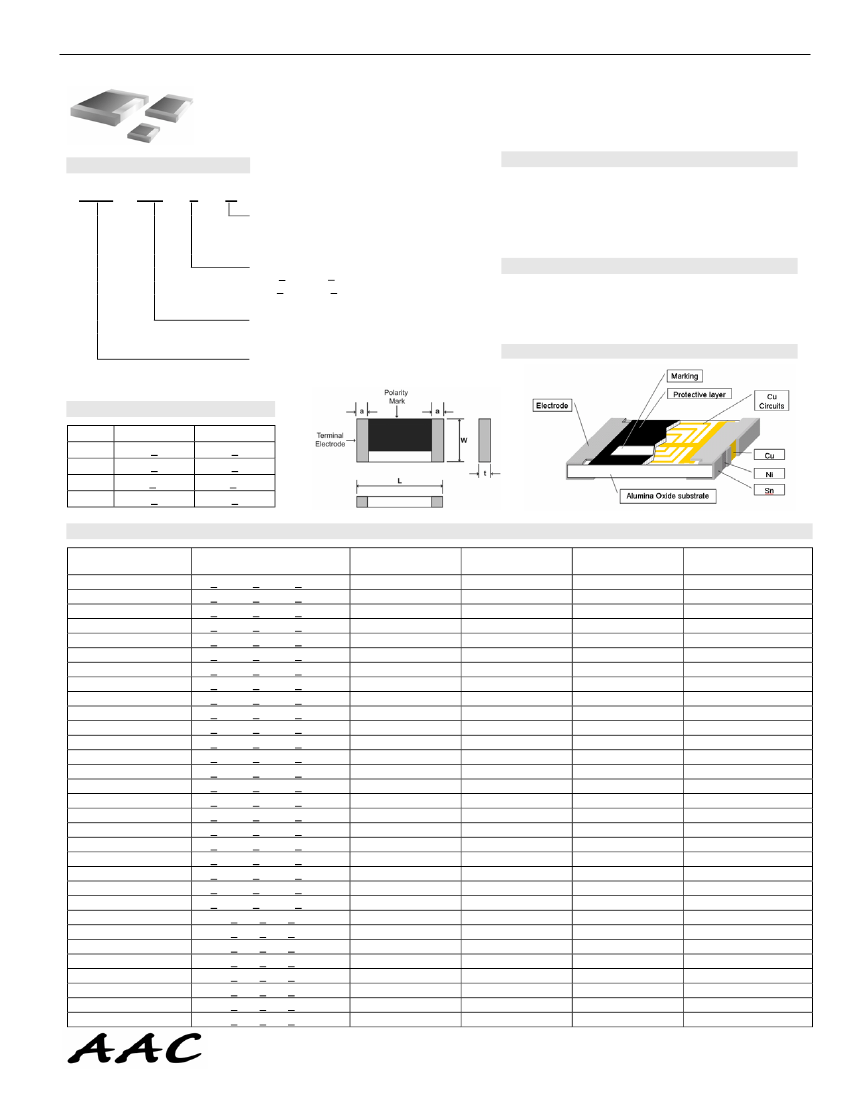

THIN FILM – Precision Chip Inductor
AL05 & AL16 Series Chip Inductor
AAC’s 0603 and 0402 thin film series inductor is a photo lithographically etched, single layer
ceramic chip. Our design provides high SRF, excellent Q, and superior temperature stability.
This highly stable inductor is specifically designed for critical tolerance inductor needs.
HOW TO ORDER
AL16
3N9
F
M
Packaging
M = 5,000/Reel (0603)
10,000/Reel (0402)
Tolerance (%)
G = +2 C = +0.2nH
B = +0.1nH
F = +1
EIA Inductance Value
Standard decade values
Series Size
AL05 = 0402
AL16 = 0603
S =
±0.3nH
FEATURES
Tight Tolerance of
±1%
or
±0.1nH
Self resonant Frequency controlled within 10%
Stable inductance in High Frequency Circuit
Compatible with either reflow or flow soldering
APPLICATIONS
Cellular Telephone, Pagers and GPS products
Wireless LAN and other Communication appliances
VCO,TCXO circuit and RF Transceiver Module
CONSTRUCTION
DIMENSIONS (mm)
Size
L
W
a
t
0402
1.00 + 0.05
0.50 + 0.05
0.02+ 0.10
0.35 + 0.05
0603
1.60 + 0.10
0.80 + 0.10
0.30+ 0.20
0.45 + 0.10
0402 ELECTRICAL SPECIFICATIONS
Inductance Nominal
(nH)
0.2
0.4
0.8
1.0
1.2
1.5
1.6
1.8
2.0
2.2
2.7
3.1
3.3
3.6
3.9
4.7
5.6
5.9
6.8
7.2
8.0
8.2
9.1
10
12
13.8
15
17
18
20.8
22
Inductance Tolerance
+0.1nH, +0.2nH, +0.3nH
+0.1nH, +0.2nH, +0.3nH
+0.1nH, +0.2nH, +0.3nH
+0.1nH, +0.2nH, +0.3nH
+0.1nH, +0.2nH, +0.3nH
+0.1nH, +0.2nH, +0.3nH
+0.1nH, +0.2nH, +0.3nH
+0.1nH, +0.2nH, +0.3nH
+0.1nH, +0.2nH, +0.3nH
+0.1nH, +0.2nH, +0.3nH
+0.1nH, +0.2nH, +0.3nH
+0.1nH, +0.2nH, +0.3nH
+0.1nH, +0.2nH, +0.3nH
+0.1nH, +0.2nH, +0.3nH
+0.1nH, +0.2nH, +0.3nH
+0.1nH, +0.2nH, +0.3nH
+0.1nH, +0.2nH, +0.3nH
+0.1nH, +0.2nH, +0.3nH
+0.1nH, +0.2nH, +0.3nH
+0.1nH, +0.2nH, +0.3nH
+0.1nH, +0.2nH, +0.3nH
+0.1nH, +0.2nH, +0.3nH
+0.1nH, +0.2nH, +0.3nH
+1%, +2%, +5%
+1%, +2%, +5%
+1%, +2%, +5%
+1%, +2%, +5%
+1%, +2%, +5%
+1%, +2%, +5%
+1%, +2%, +5%
+1%, +2%, +5%
Quality Factor
(Min)
13/500MHz
13/500MHz
13/500MHz
13/500MHz
13/500MHz
13/500MHz
13/500MHz
13/500MHz
13/500MHz
13/500MHz
13/500MHz
13/500MHz
13/500MHz
13/500MHz
13/500MHz
13/500MHz
13/500MHz
13/500MHz
13/500MHz
13/500MHz
13/500MHz
13/500MHz
13/500MHz
13/500MHz
13/500MHz
13/500MHz
13/500MHz
13/500MHz
13/500MHz
13/500MHz
13/500MHz
Resistance
DC/Max
Ω
0.1
0.1
0.1
0.1
0.1
0.2
0.2
0.2
0.3
0.3
0.3
0.4
0.4
0.4
0.5
0.6
0.7
0.7
0.9
0.9
1.1
1.1
1.1
1.3
1.6
1.6
1.8
2.0
2.0
2.6
2.6
Current
DC/Max (mA)
800
800
700
700
700
700
560
560
560
440
440
380
380
380
340
320
280
280
260
260
220
220
220
200
180
180
130
100
100
90
90
Self Resonant
Frequency/Min (GHz)
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
5.5
5.5
5.5
4.5
3.7
3.7
3.3
3.1
3.1
2.8
2.8
American Accurate Components, Inc.
570 West Lambert Road, Suite M, Brea, CA 92821
TEL: 714-255-9186 FAX: 714-255-9291
1

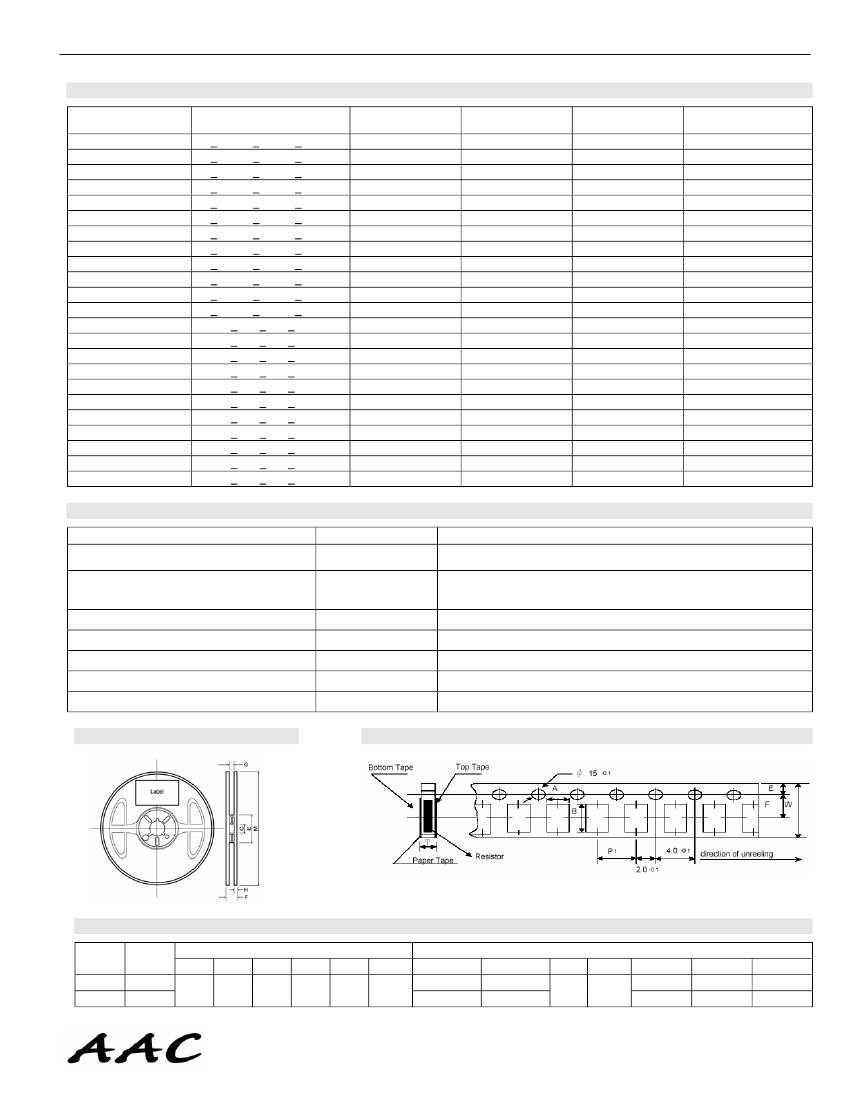

AL05N40BM Related Products

AL05N40BM AL166N8CM AL166N8SM AL166N8BM AL1612NGM AL05N80BM AL0510NGM AL0512NGM AL0515NGM AL0518NGM
Description General Purpose Inductor, 0.0004uH, 0.1%, 0402 General Purpose Inductor, 0.0068uH, Ceramic-Core, 0603 General Purpose Inductor, 0.0068uH, Ceramic-Core, 0603 General Purpose Inductor, 0.0068uH, Ceramic-Core, 0603 General Purpose Inductor, 0.012uH, 2%, 0603 General Purpose Inductor, 0.0008uH, 0.1%, 0402 General Purpose Inductor, 0.01uH, 2%, Ceramic-Core, 0402 General Purpose Inductor, 0.012uH, 2%, Ceramic-Core, 0402 General Purpose Inductor, 0.015uH, 2%, Ceramic-Core, 0402 General Purpose Inductor, 0.018uH, 2%, Ceramic-Core, 0402
Is it Rohs certified? conform to conform to conform to conform to conform to conform to conform to conform to conform to conform to
package instruction 0402 0603 0603 0603 0603 0402 0402 0402 0402 0402
Reach Compliance Code unknown unknown unknown unknown unknown unknown unknown unknown unknown unknow
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
uppercase and lowercase codes 0402 0603 0603 0603 0603 0402 0402 0402 0402 0402
structure Chip Chip Chip Chip Chip Chip Chip Chip Chip Chi
DC Resistance 0.1 Ω 0.5 Ω 0.5 Ω 0.5 Ω 1 Ω 0.1 Ω 1.3 Ω 1.6 Ω 1.8 Ω 2 Ω
Nominal inductance(L) 0.0004 µH 0.0068 µH 0.0068 µH 0.0068 µH 0.012 µH 0.0008 µH 0.01 µH 0.012 µH 0.015 µH 0.018 µH
Inductor type GENERAL PURPOSE INDUCTOR GENERAL PURPOSE INDUCTOR GENERAL PURPOSE INDUCTOR GENERAL PURPOSE INDUCTOR GENERAL PURPOSE INDUCTOR GENERAL PURPOSE INDUCTOR GENERAL PURPOSE INDUCTOR GENERAL PURPOSE INDUCTOR GENERAL PURPOSE INDUCTOR GENERAL PURPOSE INDUCTOR
JESD-609 code e3 e3 e3 e3 e3 e3 e3 e3 e3 e3
Manufacturer's serial number AL05(C,B,STOL) AL16(C,B,STOL) AL16(C,B,STOL) AL16(C,B,STOL) AL16(F,GTOL) AL05(C,B,STOL) AL05(F,GTOL) AL05(F,GTOL) AL05(F,GTOL) AL05(F,GTOL)
Package height 0.35 mm 0.45 mm 0.45 mm 0.45 mm 0.45 mm 0.35 mm 0.35 mm 0.35 mm 0.35 mm 0.35 mm
Package length 1 mm 1.6 mm 1.6 mm 1.6 mm 1.6 mm 1 mm 1 mm 1 mm 1 mm 1 mm
Package form SMT SMT SMT SMT SMT SMT SMT SMT SMT SMT
Package width 0.5 mm 0.8 mm 0.8 mm 0.8 mm 0.8 mm 0.5 mm 0.5 mm 0.5 mm 0.5 mm 0.5 mm
method of packing TR TR TR TR TR TR TR TR TR TR
Minimum quality factor (at nominal inductance) 13 15 15 15 15 13 13 13 13 13
Maximum rated current 0.8 A 0.3 A 0.3 A 0.3 A 0.3 A 0.7 A 0.2 A 0.18 A 0.13 A 0.1 A
self resonant frequency 6000 MHz 5000 MHz 5000 MHz 5000 MHz 3000 MHz 6000 MHz 4500 MHz 3700 MHz 3300 MHz 3100 MHz
series AL05(C,B,S TOL) AL16(C,B,S TOL) AL16(C,B,S TOL) AL16(C,B,S TOL) AL16(F,G TOL) AL05(C,B,S TOL) AL05(F,G TOL) AL05(F,G TOL) AL05(F,G TOL) AL05(F,G TOL)
Terminal surface Matte Tin (Sn) - with Nickel (Ni) barrier Matte Tin (Sn) - with Nickel (Ni) barrier Matte Tin (Sn) - with Nickel (Ni) barrier Matte Tin (Sn) - with Nickel (Ni) barrier Matte Tin (Sn) - with Nickel (Ni) barrier Matte Tin (Sn) - with Nickel (Ni) barrier Matte Tin (Sn) - with Nickel (Ni) barrier Matte Tin (Sn) - with Nickel (Ni) barrier Matte Tin (Sn) - with Nickel (Ni) barrier Matte Tin (Sn) - with Nickel (Ni) barrie
Maker AAC [American Accurate Components] - - - AAC [American Accurate Components] AAC [American Accurate Components] AAC [American Accurate Components] AAC [American Accurate Components] AAC [American Accurate Components] AAC [American Accurate Components]
Tolerance 0.1% - - - 2% 0.1% 2% 2% 2% 2%
core material - Ceramic Ceramic Ceramic - - Ceramic Ceramic Ceramic Ceramic
