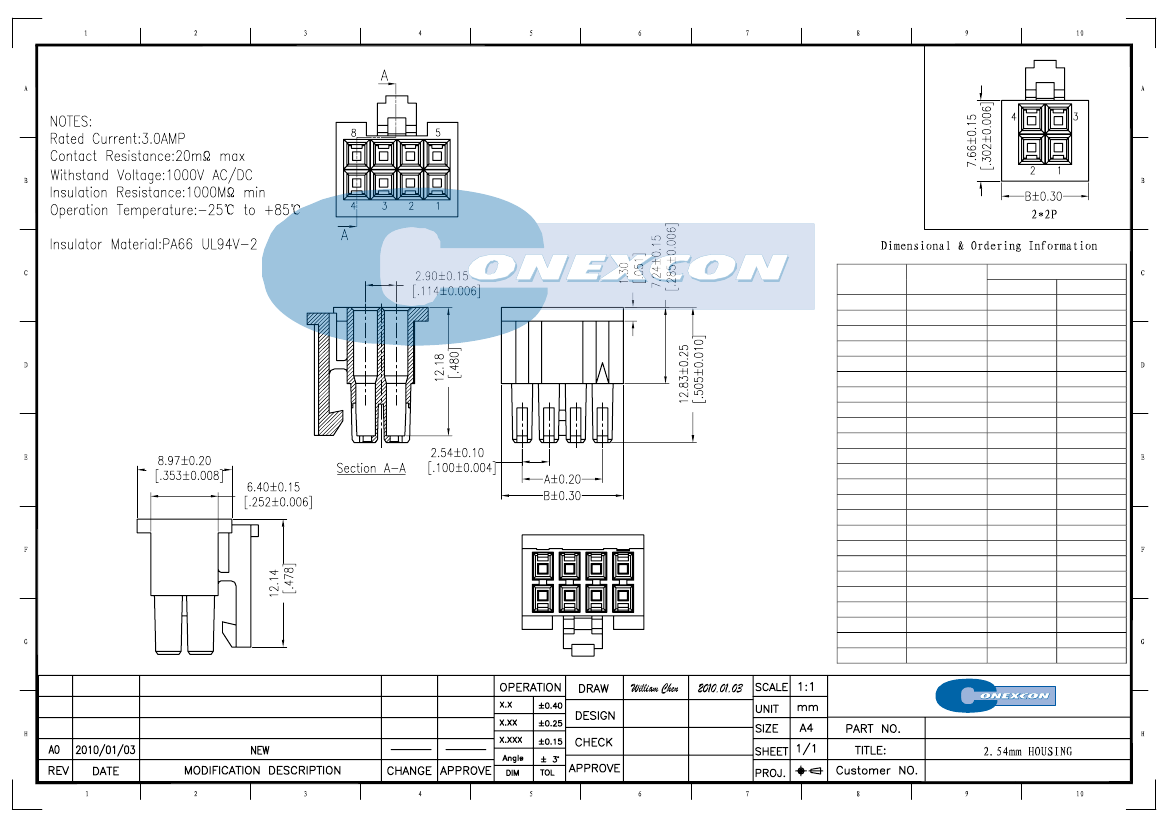

5780-1061: DescriptionBoard Connector, 6 Contact(s), 2 Row(s), 0.1 inch Pitch, Locking; CategoryThe connector; File Size526KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric Compare View All

5780-1061 Overview

Board Connector, 6 Contact(s), 2 Row(s), 0.1 inch Pitch, Locking

5780-1061 Parametric

Parameter Name	Attribute value
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.353 inch
subject depth	0.505 inch
body length	0.355 inch
Connector type	BOARD CONNECTOR
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
insulator material	POLYAMIDE
Manufacturer's serial number	5780
Plug contact pitch	0.1 inch
Match contact row spacing	0.114 inch
Installation option 1	LOCKING
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Total number of contacts	6
Base Number Matches	1

Preview

Download Datasheet

View All

Circuit Size

4

6

8

10

12

14

16

18

20

22

24

26

28

30

32

34

36

38

40

42

44

46

48

50

Part Number

5780-1041

5780-1061

5780-1081

5780-1101

5780-1121

5780-1141

5780-1161

5780-1181

5780-1201

5780-1221

5780-1241

5780-1261

5780-1281

5780-1301

5780-1321

5780-1341

5780-1361

5780-1381

5780-1401

5780-1421

5780-1441

5780-1461

5780-1481

5780-1501

Dimensions

A

2,54

5,08

7,62

10,16

12,7

15,24

17,78

20,32

22,86

25,4

27,94

30,48

33,02

35,56

38,1

40,64

43,18

45,72

48,26

50,8

53,34

55,88

58,42

60,96

B

6,48

9,02

11,56

14,1

16,64

19,18

21,72

24,26

26,8

29,34

31,88

34,42

36,96

39,5

42,04

44,58

47,12

49,66

52,2

54,74

57,28

59,82

62,36

64,9

5780 SERIES

5780-1061 Related Products

	5780-1061	5780-1261	5780-1361	5780-1461	5780-1161
Description	Board Connector, 6 Contact(s), 2 Row(s), 0.1 inch Pitch, Locking	Board Connector, 26 Contact(s), 2 Row(s), 0.1 inch Pitch, Locking	Board Connector, 36 Contact(s), 2 Row(s), 0.1 inch Pitch, Locking	Board Connector, 46 Contact(s), 2 Row(s), 0.1 inch Pitch, Locking	Board Connector, 16 Contact(s), 2 Row(s), 0.1 inch Pitch, Locking
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
body width	0.353 inch	0.353 inch	0.353 inch	0.353 inch	0.353 inch
subject depth	0.505 inch	0.505 inch	0.505 inch	0.505 inch	0.505 inch
body length	0.355 inch	1.355 inch	1.855 inch	2.355 inch	0.855 inch
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE
Manufacturer's serial number	5780	5780	5780	5780	5780
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.114 inch	0.114 inch	0.114 inch	0.114 inch	0.114 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Number of rows loaded	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	3 A	3 A	3 A	3 A	3 A
Guideline	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Total number of contacts	6	26	36	46	16
Base Number Matches	1	1	1	1	1
Maker	Conexcon Group	Conexcon Group	Conexcon Group	-	Conexcon Group
