Printview: Female connector; with screw flange; 20-pole; Pin spacing 3.5 mm / 0.138 in; 100% protected
against mismating - Item No.: 734-120/107-000
.
Female connector; with screw flange; 20-pole; Pin spacing 3.5 mm
/ 0.138 in; 100% protected against mismating
Item No.: 734-120/107-000
.
Female connector; with screw flange; 20-pole; Pin spacing 3.5 mm / 0.138 in; 100% protected against mismating
.
Marking
.
Business data
Supplier
Item no.
GTIN / EAN
Content
Order amount
Customer item number
.
Notes
WAGO
734-120/107-000
4045454758684
1
25
Item description:Universal connection for all conductor typesEasy cable pre-assembly and on-unit wiring via vertical
and horizontal CAGE CLAMP® actuationStrain relief plates and housings for in-the-field assembly100% protected
against mismatingCoding option available
Technical data
Miscellaneous
No. of poles
Pin spacing
Total number of connection points
Total number of potentials
Color
Ratings according to 1
Rated voltage (III / 3) [V]
20
3.5 mm (0.138 in %)
20
20
light gray
IEC/EN 60664-1
160 [V]
WAGO Kontakttechnik GmbH & Co. KG
1
Printview: Female connector; with screw flange; 20-pole; Pin spacing 3.5 mm / 0.138 in; 100% protected
against mismating - Item No.: 734-120/107-000
Technical data
Rated surge voltage (III / 3) [kV]
Rated voltage (III / 2) [V]
Rated surge voltage (III / 2) [kV]
Rated voltage (II / 2) [V]
Rated surge voltage (II / 2) [kV]
Nominal current [A]
Number of individual connection objects at the product
Number of levels
Connection technology
Number of connection points
Actuation type
Solid sizes
Fine-stranded wires
Fine-stranded wires with insulated ferrule
Fine-stranded wires with uninsulated ferrule
Strip length
Material group
Insulating material
Flammability rating per UL 94
Limit temperature range
Clamping spring material
Contact material
Contact plating
Fire load [MJ]
Weight [g]
Width
Height
Length
2.5 [kV]
160 [V]
2.5 [kV]
320 [V]
2.5 [kV]
10 [A]
1
1
CAGE CLAMP®
1
Betätigungswerkzeug
0.08 … 1.5 mm² / 28 … 14 AWG
0.08 … 1.5 mm² / 28 … 14 AWG
0.25 … 1.5 mm² / …
0.25 … 1.5 mm² / …
6 … 7 mm / 0.24 … 0.28 in
I
Polyamide 66 (PA 66)
V0
-60 … 100 C
Chrome-nickel spring steel (CrNi)
Copper alloy
tin-plated
0.238 [MJ]
16.61 [g]
79.5 mm / 3.13 in
13.4 mm / 0.528 in
18.6 mm / 0.732 in
WAGO Kontakttechnik GmbH & Co. KG
2
Printview: Female connector; with screw flange; 20-pole; Pin spacing 3.5 mm / 0.138 in; 100% protected
against mismating - Item No.: 734-120/107-000

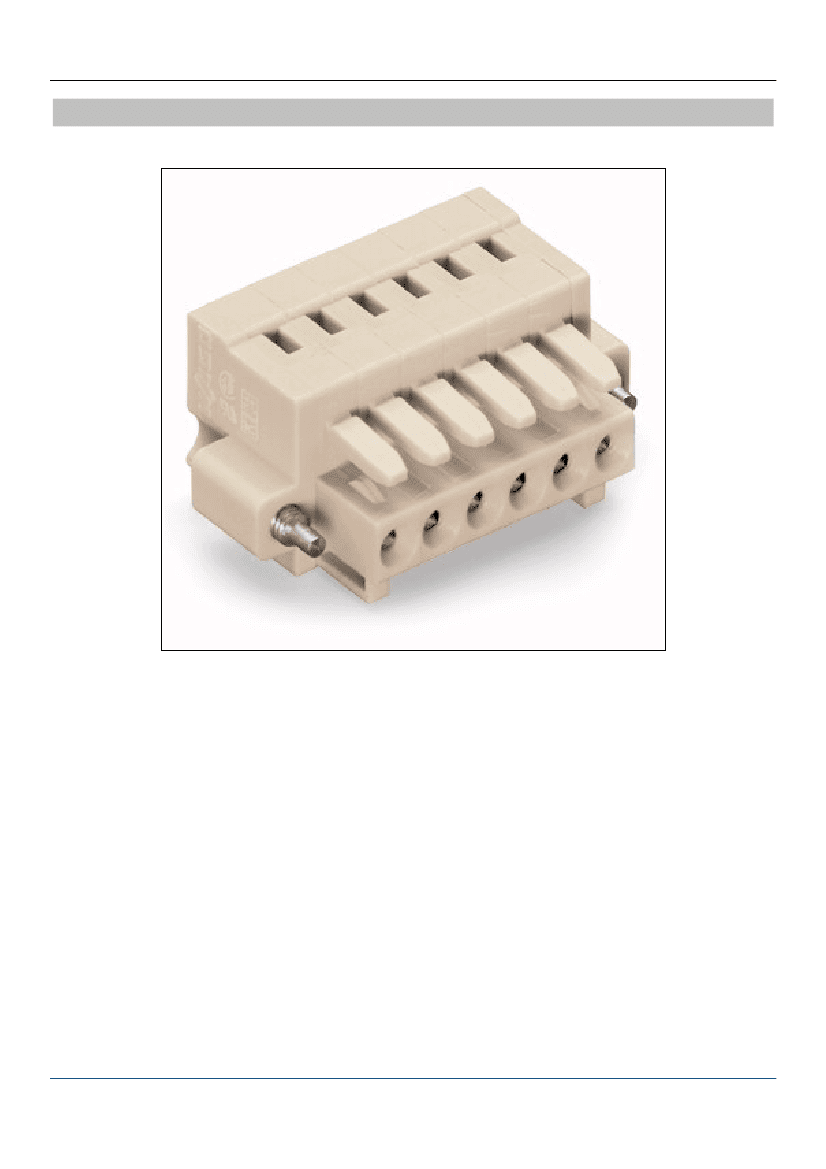

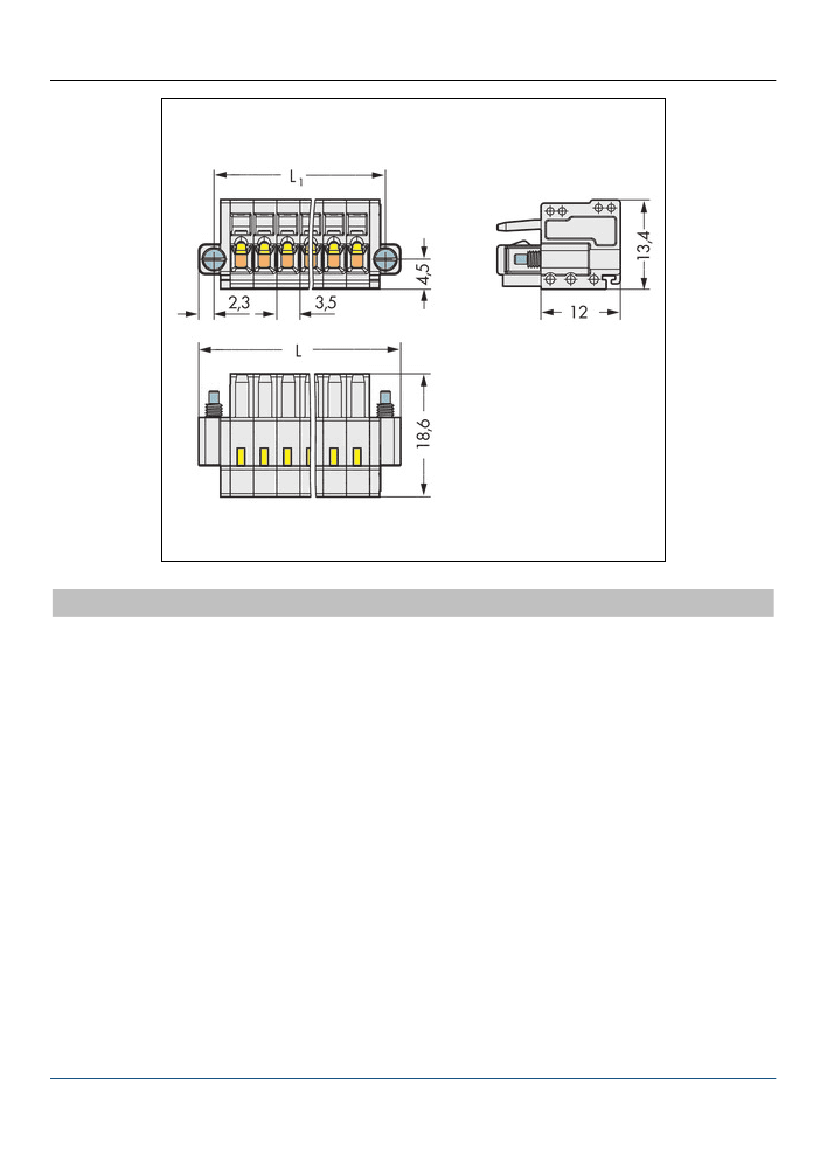

Images & drawings
WAGO Kontakttechnik GmbH & Co. KG
3
Printview: Female connector; with screw flange; 20-pole; Pin spacing 3.5 mm / 0.138 in; 100% protected
against mismating - Item No.: 734-120/107-000
.
Address
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Telefon: 0571/887-0
Fax: 0571/887-169
http://www.wago.com
© WAGO Kontakttechnik GmbH & Co. KG
Technische Änderungen und Irrtümer vorbehalten.
