2SJ663

Description
P-Channel Silicon MOSFET General-Purpose Switching Device
CategoryDiscrete semiconductor    The transistor
File Size40KB,4 Pages
ManufacturerSANYO
Websitehttp://www.semic.sanyo.co.jp/english/index-e.html
Download Datasheet Parametric View All

2SJ663 Overview

P-Channel Silicon MOSFET General-Purpose Switching Device

2SJ663 Parametric

Parameter NameAttribute value
package instructionIN-LINE, R-PSIP-T3
Contacts3
Reach Compliance Codeunknow
ECCN codeEAR99
Avalanche Energy Efficiency Rating (Eas)54 mJ
ConfigurationSINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage100 V
Maximum drain current (ID)9 A
Maximum drain-source on-resistance0.45 Ω
FET technologyMETAL-OXIDE SEMICONDUCTOR
JESD-30 codeR-PSIP-T3
Number of components1
Number of terminals3
Operating modeENHANCEMENT MODE
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formIN-LINE
Polarity/channel typeP-CHANNEL
Maximum pulsed drain current (IDM)36 A
Certification statusNot Qualified
surface mountNO
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
transistor applicationsSWITCHING
Transistor component materialsSILICON
Base Number Matches1
Ordering number : EN8588
2SJ663
P-Channel Silicon MOSFET
2SJ663
Features
General-Purpose Switching Device
Applications
Low ON-resistance.
Ultrahigh-speed switching.
4V drive.
Motor drive, DC / DC converter.
Avalanche resistance guarantee.
Specifications
Absolute Maximum Ratings
at Ta=25°C
Parameter
Drain-to-Source Voltage
Gate-to-Source Voltage
Drain Current (DC)
Drain Current (Pulse)
Allowable Power Dissipation
Channel Temperature
Storage Temperature
Avalanche Energy (Single Pulse) *1
Avalanche Current *2
Symbol
VDSS
VGSS
ID
IDP
PD
Tch
Tstg
EAS
IAV
PW≤10µs, duty cycle≤1%
Tc=25°C
Conditions
Ratings
--100
±20
--9
--36
1.65
40
150
--55 to +150
54
--9
Unit
V
V
A
A
W
W
°C
°C
mJ
A
Note :
*1
VDD=30V, L=1mH, IAV=--9A
*2
L≤1mH, Single pulse
Electrical Characteristics
at Ta=25°C
Parameter
Drain-to-Source Breakdown Voltage
Zero-Gate Voltage Drain Current
Gate-to-Source Leakage Current
Cutoff Voltage
Forward Transfer Admittance
Static Drain-to-Source On-State Resistance
Symbol
V(BR)DSS
IDSS
IGSS
VGS(off)
yfs
RDS(on)1
RDS(on)2
Conditions
ID=--1mA, VGS=0V
VDS=-
-100V, VGS=0V
VGS=
±16V,
VDS=0V
VDS=-
-10V, ID=--1mA
VDS=-
-10V, ID=-
-5A
ID=--5A, VGS=-
-10V
ID=--5A, VGS=-
-4V
Ratings
min
--100
--1
±10
--1.2
4
7
242
322
315
450
--2.6
typ
max
Unit
V
µ
A
µ
A
V
S
mΩ
mΩ
Marking : J663

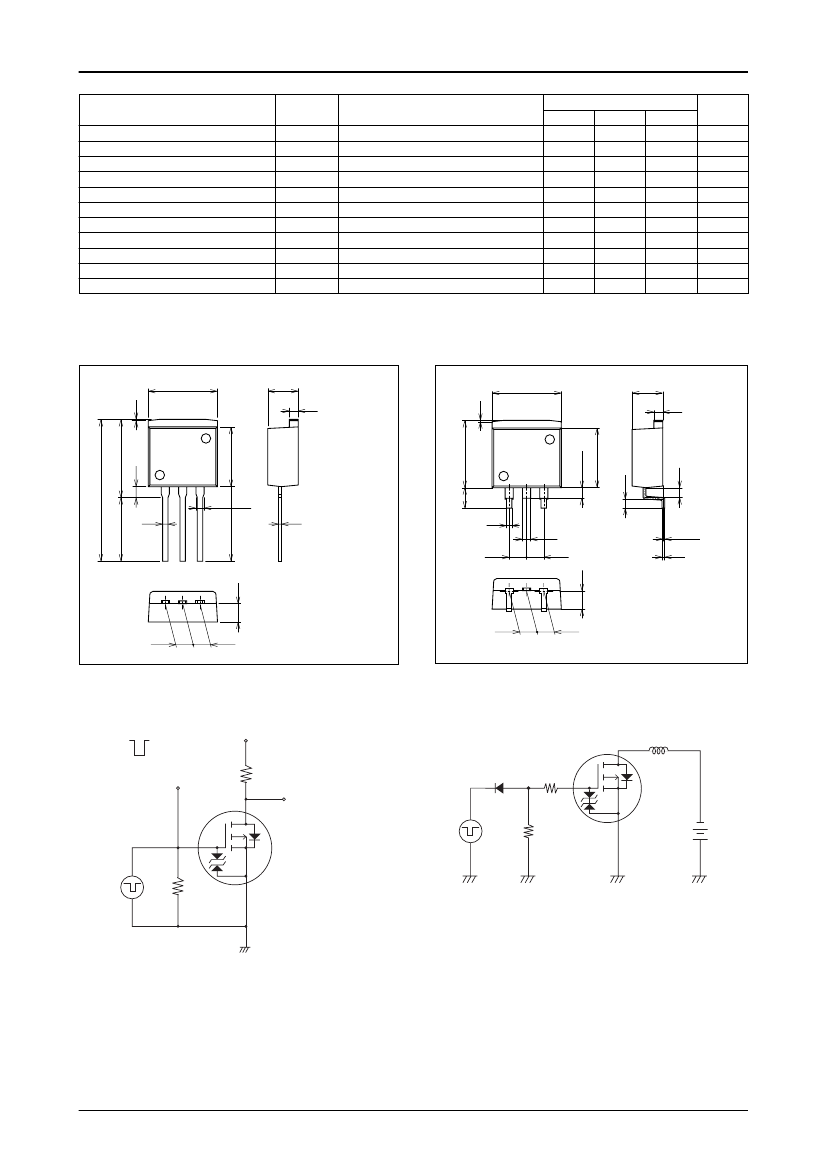

Continued on next page.
Any and all SANYO products described or contained herein do not have specifications that can handle
applications that require extremely high levels of reliability, such as life-support systems, aircraft's
control systems, or other applications whose failure can be reasonably expected to result in serious
physical and/or material damage. Consult with your SANYO representative nearest you before using
any SANYO products described or contained herein in such applications.
SANYO assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other
parameters) listed in products specifications of any and all SANYO products described or contained
herein.
SANYO Electric Co.,Ltd. Semiconductor Company
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
N1805QA TS IM TB-00001314 No.8588-1/4
