36.2 MHz Filter
for VSB system L- IF Applications
Part Number SF0036BA00628T
Micro Networks Corp., 324 Clark Street, Worcester, MA 01606, USA tel: 508-852-5400, fax:508-852-8456, www.micronetworks.com

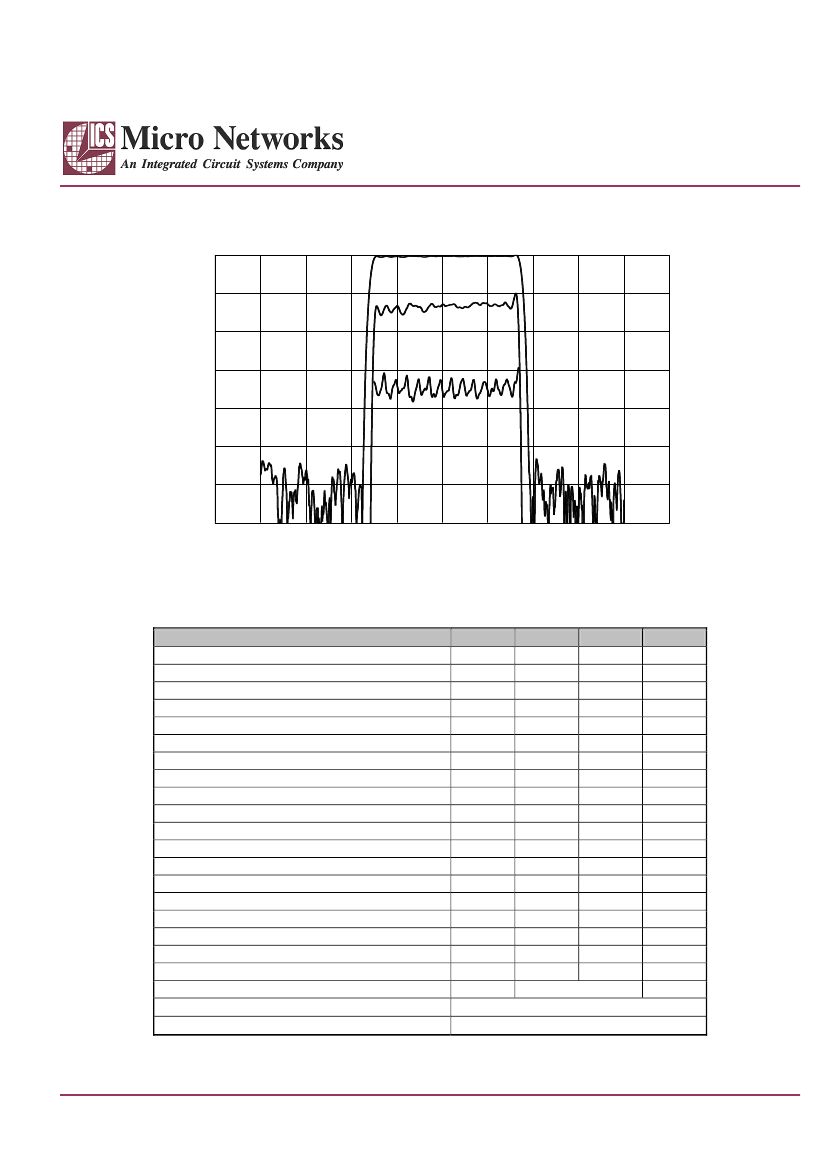

TYPICAL PERFORMANCE
Horizontal: 2.5 MHz/div
Vertical (from top): Magnitude
Magnitude
Group Delay
10 dB/div
1 dB/div
50 ns/div
SPECIFICATION
Parameter
F_visual
F_color
F_audio
Center Frequency ( Nominal)
Insertion Loss
1 dB Lower Band Edge
1 dB Upper Band Edge
Passband Ripple( 32.3 - 40.1 )
Phase Deviation (32.3 - 40.1)
GD Ripple (32.3 - 40.1)
Rejection (20 - - 29.15)
Rejection ( 29.15 - 31.70)
Rejection ( 40.65 - 42.0)
Rejection ( 42.0 - 65.0)
2T K Factor
2T Pulse and Bar
Absolute Delay
Ambient Temperature
Temperature Coefficient
Source/Load Impedance
Matching Network
Substrate Material
Min.
Typ.
38.9
32.9
32.4
36.2
Max.
Units.
MHz
MHz
MHz
MHz
dB
MHz
MHz
dB p-p
deg p-p
ns p-p
dB
dB
dB
dB
%
%
us
ºC
ppm / º C
Ω
28
40.15
0.3
3
30
55
50
50
55
1
0.7
4
50
-80
50
32
32.2
0.5
5
50
46
30
30
46
1.5
1.5
None
128 Lithium Niobate
Rev 1.2 18-Oct-02
Page 1 of 2
36.2 MHz Filter
for VSB system L- IF Applications
Part Number SF0036BA00628T
Micro Networks Corp., 324 Clark Street, Worcester, MA 01606, USA tel: 508-852-5400, fax:508-852-8456, www.micronetworks.com

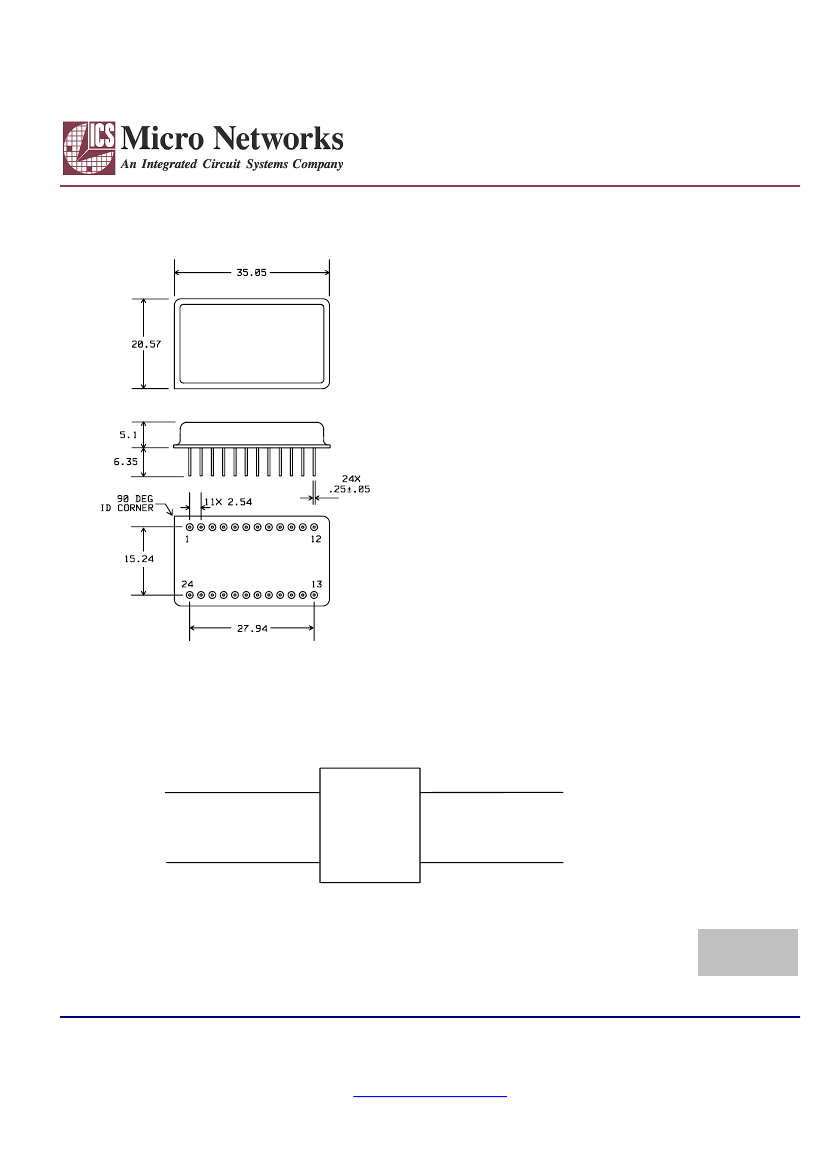

PACKAGE OUTLINE
Units:
mm
Pin Configuration:
Input:
3
Input Return: 22
Output:
15
Output Return: 10
Ground:
All other pins.
MATCHING CIRCUIT
3
15
22
No matching required
10
ISO 9001
Registered
Micro Networks
Worldwide Headquarters: 324 Clark Street Worcester, MA 01606. tel: 508-852-5400 fax: 508-852-8456
European Sales Headquarters: Hertosingel 20 6214 AD Maastricht, Netherlands. tel: +31-43-32-70912 fax: +31-43-32-70715
www.micronetworks.com
Rev 1.2 18-Oct-02
Page 2 of 2
