5962-9075403MZX datasheet, PDF

5962-9075403MZX: DescriptionUV PLD, 25ns, PAL-Type, CMOS, CQCC28, WINDOWED, CERAMIC, LCC-28; CategoryProgrammable logic Programmable logic devices; File Size553KB，14 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric View All

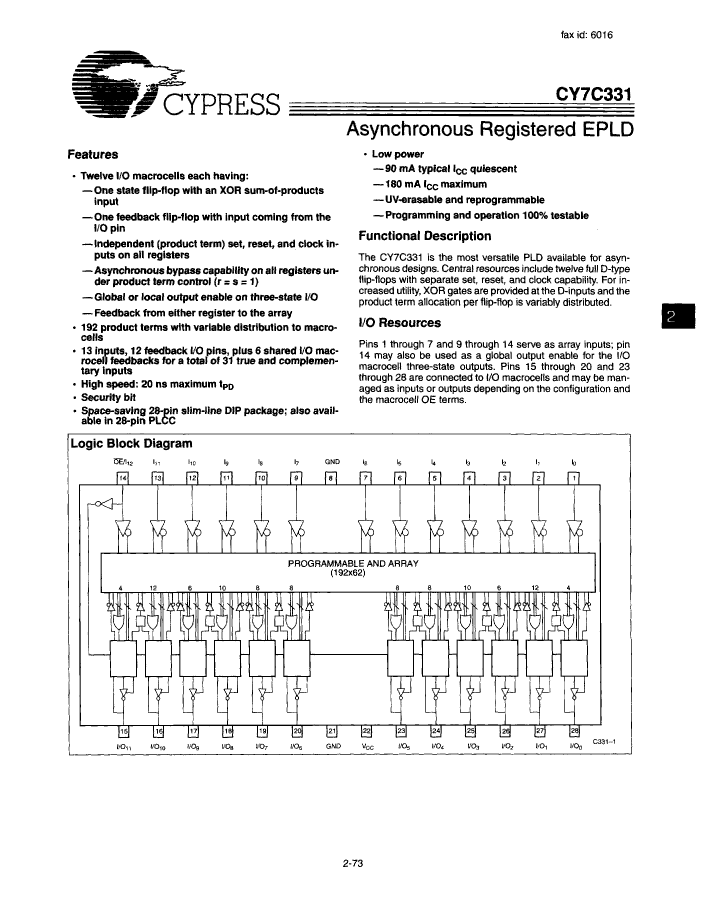

5962-9075403MZX Overview

UV PLD, 25ns, PAL-Type, CMOS, CQCC28, WINDOWED, CERAMIC, LCC-28

Parameter Name	Attribute value
Maker	Cypress Semiconductor
Parts packaging code	QLCC
package instruction	WQCCJ, LDCC28,.5SQ
Contacts	28
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C

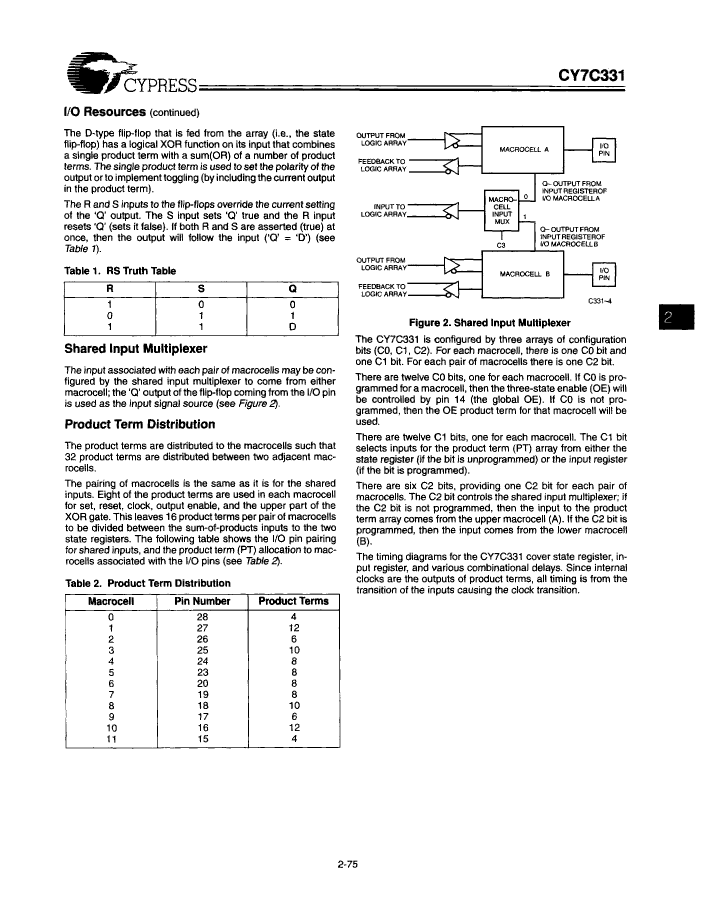

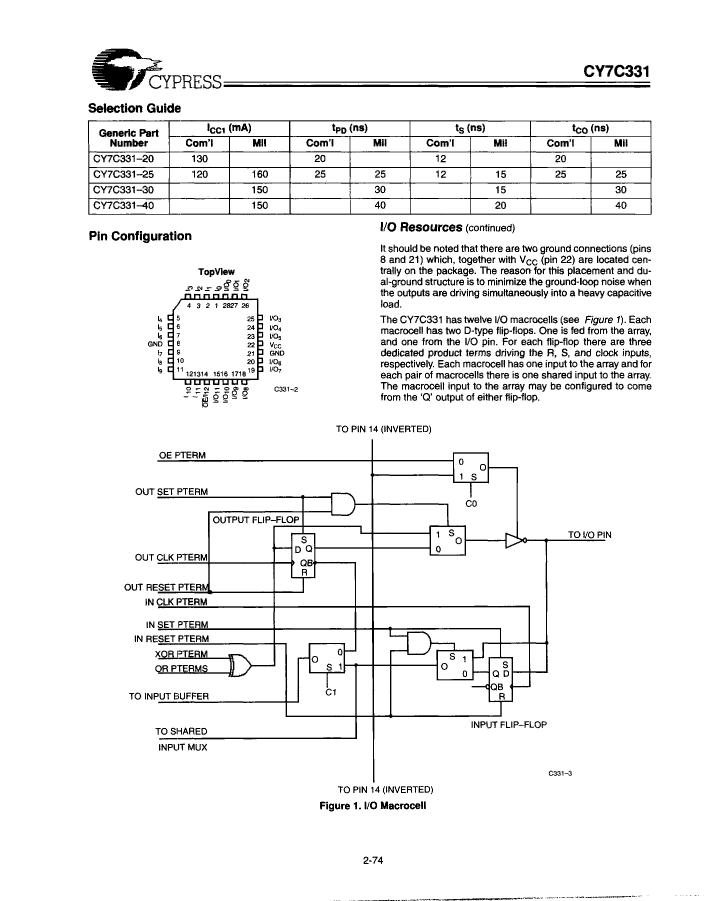

Other features	ASYNCHRONOUS REGISTERED; 12 I/O MACROCELLS; VARIABLE PRODUCT TERMS
Architecture	PAL-TYPE
maximum clock frequency	20 MHz
JESD-30 code	S-CQCC-J28
JESD-609 code	e0
length	11.43 mm
Dedicated input times	12
Number of I/O lines	12
Number of entries	25
Output times	12
Number of product terms	192
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	12 DEDICATED INPUTS, 12 I/O
Output function	MACROCELL
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	WQCCJ
Encapsulate equivalent code	LDCC28,.5SQ
Package shape	SQUARE
Package form	CHIP CARRIER, WINDOW
power supply	5 V
Programmable logic type	UV PLD

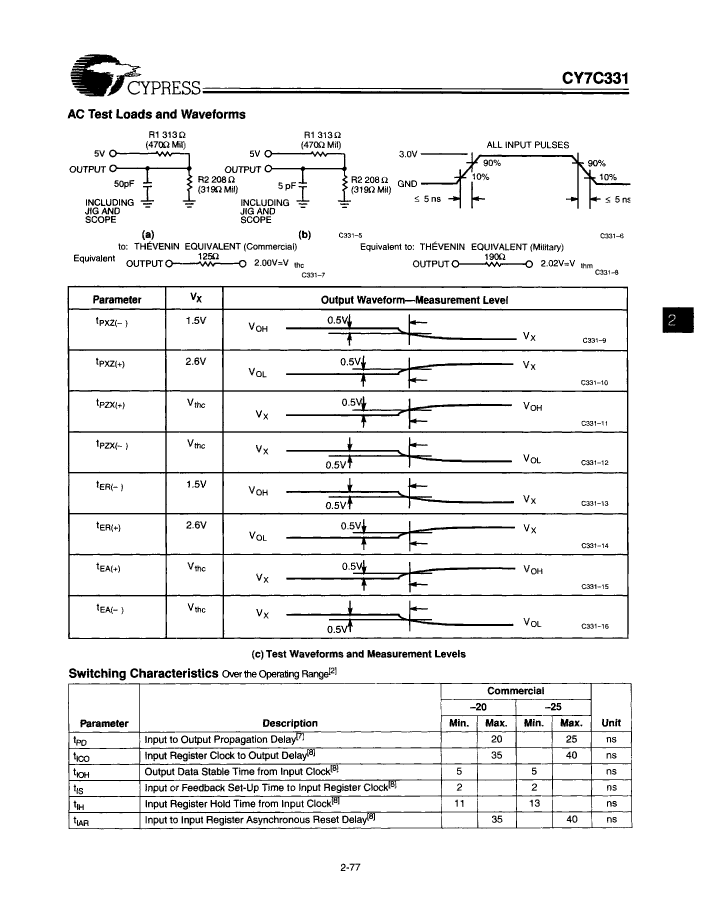

propagation delay	25 ns
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	4.572 mm

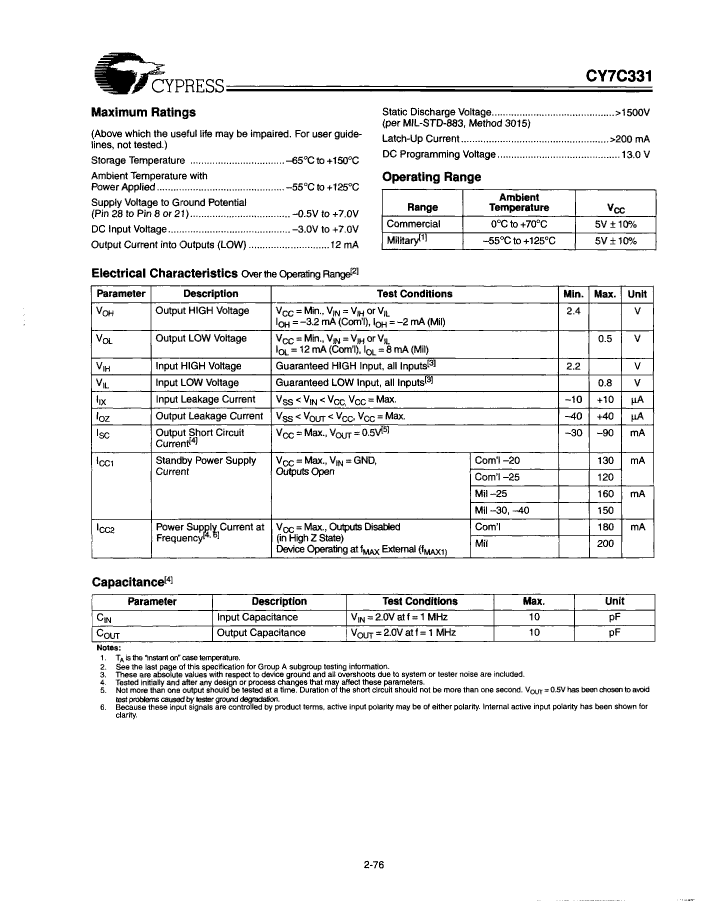

Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	11.43 mm
Base Number Matches	1
