7.6mmX7.6mm SUPER FLUX LED LAMP
L-7676CSYC-H
SUPER BRIGHT YELLOW
Features
!
SUPER
Description
This devices are made with TS InGaAIP.
FLUX OUTPUT.
FOR HIGH CURRENT OPERATION.
MATERIAL EFFICIENCY.
AND RUGGED.
!
DESIGN
!
OUTSTANDING
!
RELIABLE

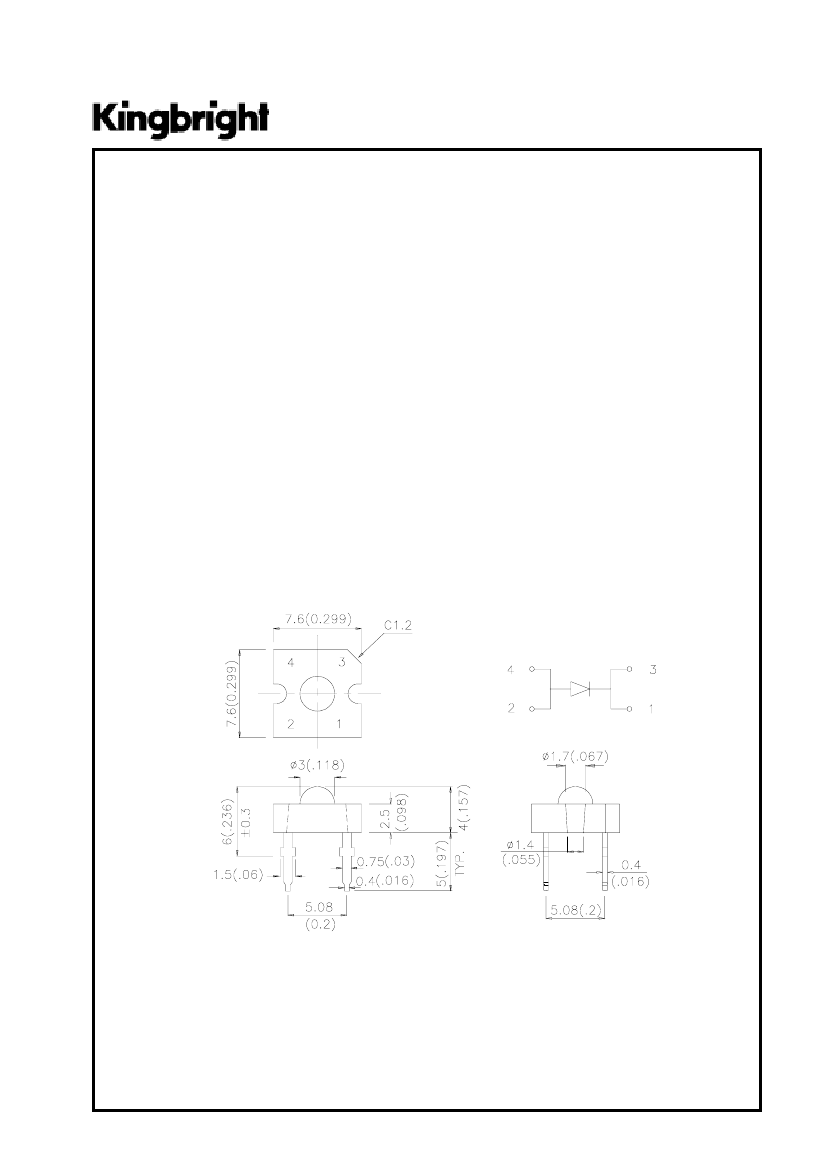

Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.25(0.01")
unless otherwise noted.
3. Lead spacing is measured where the lead emerge package.
4. Specifications are subject to change without notice.
SPEC NO: DSAA0048
APPROVED : J. Lu
REV NO: V.4
CHECKED :Allen Liu
DATE: FEB/22/2003
DRAWN: F.Y.YUAN
PAGE: 1 OF 3
Selection Guide
Par t No .
Dic e
L en s Ty p e
Iv (m c d )
@ 20 m A *70m A
Min .
L-7676CSYC-H
SUPER BRIGHT YELLOW (InGaAlP)
WATER CLEAR
280
*480
Ty p .
45 0
*1100
V i ew i n g
An g l e
2θ1/2
70 °
70 °
Notes:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
2. * Luminous intensity with asterisk is measured at 70mA.
3.Drive current between 10mA and 30mA are recommended for long term performance.
4.Operation at current below 10mA is not recommended.

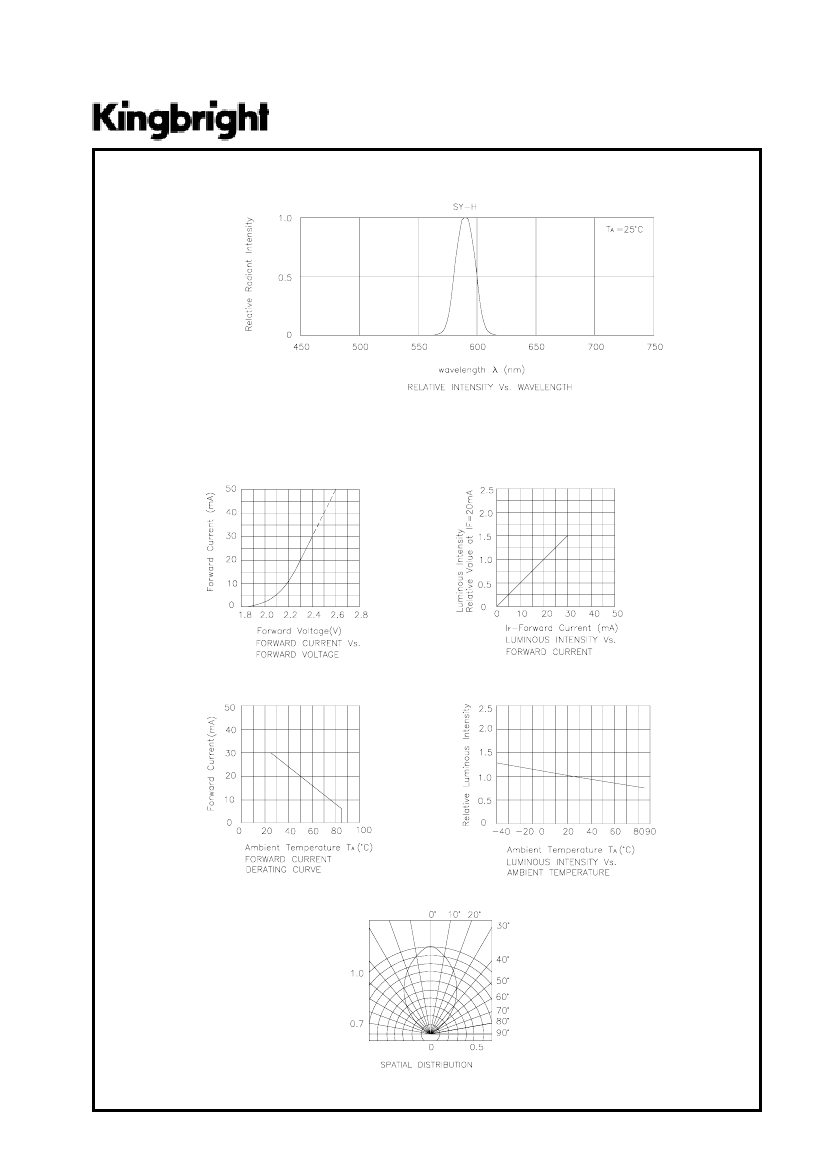

Electrical / Optical Characteristics at T
)
=25°C
°
Sy m b o l
λ
peak
λ
D
∆λ
1/2
C
V
F
I
R
Par am et er
Peak Wavelength
Dominate Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
D ev i c e
Super Bright Yellow
Super Bright Yellow
Super Bright Yellow
Super Bright Yellow
Super Bright Yellow
Super Bright Yellow
Ty p .
590
589
20
45
2.3
2.8
10
Max .
Un it s
nm
nm
nm
pF
V
uA
Tes t Co n d it io n s
I
F
= 2 0 m A
I
F
= 2 0 m A
I
F
= 2 0 m A
V
F
= 0 V; f = 1 M Hz
I
F
= 2 0 m A
V
R
= 5V
Absolute Maximum Ratings at T
)
=25°C
°
Par am et er
Power dissipation
Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Lead Solder Temperature [2]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
Su p er B r ig h t Yello w
12 0
30
140
5
-40
°
C To +85
°C
260
°
C For 5 Seconds
Un it s
mW
mA
mA
V
SPEC NO: DSAA0048
APPROVED : J. Lu
REV NO: V.4
CHECKED :Allen Liu
DATE: FEB/22/2003
DRAWN: F.Y.YUAN
PAGE: 2 OF 3
