824-M0217R: DescriptionDatacom Transformer, 10/100 BASE-T Application(s), 1CT:1; 1CT:1CT, SO024A, ROHS COMPLIANT; Categorytransformer; File Size91KB，2 Pages; ManufacturerElec & Eltek; Websitehttp://www.eleceltek.com; Environmental Compliance

Download Datasheet Parametric Compare View All

824-M0217R Overview

Datacom Transformer, 10/100 BASE-T Application(s), 1CT:1; 1CT:1CT, SO024A, ROHS COMPLIANT

824-M0217R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Elec & Eltek
package instruction	SO024A, ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	BREADTH & HEIGHT DIM INCLUDES TERMINALS ALSO
application	10/100 BASE-T
high	5.97 mm
Insulation voltage	1500 V
length	17.78 mm
Installation features	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	70 °C
Minimum operating temperature
method of packing	TAPE & REEL
physical size	L17.78XB15.24XH5.97 (mm)
Primary inductance	350 µH
surface mount	YES
Transformer type	DATACOM TRANSFORMER
Turns ratio (Np:Ns)	1CT:1; 1CT:1CT
width	15.24 mm
Base Number Matches	1

Preview

Download Datasheet

View All

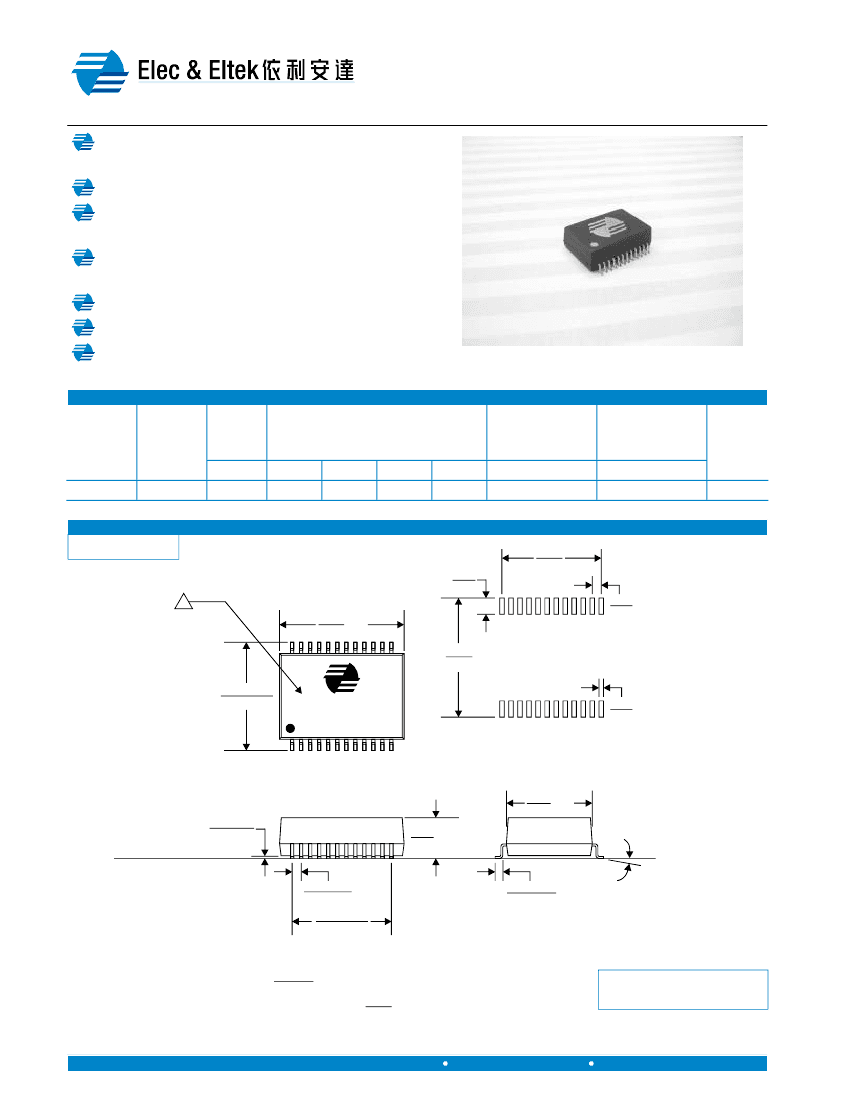

E & E Magnetic Products Limited

10/100 Base-T Single Port

Magnetic Module

1:1 Turns Ratios for Different Transceivers IC

CHEMATICS

Compliant with IEEE802.3 standard including

350uH

OCL with 8mA DC bias

Enhanced crosstalk and return loss performance

Designed to withstand IR-Reflow with peak

temperature per IPC/JEDEC J-STD-020C

Allow migration to Gigabit 1000Base-T without

changing circuit board layout

Operating temperature 0°C to +70°C

Some models are UL60950 recognized

RoHS compliant version is available

LECTRICAL

PECIFICATION @

25°C

Part

Number

RoHS

Part

Number

Insertion

Loss

(dB Max)

.1-100MHz 1-30MHz

824-M0217 824-M0217R

1.0

18.0

Return Loss

(dB Min)

40MHz

15.5

50MHz

13.5

60-80MHz

12.0

CMRR

(dB Min)

.1-100MHz

35.0

Crosstalk

(dB Min)

.1-100MHz

35.0

1500

Hipot

(Vrms)

CHEMATICS

ECHANICAL

IMENSIONS

Package: SO024A

.090

2.29

.550

13.97

.700 MAX

17.78

.660

16.76

.600±.010

15.24±0.25

.050

1.27

824-M0217

(DATE)

.025

0.64

Recommended

Pad Layout

.480

12.19 MAX

.010-.020

0.25-0.51

REFERENCE OR

GAUGE PLANE

.050±.005

1.27±0.13

.550±.010

13.97±0.25

.235 MAX

5.97

0-8°

.045±.010

1.14±0.25

Notes:

Weight (in gram)

1. All dimensions are specified in inches with higher precedence in inches.

Tape & Reel

2. Unless otherwise specified, all tolerances are ± .010 .

0.25

3. For RoHS part number, 824-M0217R, the part will be marked with “824-M0217R”, instead of “824-M0217”.

2.4 typ.

450 / reel

2/F Block A, 94 Tokwawan Road, Kowloon, Hong Kong

Tel: (852) 2765 3888

Fax: (852) 2954 3304

EH028(04)

Revised in 06/07
