824-M0256R: DescriptionDatacom Transformer, 10/100 BASE-T; AUTOMDIX Application(s), 1:1, SO024A, ROHS COMPLIANT; Categorytransformer; File Size135KB，3 Pages; ManufacturerElec & Eltek; Websitehttp://www.eleceltek.com; Environmental Compliance

Download Datasheet Parametric Compare View All

824-M0256R Overview

Datacom Transformer, 10/100 BASE-T; AUTOMDIX Application(s), 1:1, SO024A, ROHS COMPLIANT

824-M0256R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Elec & Eltek
package instruction	SO024A, ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	BREADTH & HEIGHT DIM INCLUDES TERMINALS ALSO
application	10/100 BASE-T; AUTOMDIX
high	5.97 mm
Insulation voltage	1500 V
length	17.78 mm
Installation features	SURFACE MOUNT
Number of functions	2
Maximum operating temperature	70 °C
Minimum operating temperature
method of packing	TAPE & REEL
physical size	L17.78XB15.24XH5.97 (mm)
Primary inductance	350 µH
surface mount	YES
Transformer type	DATACOM TRANSFORMER
Turns ratio (Np:Ns)	1:1
width	15.24 mm
Base Number Matches	1

Preview

Download Datasheet

View All

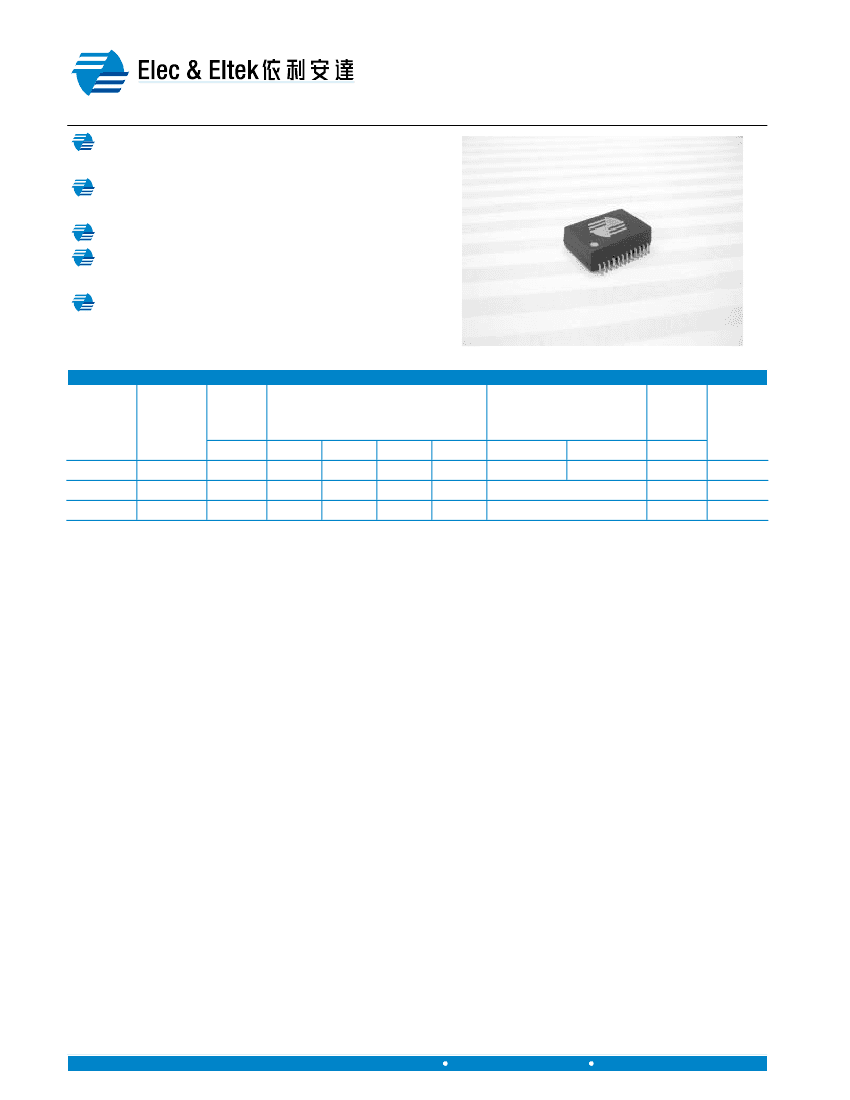

E & E Magnetic Products Limited

10/100 Base-T Dual Port

Magnetic Module

For Transceivers Requiring 1:1 Turns Ratio

CHEMATICS

Compliant with IEEE802.3 standard including

350uH

OCL with 8mA DC bias

Designed to withstand IR-Reflow with peak

temperature per IPC/JEDEC J-STD-020C

Operating temperature 0°C to +70°C

Symmetrical TX and RX channels suitable for

Auto MDI/MDIX applications

RoHS compliant versions are available

LECTRICAL

PECIFICATION @

25°C

Part

Number

RoHS

Part

Number

824-M0256R

1,2

Insertion

Loss

(dB Max)

.1-100MHz 1-30MHz

Return Loss

(dB Min)

40MHz

14.4

50MHz

13.1

60-80MHz

12.0

CMRR

(dB Min)

1-60MHz

37.0

.1-100MHz

60-200MHz

25.0

Crosstalk

(dB Min)

.1-100MHz

33.0

Hipot

(Vrms)

824-M0256

1.0

18.0

1500

824-00277

824-M0277R

1.4

16.0

14.4

13.1

12.0

33.0

1500

Notes:

1. Operating temperature -40°C to +85°C

2/F Block A, 94 Tokwawan Road, Kowloon, Hong Kong

Tel: (852) 2765 3888

Fax: (852) 2954 3304

EH030(02)

Revised in 06/07

824-M0256R Related Products

	824-M0256R	824-00277R	824-00277	824-M0256
Description	Datacom Transformer, 10/100 BASE-T; AUTOMDIX Application(s), 1:1, SO024A, ROHS COMPLIANT	Datacom Transformer, 10/100 BASE-T; AUTOMDIX Application(s), 1:1, SO024A, ROHS COMPLIANT	Datacom Transformer, 10/100 BASE-T; AUTOMDIX Application(s), 1:1, SO024A	Datacom Transformer, 10/100 BASE-T; AUTOMDIX Application(s), 1:1, SO024A
Is it lead-free?	Lead free	Lead free	Contains lead	Contains lead
Is it Rohs certified?	conform to	conform to	incompatible	incompatible
Maker	Elec & Eltek	Elec & Eltek	Elec & Eltek	Elec & Eltek
package instruction	SO024A, ROHS COMPLIANT	SO024A, ROHS COMPLIANT	SO024A	SO024A
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	BREADTH & HEIGHT DIM INCLUDES TERMINALS ALSO	BREADTH & HEIGHT DIM INCLUDES TERMINALS ALSO	BREADTH & HEIGHT DIM INCLUDES TERMINALS ALSO	BREADTH & HEIGHT DIM INCLUDES TERMINALS ALSO
application	10/100 BASE-T; AUTOMDIX	10/100 BASE-T; AUTOMDIX	10/100 BASE-T; AUTOMDIX	10/100 BASE-T; AUTOMDIX
high	5.97 mm	5.97 mm	5.97 mm	5.97 mm
Insulation voltage	1500 V	1500 V	1500 V	1500 V
length	17.78 mm	17.78 mm	17.78 mm	17.78 mm
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	2	2	2	2
Maximum operating temperature	70 °C	70 °C	85 °C	70 °C
method of packing	TAPE & REEL	TAPE & REEL	TAPE & REEL	TAPE & REEL
physical size	L17.78XB15.24XH5.97 (mm)	L17.78XB15.24XH5.97 (mm)	L17.78XB15.24XH5.97 (mm)	L17.78XB15.24XH5.97 (mm)
Primary inductance	350 µH	350 µH	350 µH	350 µH
surface mount	YES	YES	YES	YES
Transformer type	DATACOM TRANSFORMER	DATACOM TRANSFORMER	DATACOM TRANSFORMER	DATACOM TRANSFORMER
Turns ratio (Np:Ns)	1:1	1:1	1:1	1:1
width	15.24 mm	15.24 mm	15.24 mm	15.24 mm
Base Number Matches	1	1	1	1
Manufacturer's serial number	-	824-00277	824-00277	824-M0256
