4605H-701-332/123L datasheet, PDF

Datasheet> All Categories > Passive components> RC network> 4605H-701-332/123L

4605H-701-332/123L: DescriptionRC Network, Terminator, 3300ohm, 50V, 0.012uF, Through Hole Mount, 5 Pins, SIP, ROHS COMPLIANT; CategoryPassive components RC network; File Size340KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric View All

4605H-701-332/123L Overview

RC Network, Terminator, 3300ohm, 50V, 0.012uF, Through Hole Mount, 5 Pins, SIP, ROHS COMPLIANT

4605H-701-332/123L Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Bourns
package instruction	SIP, ROHS COMPLIANT
Reach Compliance Code	compliant
capacitance	0.012 µF
Capacitor Negative Tolerance	20%
Capacitor positive tolerance	20%
Capacitor temperature characteristic code	X7R
Capacitor temperature coefficient	15%
The first element resistor	3300 Ω
JESD-609 code	e1
length	12.65 mm
Manufacturer's serial number	700
Installation features	THROUGH HOLE MOUNT
Network Type	TERMINATOR
Number of capacitor elements	4
Number of functions	1
Number of RC components	4
Number of resistor elements	4
Number of terminals	5
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Package shape	RECTANGULAR PACKAGE
Rated (DC) voltage (URdc)	50 V
Resistor tolerance	5%
Resistor/Capacitor Network Type	RC NETWORK
Maximum seat height	8.5 mm
surface mount	NO
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)
Terminal pitch	2.54 mm
Terminal shape	FLAT
width	3.81 mm
Operating Voltage	50 V
Base Number Matches	1

Preview

Download Datasheet

View All

Features

■

Low noise termination for CMOS

■

Combined resistors and capacitors in SIP

■

package saves space

Reduced insertion time

Insulation resistance testing for reliability

Pin counts from 4 to 16 available

RoHS compliant*

For information on RC Terminators,

download

Bourns’ RC Terminator Networks

Application Note.

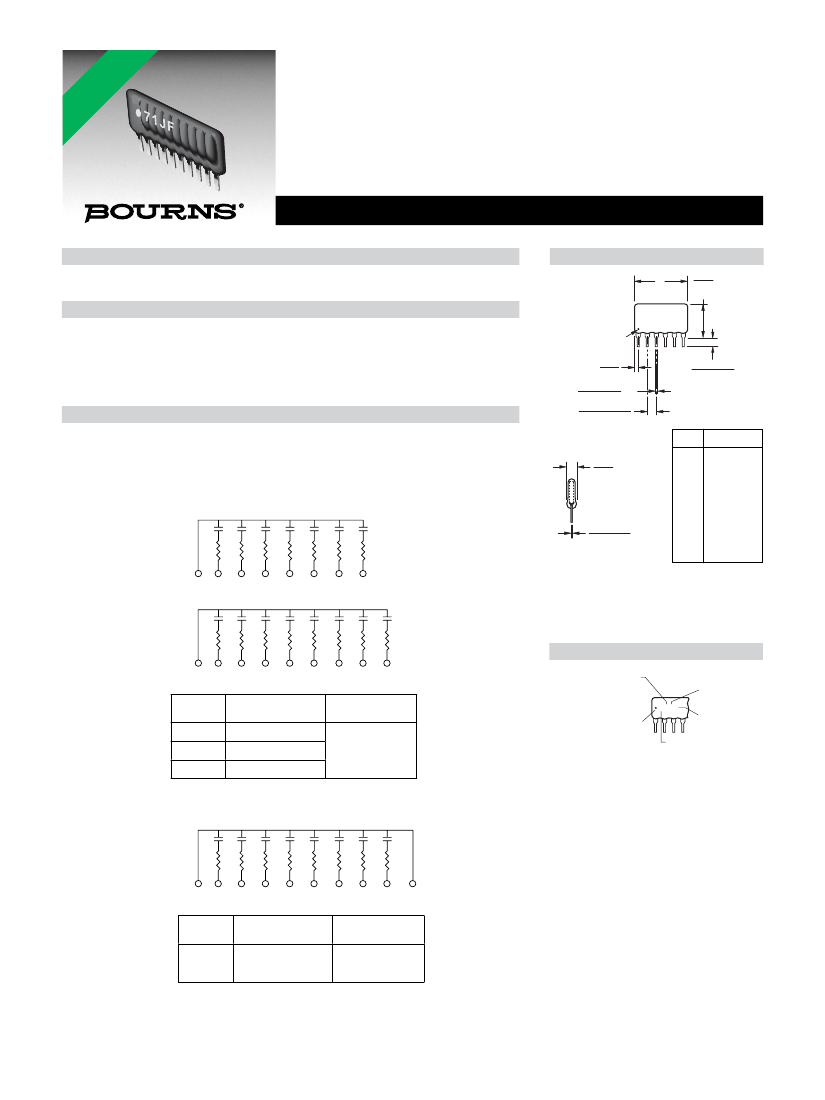

700 Series - RC Terminator Networks

Electrical Characteristics - Resistors

Standard Resistance Range, ±5 % Tolerance ............................22 ohms to 470K ohms

Operating Voltage ................................................................................ 50 volts maximum

Electrical Characteristics - Capacitors

Capacitance Range ...........................................................................39 pF to 47,000 pF

Capacitance Range ................................................................. 470 pF to 47,000 pF X7R

Capacitance Range ........................................................................ 39 pF to 470 pF NPO

Capacitance Tolerance ...........................................................................................±20 %

Operating Temperature...........................................................................-30 °C to +85 °C

Voltage Rating ......................................................................................................50 volts

Physical Characteristics

Flammability .................................................................................. Conforms to UL94V-0

Lead Frame Material .....................................................................Copper, solder coated

Body Material ...........................................................................................Conformal coat

Product Dimensions

MAXIMUM

8.5

(.335)

MAX.

PIN #1

REF.

MAX. 1.24

BOTH ENDS (.049)

.508

.050

TYP.

(.020

.002)

2.54

.07

(.100

.003** )

TYP. NON-ACCUM.

Count

A Maximum

mm (Inches)

10.11 (.398)

12.65 (.498)

15.19 (.598)

17.73 (.698)

20.27 (.798)

22.81 (.898)

25.35 (.998)

27.89 (1.098)

30.43 (1.198)

32.97 (1.298)

35.51 (1.398)

38.04 (1.498)

40.59 (1.598)

3.0 ~ 3.8

(.118 ~ 0.15)

3.81

MAX.

(.150)

701

.254

.050

TYP.

(.010

.002)

Governing dimensions are metric. Dimensions in parentheses

are inches and are approximate.

**Terminal centerline to centerline measurements made at point of

emergence of the lead from the body.

Typical Part Marking

ELECTRICAL

CONFIGURATION

• 1 = Single Termination

• 2 = Double Termination

PIN ONE

INDICATOR

RESISTANCE

CODE***

71JF

NO. OF

LINES

BOURNS P/N

4608H-701-RC/CCL

4609H-701-RC/CCL

4610H-701-RC/CCL

PACKAGE

High Proﬁle

Conformal

SIP

CAPACITANCE

CODE***

MODEL

• 7 = 700 Series

***See Standard Marking, Values and Codes tables.

702

NO. OF

LINES

BOURNS P/N

PACKAGE

High Proﬁle

Conformal

SIP

4610H-702-RC/CCL

*RoHS Directive 2002/95/EC Jan 27, 2003 including Annex.

Speciﬁcations are subject to change without notice.

Customers should verify actual device performance in their speciﬁc applications.
