824-M0002R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > transformer> 824-M0002R

824-M0002R: DescriptionDatacom Transformer, 10/100 BASE-T Application(s), 2CT:1CT; 1:1, SO040A, ROHS COMPLIANT; Categorytransformer; File Size413KB，3 Pages; ManufacturerElec & Eltek; Websitehttp://www.eleceltek.com; Environmental Compliance

Download Datasheet Parametric Compare View All

824-M0002R Overview

Datacom Transformer, 10/100 BASE-T Application(s), 2CT:1CT; 1:1, SO040A, ROHS COMPLIANT

824-M0002R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Elec & Eltek
package instruction	SO040A, ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	HEIGHT DIM INCLUDES TERMINAL ALSO
application	10/100 BASE-T
high	5.72 mm
length	27.94 mm
Installation features	SURFACE MOUNT
Number of functions	4
Maximum operating temperature	70 °C
Minimum operating temperature
method of packing	TAPE & REEL
physical size	L27.94XB12.19XH5.72 (mm)
Primary inductance	350 µH
surface mount	YES
Transformer type	DATACOM TRANSFORMER
Turns ratio (Np:Ns)	2CT:1CT; 1:1
width	12.19 mm
Base Number Matches	1

Preview

Download Datasheet

View All

E & E Magnetic Products Limited

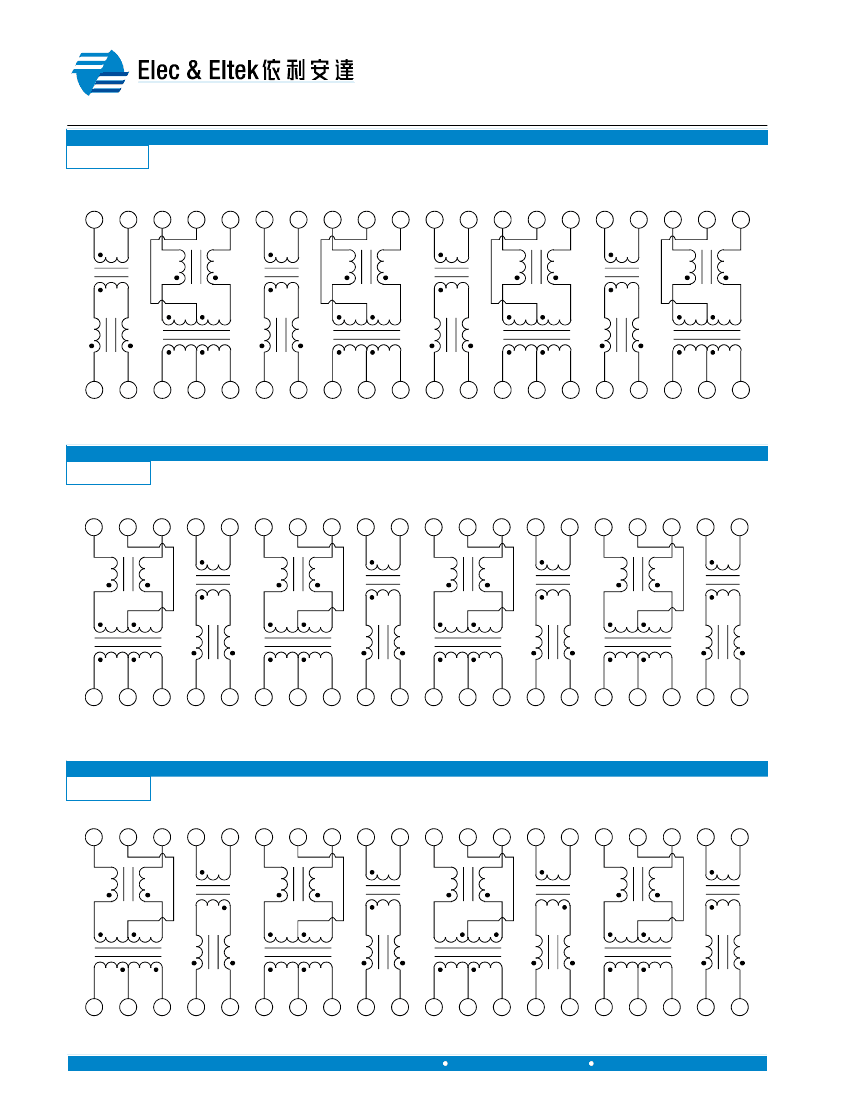

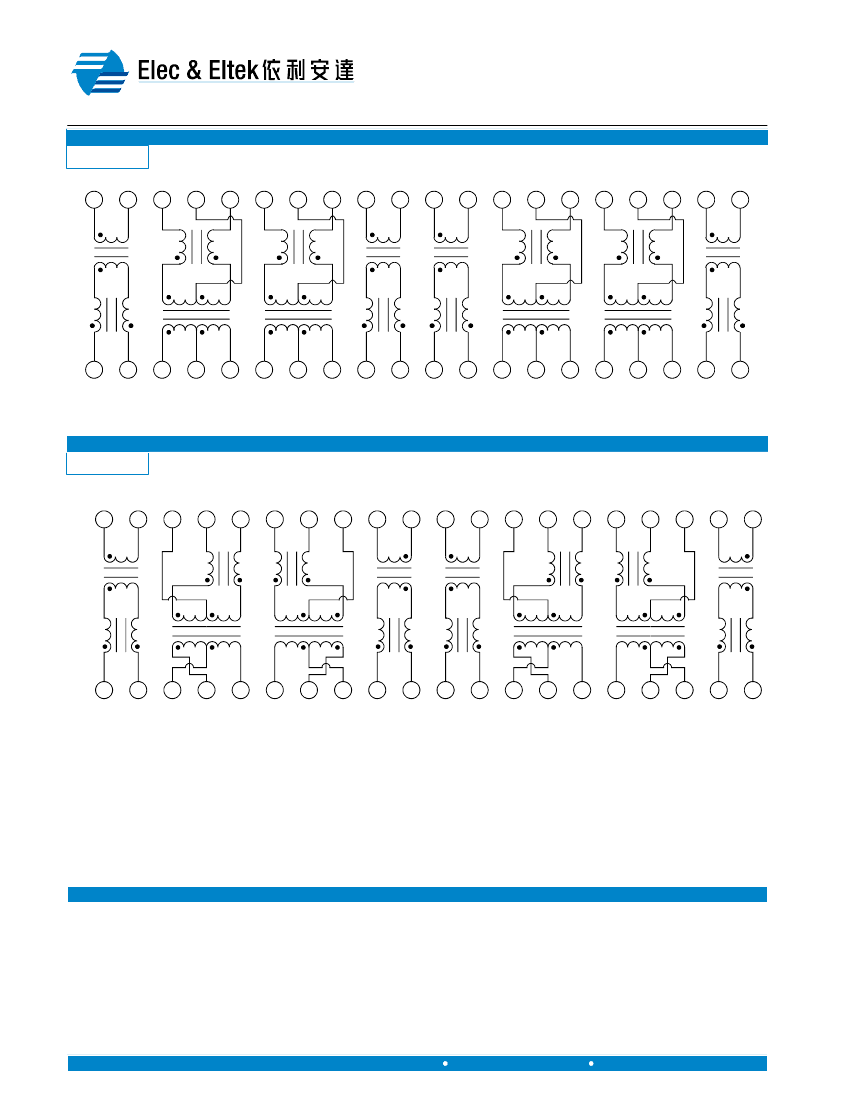

10/100 Base-T Quad Port

Magnetic Module

For Transceiver Requiring Various Turns Ratios

CHEMATICS

Compliant with IEEE802.3 standard including

350uH

OCL with 8mA DC Bias

Designed to withstand IR-Reflow with peak

temperature per IPC/JEDEC J-STD-020C

Operating temperature 0°C to +70°C

Some models are UL60950 recognized

RoHS compliant versions are available

LECTRICAL

PECIFICATION @

25°C

Part

Number

RoHS

Part

Number

Turns Ratio

824-M0002 824-M0002R

824-M0016 824-M0016R

824-M0025 824-M0025R

2CT:1CT

1:1

Insertion

Loss

(dB Typ)

.1-100MHz 1-30MHz

0.5

18.0

Return Loss

(dB Min)

40MHz

15.5

15.0

16.0

15.5

50MHz

13.5

14.0

13.5

CMRR

(dB Min)

Crosstalk

(dB Min)

Hipot

(Vrms)

60-80MHz .1-100MHz .1-100MHz

12.0

30.0

32.0

1500

824-M0082 824-M0082R 1.41CT:1CT

824-M0244 824-M0244R 1.25CT:1CT

ECHANICAL

IMENSIONS

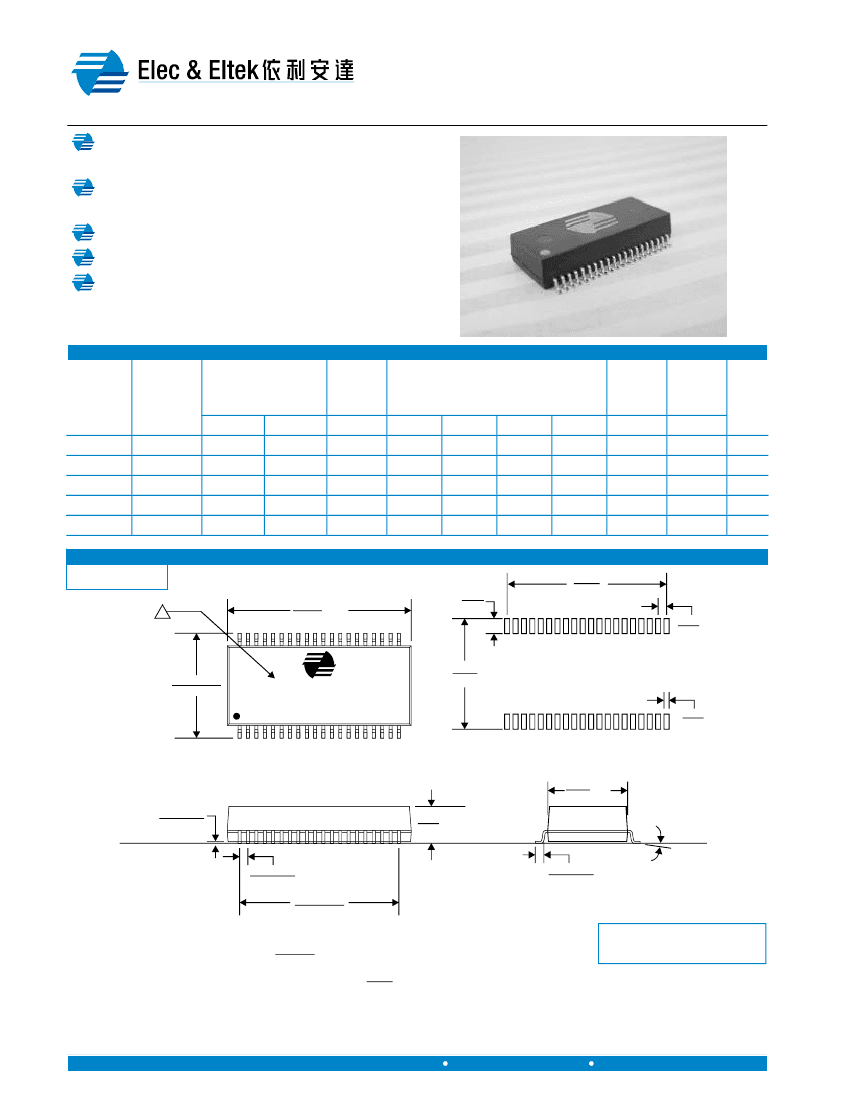

Package: SO040A

1.100 MAX

27.94

.090

2.29

.950

24.13

.050

1.27

.625±.010

15.88±0.25

824-M0xxx

(DATE) (COUNTRY)

.660

16.76

.030

0.76

Recommended

Pad Layout

ECHANICAL

IMENSIONS

.005-.015

0.13-0.38

.225 MAX

5.72

.480 MAX

12.19

REFERENCE OR

GAUGE PLANE

.050±.005

1.27±0.13

.950±.010

24.13±0.25

.045±.010

1.14±0.25

0-8°

Notes:

Weight (in gram)

4.0 typ.

350 / reel

inches

Tape & Reel

1. All dimensions are specified in mm with higher precedence in inches.

2. Unless otherwise specified, all tolerances are ± .010 .

0.25

3. For available RoHS part number, the part will be marked with “824-M0xxxR”, instead of “824-M0xxx”.

2/F Block A, 94 Tokwawan Road, Kowloon, Hong Kong

Tel: (852) 2765 3888

Fax: (852) 2954 3304

EH017(06)

Revised in 06/07
