821-M0680: DescriptionTelecom Transformer, SO016A; Categorytransformer; File Size77KB，2 Pages; ManufacturerElec & Eltek; Websitehttp://www.eleceltek.com

Download Datasheet Parametric Compare View All

821-M0680 Overview

Telecom Transformer, SO016A

821-M0680 Parametric

Parameter Name	Attribute value
Maker	Elec & Eltek
package instruction	SO016A
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	HEIGHT DIM. INCLUDES TERMINALS ALSO, TURNS RATIO: 1:2CT; 1:1
high	5.08 mm
length	12.7 mm
Manufacturer's serial number	821-M0680
Installation features	SURFACE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	TAPE & REEL
physical size	L12.7XB6.86XH5.08 (mm)
surface mount	YES
Transformer type	TELECOM TRANSFORMER
width	6.86 mm
Base Number Matches	1

Preview

Download Datasheet

View All

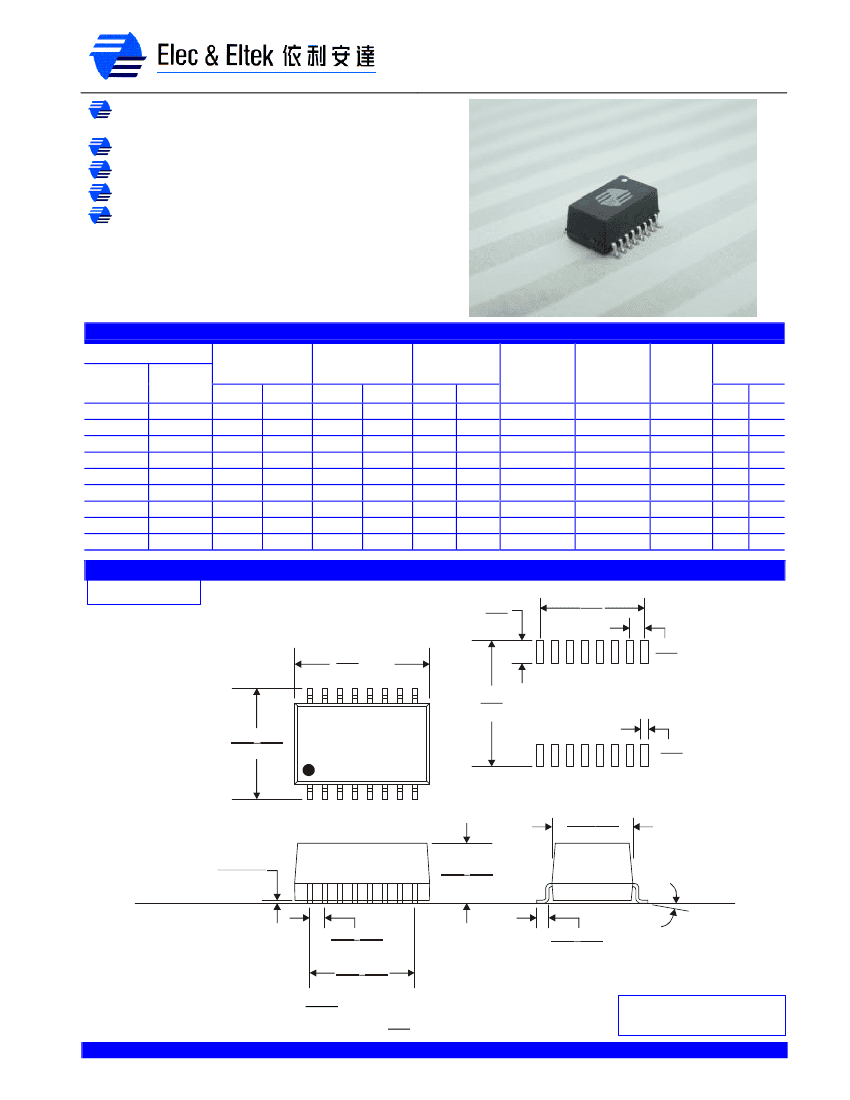

T3/DS3/E3/STS-1 TRANSFORMER

E & E Magnetic Products Limited

Dual SOIC package contains both transmit and

receive transformers

Models designed for leading transceiver ICs

Return loss meets requirements of G.703

Designed to meet UL60950

Isolation voltage: 1500Vrms

Dual, SOIC, 1500Vrms, Standard and

Extended Temperature Range

E

LECTRICAL

S

PECIFICATION

@25°C

Part Number

Std. Temp

(0°C to

+70°C)

---

821-M0772

821-M0773

821-M0774

821-M0775

---

Ext. Temp

(-40°C to

TX

RX

+85°C)

821-M0432 1:2CT

1:1

821-M0679 1CT:1CT

1:1

821-M0680 1:2CT

1:1

---

1:1

---

1:1

1:1.5

---

1:1

1CT:1CT

---

1:1

1:2CT

821-M0776

1:1

821-M1674 1:2CT

1:2CT

Turns Ratio

(Pri : Sec ± 2%)

OCL

Primary@25ºC

(uH Min)

TX

40

100

40

45

40

RX

100

40

19

45

40

OCL

Primary@-40ºC

(uH Min)

TX

19

40

---

40

19

RX

40

---

40

19

LL

(uH Max)

0.12

0.10

0.12

0.10

0.12

0.10

Cww

(pF Max)

10

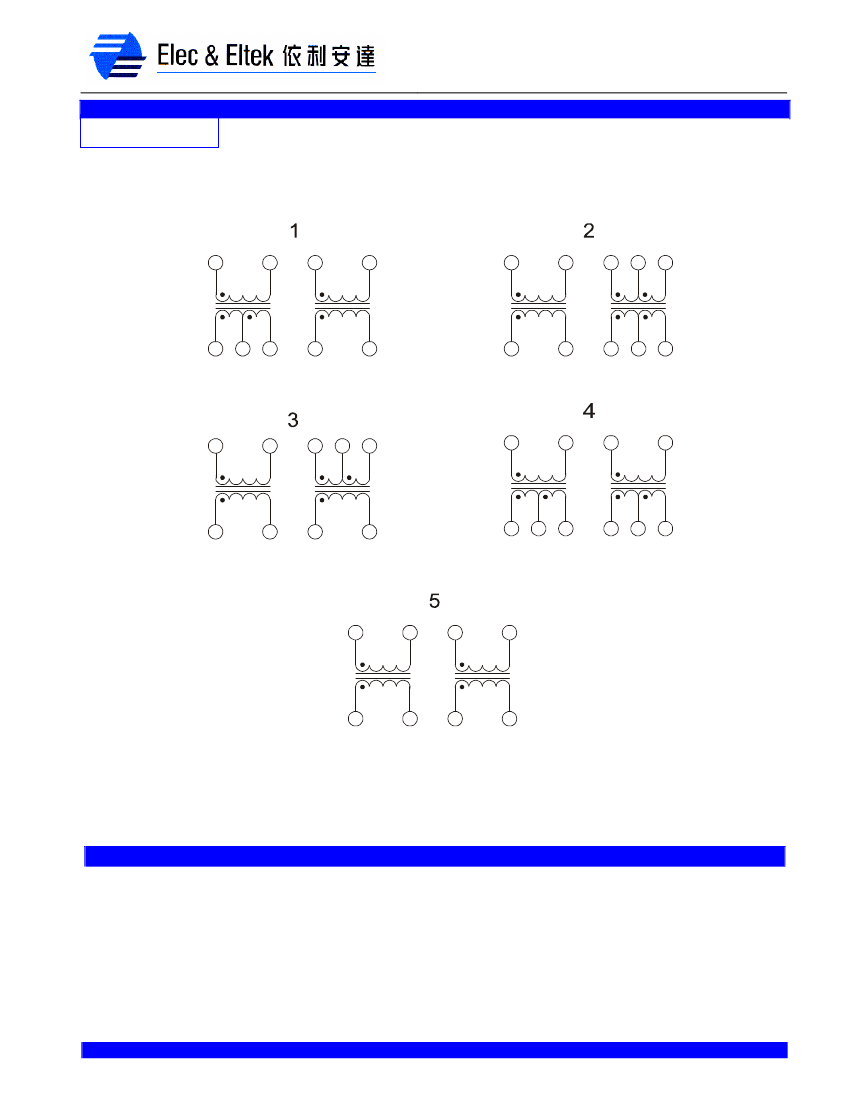

Schematic

1

2

3

5

2

3

5

4

Primary

Pins

TX

RX

16-14 6-8

6-8 16-15

7-8 16-15

1-2

7-8

1-2

7-8

1-2

6-8

1-2

7-8

1-2

7-8

16-14 11-9

M

ECHANICAL

D

IMENSIONS

Package: SO016A

.075

1.91

.350

8.89

.050

1.27

.500

12.70 MAX

.420

10.67

.370

±

.010

9.40

±

0.25

EE

1Mxxxx

(DATE)

.025

0.64

Recommended

Pad Layout

.270

±

.005

6.86

±0.13

.005-.020

0.13-0.51

.200

±

.010

5.08

±

0.25

REFERENCE OR

GAUGE PLANE

.050

±

.005

1.27

±

0.13

.350

±

.010

8.89

±

0.25

.035

±

.010

0.89

±0.25

0-8°

Note :

inches

mm with higher precedence in inches.

.010

Unless otherwise specified, all tolerances are

±

0.25 .

All dimensions are specified in

Weight (in gram)

Tape & Reel

:

0.8 typ

600 / reel

Unit B10, 3/F., 94 Tokwawan Road, Kowloon, Hong Kong • Tel: (852) 2954 3333 • Fax: (852) 2954 3304

1

Preliminary

TE304(01) Revised in 03/09
