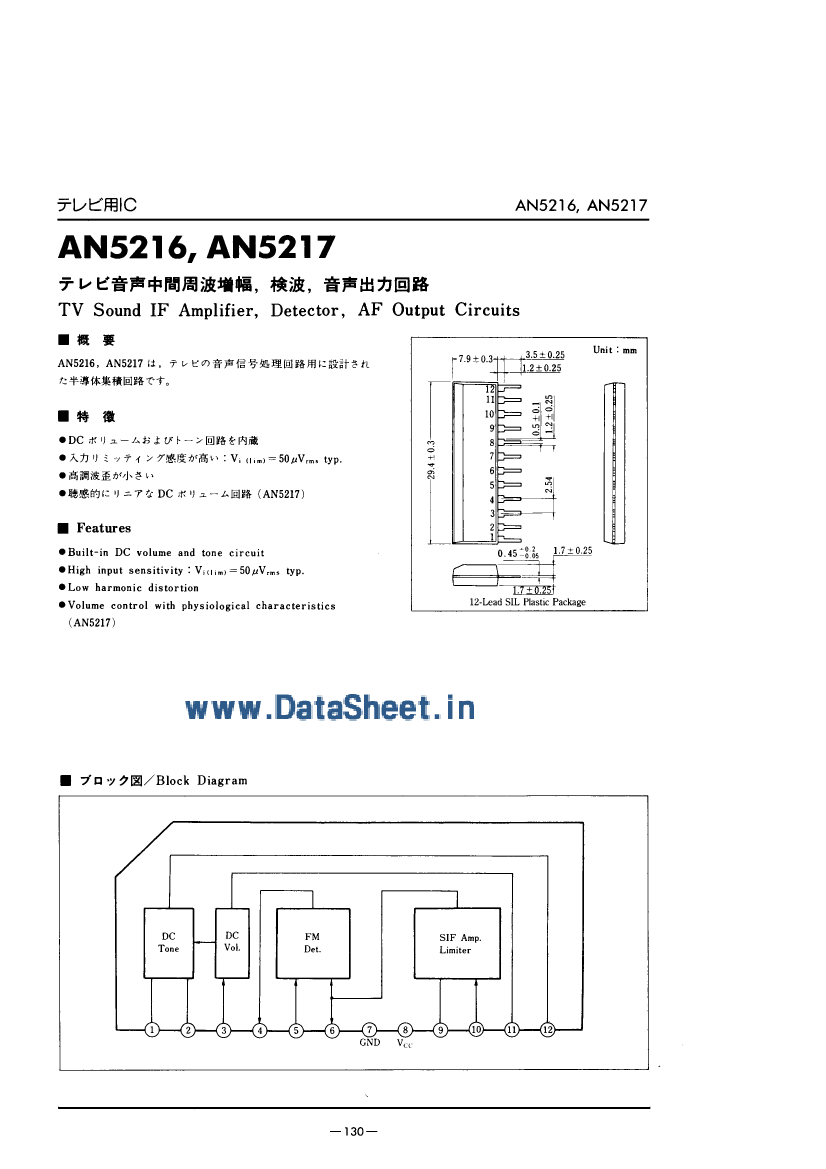

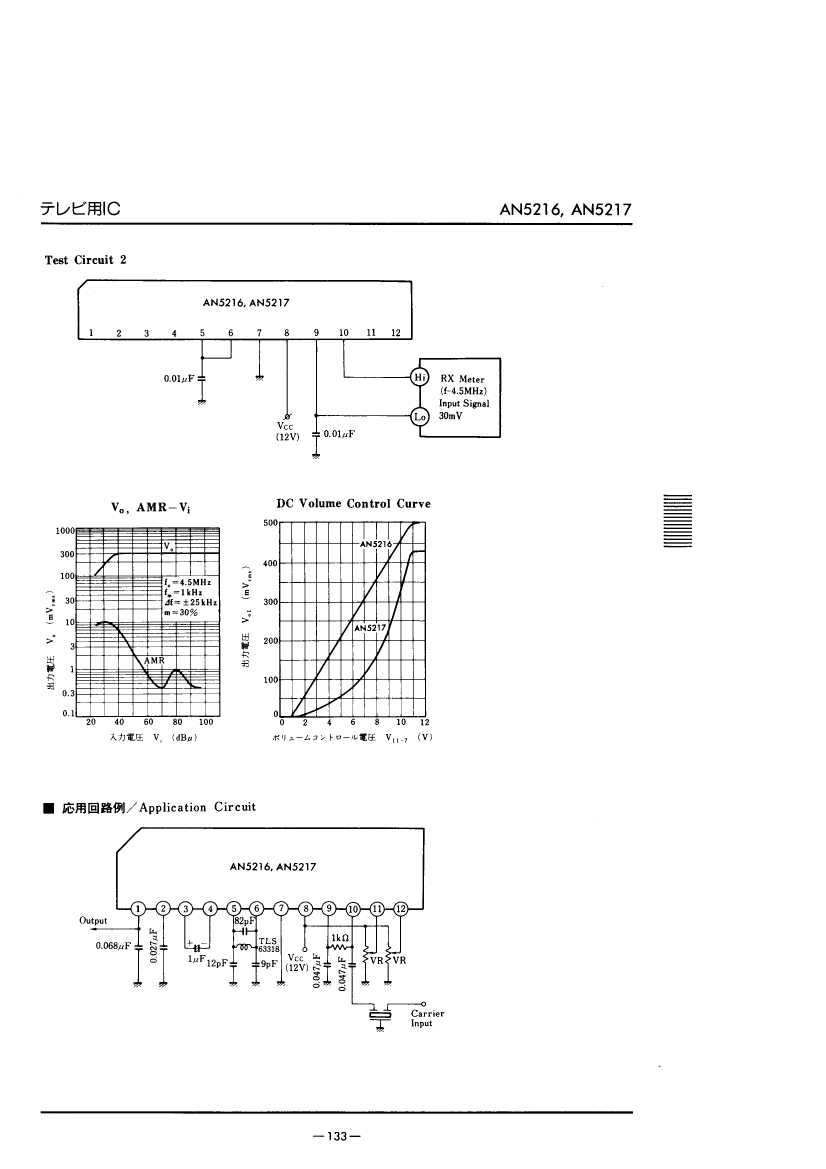

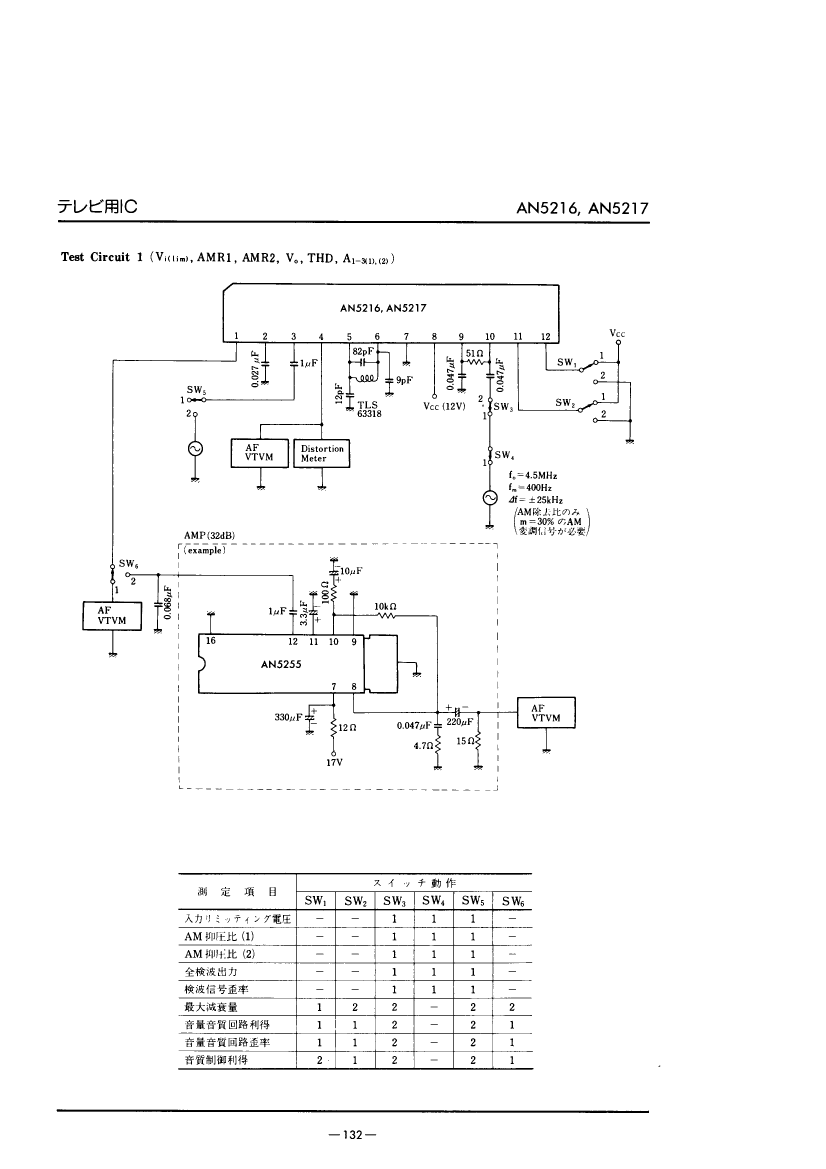

AN5217 Overview

TV Sound IF Amplifier Detector AF Output Circuits

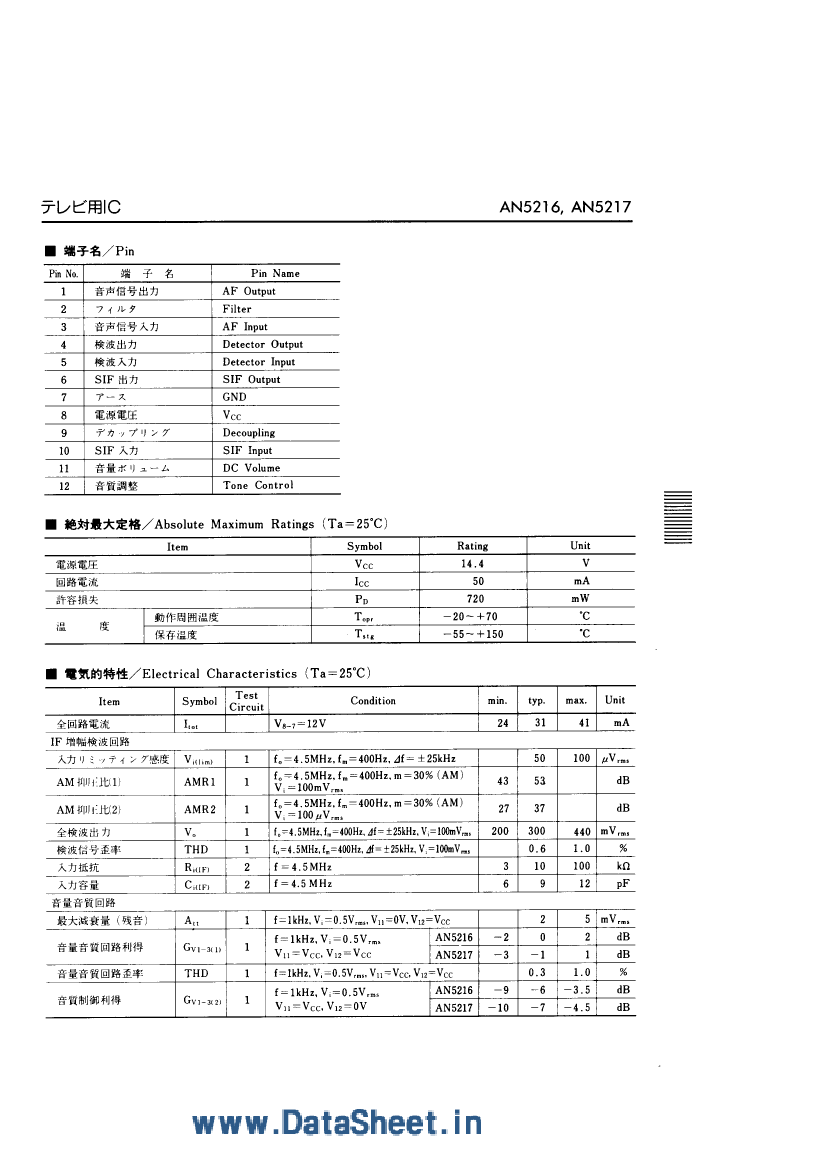

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	SIP
package instruction	DIP, SIP12,.07
Contacts	12
Reach Compliance Code	unknow
Commercial integrated circuit types	CONSUMER CIRCUIT
JESD-30 code	R-PSIP-T12
JESD-609 code	e0
length	29.4 mm
Number of functions	1
Number of terminals	12
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	SIP12,.07
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	12 V
Certification status	Not Qualified
Maximum seat height	9.65 mm
Maximum slew rate	41 mA
surface mount	NO
technology	BIPOLAR
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
width	3.85 mm
Base Number Matches	1

	AN5217	AN5216
Description	TV Sound IF Amplifier Detector AF Output Circuits	TV Sound IF Amplifier Detector AF Output Circuits
Is it Rohs certified?	incompatible	incompatible
Parts packaging code	SIP	SIP
package instruction	DIP, SIP12,.07	DIP, SIP12,.07
Contacts	12	12
Reach Compliance Code	unknow	unknow
Commercial integrated circuit types	CONSUMER CIRCUIT	CONSUMER CIRCUIT
JESD-30 code	R-PSIP-T12	R-PSIP-T12
JESD-609 code	e0	e0
length	29.4 mm	29.4 mm
Number of functions	1	1
Number of terminals	12	12
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP
Encapsulate equivalent code	SIP12,.07	SIP12,.07
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	12 V	12 V
Certification status	Not Qualified	Not Qualified
Maximum seat height	9.65 mm	9.65 mm
Maximum slew rate	41 mA	41 mA
surface mount	NO	NO
technology	BIPOLAR	BIPOLAR
Temperature level	OTHER	OTHER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	3.85 mm	3.85 mm
Base Number Matches	1	1
