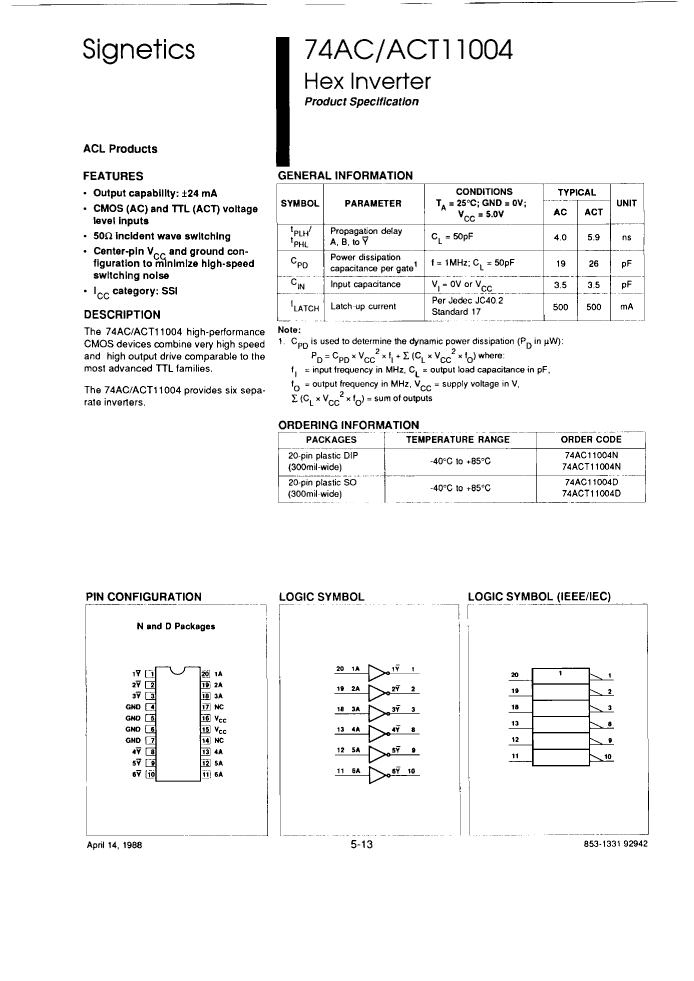

Inverter, AC Series, 6-Func, 1-Input, CMOS, PDIP20

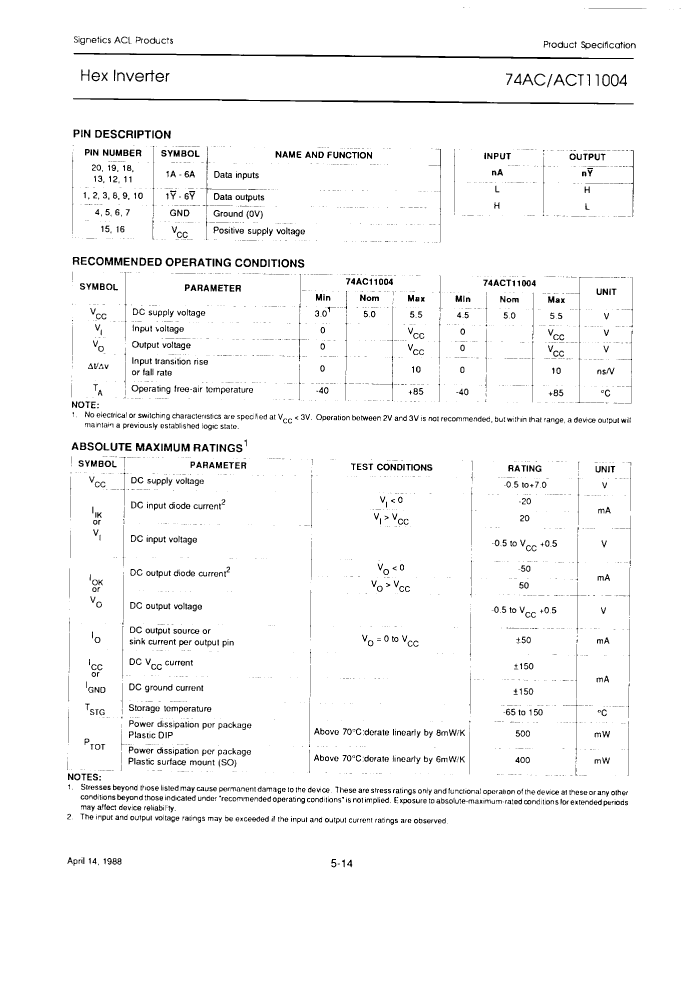

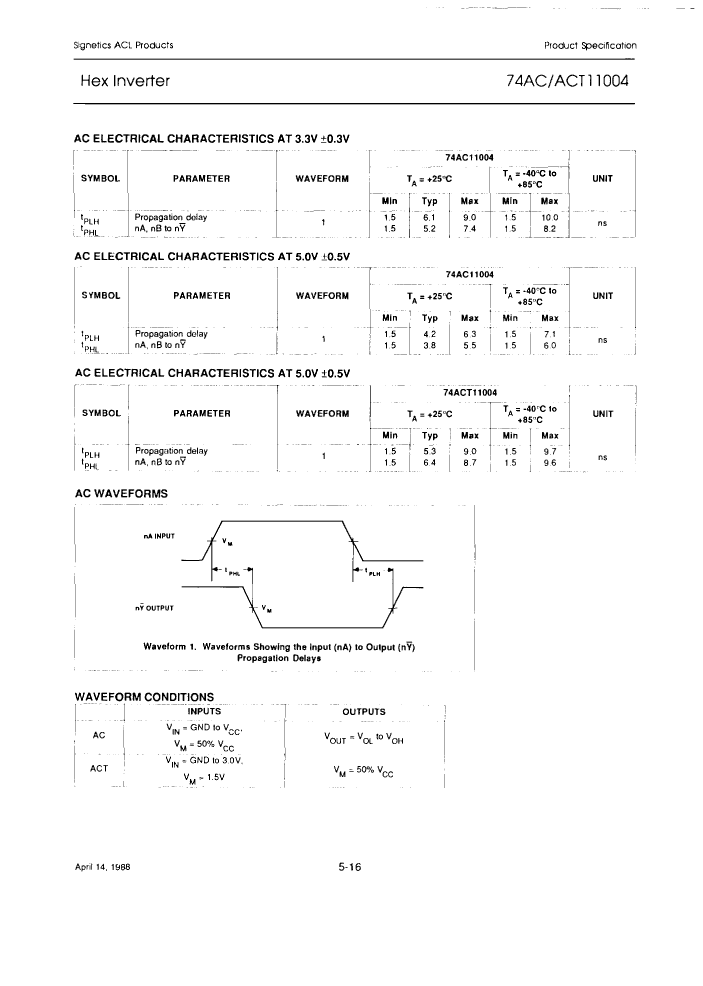

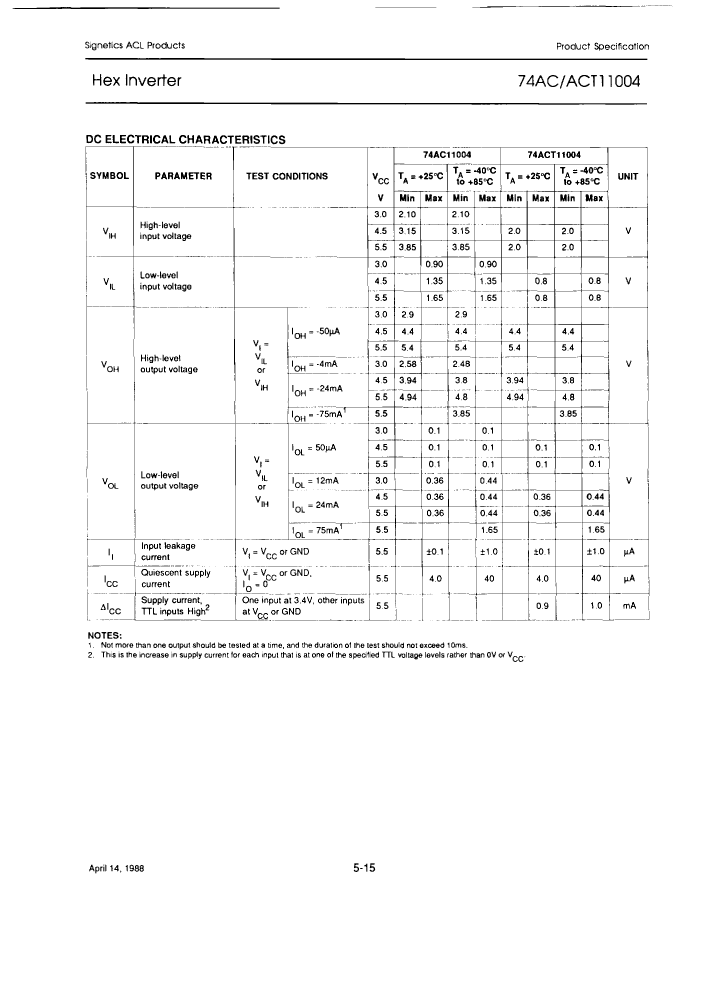

| Parameter Name | Attribute value |
| Maker | YAGEO |
| package instruction | , |
| Reach Compliance Code | unknown |
| series | AC |
| JESD-30 code | R-PDIP-T20 |
| Logic integrated circuit type | INVERTER |
| Number of functions | 6 |
| Number of entries | 1 |
| Number of terminals | 20 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| propagation delay (tpd) | 8.2 ns |
| Certification status | Not Qualified |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 3 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | INDUSTRIAL |
| Terminal form | THROUGH-HOLE |
| Terminal location | DUAL |
| Base Number Matches | 1 |
| 74AC11004N | 74ACT11004N | 74ACT11004D | 74AC11004D | 74AC11004D-T | 74ACT11004D-T | |
|---|---|---|---|---|---|---|
| Description | Inverter, AC Series, 6-Func, 1-Input, CMOS, PDIP20 | Inverter, ACT Series, 6-Func, 1-Input, CMOS, PDIP20 | Inverter, ACT Series, 6-Func, 1-Input, CMOS, PDSO20 | Inverter, AC Series, 6-Func, 1-Input, CMOS, PDSO20 | Inverter, AC Series, 6-Func, 1-Input, CMOS, PDSO20 | Inverter, ACT Series, 6-Func, 1-Input, CMOS, PDSO20 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| series | AC | ACT | ACT | AC | AC | ACT |
| JESD-30 code | R-PDIP-T20 | R-PDIP-T20 | R-PDSO-G20 | R-PDSO-G20 | R-PDSO-G20 | R-PDSO-G20 |
| Logic integrated circuit type | INVERTER | INVERTER | INVERTER | INVERTER | INVERTER | INVERTER |
| Number of functions | 6 | 6 | 6 | 6 | 6 | 6 |
| Number of entries | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 20 | 20 | 20 | 20 | 20 | 20 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE |
| propagation delay (tpd) | 8.2 ns | 9.6 ns | 9.6 ns | 8.2 ns | 8.2 ns | 9.6 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 3 V | 4.5 V | 4.5 V | 3 V | 3 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | NO | YES | YES | YES | YES |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | GULL WING | GULL WING | GULL WING | GULL WING |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| Maker | YAGEO | YAGEO | - | YAGEO | YAGEO | YAGEO |
