64334 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > inductor> Fixed inductance> 64334

64334: DescriptionGeneral Purpose Inductor, 5000uH, 5%, 1 Element,; Categoryinductor Fixed inductance; File Size479KB，8 Pages; ManufacturerPico Electronics Inc.

Download Datasheet Parametric View All

64334 Overview

General Purpose Inductor, 5000uH, 5%, 1 Element,

64334 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Pico Electronics Inc.
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Magnetic Shielded
DC Resistance	3 Ω
Nominal inductance(L)	5000 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e0
Lead length	25.4 mm
Number of functions	1
Number of terminals	4
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package diameter	13.5 mm
Package length	8.89 mm
Package form	Radial
Minimum quality factor (at nominal inductance)	200
Maximum rated current	0.089 A
self resonant frequency	0.537 MHz
Shape/Size Description	CYLINDRICAL PACKAGE
shield	YES
special characteristics	Q MEASURED AT 50 KHZ
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal location	ON CIRCLE
Terminal shape	WIRE
Test frequency	0.004 MHz
Tolerance	5%
Base Number Matches	1

Preview

Download Datasheet

View All

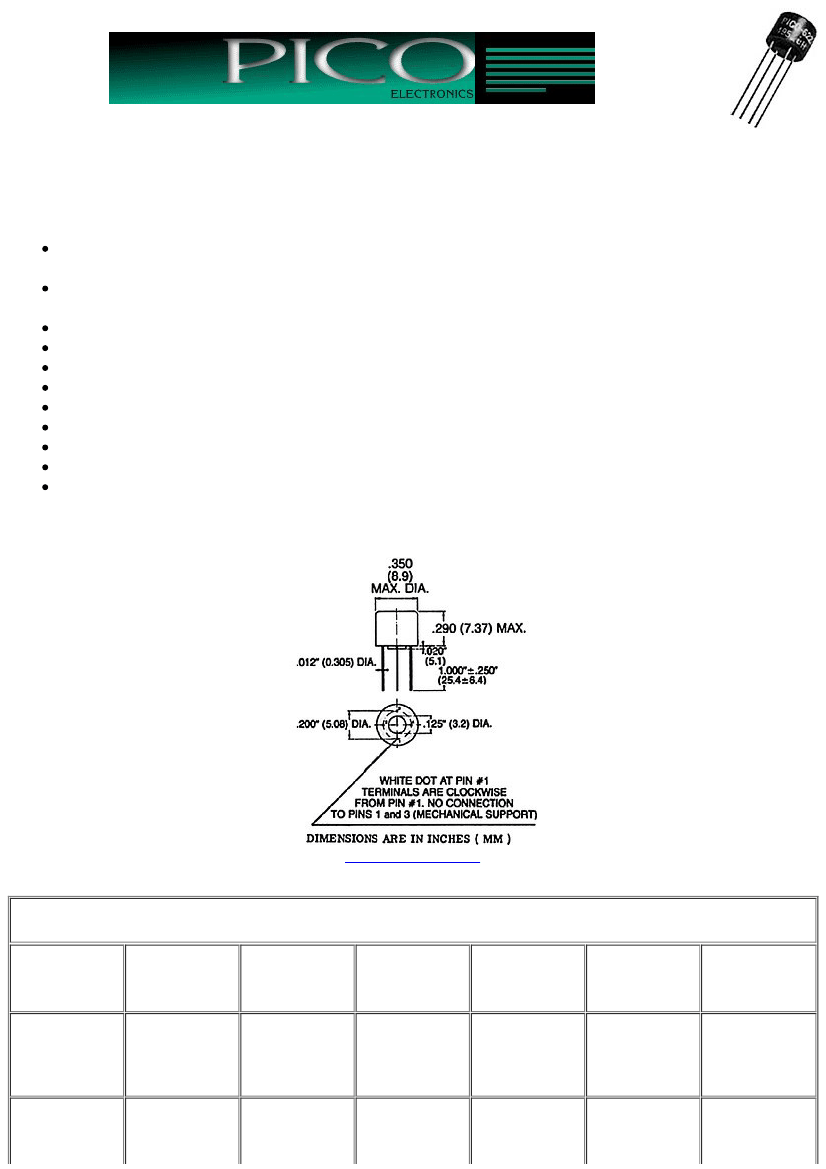

Ultraminiature HIGH "Q" Inductors

Specifications:

Inductance Tolerance

± 4% at 0.1V100KHZ

Inductance Stability vs. Temperature

± 2% 55ºC to 105ºC

Weight: 2 Grams

Thermal Shock 100 Cycles, method 107D MILSTD 202E Test Condition A3

Unit has Magnetic Shield

± 2% inductance stability vs temperature

Smallest possible size

Extreme resistance to thermal shock

Manufactured to MILPRF27, Grade 5 Class S

All units magnetically shielded

Nonstandard inductance values available at 10% highest value than nearest standard inductor.

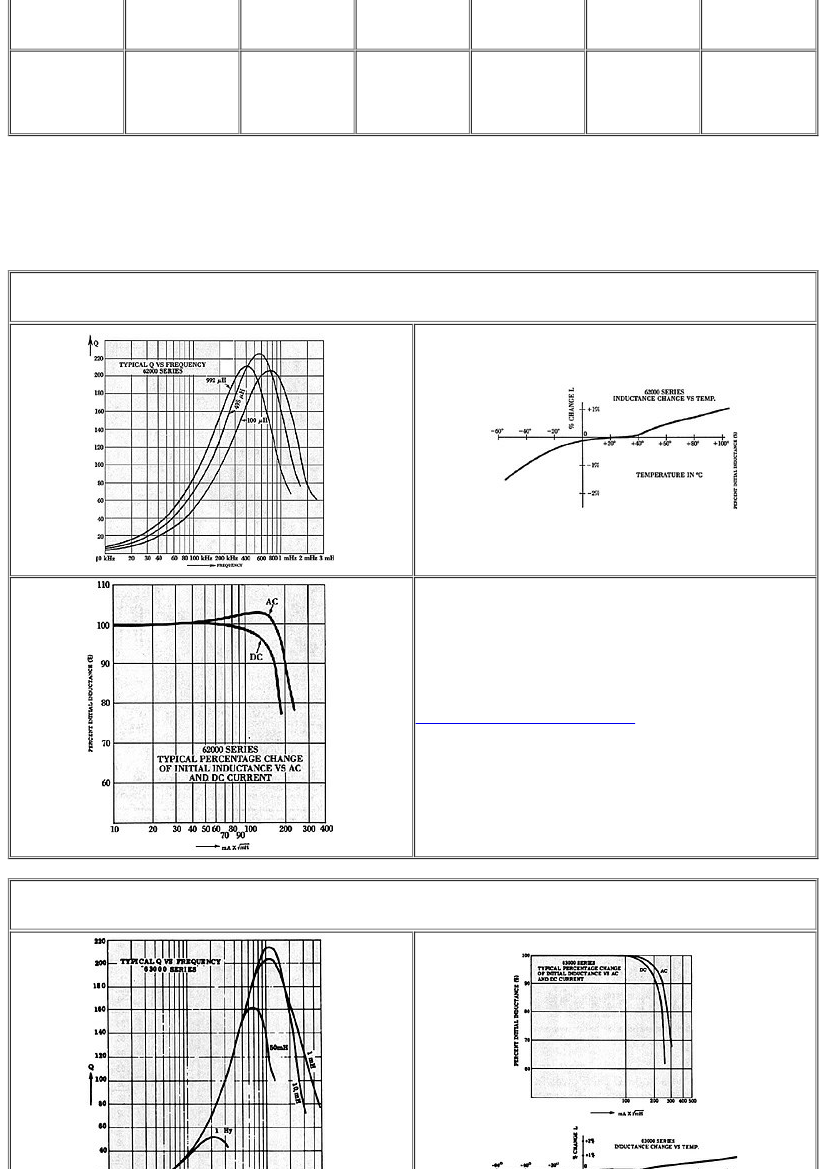

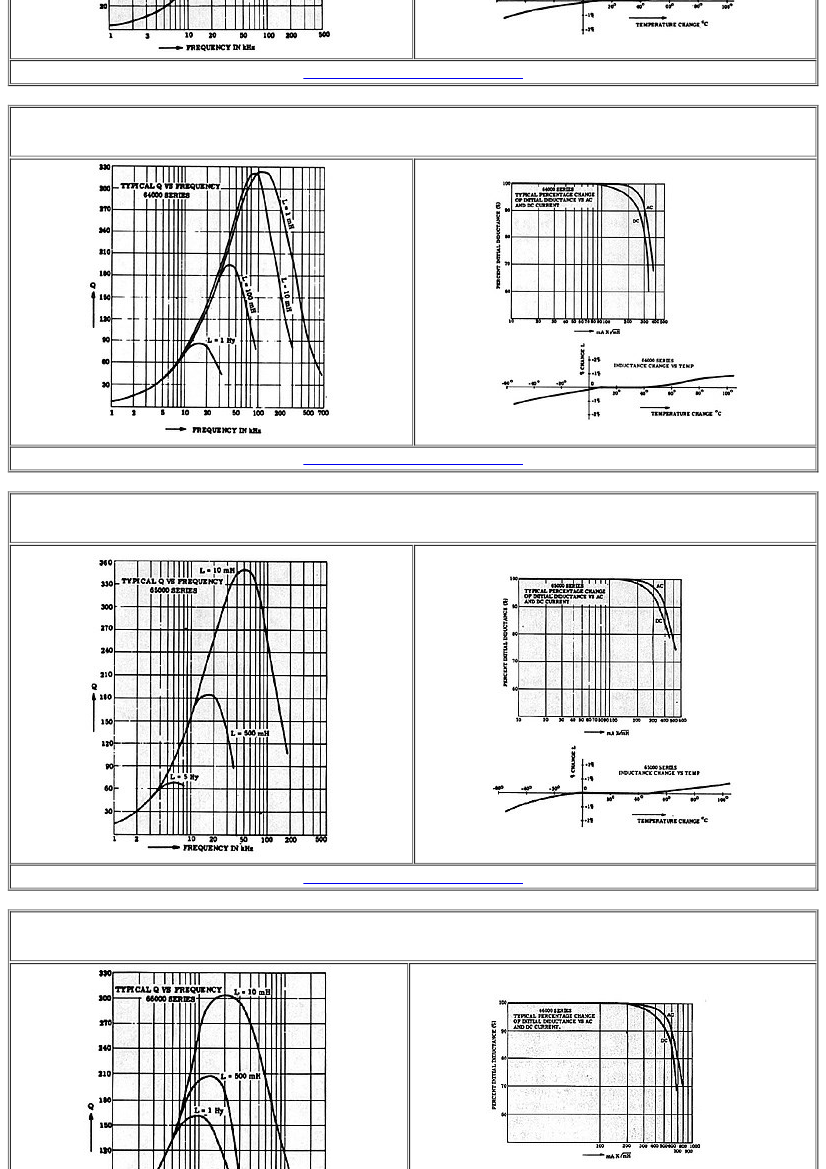

62000 Series

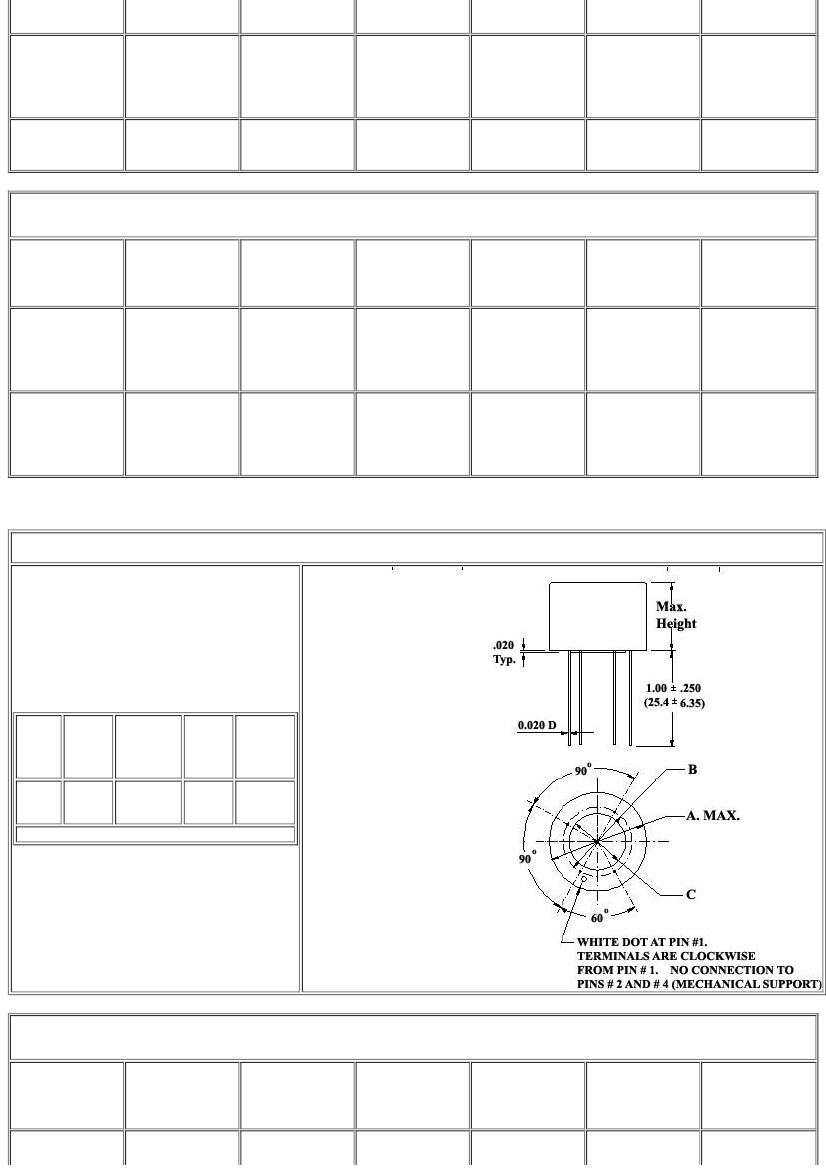

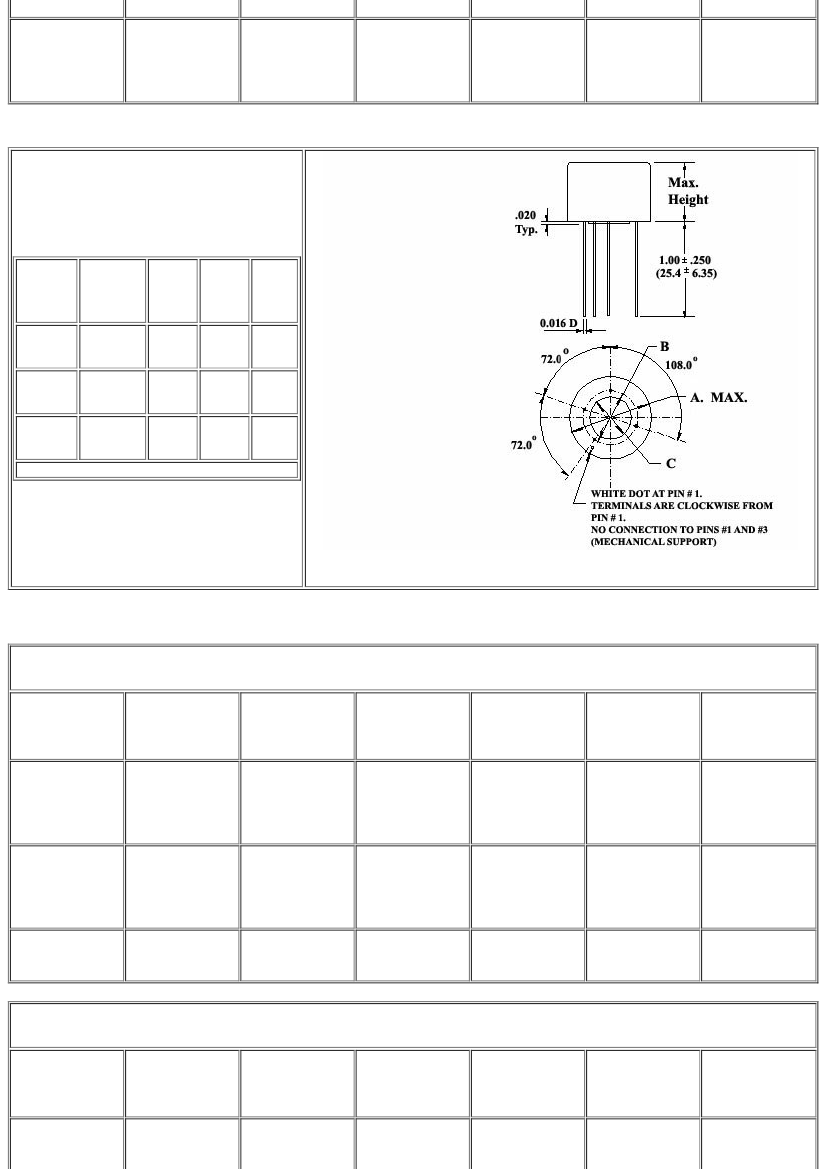

Larger Size Schematic

"62000" SERIES

Part

Number

62112

62132

62152

62172

62192

62212

62232

62252

62272

INDUCTANCE

(MICRO

HENRYS)

2500

1500

992

900

800

742

702

700

695

RESISTANCE

(OHMS)

6.5

6.0

5.7

5.5

5.0

4.5

APPROXIMATE

SELF RESONANT

FREQUENCY

(KHZ)

1.15

1.5

1.8

1.9

2.1

2.3

2.5

2.7

MAXIMUM

DC CURRENT

(mA)

100

125

130

140

150

155

160

170

***

PRICE

(19)

(US $)

68.87

MINUMUM Q

130 at (400 kHz)

160 at (400 kHz)

150 at (500 kHz)

160 at (500 kHz)
