74F27DC datasheet, PDF - EEWORLD Datasheet

74F27DC: DescriptionNOR Gate, TTL, CDIP14,; Categorylogic; File Size167KB，4 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

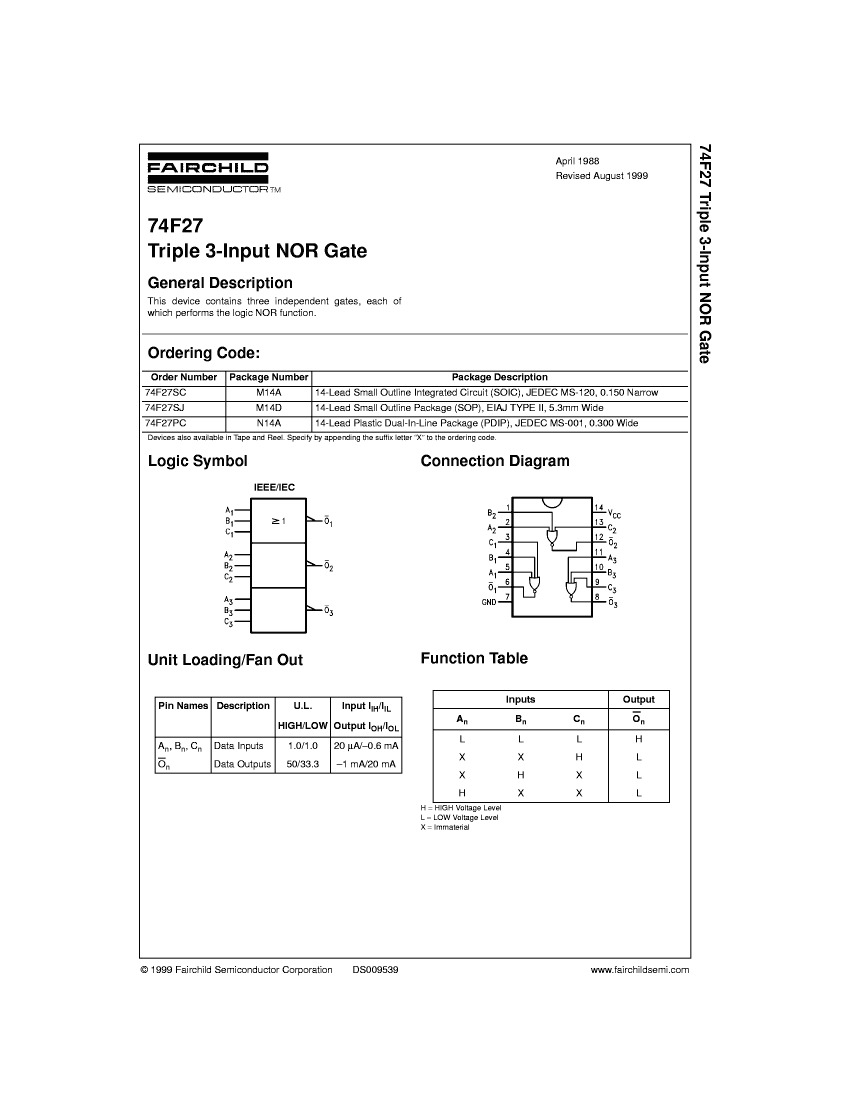

74F27DC Overview

NOR Gate, TTL, CDIP14,

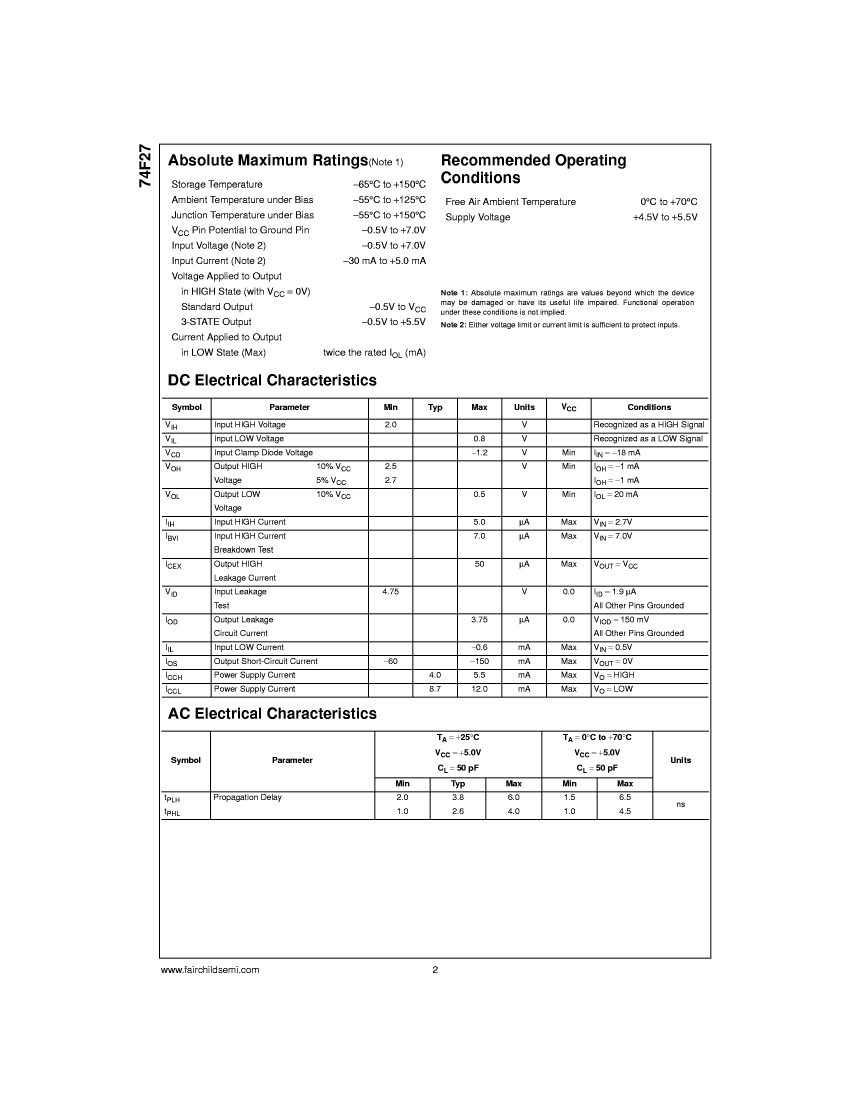

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Fairchild
package instruction	DIP, DIP14,.3
Reach Compliance Code	compliant
JESD-30 code	R-XDIP-T14
JESD-609 code	e0
Logic integrated circuit type	NOR GATE
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Schmitt trigger	NO
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE

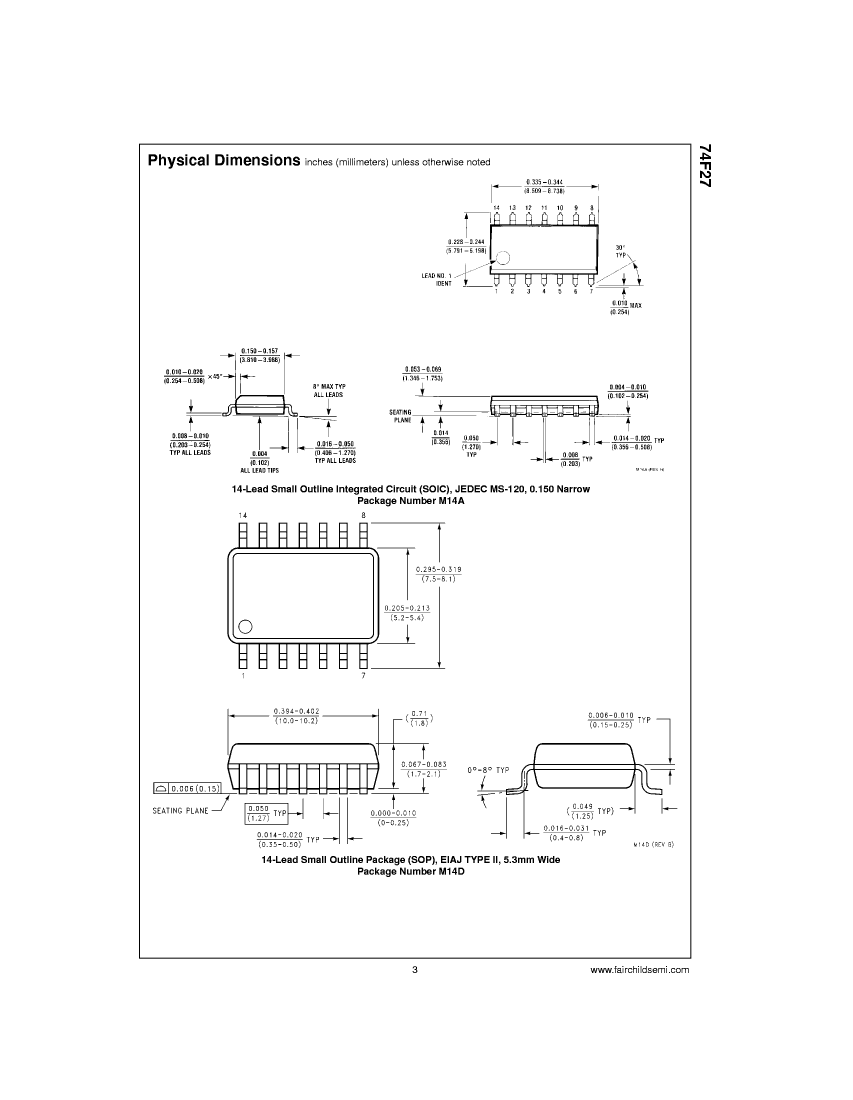

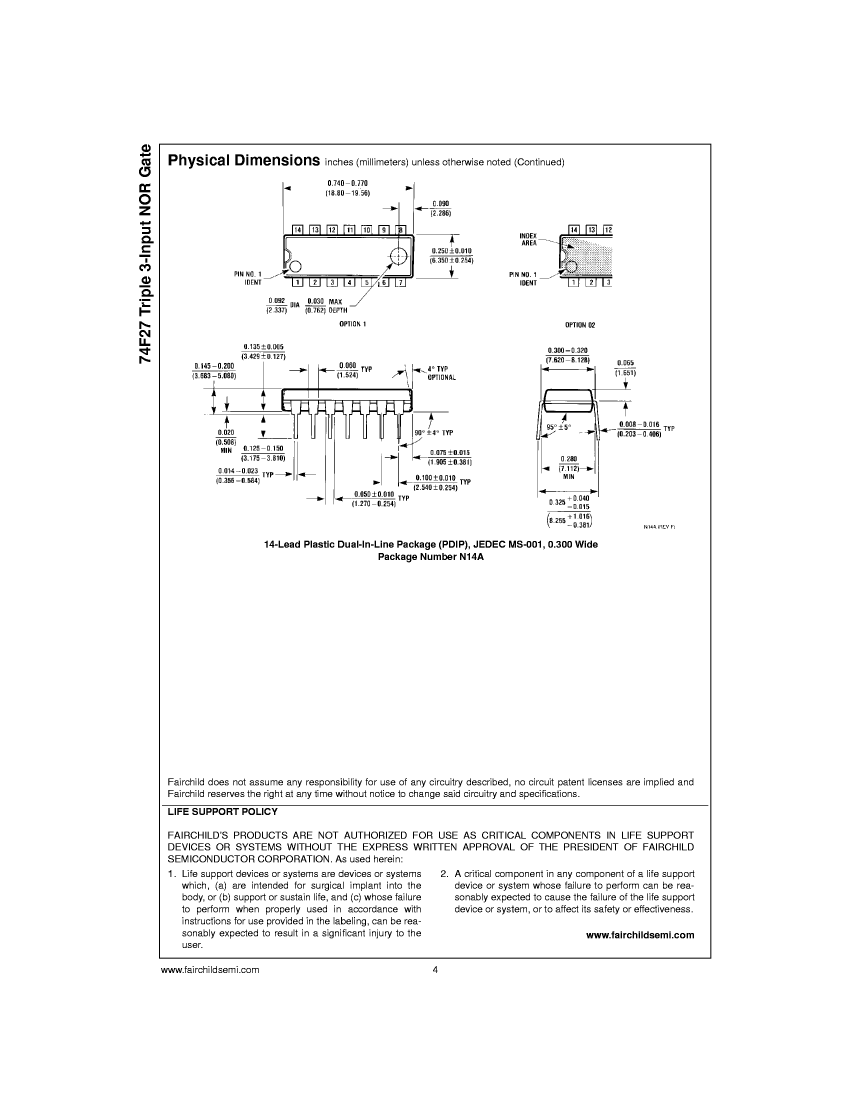

Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

	74F27DC	74F27PCQR
Description	NOR Gate, TTL, CDIP14,	NOR Gate, TTL, PDIP14,
Is it lead-free?	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible
Maker	Fairchild	Fairchild
package instruction	DIP, DIP14,.3	DIP, DIP14,.3
Reach Compliance Code	compliant	compliant
JESD-30 code	R-XDIP-T14	R-PDIP-T14
JESD-609 code	e0	e0
Logic integrated circuit type	NOR GATE	NOR GATE
Number of terminals	14	14
Maximum operating temperature	70 °C	70 °C
Package body material	CERAMIC	PLASTIC/EPOXY
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V
Schmitt trigger	NO	NO
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	NO
technology	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	1	1
