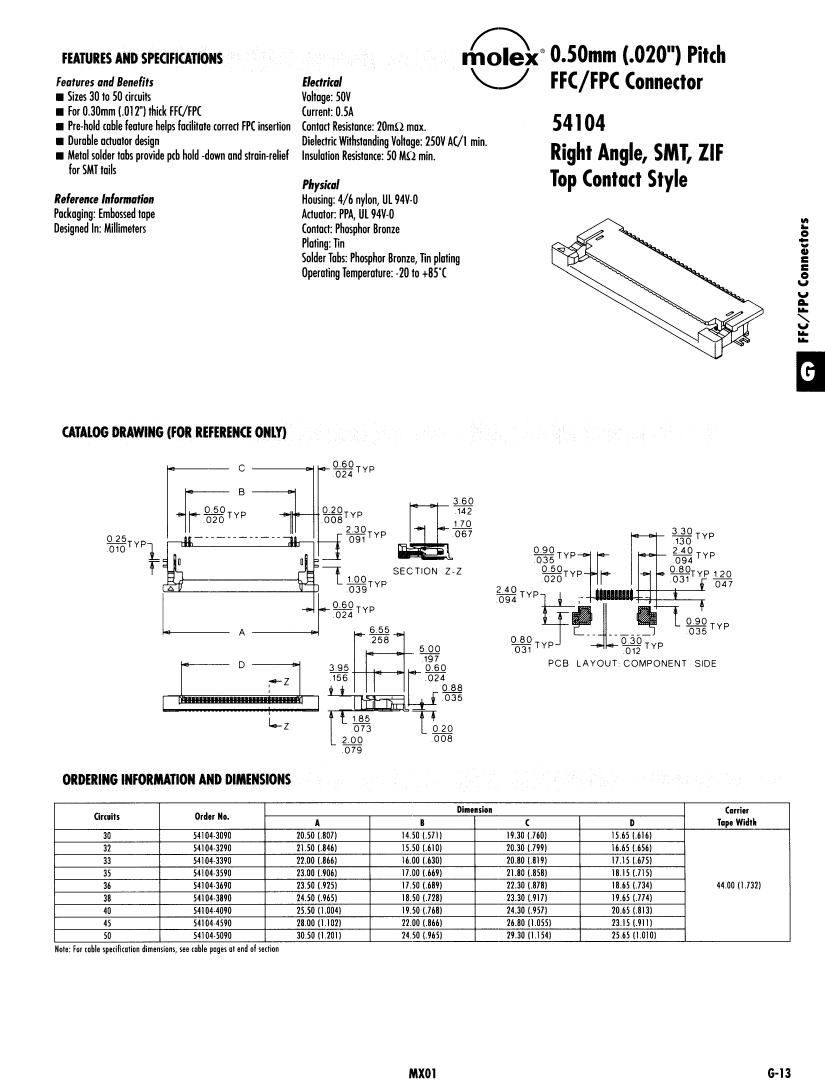

54104-3390: DescriptionCard Edge Connector, 33 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal; CategoryThe connector; File Size61KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

54104-3390 Overview

Card Edge Connector, 33 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal

54104-3390 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Other features	ZIF
Connector type	FFC/FPC CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	33
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

54104-3390 Related Products

	54104-3390	54104-3890	54104-3090	54104-3290	54104-3590	54104-3690	54104-4590	54104-5090	54104-4090
Description	Card Edge Connector, 33 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal	Card Edge Connector, 38 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal	Card Edge Connector, 30 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal	Card Edge Connector, 32 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal	Card Edge Connector, 35 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal	Card Edge Connector, 36 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal	Card Edge Connector, 45 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal	Card Edge Connector, 50 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal	Card Edge Connector, 40 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	ZIF	ZIF	ZIF	ZIF	ZIF	ZIF	ZIF	ZIF	ZIF
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1	1	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	33	38	30	32	35	36	45	50	40
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Maker	Molex	Molex	Molex	Molex	Molex	Molex	-	-	Molex
maximum insertion force	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N	-	-	ZIF N
Base Number Matches	1	1	1	1	1	1	1	1	-
Contact to complete cooperation	-	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
Contact material	-	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
