74AC568QCX datasheet, PDF - EEWORLD Datasheet

74AC568QCX: DescriptionDecade Counter, AC Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, CMOS, PQCC20, PLASTIC, LCC-20; Categorylogic; File Size259KB，9 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric View All

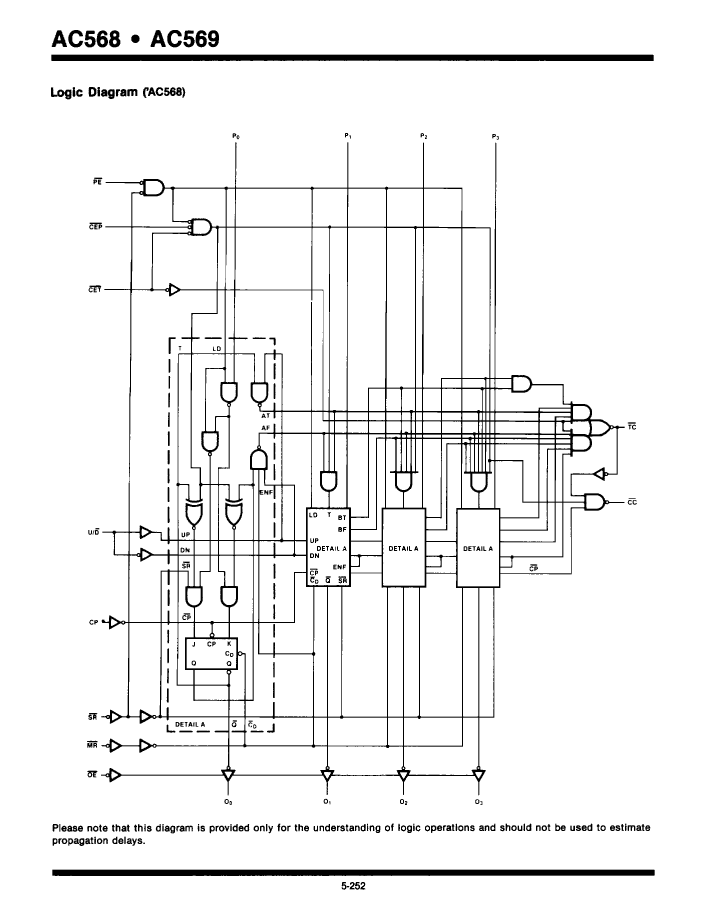

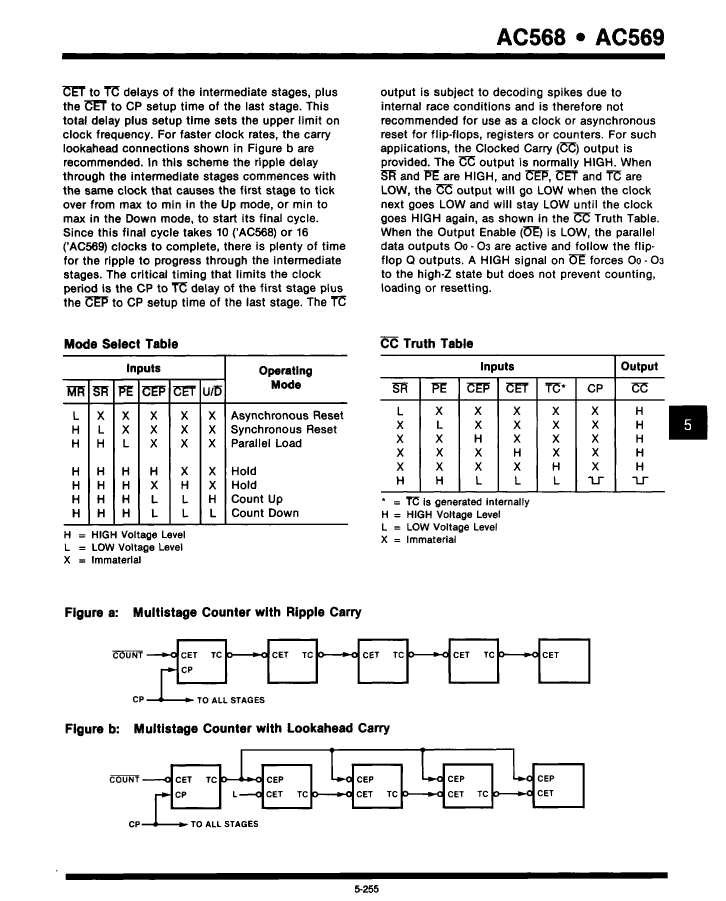

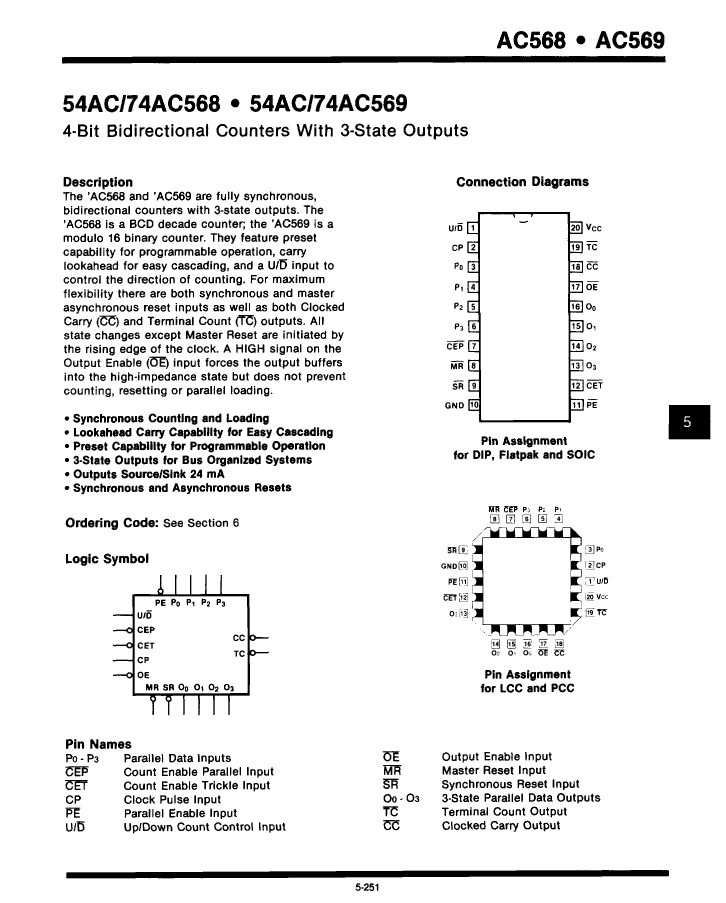

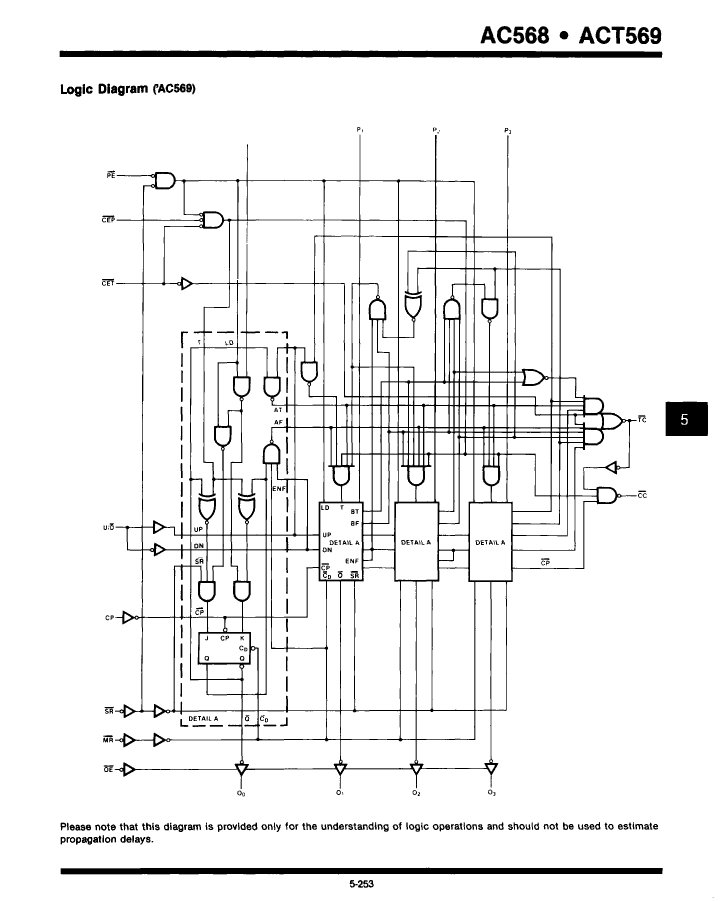

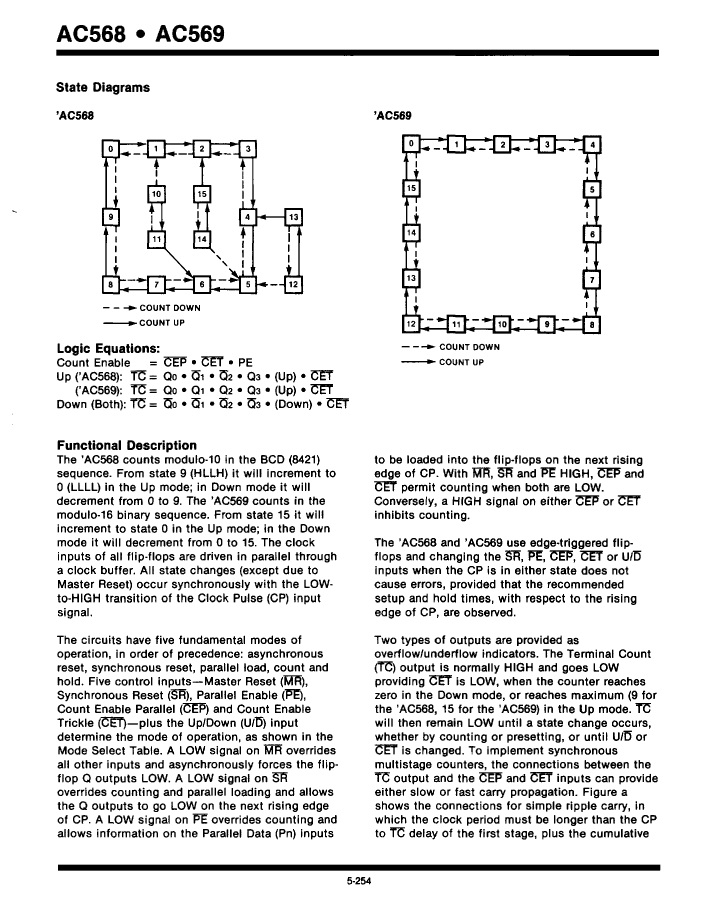

74AC568QCX Overview

Decade Counter, AC Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, CMOS, PQCC20, PLASTIC, LCC-20

Parameter Name	Attribute value
Maker	Fairchild
Parts packaging code	QLCC
package instruction	QCCJ,
Contacts	20
Reach Compliance Code	unknown
Other features	TCO OUTPUT; CLOCKED CARRY OUTPUT
Counting direction	BIDIRECTIONAL
series	AC
JESD-30 code	S-PQCC-J20
length	8.9662 mm
Load/preset input	YES
Logic integrated circuit type	DECADE COUNTER
Operating mode	SYNCHRONOUS
Number of digits	4
Number of functions	1
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
Maximum seat height	4.572 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Trigger type	POSITIVE EDGE
width	8.9662 mm
minfmax	117 MHz
Base Number Matches	1
