555-2204F datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 555-2204F

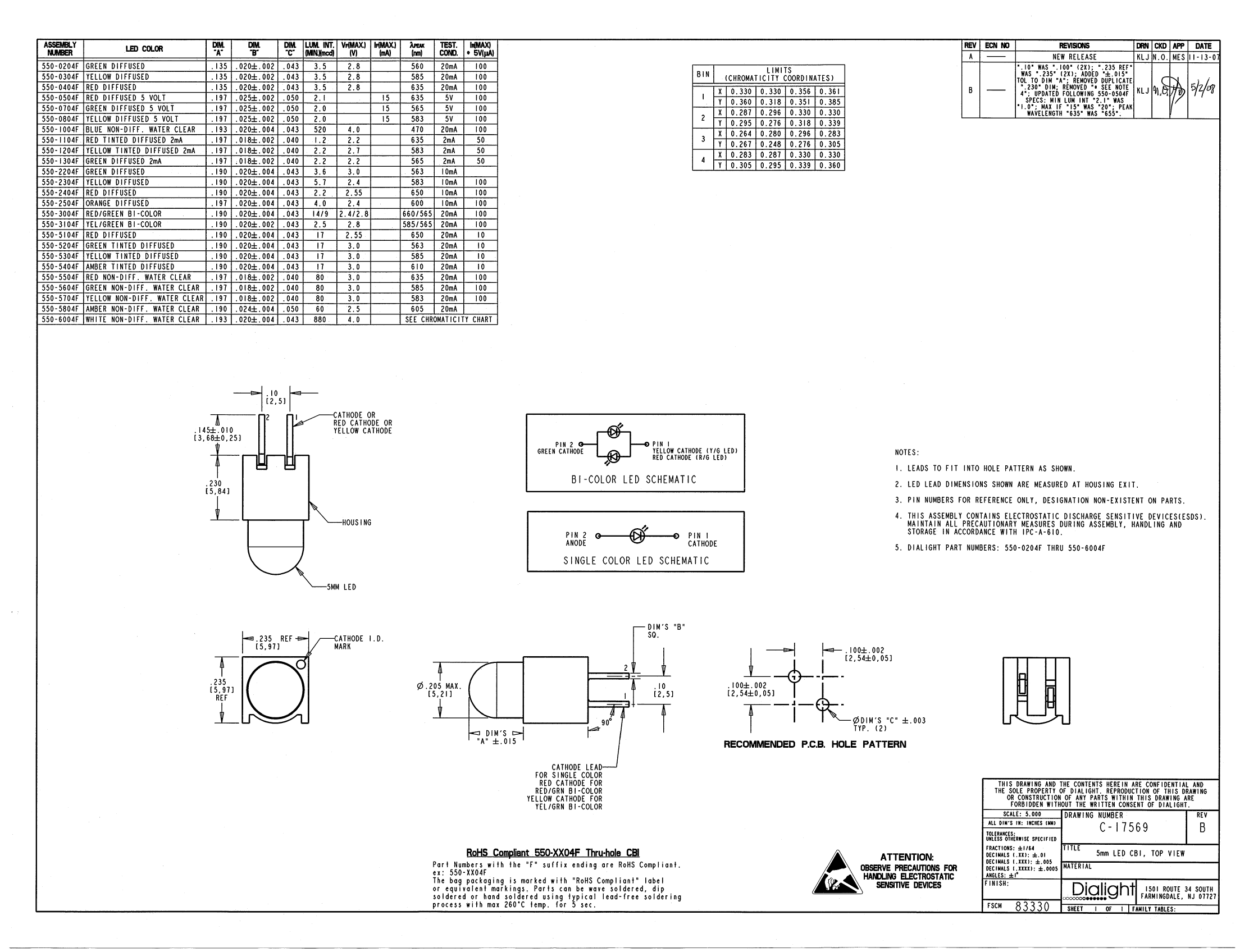

Preview

555-2204F: DescriptionSingle Color LED, Green, Diffused, T-1 3/4, 5mm, ROHS COMPLIANT PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size129KB，1 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com; Environmental Compliance

Download Datasheet Parametric Compare View All

555-2204F Overview

Single Color LED, Green, Diffused, T-1 3/4, 5mm, ROHS COMPLIANT PACKAGE-2

555-2204F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	DIALIGHT
package instruction	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	compliant
color	GREEN
Configuration	SINGLE
Lens type	DIFFUSED
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Optoelectronic device types	SINGLE COLOR LED
total height	10.666 mm
method of packing	BAG
peak wavelength	563 nm
shape	ROUND
size	5 mm
surface mount	NO
T code	T-1 3/4
Terminal pitch	2.5 mm
Base Number Matches	1

Preview

Download Datasheet

View All

555-2204F Related Products

	555-2204F	555-0704F	555-3004F	555-1004F	555-1304F	555-5304F	555-5704F	555-5204F
Description	Single Color LED, Green, Diffused, T-1 3/4, 5mm, ROHS COMPLIANT PACKAGE-2	Single Color LED, Green, Diffused, T-1 3/4, 5mm, ROHS COMPLIANT PACKAGE-2	Dual Color LED, Red/green, T-1 3/4, 5mm, ROHS COMPLIANT PACKAGE-2	Single Color LED, Blue, Water Clear Nondiffused, T-1 3/4, 5mm, ROHS COMPLIANT PACKAGE-2	Single Color LED, Green, Diffused, T-1 3/4, 5mm, ROHS COMPLIANT PACKAGE-2	Single Color LED, Yellow, Tinted Diffused, T-1 3/4, 5mm, ROHS COMPLIANT PACKAGE-2	Single Color LED, Yellow, Water Clear Nondiffused, T-1 3/4, 5mm, ROHS COMPLIANT PACKAGE-2	Single Color LED, Green, Tinted Diffused, T-1 3/4, 5mm, ROHS COMPLIANT PACKAGE-2
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	DIALIGHT	DIALIGHT	DIALIGHT	DIALIGHT	DIALIGHT	DIALIGHT	DIALIGHT	DIALIGHT
package instruction	ROHS COMPLIANT PACKAGE-2	ROHS COMPLIANT PACKAGE-2	ROHS COMPLIANT PACKAGE-2	ROHS COMPLIANT PACKAGE-2	ROHS COMPLIANT PACKAGE-2	ROHS COMPLIANT PACKAGE-2	ROHS COMPLIANT PACKAGE-2	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
color	GREEN	GREEN	RED/GREEN	BLUE	GREEN	YELLOW	YELLOW	GREEN
Configuration	SINGLE	SINGLE	COMMON BIPOLAR TERMINAL, 2 ELEMENTS	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	DUAL COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	10.666 mm	10.8438 mm	10.666 mm	10.7422 mm	10.8438 mm	10.666 mm	10.8438 mm	10.666 mm
method of packing	BAG	BAG	BAG	BAG	BAG	BAG	BAG	BAG
peak wavelength	563 nm	565 nm	660/565 nm	470 nm	565 nm	585 nm	583 nm	563 nm
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
size	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
T code	T-1 3/4	T-1 3/4	T-1 3/4	T-1 3/4	T-1 3/4	T-1 3/4	T-1 3/4	T-1 3/4
Terminal pitch	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm
Base Number Matches	1	1	1	1	1	1	1	1
Lens type	DIFFUSED	DIFFUSED	-	WATER CLEAR NONDIFFUSED	DIFFUSED	TINTED DIFFUSED	WATER CLEAR NONDIFFUSED	TINTED DIFFUSED
Is Samacsys	-	-	N	N	N	N	N	-
