853-13-048-10-001000 datasheet, PDF

Datasheet> All Categories > The connector> 853-13-048-10-001000

853-13-048-10-001000: DescriptionBoard Connector, 48 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Socket, ROHS COMPLIANT; CategoryThe connector; File Size255KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

853-13-048-10-001000 Overview

Board Connector, 48 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Socket, ROHS COMPLIANT

853-13-048-10-001000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	GOLD (10)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	853
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	48
Base Number Matches	1

Preview

Download Datasheet

View All

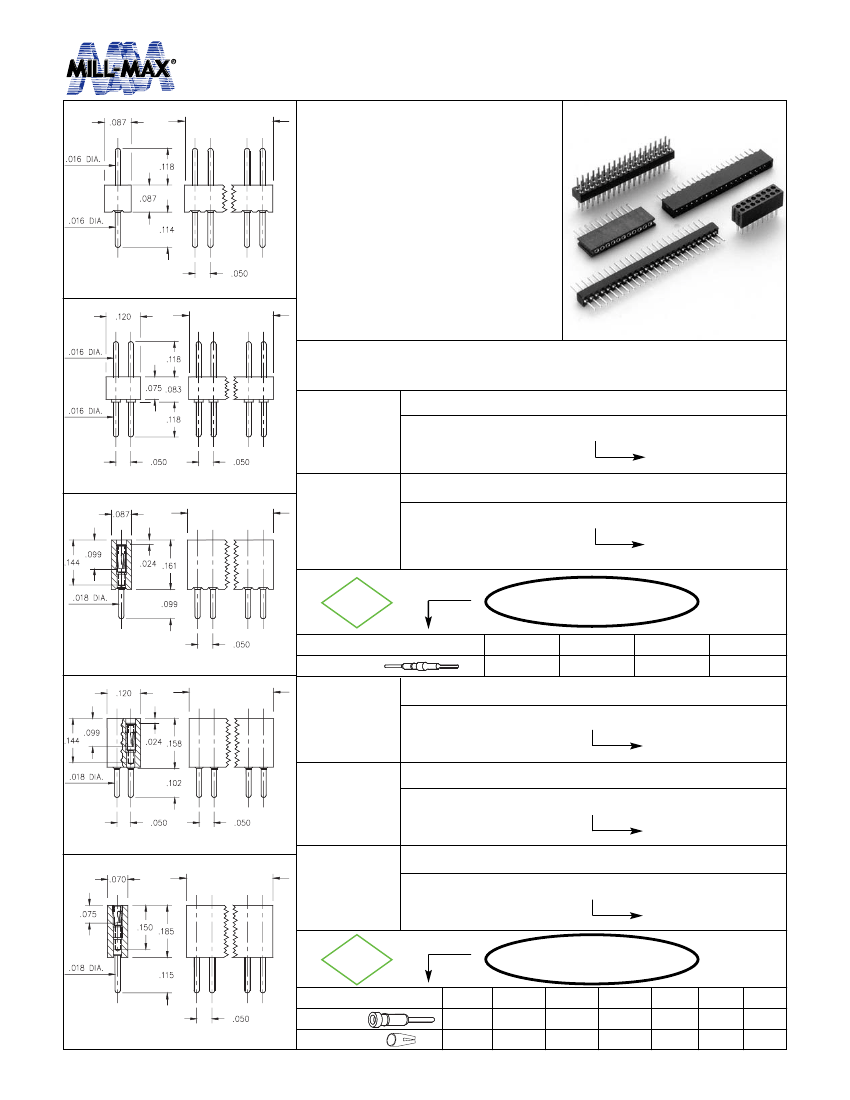

INTERCONNECTS

.050” Grid

Single and Double Row

(Number of Pins

X .050”) + .015”

Series 850, 851

852, 853

•

Series 850 single and double row

interconnects have .050” pin

spacing and permit board stacking

as low as .248”.

•

Pin headers have .016” dia. pins.

(MM# 4006-0 see page 166 for details).

•

MM# 0489-0 and 0467 receptacles

use M-M#11 Hi-Rel, 3-finger beryl-

lium copper contacts rated at 3 amps.

(#11 contact accepts pin diameters

from .015-.020)

•

Insulators are high temp. thermo-

plastic, suitable for all soldering

operations.

Fig. 1

(Number of Pins

X .050”/2) + .015”

Ordering Information

Single Row

Fig. 1

Fig. 2

(Number of Pins

X .050”) + .015”

.087” Profile Pin Header

850-XX-0_ _-10-001000

01-50

.075” Profile Pin Header

852-XX-_ _ _-10-001000

002-100

Specify # of pins

Double Row

Fig. 2

Specify # of pins

XX= Plating Code

See Below

SPECIFY PLATING CODE XX=

10μ” Au

200μ” Sn/Pb

200μ” Sn

Fig. 3

(Number of Pins

X .050”/2) + .015”

Pin Plating

Single Row

.161” Profile Socket

851-XX-0_ _-10-001000

01-50

Fig. 3

Specify # of pins

Fig. 4

(Number of Pins

X .050”) + .040”

Double Row

.161” Profile Socket

853-XX-_ _ _-10-001000

Specify # of pins

Single Row

002-100

.185” Profile Socket

851-XX-0_ _-10-002000

Specify # of pins

XX= Plating Code

See Below

Fig. 5

01-77

SPECIFY PLATING CODE XX=

10µ” Au

30µ” Au

10µ” Au

30µ” Au

200µ”Sn/Pb

10µ” Au

Sleeve (Pin)

200µ” Sn/Pb

200µ” Sn/Pb 200µ”Sn/Pb

200µ”Sn

200µ”Sn 200µ”Sn

30µ” Au 200µ”Sn

Fig. 5

Contact (Clip)

w w w. m i l l - m a x . c o m

516-922-6000
