518-13-296-19-126004 datasheet, PDF

Datasheet> All Categories > socket> 518-13-296-19-126004

518-13-296-19-126004: DescriptionIC Socket, PGA296, 296 Contact(s), 2.54mm Term Pitch, 0.1inch Row Spacing, Solder, ROHS COMPLIANT; Categorysocket; File Size212KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

518-13-296-19-126004 Overview

IC Socket, PGA296, 296 Contact(s), 2.54mm Term Pitch, 0.1inch Row Spacing, Solder, ROHS COMPLIANT

518-13-296-19-126004 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PGA SOCKET
body width	1.9 inch
subject depth	0.25 inch
body length	1.9 inch
Contact structure	19X19
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact material	NOT SPECIFIED
Contact style	RND PIN-SKT
current rating	1 A
Device slot type	IC SOCKET
Type of equipment used	PGA296
Dielectric withstand voltage	1000VAC V
Shell material	POLYCYCLOHEXYDIMETHYLENE TEREPHTHALATE-POLYESTER
Insulation resistance	10000000000 Ω
JESD-609 code	e4
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	296
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	INTER
PCB contact row spacing	0.1 mm
Terminal pitch	2.54 mm
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

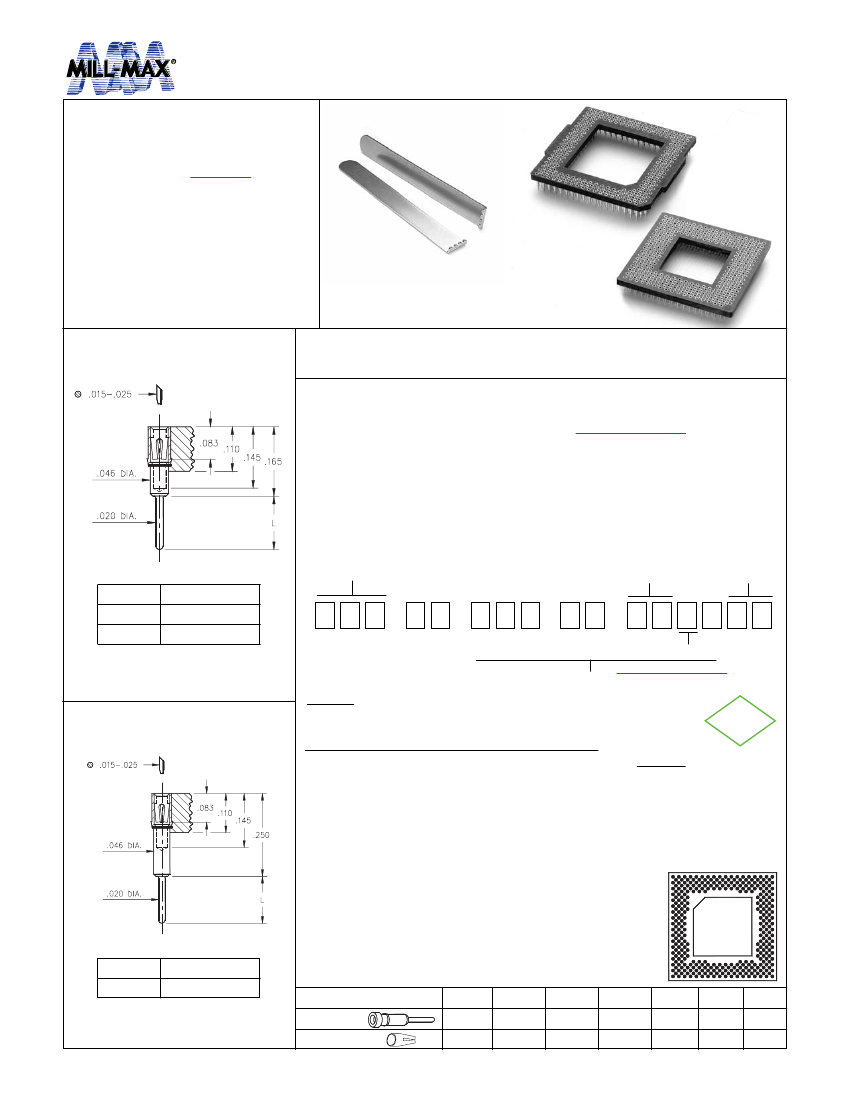

PIN GRID ARRAY SOCKETS

Optional Tabs for Clip-on Heatsink**

Interstitial Pattern

•

Series 518 Interstitial PGA

sockets are available with and

without tabs for clip-on heatsinks.

•

Mill-Max #43, “Ultra-Lite” contact

standard, see page 209 for

details.

•

Hi-Temp PCT polyester insulator

material suitable for all forms of

soldering.

•

A pry-bar tool is available for

extraction (part # 828-01-010).

Series 518

SOLDER TAIL SOCKET PIN

(Without Heatsink Tabs)

Ordering Information

Interstitial configurations are a .100” grid pattern overlapped with a second,

staggered .100” grid pattern thus doubling the package density of the socket.

1. Locate interstitial footprint pattern from pages 107 to 111, the middle 8

digits of the part number will be located under the pattern.

2. Specify 2-digit plating code from chart at bottom of page.

3. Determine the last 2 digits of part number from the pin type at left.

For sockets with heatsink tabs, see chart

“A”

below for pin options.

Pin Type

For L = .125”

For L = .145”

For L = .100”

Series

Plating

Code

Window

Pin Type

5 1 8

No. of pins

Grid size

Pattern #

PIN 08 IS USED EXCLUSIVELY IN

CERTAIN PATTERNS. SEE

CHART “A”.

Determined from footprint pattern pages 107 to 111

CHART

FOOTPRINT

HEATSINK

PATTERN

MFG.

TYPE

296-19-126

THERMALLOY

04, 06

NOTE**

296-19-127

THERMALLOY

04, 06

Designed to work with:

320-19-126

THERMALLOY

04, 06

THERMALLOY

296-19-128

WAKEFIELD

04, 06

WAKEFIELD

296-69-129008 SEE NOTE**

08 ONLY

AAVID

320-69-129008 SEE NOTE**

08 ONLY

IERC

387-01-016508 SEE NOTE**

08 ONLY

heatsinks & clips.

EXAMPLE OF COMPLETE PART NUMBER:

518-43-325-18-105003

This is a 325 pin interstitial (11x11 grid) insulator with a

1.00” square window and fitted with standard solder tail

receptacles. Pin sleeve is tin plated, inner contacts are

Mill-Max #43 and are plated 30μ” gold.

SPECIFY PLATING CODE XX=

SOLDER TAIL SOCKET PIN

(With Heatsink Tabs)

Pin Type

For L = .080”

For L = .115”

PIN 08 IS USED EXCLUSIVELY IN

CERTAIN PATTERNS. SEE

CHART “A”.

10µ” Au

30µ” Au

10µ” Au

30µ” Au

200µ”Sn/Pb

10µ” Au

Sleeve (Pin)

Contact (Clip)

200µ” Sn/Pb

200µ”Sn/Pb 200µ”Sn

200µ”Sn

30µ” Au

200µ”Sn

w w w. m i l l - m a x . c o m

103

516-922-6000
