55450-0559 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 55450-0559

55450-0559: DescriptionBoard Connector, 5 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal, LEAD FREE; CategoryThe connector The connector; File Size300KB，5 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

55450-0559 Overview

Board Connector, 5 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal, LEAD FREE

55450-0559 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	55450
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	1.25 mm
Termination type	SURFACE MOUNT
Total number of contacts	5
UL Flammability Code	94V-0
Base Number Matches	1

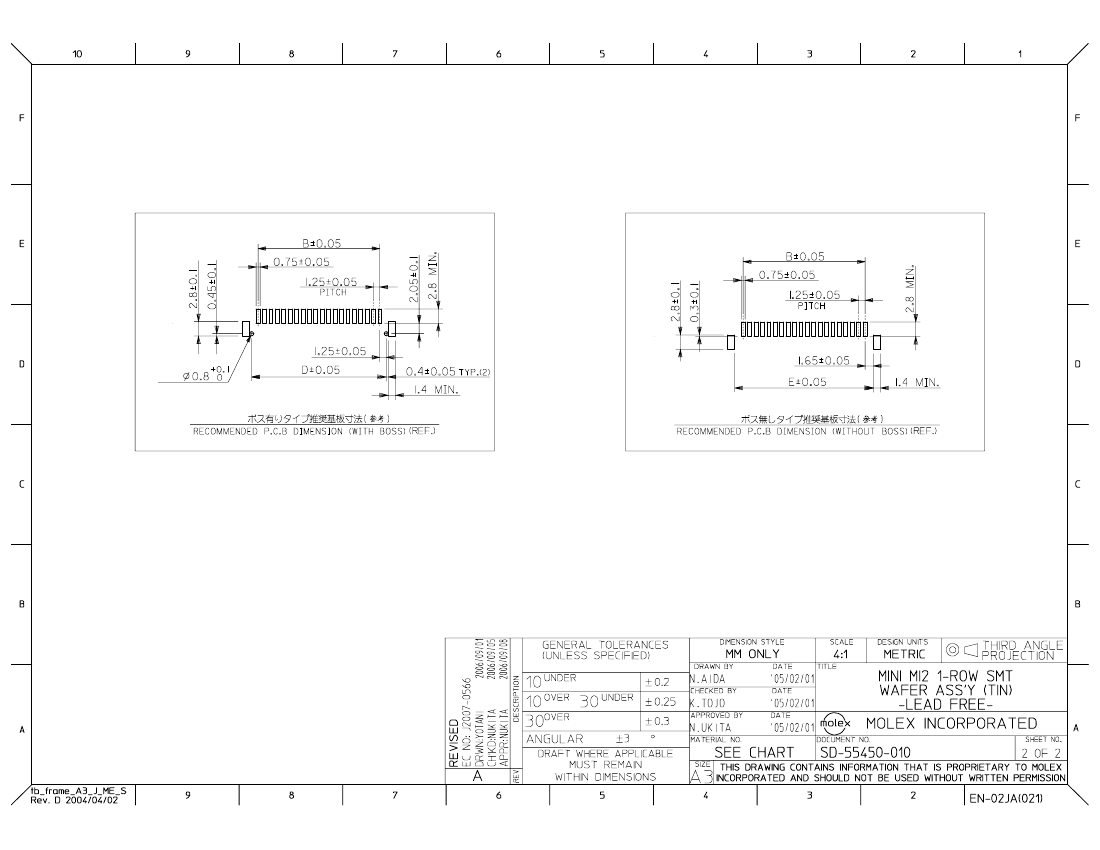

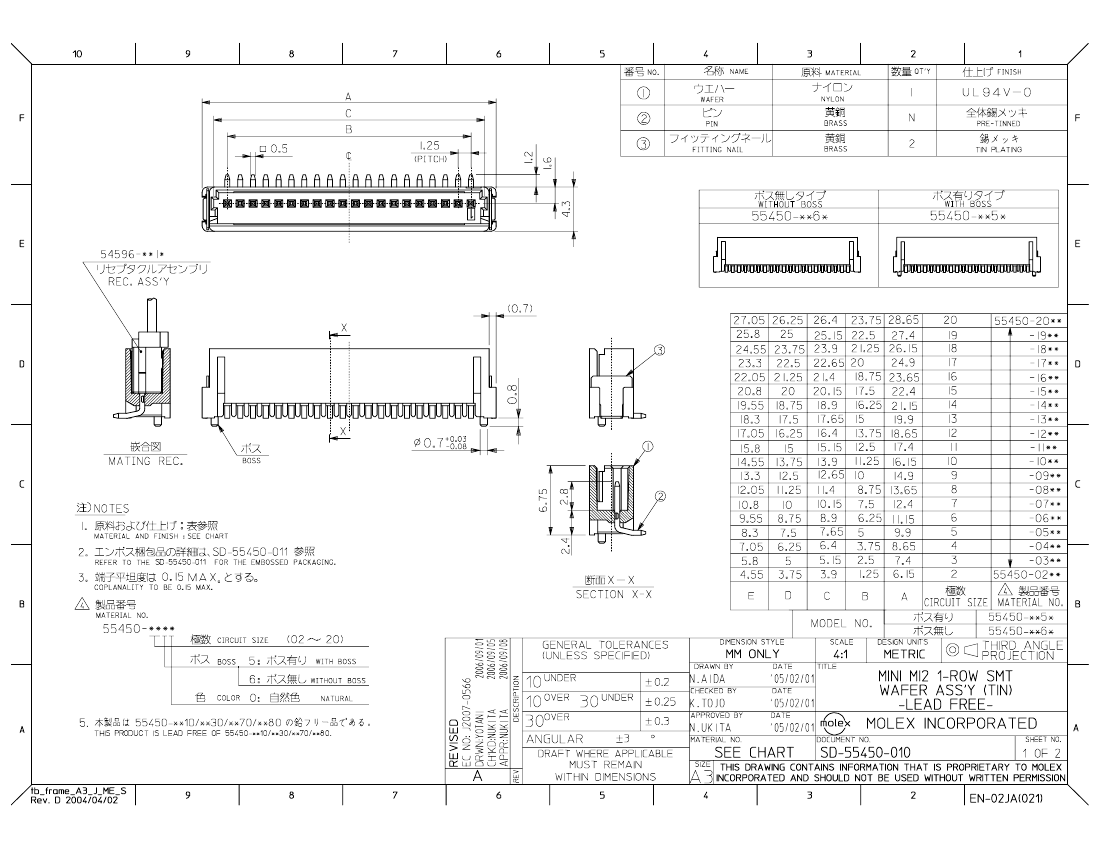

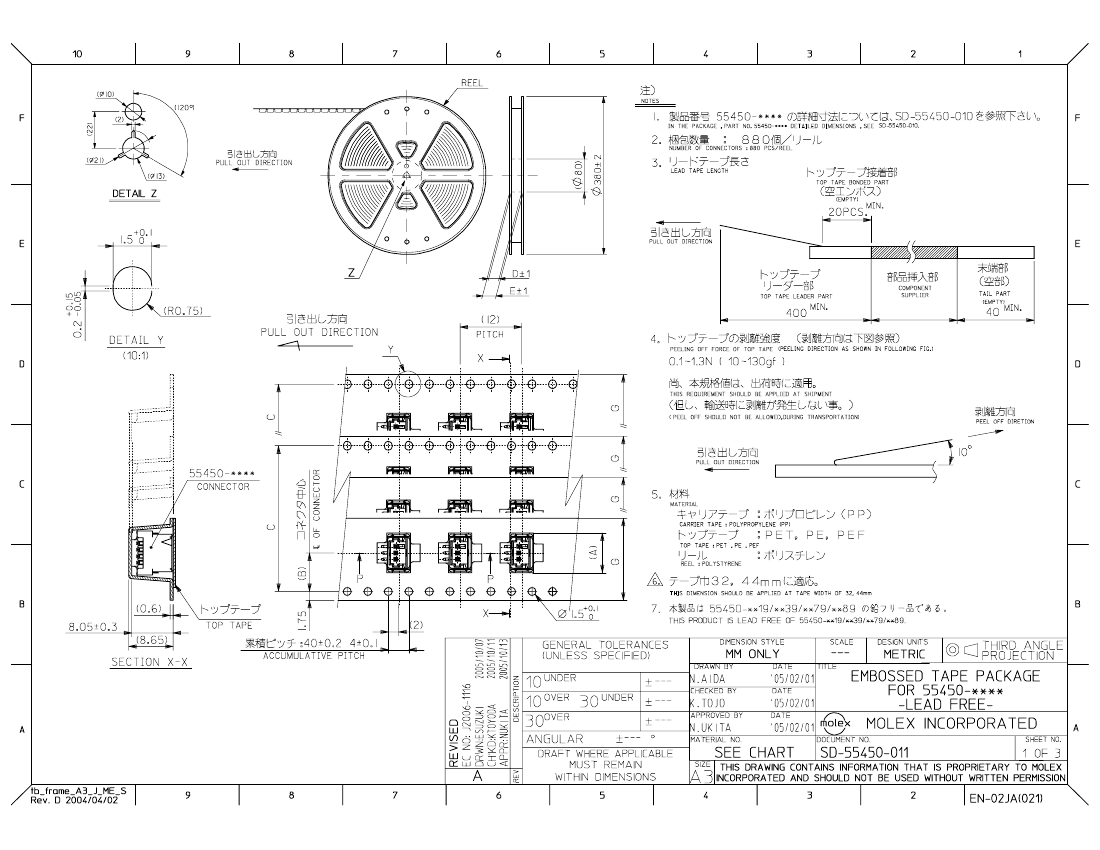

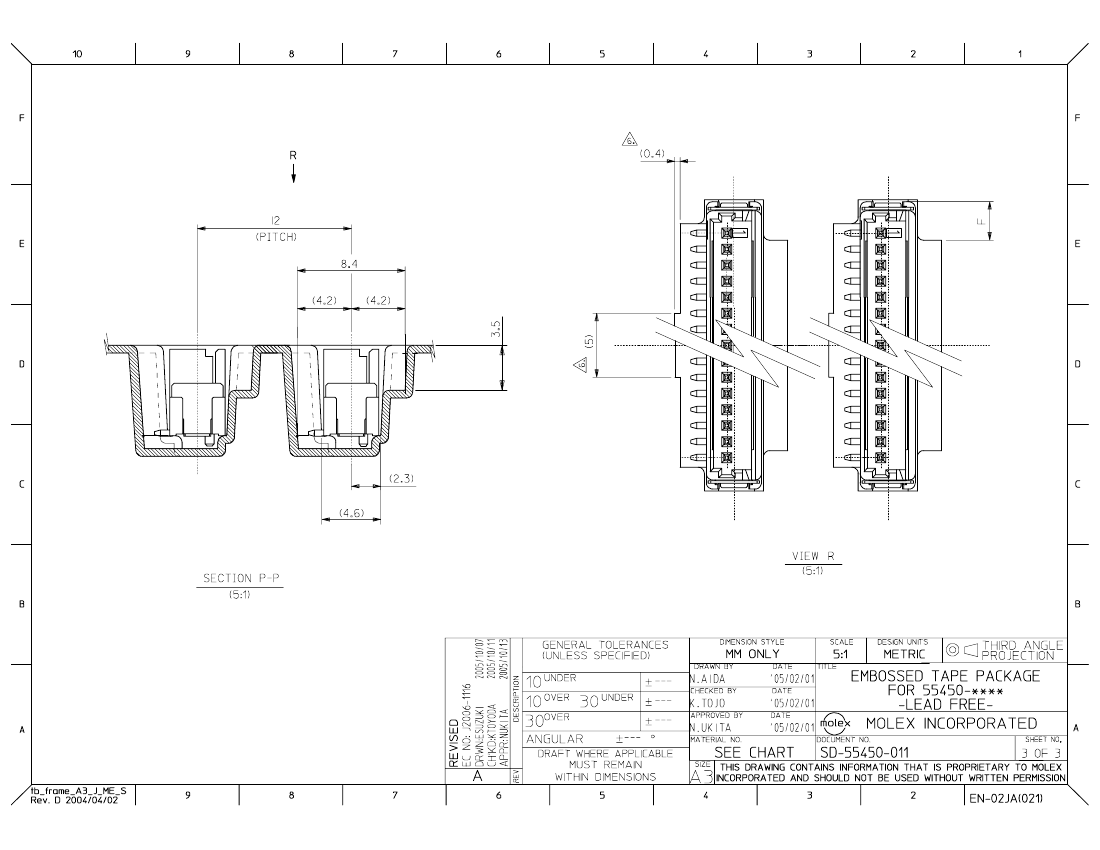

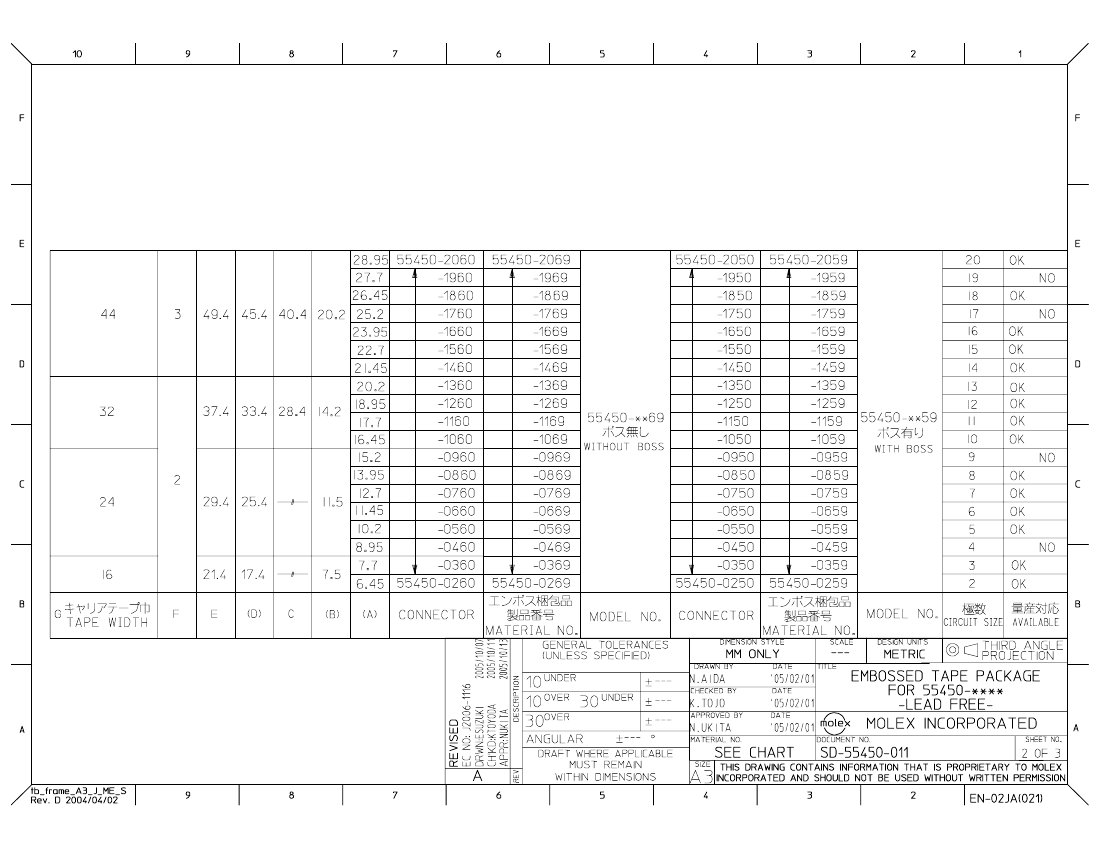

Preview

Download Datasheet

View All

55450-0559 Related Products

	55450-0559	55450-0259	55450-1359	55450-1360	55450-1350
Description	Board Connector, 5 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal, LEAD FREE	Board Connector, 2 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal, LEAD FREE	Board Connector, 13 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal, LEAD FREE	Board Connector, 13 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal, LEAD FREE	Board Connector, 13 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal, LEAD FREE
Maker	Molex	Molex	Molex	Molex	Molex
package instruction	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	unknown	compliant	unknown	unknown	unknown
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	TIN	TIN
Contact point gender	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	55450	55450	55450	55450	55450
Mixed contacts	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1.25 mm	1.25 mm	1.25 mm	1.25 mm	1.25 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	5	2	13	13	13
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1
Is it Rohs certified?	conform to	conform to	conform to	-	-
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	-
Is Samacsys	-	-	N	N	N
