74HCT181DB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> 74HCT181DB

74HCT181DB: DescriptionIC HCT SERIES, 4-BIT ARITHMETIC LOGIC UNIT, PDSO24, Arithmetic Circuit; Categorylogic; File Size321KB，13 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

74HCT181DB Overview

IC HCT SERIES, 4-BIT ARITHMETIC LOGIC UNIT, PDSO24, Arithmetic Circuit

74HCT181DB Parametric

Parameter Name	Attribute value
Maker	NXP
package instruction	SSOP,
Reach Compliance Code	unknown
Other features	CAPABLE OF 16 LOGIC & ARITHMETIC OPERATIONS; INTERNAL CARRY AND HIGHER ORDER LOOKAHEAD
series	HCT
JESD-30 code	R-PDSO-G24
length	8.2 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	ARITHMETIC LOGIC UNIT
Number of digits	4
Number of functions	1
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
propagation delay (tpd)	90 ns
Certification status	Not Qualified
Maximum seat height	2 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	5.3 mm
Base Number Matches	1

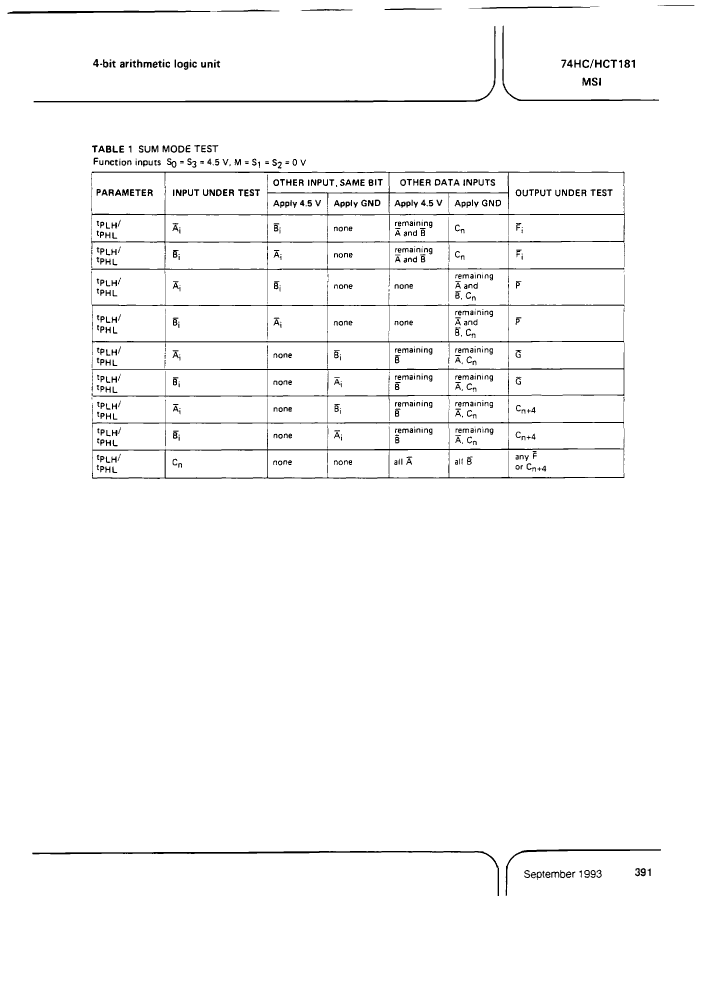

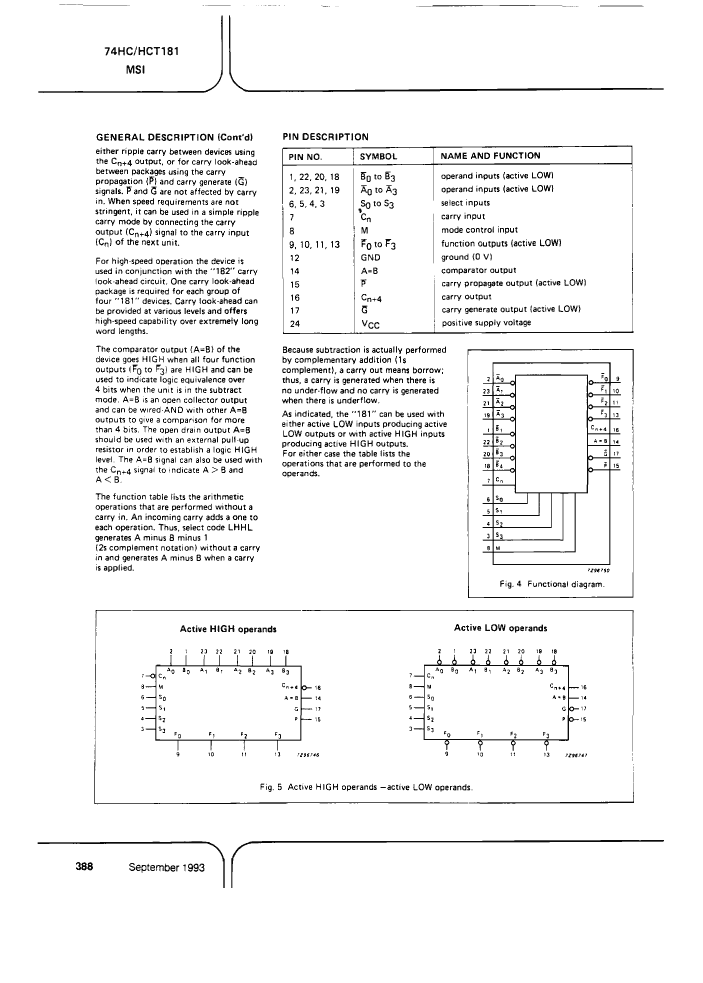

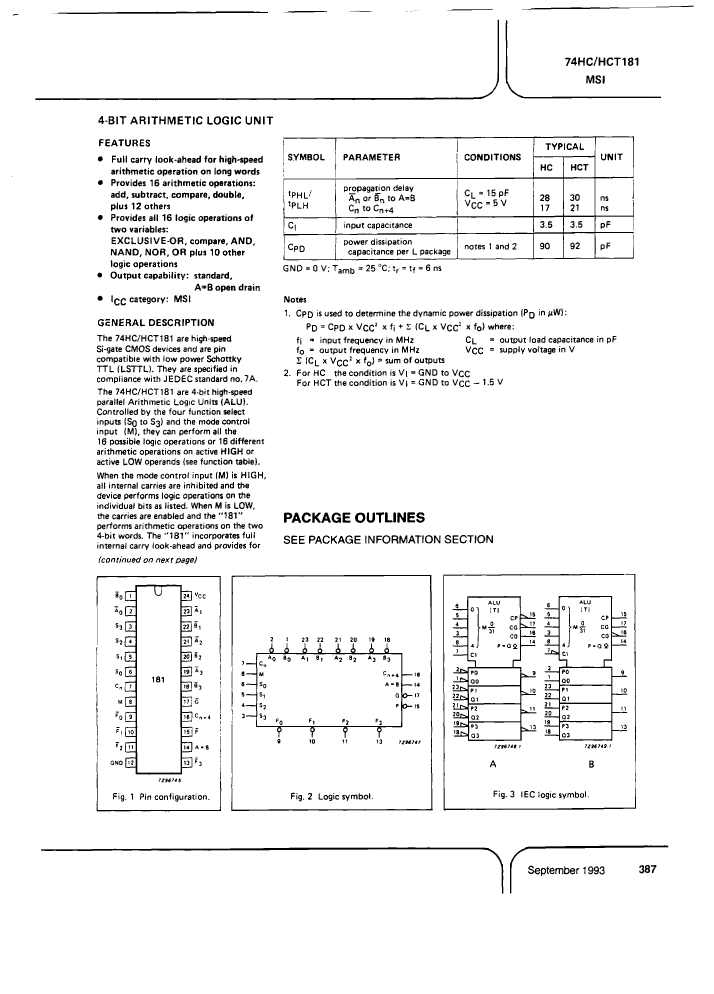

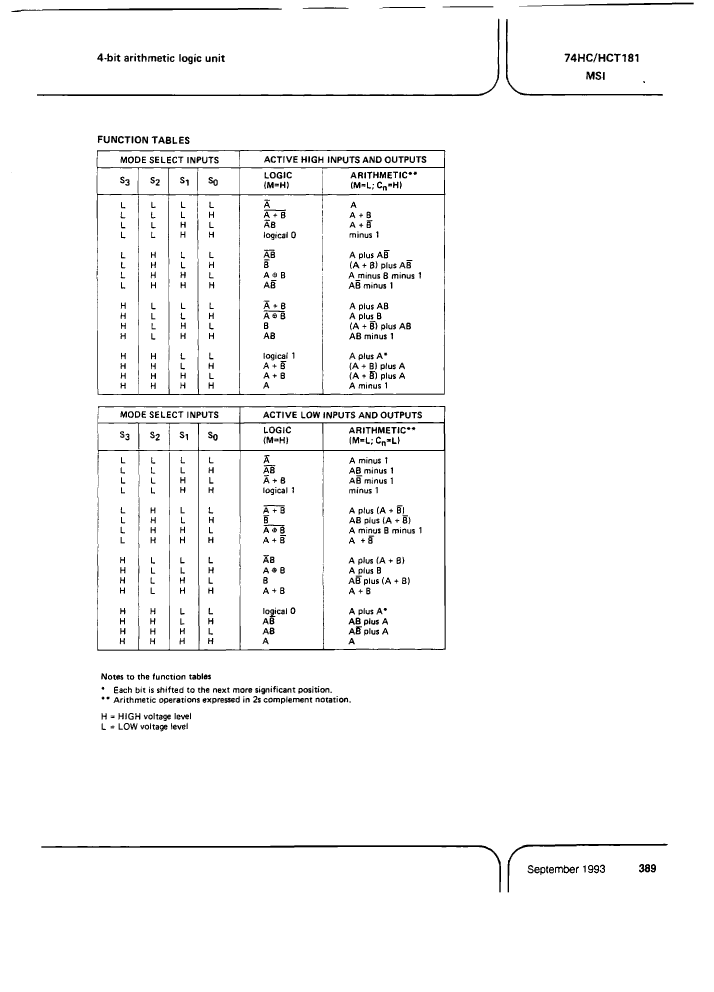

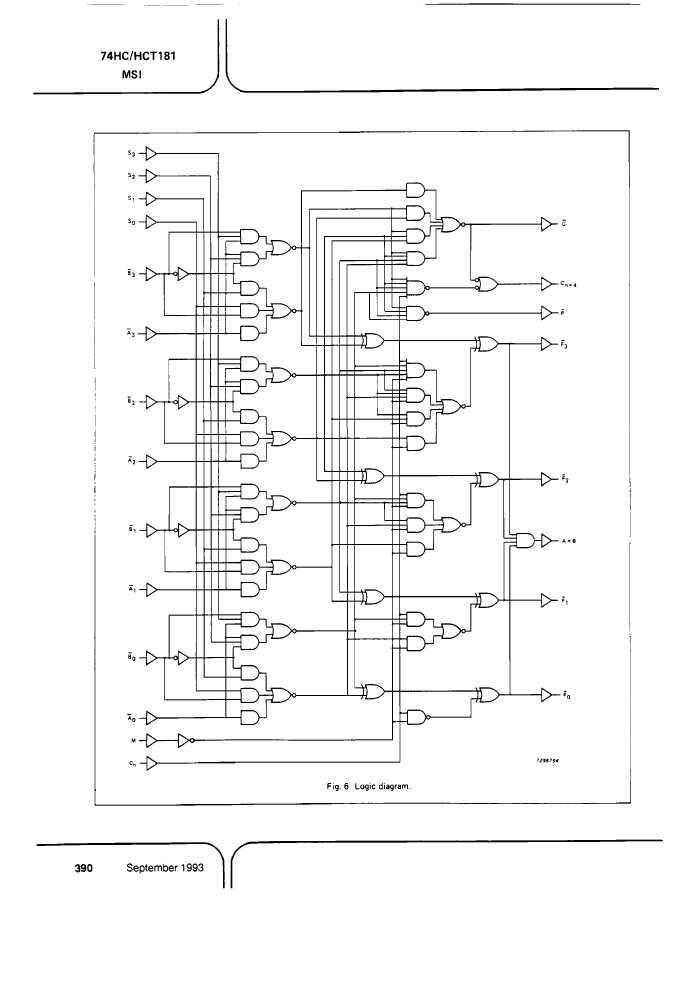

Preview

Download Datasheet

View All

74HCT181DB Related Products

	74HCT181DB	74HCT181DB-T	74HC181PW	74HC181PW-T	74HCT181PW	74HC181NB	74HCT181NB	74HC181DB	74HC181DB-T	74HCT181PW-T
Description	IC HCT SERIES, 4-BIT ARITHMETIC LOGIC UNIT, PDSO24, Arithmetic Circuit	IC HCT SERIES, 4-BIT ARITHMETIC LOGIC UNIT, PDSO24, Arithmetic Circuit	IC HC/UH SERIES, 4-BIT ARITHMETIC LOGIC UNIT, PDSO24, Arithmetic Circuit	IC HC/UH SERIES, 4-BIT ARITHMETIC LOGIC UNIT, PDSO24, Arithmetic Circuit	IC HCT SERIES, 4-BIT ARITHMETIC LOGIC UNIT, PDSO24, Arithmetic Circuit	IC HC/UH SERIES, 4-BIT ARITHMETIC LOGIC UNIT, PDIP24, Arithmetic Circuit	IC HCT SERIES, 4-BIT ARITHMETIC LOGIC UNIT, PDIP24, Arithmetic Circuit	IC HC/UH SERIES, 4-BIT ARITHMETIC LOGIC UNIT, PDSO24, Arithmetic Circuit	IC HC/UH SERIES, 4-BIT ARITHMETIC LOGIC UNIT, PDSO24, Arithmetic Circuit	IC HCT SERIES, 4-BIT ARITHMETIC LOGIC UNIT, PDSO24, Arithmetic Circuit
Maker	NXP	NXP	NXP	NXP	NXP	NXP	NXP	NXP	NXP	NXP
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
Other features	CAPABLE OF 16 LOGIC & ARITHMETIC OPERATIONS; INTERNAL CARRY AND HIGHER ORDER LOOKAHEAD	CAPABLE OF 16 LOGIC & ARITHMETIC OPERATIONS; INTERNAL CARRY AND HIGHER ORDER LOOKAHEAD	CAPABLE OF 16 LOGIC & ARITHMETIC OPERATIONS; INTERNAL CARRY AND HIGHER ORDER LOOKAHEAD	CAPABLE OF 16 LOGIC & ARITHMETIC OPERATIONS; INTERNAL CARRY AND HIGHER ORDER LOOKAHEAD	CAPABLE OF 16 LOGIC & ARITHMETIC OPERATIONS; INTERNAL CARRY AND HIGHER ORDER LOOKAHEAD	CAPABLE OF 16 LOGIC & ARITHMETIC OPERATIONS; INTERNAL CARRY AND HIGHER ORDER LOOKAHEAD	CAPABLE OF 16 LOGIC & ARITHMETIC OPERATIONS; INTERNAL CARRY AND HIGHER ORDER LOOKAHEAD	CAPABLE OF 16 LOGIC & ARITHMETIC OPERATIONS; INTERNAL CARRY AND HIGHER ORDER LOOKAHEAD	CAPABLE OF 16 LOGIC & ARITHMETIC OPERATIONS; INTERNAL CARRY AND HIGHER ORDER LOOKAHEAD	CAPABLE OF 16 LOGIC & ARITHMETIC OPERATIONS; INTERNAL CARRY AND HIGHER ORDER LOOKAHEAD
series	HCT	HCT	HC/UH	HC/UH	HCT	HC/UH	HCT	HC/UH	HC/UH	HCT
JESD-30 code	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24	R-PDIP-T24	R-PDIP-T24	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	ARITHMETIC LOGIC UNIT	ARITHMETIC LOGIC UNIT	ARITHMETIC LOGIC UNIT	ARITHMETIC LOGIC UNIT	ARITHMETIC LOGIC UNIT	ARITHMETIC LOGIC UNIT	ARITHMETIC LOGIC UNIT	ARITHMETIC LOGIC UNIT	ARITHMETIC LOGIC UNIT	ARITHMETIC LOGIC UNIT
Number of digits	4	4	4	4	4	4	4	4	4	4
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	24	24	24	24	24	24	24	24	24	24
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	SSOP	TSSOP	TSSOP	TSSOP	DIP	DIP	SSOP	SSOP	TSSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	IN-LINE	IN-LINE	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
propagation delay (tpd)	90 ns	90 ns	83 ns	83 ns	90 ns	83 ns	90 ns	83 ns	83 ns	90 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	6 V	6 V	5.5 V	6 V	5.5 V	6 V	6 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	2 V	2 V	4.5 V	2 V	4.5 V	2 V	2 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	NO	NO	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
package instruction	SSOP,	SSOP,	TSSOP,	TSSOP,	TSSOP,	DIP,	DIP,	-	-	TSSOP,
length	8.2 mm	8.2 mm	7.8 mm	7.8 mm	7.8 mm	-	-	8.2 mm	8.2 mm	7.8 mm
Maximum seat height	2 mm	2 mm	1.1 mm	1.1 mm	1.1 mm	-	-	2 mm	2 mm	1.1 mm
Terminal pitch	0.65 mm	0.65 mm	0.65 mm	0.65 mm	0.65 mm	-	-	0.65 mm	0.65 mm	0.65 mm
width	5.3 mm	5.3 mm	4.4 mm	4.4 mm	4.4 mm	-	-	5.3 mm	5.3 mm	4.4 mm
