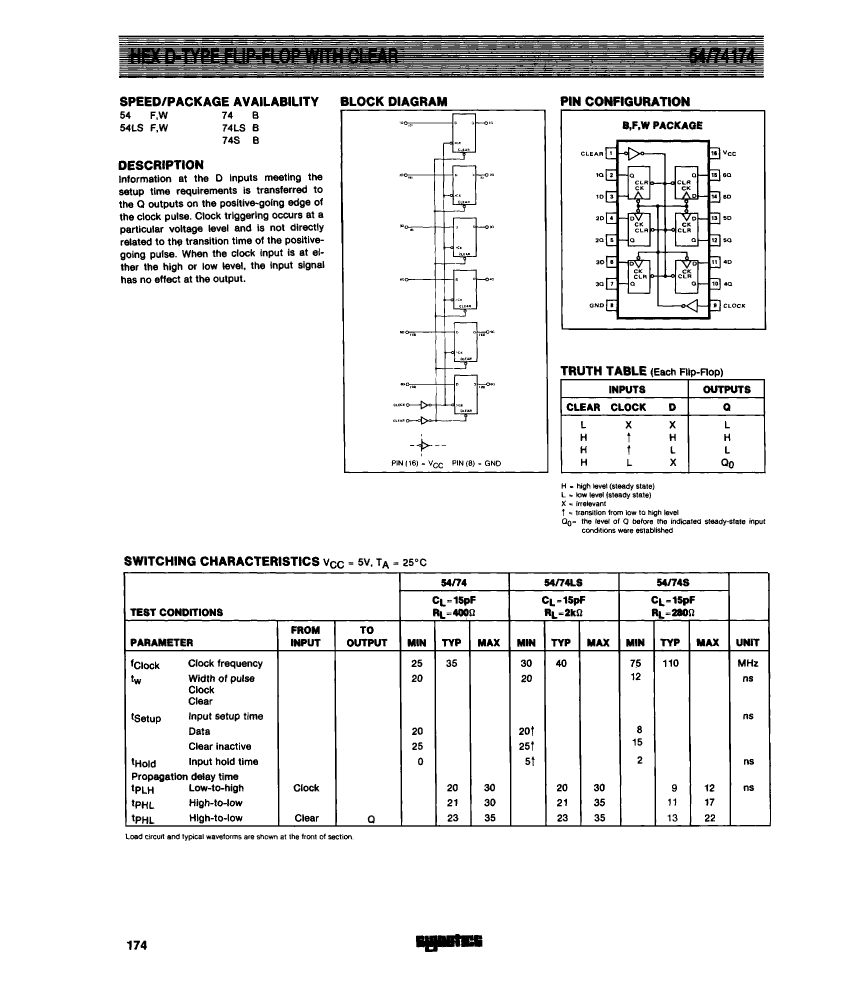

74LS174B datasheet, PDF - EEWORLD Datasheet

74LS174B: DescriptionIC LS SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, PDIP16, DIP-16, FF/Latch; Categorylogic; File Size35KB，1 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

74LS174B Overview

IC LS SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, PDIP16, DIP-16, FF/Latch

Parameter Name	Attribute value
Maker	NXP
Parts packaging code	DIP
package instruction	DIP,
Contacts	16
Reach Compliance Code	unknown
series	LS
JESD-30 code	R-PDIP-T16
length	19.05 mm
Load capacitance (CL)	15 pF
Logic integrated circuit type	D FLIP-FLOP
Number of digits	6
Number of functions	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	35 ns
Certification status	Not Qualified
Maximum seat height	5.08 mm
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
width	7.62 mm
minfmax	30 MHz
Base Number Matches	1

	74LS174B
Description	IC LS SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, PDIP16, DIP-16, FF/Latch
Maker	NXP
Parts packaging code	DIP
package instruction	DIP,
Contacts	16
Reach Compliance Code	unknown
series	LS
JESD-30 code	R-PDIP-T16
length	19.05 mm
Load capacitance (CL)	15 pF
Logic integrated circuit type	D FLIP-FLOP
Number of digits	6
Number of functions	1
Number of terminals	16
Maximum operating temperature	70 °C
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	35 ns
Certification status	Not Qualified
Maximum seat height	5.08 mm
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
width	7.62 mm
minfmax	30 MHz
Base Number Matches	1
