52793-1310 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 52793-1310

52793-1310: DescriptionCard Edge Connector, 13 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal; CategoryThe connector; File Size451KB，8 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

52793-1310 Overview

Card Edge Connector, 13 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal

52793-1310 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Other features	TOP CONTACT STYLE
Connector type	FFC/FPC CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	13
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

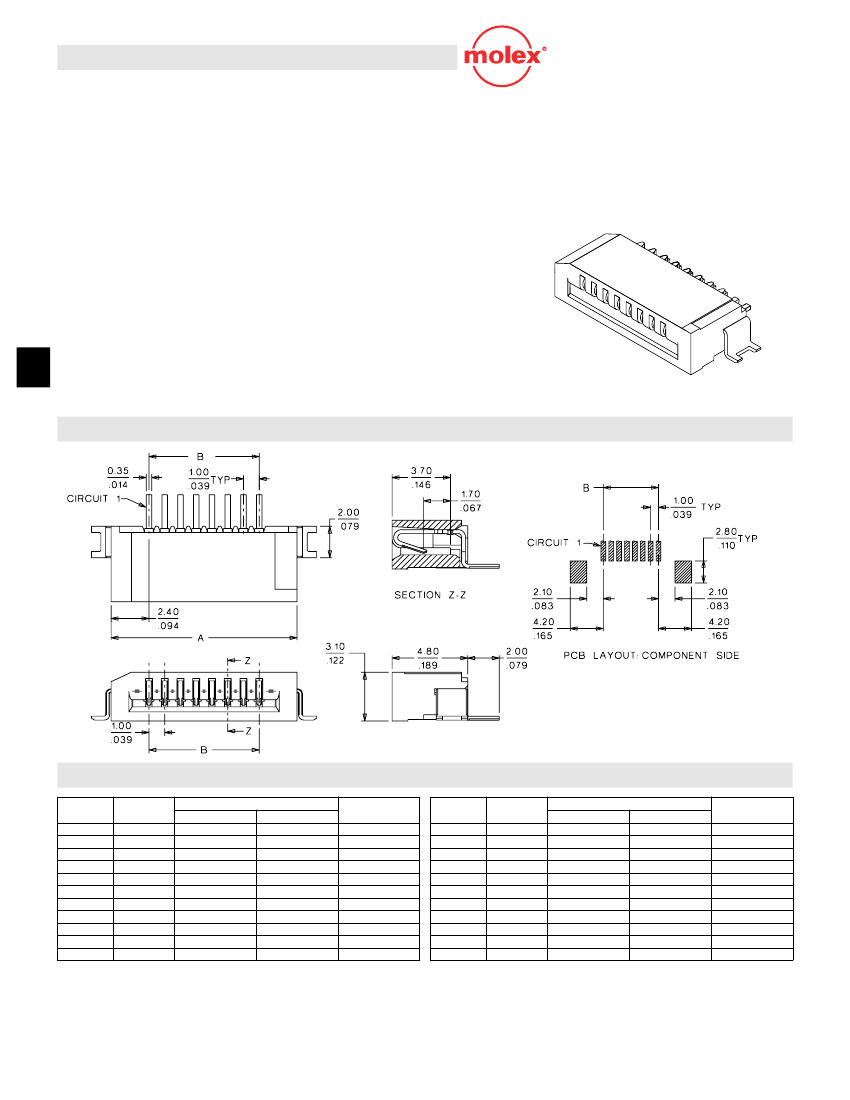

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

Sizes 4 to 30 circuits

For 0.30mm thick FFC/FPC

Metal solder tabs provide PCB hold-down and

strain relief for SMT tails

Reference Information

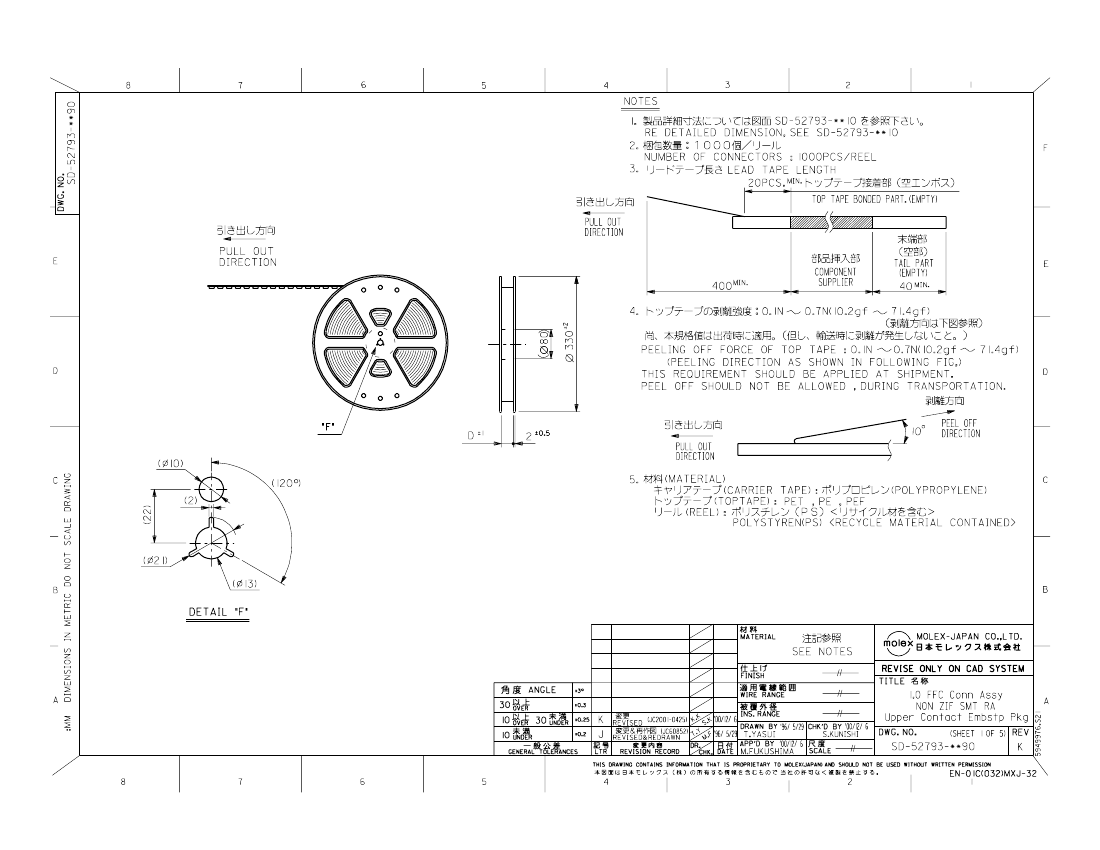

Packaging: Embossed tape

Designed In: Millimeters

Electrical

Voltage: 50V

Current: 0.5A

Contact Resistance: 30m

Ω

max.

Dielectric Withstanding Voltage: 500V AC

Insulation Resistance: 100 M

Ω

min.

Physical

Housing: PPS, UL 94V-0

Contact: Phosphor Bronze

Plating: Tin/Lead

Solder Tabs: Phosphor Bronze, Tin/Lead plating

Operating Temperature: -20 to +80˚C

1.00mm (.039") Pitch

FFC/FPC Connector

52793

Right Angle, SMT

Non-ZIF

Top Contact Style

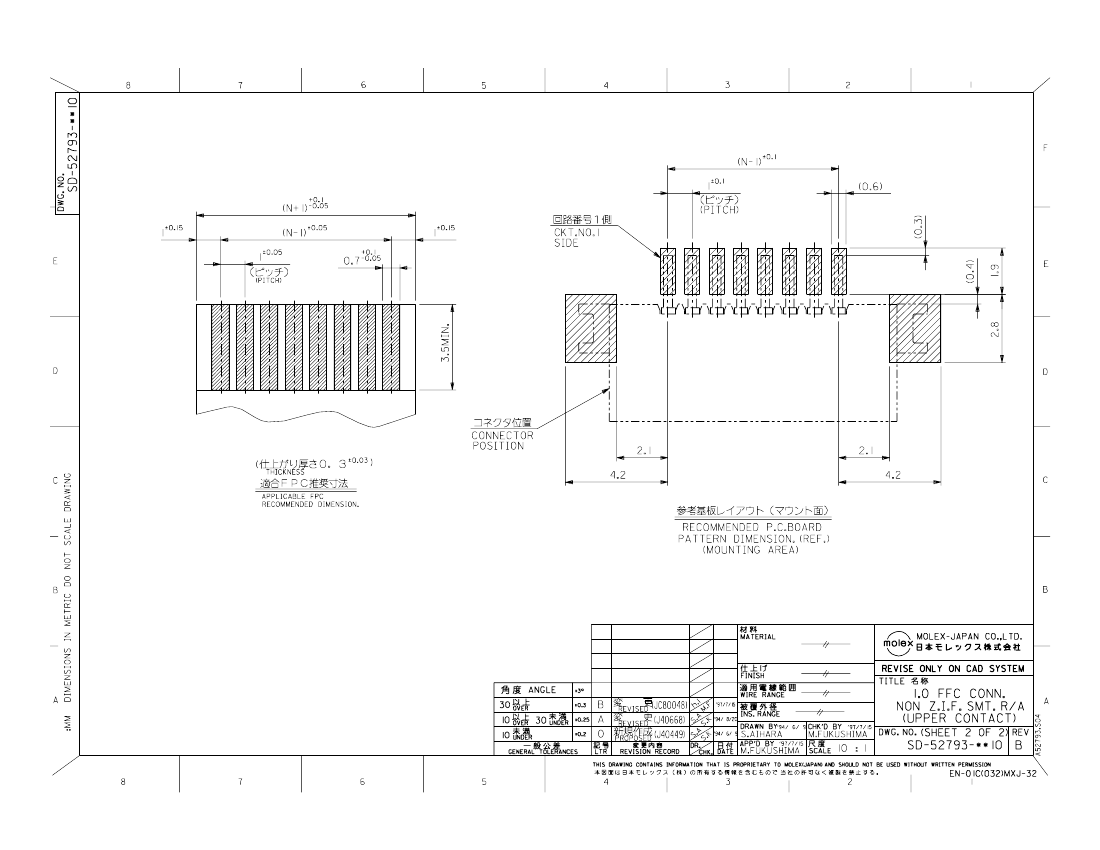

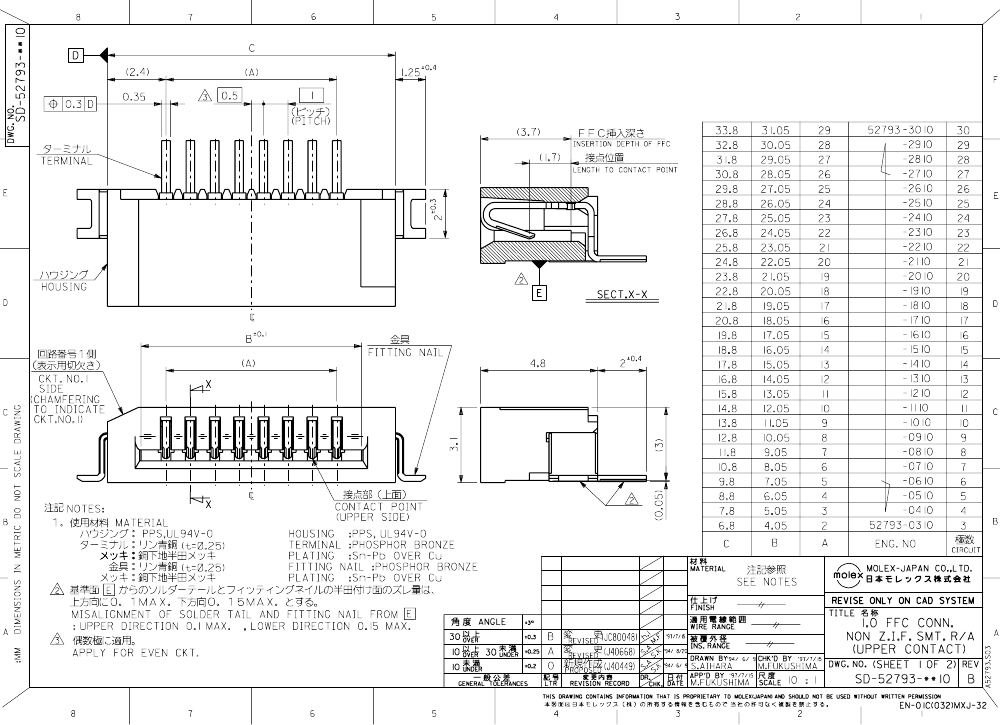

CATALOG DRAWING (FOR REFERENCE ONLY)

FFC/FPC Connectors

ORDERING INFORMATION AND DIMENSIONS

Circuits

Order No.

52793-0490

52793-0590

52793-0790

52793-0890

52793-0990

52793-1090

52793-1290

52793-1390

52793-1490

52793-1590

52793-1690

Dimension

7.80 (.307)

8.80 (.346)

10.80 (.425)

11.80 (.464)

12.80 (.503)

13.80 (.543)

15.80 (.622)

16.80 (.661)

17.80 (.700)

18.80 (.740)

19.80 (.779)

3.00 (.118)

4.00 (.157)

6.00 (.236)

7.00 (.275)

8.00 (.314)

9.00 (.354)

11.00 (.433)

12.00 (.472)

13.00 (.511)

14.00 (.551)

15.00 (.590)

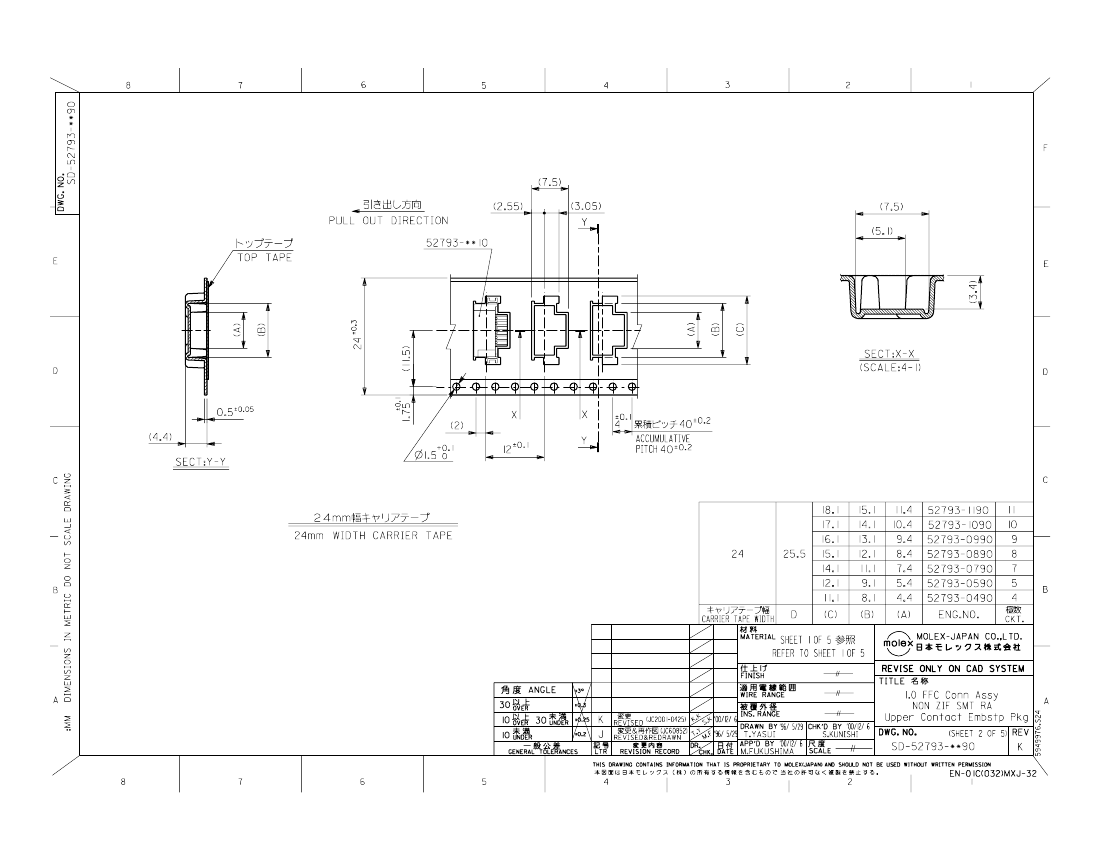

Carrier

Tape Width

24.00

32.00

(.945)

(1.260)

Circuits

Order No.

52793-1890

52793-1990

52793-2090

52793-2290

52793-2390

52793-2490

52793-2590

52793-2690

52793-2790

52793-2890

52793-3090

Dimension

21.80 (.858)

17.00 (.669)

22.80 (.897)

18.00 (.708)

23.80 (.937)

19.00 (.748)

25.80 (1.015)

21.00 (.826)

26.80 (1.055)

22.00 (.866)

27.80 (1.094)

23.00 (.905)

28.80 (1.133)

24.00 (.944)

29.80 (1.173)

25.00 (.984)

30.80 (1.212)

26.00 (1.023)

31.80 (1.251)

27.00 (1.062)

33.80 (1.330)

29.00 (1.141)

Carrier

Tape Width

44.00

56.00

(1.732)

(2.205)

Note: For cable speciﬁcation dimensions, see cable pages at end of section

G-26

MX01
