874F-1.000MHZ-DF0 datasheet, PDF

Datasheet> All Categories > oscillator> 874F-1.000MHZ-DF0

874F-1.000MHZ-DF0: DescriptionHCMOS Output Clock Oscillator,; Categoryoscillator; File Size148KB，2 Pages; ManufacturerFOX [Fox Electronics]; Environmental Compliance

Download Datasheet Parametric Compare View All

874F-1.000MHZ-DF0 Overview

HCMOS Output Clock Oscillator,

874F-1.000MHZ-DF0 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	FOX [Fox Electronics]
package instruction	SMD, 4 PIN
Reach Compliance Code	compliant
Other features	STANDBY; ENABLE/DISABLE FUNCTION; TR, 7 INCH
maximum descent time	4.5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	25%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Nominal operating frequency	1 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	HCMOS
Output load	15 pF
physical size	1.7mm x 1.3mm x 0.7mm
longest rise time	4.5 ns
Maximum supply voltage	2.75 V
Minimum supply voltage	2.25 V
Nominal supply voltage	2.5 V
surface mount	YES
maximum symmetry	55/45 %
Terminal surface	Gold (Au) - with Nickel (Ni) barrier
Base Number Matches	1

Preview

Download Datasheet

View All

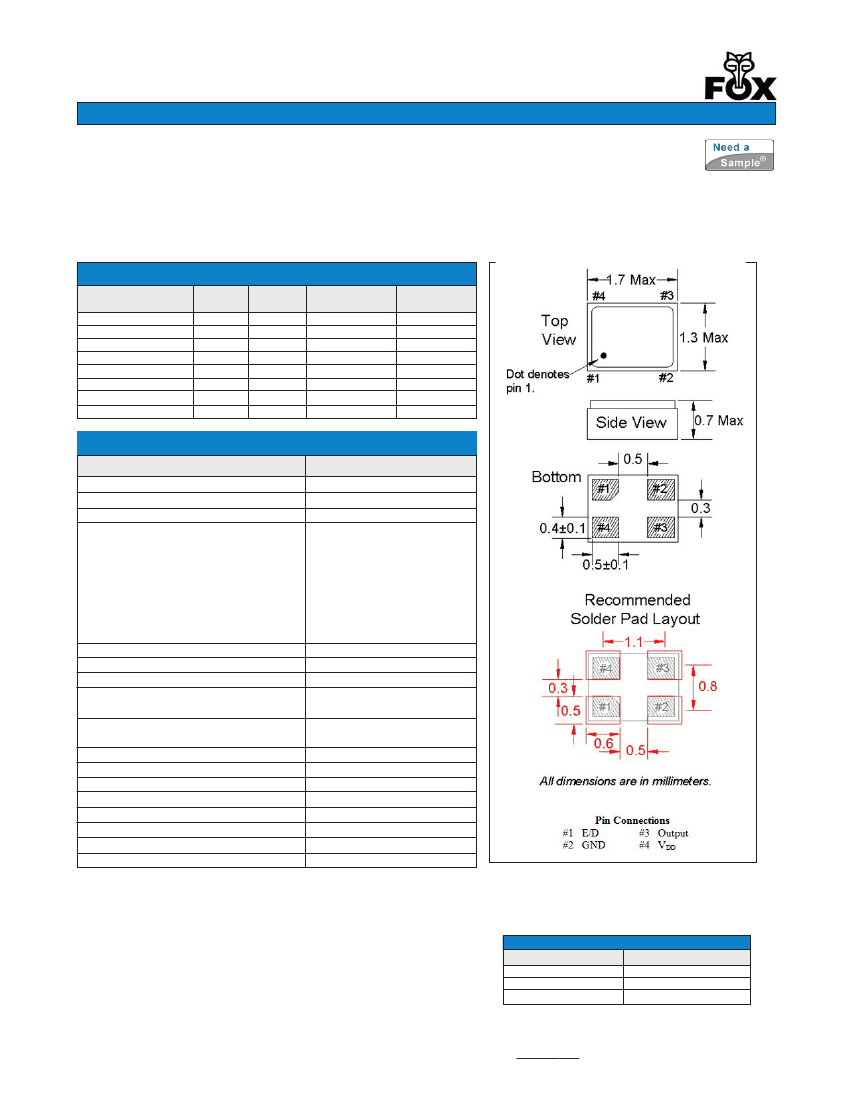

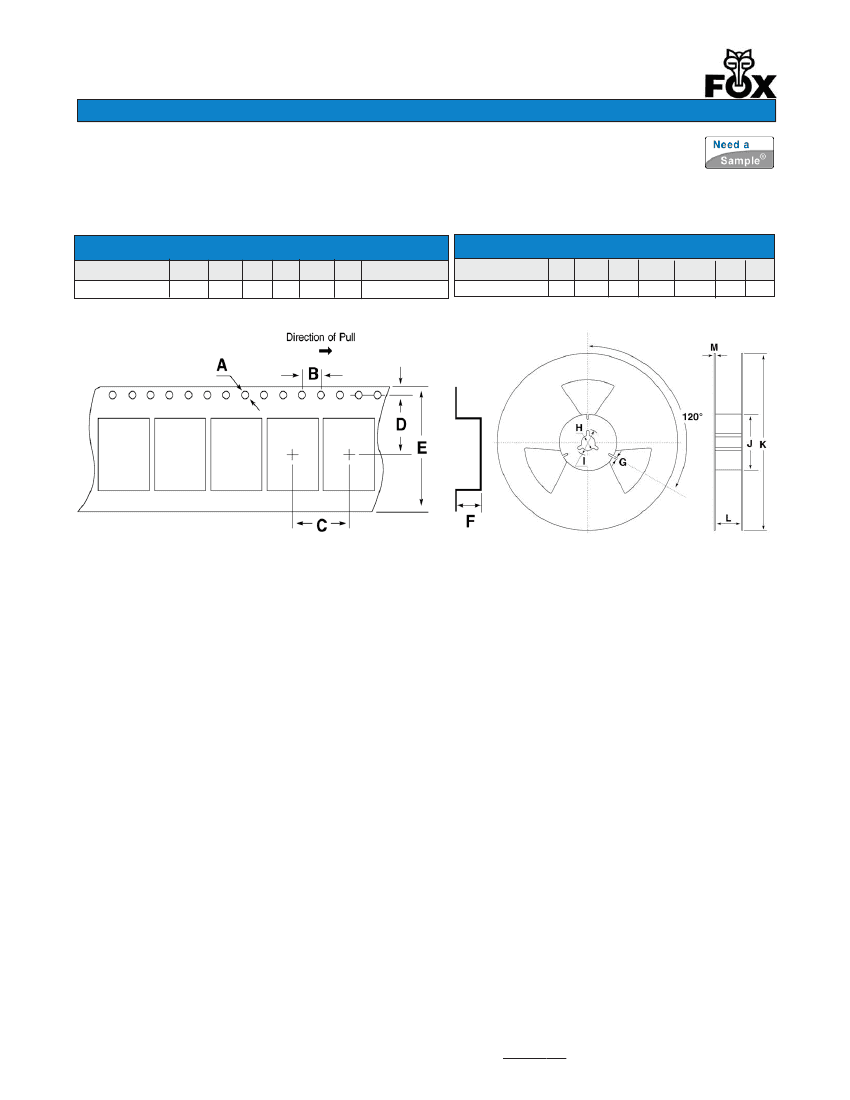

HcMOS 1.6x1.2mm 2.5V SMD Oscillator

Model: F640 SERIES

Page 1 of 2

RoHS/REacH compliant / Pb Free

Rev. 3/16/2015

http://www.foxonline.com/need_a_sample.htm

FEaTuRES

• 2.5V Operation

• Standby Function

• Tape and Reel

(3,000 pcs. STD)

OPTIONS

• 1.8V (F610) Version Available

• 3.3V (F630) Version Available

• PaRT NuMbER SElEcTION

Part Number

874-Frequency-xxxxx

874A-Frequency-xxxxx

874B-Frequency-xxxxx

874C-Frequency-xxxxx

874D-Frequency-xxxxx

874E-Frequency-xxxxx

874F-Frequency-xxxxx

874H-Frequency-xxxxx

Model

Number

F640

F640R

F645

F645R

F643

F643R

F646

F648

Frequency

Operating

Stability Temperature (ºC)

±100PPM

-20 ~ +70

±100PPM

-40 ~ +85

±50PPM

-20 ~ +70

±50PPM

-40 ~ +85

±30PPM

-20 ~ +70

±30PPM

-40 ~ +85

±25PPM

-20 ~ +70

±20PPM

-20 ~ +70

Frequency

Range (MHz)

1.000 ~ 80.000

• ElEcTRIcal cHaRacTERISTIcS

PARAMETERS

Frequency Range (F

)

Storage Temperature Range (T

stg

)

Supply Voltage

)

Input Current

)

1.000000 ~ 20.000000 MHz

20.000001 ~ 30.000000 MHz

30.000001 ~ 40.000000 MHz

40.000001 ~ 50.000000 MHz

50.000001 ~ 60.000000 MHz

60.000001 ~ 70.000000 MHz

70.000001 ~ 80.000000 MHz

Output Symmetry (50% V

)

Rise Time (10% ~ 90% V

)

Fall Time (90% ~ 10% V

)

Output Voltage

)

Output Current

)

Output Load

(HCMOS)

Standby Current

Start-up Time

)

Output Disable Time

Output Enable Time

Maximum Soldering Temp/Time

Moisture Sensitivity Level (MSL)

Termination Finish

MAX

(unless otherwise noted)

1.000 ~ 80.000 MHz

-40ºC ~ +85ºC

2.5V ± 10%

3mA

4mA

5mA

6mA

7mA

8mA

9mA

45% ~ 55%

4.5nS

10% V

90% V

Min

4mA Min

-4mA Min

15pF

10µA

2mS

200nS

2mS

260ºC ±5ºC / 5 Seconds

Au over Ni

Inclusive of 25ºC tolerance, operating temperature range, input voltage change, load change, aging,

shock, and vibration.

An internal pullup resistor from pin 1 to pin 4 allows active output if pin 1 is left open.

Note: A 0.01µF bypass capacitor should be placed between V

(Pin 4) and GND (Pin 2) to

minimize power supply line noise.

Drawing is for reference to critical specifications defined by size measurements.

Certain non-critical visual attributes, such as side castellations, reference pin shape, etc. may

vary. All specifications subject to change without notice.

• ENablE / DISablE FuNcTION

OUTPUT (Pin 3)

(Pin 1)

ACTIVE

OPEN

ACTIVE

'1' Level V

≥

70% V

High Z

'0' Level V

≤

30% V

Fox Electronics

5570 Enterprise Parkway

Fort Myers, Florida 33905

USA +1.239.693.0099

FOXonline.com

FAX +1.239.693.1554

An Integrated Device Technology, Inc. company

874F-1.000MHZ-DF0 Related Products

	874F-1.000MHZ-DF0	F643-1.000MHZ-CF0	F643-1.000MHZ
Description	HCMOS Output Clock Oscillator,	HCMOS Output Clock Oscillator,	Oscillator
Maker	FOX [Fox Electronics]	FOX [Fox Electronics]	FOX [Fox Electronics]
Reach Compliance Code	compliant	compliant	compliant
Is it Rohs certified?	conform to	conform to	-
package instruction	SMD, 4 PIN	SMD, 4 PIN	-
Other features	STANDBY; ENABLE/DISABLE FUNCTION; TR, 7 INCH	STANDBY; ENABLE/DISABLE FUNCTION; TR, 7 INCH	-
maximum descent time	4.5 ns	4.5 ns	-
Frequency Adjustment - Mechanical	NO	NO	-
frequency stability	25%	30%	-
JESD-609 code	e4	e4	-
Installation features	SURFACE MOUNT	SURFACE MOUNT	-
Nominal operating frequency	1 MHz	1 MHz	-
Maximum operating temperature	70 °C	70 °C	-
Minimum operating temperature	-20 °C	-20 °C	-
Oscillator type	HCMOS	HCMOS	-
Output load	15 pF	15 pF	-
physical size	1.7mm x 1.3mm x 0.7mm	1.7mm x 1.3mm x 0.7mm	-
longest rise time	4.5 ns	4.5 ns	-
Maximum supply voltage	2.75 V	2.75 V	-
Minimum supply voltage	2.25 V	2.25 V	-
Nominal supply voltage	2.5 V	2.5 V	-
surface mount	YES	YES	-
maximum symmetry	55/45 %	55/45 %	-
Terminal surface	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	-
