74F30640F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> 74F30640F

74F30640F: DescriptionBus Transceiver, F/FAST Series, 1-Func, 8-Bit, Inverted Output, TTL, CDIP24; Categorylogic; File Size180KB，6 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

74F30640F Overview

Bus Transceiver, F/FAST Series, 1-Func, 8-Bit, Inverted Output, TTL, CDIP24

74F30640F Parametric

Parameter Name	Attribute value
Maker	YAGEO
package instruction	,
Reach Compliance Code	unknown
Other features	B OUTPUTS OPEN COLLECTOR
series	F/FAST
JESD-30 code	R-CDIP-T24
Logic integrated circuit type	BUS TRANSCEIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	OPEN-COLLECTOR/3-STATE
Output polarity	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	5.5 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Base Number Matches	1

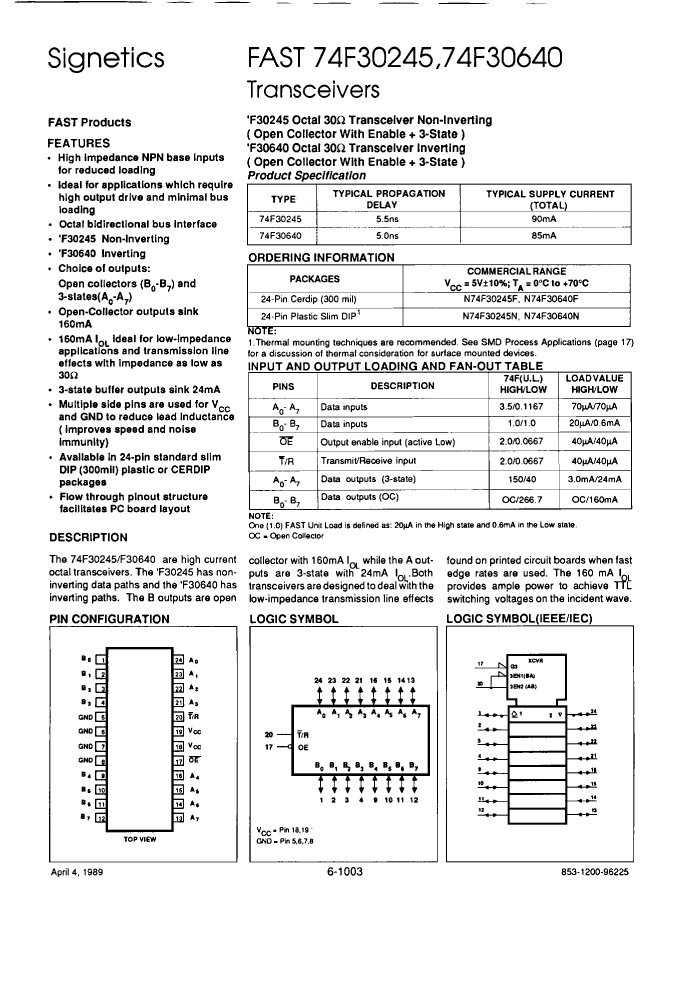

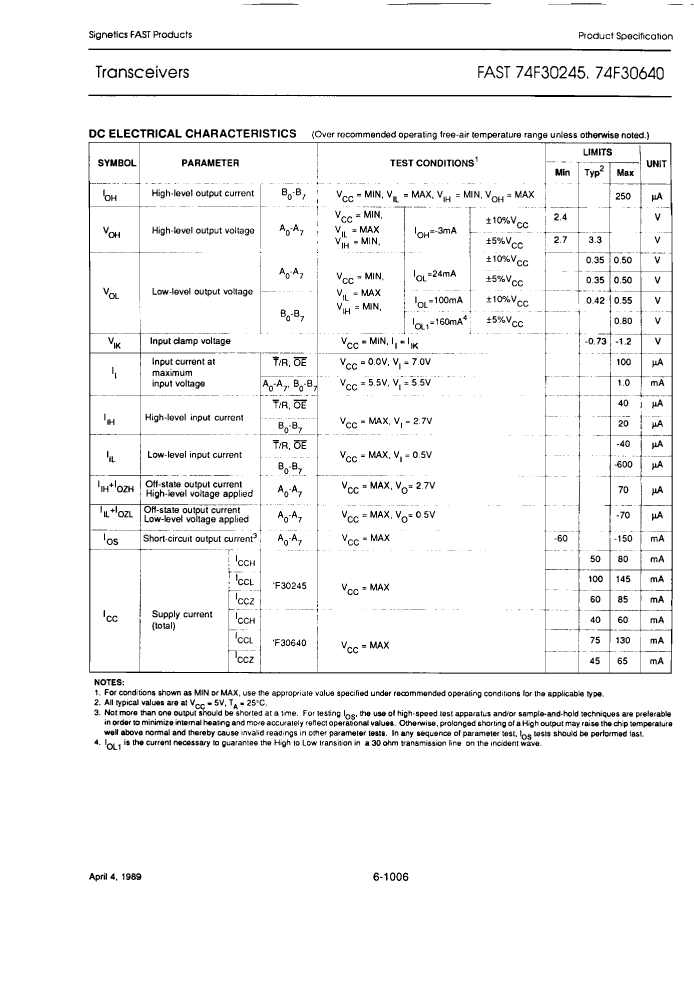

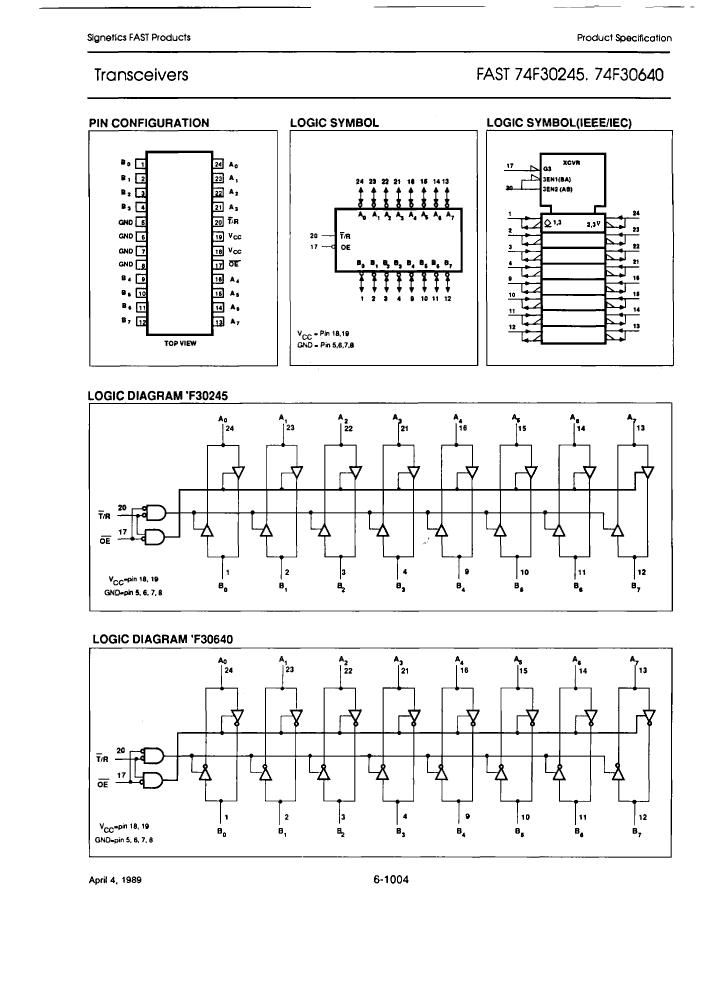

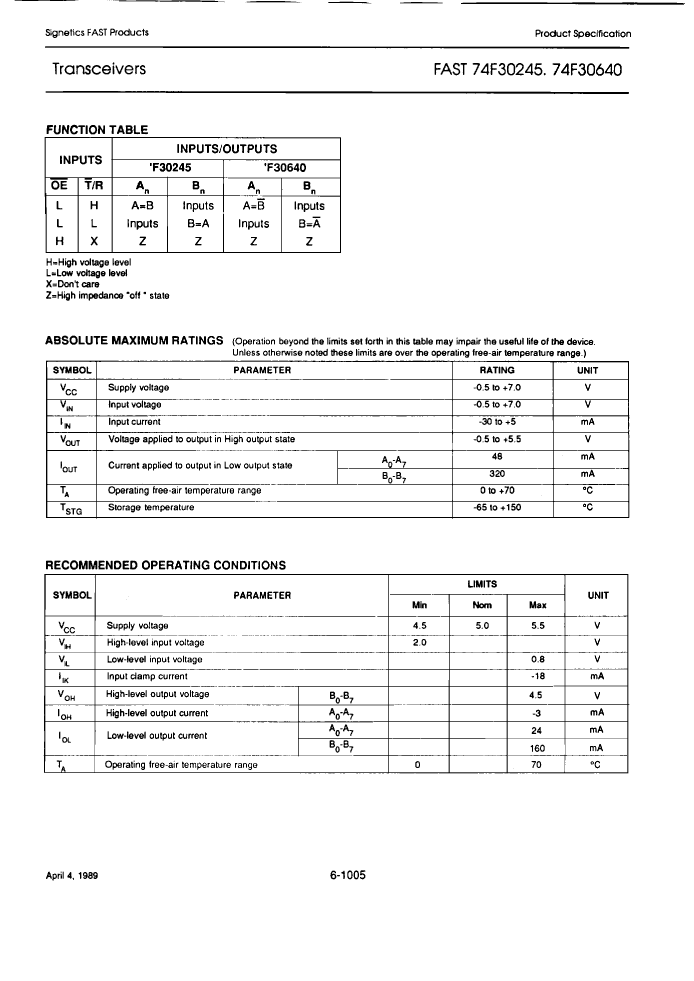

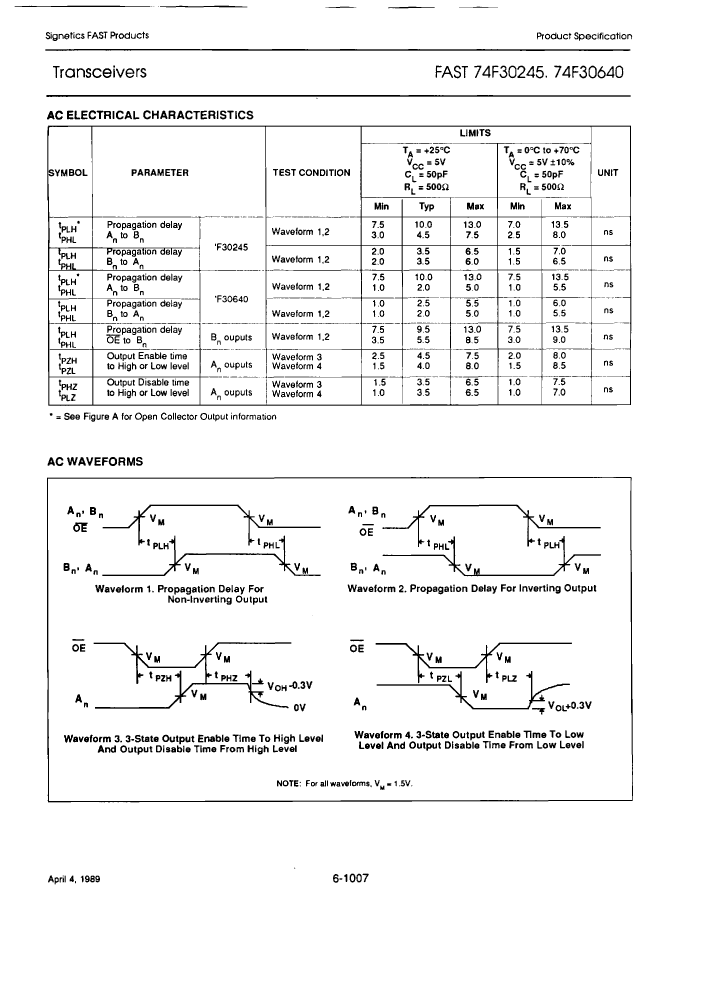

Preview

Download Datasheet

View All

74F30640F Related Products

	74F30640F	74F30245N	74F30640N	74F30245F
Description	Bus Transceiver, F/FAST Series, 1-Func, 8-Bit, Inverted Output, TTL, CDIP24	Bus Transceiver, F/FAST Series, 1-Func, 8-Bit, True Output, TTL, PDIP24	Bus Transceiver, F/FAST Series, 1-Func, 8-Bit, Inverted Output, TTL, PDIP24	Bus Transceiver, F/FAST Series, 1-Func, 8-Bit, True Output, TTL, CDIP24
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	B OUTPUTS OPEN COLLECTOR	B OUTPUTS OPEN COLLECTOR	B OUTPUTS OPEN COLLECTOR	B OUTPUTS OPEN COLLECTOR
series	F/FAST	F/FAST	F/FAST	F/FAST
JESD-30 code	R-CDIP-T24	R-PDIP-T24	R-PDIP-T24	R-CDIP-T24
Logic integrated circuit type	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER
Number of digits	8	8	8	8
Number of functions	1	1	1	1
Number of ports	2	2	2	2
Number of terminals	24	24	24	24
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
Output characteristics	OPEN-COLLECTOR/3-STATE	OPEN-COLLECTOR/3-STATE	OPEN-COLLECTOR/3-STATE	OPEN-COLLECTOR/3-STATE
Output polarity	INVERTED	TRUE	INVERTED	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
propagation delay (tpd)	5.5 ns	8 ns	5.5 ns	8 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO
technology	TTL	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	1
Maker	YAGEO	YAGEO	YAGEO	-
