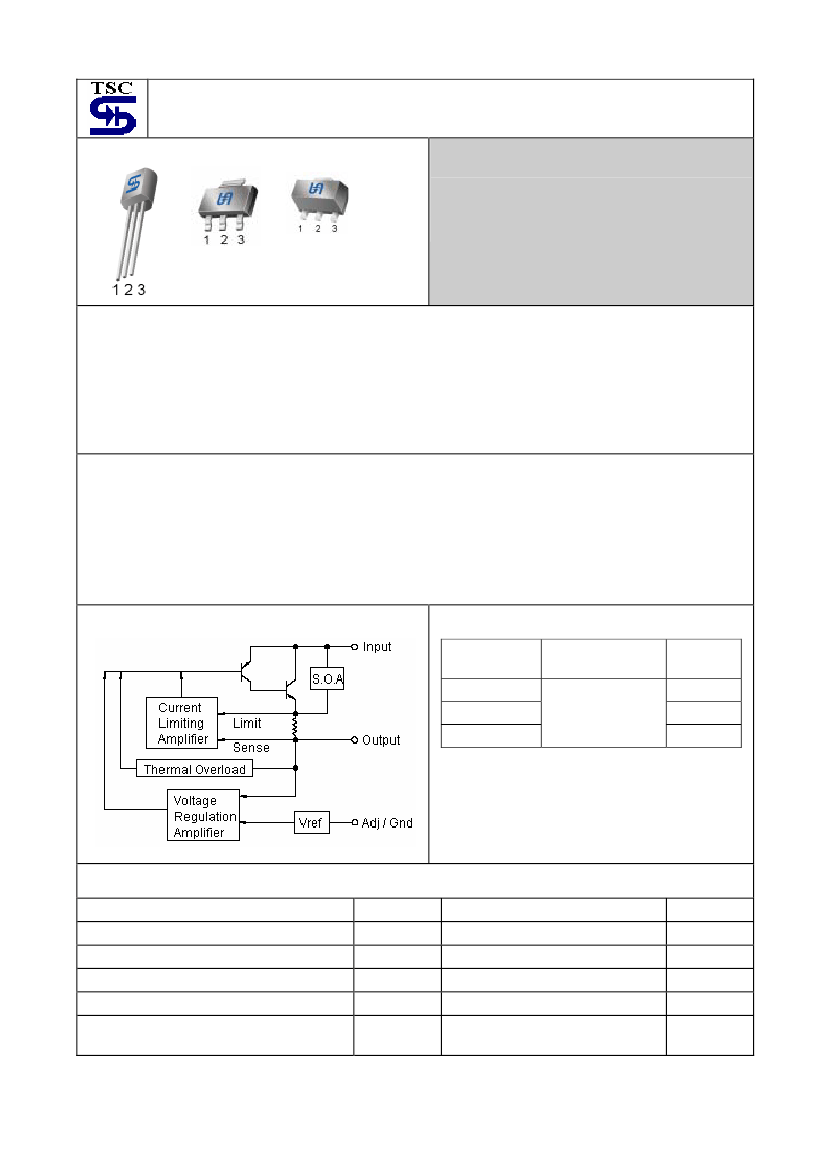

TS1118
500mA Low Dropout Positive Voltage Regulator
TO-92
SOT-223
SOT-89
Low Dropout Voltage 1.3V max.
Pin assignment:
1. Ground / Adj
2. Output
3.
Input
General Description
The TS1118 Series are high performance positive voltage regulators are designed for use in applications requiring low
dropout performance at full rated current, Additionally, the TS1118 Series provides excellent regulation over variations
due to changes in line, load and temperature. Outstanding features include low dropout performance at rated current, fast
transient response, internal current limiting and thermal shutdown protection of the output device. The TS1118 Series are
three terminal regulators with fixed and adjustable voltage options available in popular packages.
This series is offered in 3-pin TO-263, TO-220, TO-252 and SOT-223 package.
Features
Low dropout performance 1.3V max.
Full current rating over line and temperature.
Fast transient response
±2%Total
output regulation over line, load and
temperature
Adjust pin current max 90μA over temperature
Line regulation typical 0.015%.
Load regulation typical 0.05%.
Fixed/adjustable output voltage
TO-92, SOT-89 and SOT-223 package
Block Diagram
Ordering Information
Part No.
TS1118CT-xx
TS1118CY-xx
o
-20 ~ +85 C
Operating Temp.
(Ambient)
Package
TO-220
SOT-89
SOT-223
TS1118CW-xx
Note: Where xx denotes voltage option, available are
5.0V, 3.3V, 2.5V and 1.8V. Leave blank for
adjustable version. Contact factory for additional
voltage options.
Absolute Maximum Rating
Input Supply Voltage
Operation Input Supply Voltage
Power Dissipation
Operating Junction Temperature Range
Storage Temperature Range
Lead Soldering Temperature (260
o
C)
TO-92 / SOT-89 / SOT-223 Package
5
Vin
Vin (operate)
P
D
T
J
T
STG
12
7
Internally Limited
-25 ~ +150
-65 ~ +150
V
V
W
o
o
C
C
S
TS1118
1-6
2005/08 rev. A
Electrical Characteristics
Ta = 25
o
C, unless otherwise specified. Adjustable version test with Vout = 2.5V.
Parameter
Output Voltage
Conditions
Vout+1.5V
≤
Vin
≤
7V, Io=10mA
Vout+1.5V
≤
Vin
≤
7V, Io=800mA
(Vin-out) =1.5V, Io=10mA
(Vin-out) =1.5V, Io=800mA
Min
0.990|Vo|
0.980|Vo|
0.990|Vo|
0.980|Vo|
--
Typ
5.0 / 3.3
2.5 / 1.8
1.25
--
0.015
0.05
1.3
8
90
--
0.5
60
Max
1.010|Vo|
1.020|Vo|
1.010|Vo|
1.020|Vo|
7
0.2
1.0
1.4
10
--
--
--
70
Unit
V
V
V
V
V
%
%
%
V
mA
uA
A
%
dB
Reference Voltage
Input Supply Voltage
Line Regulation
Load Regulation (note 1,2)
Dropout Voltage
Minimum Load Current
Adjustable Pin Current
Current Limit
Temperature Stability
Ripple Rejection
Vout+1.5V
≤
Vin
≤
7V, Io=10mA
Vin=Vout+1.5V,
10mA
≤
Io
≤
800mA
Io=1A,
∆Vout=1%Vout
Vin=5V
--
--
--
--
--
Vin - Vout=3V
Io=10mA
F = 120Hz, Io=1A Cout=25uF,
Vin=Vout + 3V
1.1
--
--
Thermal Performance
Condition
Thermal Resistance
Junction to Ambient
Package type
TO-92
SOT-89
SOT-223
Typ
160
180
110
Unit
o
C/W
Note 1: See thermal regulation specification for changes in output voltage due to heating effects. Line and load regulation
are measured at a constant junction temperature by low duty cycle pulse testing. Load regulation is measured at
the output lead = 1/18” from the package.
Note 2: Line and load regulation are guaranteed up to the maximum power dissipation of 15W. Power dissipation is
determined by the input / output voltage difference and the output current. Guaranteed maximum power
dissipation will not be available over the full input / output voltage range.
Note 3: Quiescent current is defined as the minimum output current required to maintain the regulation.
TS1118
2-6
2005/08 rev. A
Typical Application Circuit
Fixed output voltage version
Vout = Vref * (1 + R2 / R1)
*
Cin is requested if regulator is located
Far from power supply filter
**
Design Cout as close to Vout pin as possible
Adjustable output voltage version
TS1118
3-6
2005/08 rev. A
Electrical Characteristics Curve

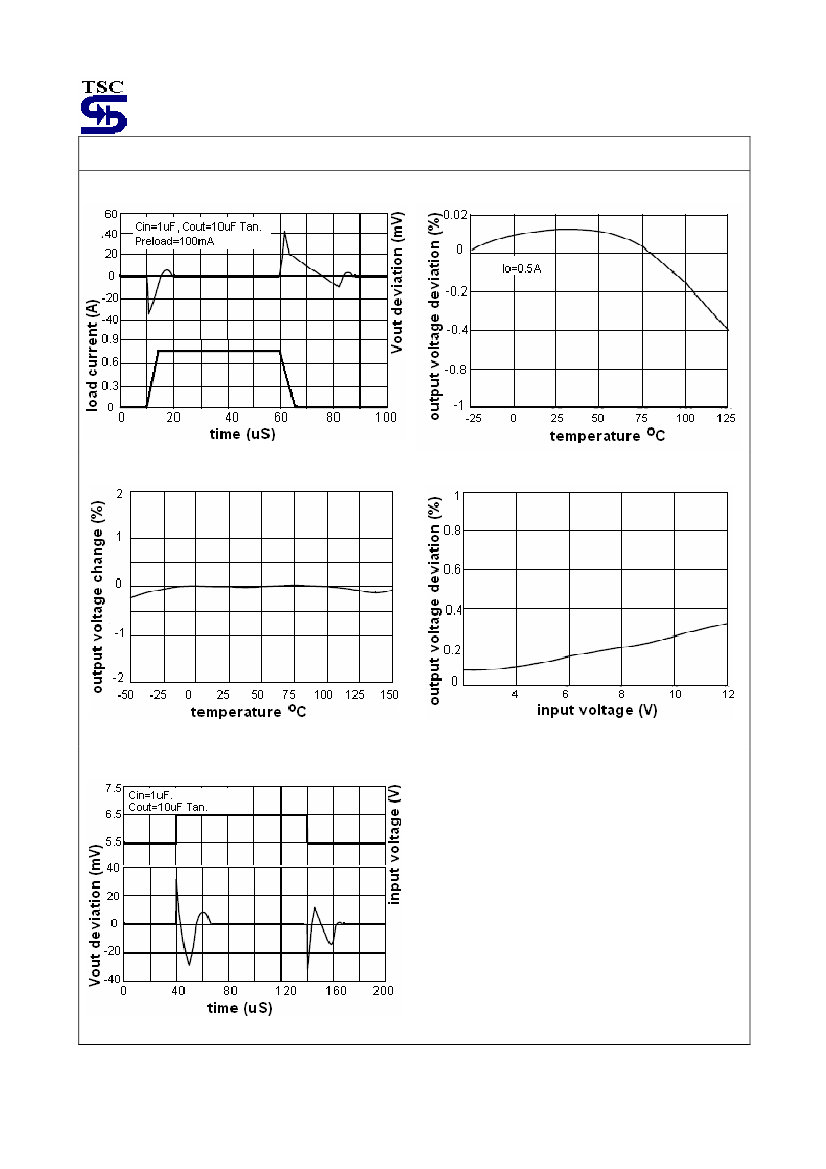

Figure 1: load transient response
Figure 2: load regulation v.s. temp.
Figure 3: output change v.s. temp.
Figure 4: line regulation
Figure 5: line transient response
TS1118
4-6
2005/08 rev. A
