MKS1858-6-0-808 datasheet, PDF

Datasheet> All Categories > The connector> MKS1858-6-0-808

MKS1858-6-0-808: DescriptionBoard Connector, 8 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Locking Mech, Receptacle; CategoryThe connector; File Size51KB，1 Pages; ManufacturerStocko Contact GmbH & Co Kg; Websitehttps://www.stocko-contact.com; Environmental Compliance

Download Datasheet Parametric View All

MKS1858-6-0-808 Overview

Board Connector, 8 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Locking Mech, Receptacle

MKS1858-6-0-808 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Stocko Contact GmbH & Co Kg
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	POLARIZATION AVAILABLE
body width	0.295 inch
subject depth	0.917 inch
body length	0.972 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
MIL compliance	NO
Manufacturer's serial number	MKS1850
Plug contact pitch	0.098 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING MECH
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	115 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	UL,VDE
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.5 mm
Termination type	SOLDER
Total number of contacts	8
Base Number Matches	1

Preview

Download Datasheet

View All

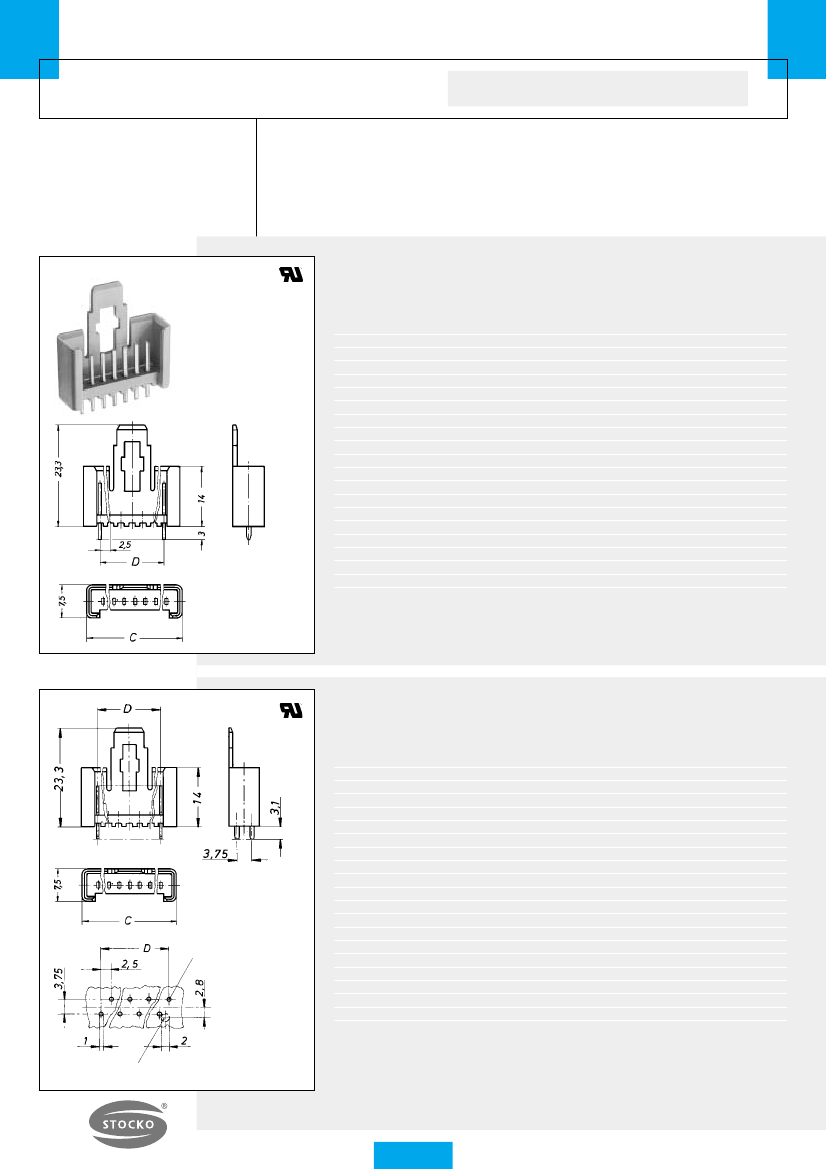

Serien / Series

Rastlasche

S tiftwannen, stehend, mit Rastlasche

MKS 1850, 1950

ver

ertical

Pin connectors with snap-in locking device for ver tical connections

Serie MKS 1850, Lötstifte In-line

Series MKS 1850, solder pins in line

Polzahl

Positions

Artikel-Nummer

Part number

MKS

1851 - 6 - 0 - 202

1852 - 6 - 0 - 202

1853 - 6 - 0 - 303

1854 - 6 - 0 - 404

1855 - 6 - 0 - 505

1856 - 6 - 0 - 606

1857 - 6 - 0 - 707

1858 - 6 - 0 - 808

1859 - 6 - 0 - 909

1860 - 6 - 0 - 1010

1861 - 6 - 0 - 1111

1862 - 6 - 0 - 1212

1863 - 6 - 0 - 1313

1864 - 6 - 0 - 1414

1865 - 6 - 0 - 1515

1866 - 6 - 0 - 1616

1867 - 6 - 0 - 1717

1868 - 6 - 0 - 1818

1870 - 6 - 0 - 2020

Abmessungen C

Dimensions C

9,7

7,9

12,2

14,7

17,2

19,7

22,2

24,7

27,2

29,7

32,2

34,7

37,2

39,7

42,2

44,7

47,2

49,7

54,7

Abmessungen D

Dimensions D

2,5

5,0

7,5

10,0

12,5

15,0

17,5

20,0

22,5

25,0

27,5

30,0

32,5

35,0

37,5

40,0

42,5

47,5

* nur geeignet für Federleisten MKF 13216/13316 und MKH 5132

* only suitable for connectors MKF 13216/13316 and MKH 5132

Serie MKS 1950, Lötstifte versetzt

Series MKS 1950, solder pins staggered

Polzahl

Positions

Artikel-Nummer

Part number

MKS

1951 - 6 - 0 - 202

1952 - 6 - 0 - 202

1953 - 6 - 0 - 303

1954 - 6 - 0 - 404

1955 - 6 - 0 - 505

1956 - 6 - 0 - 606

1957 - 6 - 0 - 707

1958 - 6 - 0 - 808

1959 - 6 - 0 - 909

1960 - 6 - 0 - 1010

1961 - 6 - 0 - 1111

1962 - 6 - 0 - 1212

1963 - 6 - 0 - 1313

1964 - 6 - 0 - 1414

1965 - 6 - 0 - 1515

1966 - 6 - 0 - 1616

1967 - 6 - 0 - 1717

1968 - 6 - 0 - 1818

1970 - 6 - 0 - 2020

Abmessungen C

Dimensions C

9,7

7,9

12,2

14,7

17,2

19,7

22,2

24,7

27,2

29,7

32,2

34,7

37,2

39,7

42,2

44,7

47,2

49,7

54,7

Abmessungen D

Dimensions D

2,5

5,0

7,5

10,0

12,5

15,0

17,5

20,0

22,5

25,0

27,5

30,0

32,5

35,0

37,5

40,0

42,5

47,5

1. Contact

Codierungsbohrung

Hole for polarizing pegs

Bauteilseite

Component side

* nur geeignet für Federleisten MKF 13216/13316 und MKH 5132

* only suitable for connectors MKF 13216/13316 and MKH 5132
