Data sheet | Item number: 859-738
Optocoupler module; Nominal input voltage: 5 VDC
www.wago.com/859-738

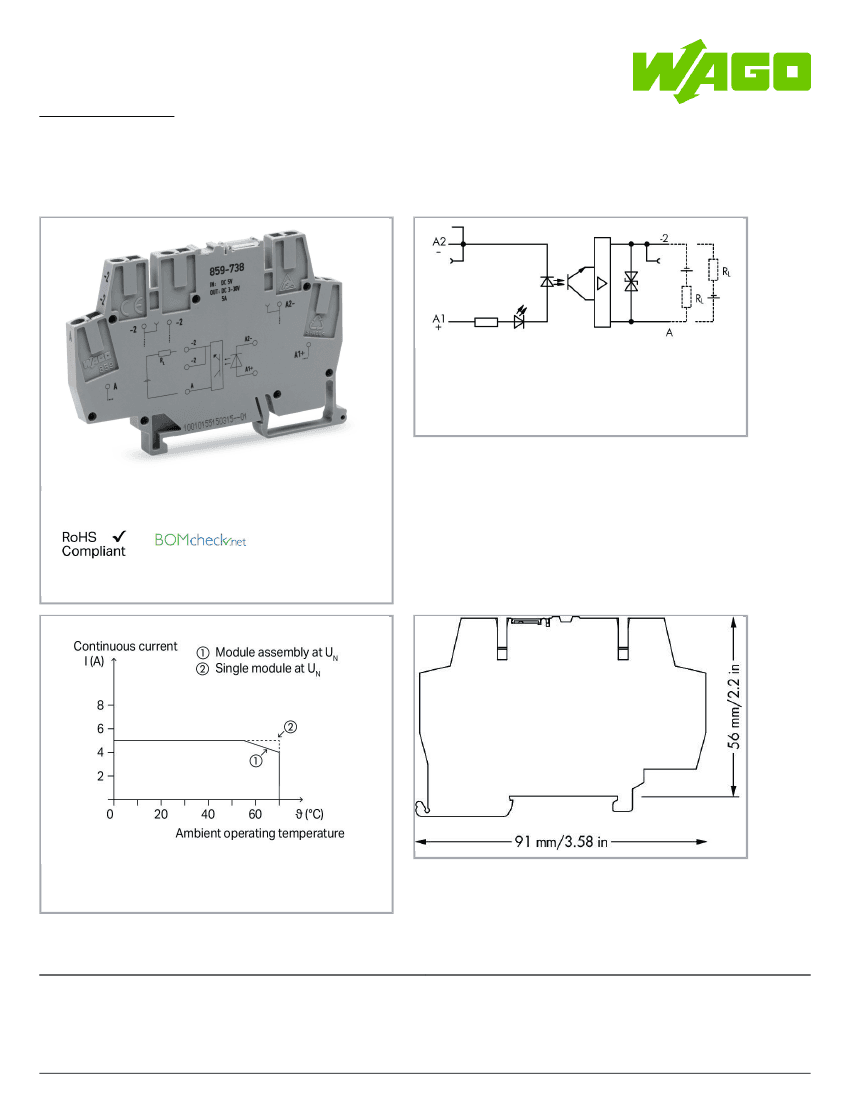

Current-carrying capacity curve
Item description
Please also observe the further product documentation!
Subject to changes.
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Phone: +49571 887-0 | Fax: +49571 887-169
Email: info.de@wago.com | Web: www.wago.com
Do you have any questions about our products?
We are always happy to take your call at +49 (571) 887-44222.
22.04.2020 Page 1/11
Data sheet | Item number: 859-738
www.wago.com/859-738
Item description
Note:
Optocouplers and solid state relays are designed for use in signal processing networks, which are not supplied by the low-voltage power supply
networks.
Data
Technical Data
Control circuit
Nominal input voltage U
N
Input voltage range (low level)
Input voltage range (high level)
Nominal input current at U
N
DC 5 V
DC 0 … 2 V
DC 4 … 6 V
7,2 mA
Load circuit:
Circuit type
Limiting continuous current
Peak output current
Nominal output voltage
Output voltage range
Max. voltage drop at output
Turn-on time
Drop-out time
Switching frequency
2-wire connection
5 A
25
A
DC 24 V
DC 3 … 30 V
≤ DC 0,2 V
≤ 200 µs
≤ 450 µs
≤ 100 Hz
Signaling
Status indication
Red LED
Safety and protection:
Rated voltage
Overvoltage category
Pollution degree
Dielectric strength, control/load circuit (AC, 1 min)
Insulation type (control/load circuit)
300
V
II
2
2,5 kVrms
Basic insulation
Insulation type (adjacent devices)
Reinforced insulation (safe isolation)
Subject to changes. Please also observe the further product documentation!
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Phone: +49571 887-0 | Fax: +49571 887-169
Email: info.de@wago.com | Web: www.wago.com
Do you have any questions about our products?
We are always happy to take your call at +49 (571) 887-44222.
22.04.2020 Page 2/11
Data sheet | Item number: 859-738
www.wago.com/859-738
Insulation type (adjacent devices)
Reinforced insulation (safe isolation)
Connection data
Connection technology
Solid conductor
Fine-stranded conductor
Strip length
CAGE CLAMP
®
0,08 … 2,5 mm² / 28 … 14 AWG
0,08 … 2,5 mm² / 28 … 14 AWG
5 … 6 mm / 0.2 … 0.24 inch
Geometrical Data
Width
Height from upper-edge of DIN-35 rail
Depth
6 mm / 0.236 inch
56 mm / 2.205 inch
91 mm / 3.583 inch
Mechanical data
Type of mounting
DIN-35 rail
Material Data
Fire load
Weight
0.313
MJ
18.9
g
Environmental Requirements
Surrounding air (operating) temperature at U
N
Surrounding air (storage) temperature
Processing temperature
-25 … 70 °C
-40 … 70 °C
-25 … +50 °C
Standards and specifications
Standards/specifications
EN 60664-1; EN 61000-6-2; EN 61000-6-3; EN 61373
Commercial data
Product Group
Packaging type
Country of origin
GTIN
Customs Tariff No.
6 (Interface Electronics)
BOX
DE
4055143605359
85365005000
Subject to changes. Please also observe the further product documentation!
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Phone: +49571 887-0 | Fax: +49571 887-169
Email: info.de@wago.com | Web: www.wago.com
Do you have any questions about our products?
We are always happy to take your call at +49 (571) 887-44222.
22.04.2020 Page 3/11
Data sheet | Item number: 859-738
www.wago.com/859-738
Counterpart
Compatible products
End plate
Item no.: 859-525
End and intermediate plate; 1 mm thick; gray
ferrule
Item no.: 216-221
Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated; white
Item no.: 216-222
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; gray
Item no.: 216-223
Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; red
Item no.: 216-224
Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; black
Item no.: 216-321
Ferrule; Sleeve for 0.25 mm² / AWG 24; insulated; electro-tin plated; yellow
Item no.: 216-322
Ferrule; Sleeve for 0.34 mm² / 22 AWG; insulated; electro-tin plated; green
tools
Item no.: 210-720
Operating tool; Blade: 3.5 x 0.5 mm; with a partially insulated shaft
check
Item no.: 859-500
Test pin; 1 mm Ø; with solder connection for test wire
Jumper
Item no.: 859-402
Push-in type jumper bar; 2-way; Nominal current 18 A; insulated; light gray
Item no.: 859-402/000-005
