Extract from the online
catalog
IB IL 24 PWR IN/2F-D-2MBD-PAC
Order No.: 2863821

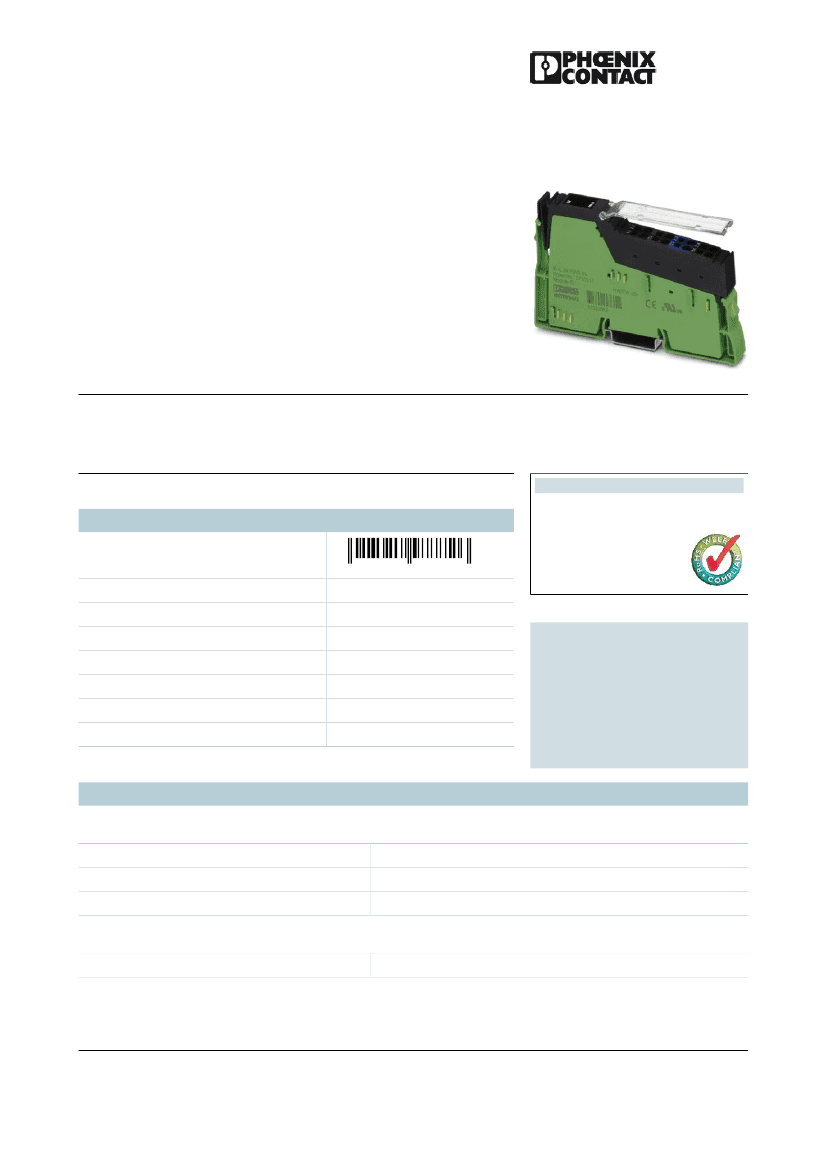

The illustration shows the version IB IL 24 PWR IN/F-PAC
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=2863821
Inline power terminal block, complete with accessories (connector and
labeling field), 24 V DC, with fuse (main and segment voltage) and
diagnostics, transmission speed 2 Mbaud
Product notes
Commercial data
EAN
4
017918
977726
WEEE/RoHS-compliant since:
07/04/2006
Note
sales group
Pack
Customs tariff
Gross weight in pieces
Net weight per piece
Catalog page information
Made-to-order
K417
1 Pcs.
85389091
0.0838 KG
0.06949 KG
Page 267 (AX-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
Dimensions
Width
Height
Depth
Interfaces
Interface
Inline local bus
12.2 mm
119.8 mm
71.5 mm
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 1 / 3
Aug 13, 2014
IB IL 24 PWR IN/2F-D-2MBD-PAC
Order No.: 2863821
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=2863821
Inline potentials
Current consumption from U
L
Main circuit supply U
M
Supply voltage range U
M
Power supply at U
M
Segment supply voltage U
S
Power supply at U
S
Certificates / Approvals
Certification
Certifications applied for:
Certification Ex:
max. 45 mA DC
24 V DC (nominal value)
19.2 V ... 30 V (including all tolerances, including ripple)
4 A (nominal value)
24 V DC -15 % / +20 % (acc. to EN 61131-2)
4 A (nominal value)
Accessories
Item
Designation
Description
Connector/Adapter
2727462
2727637
Marking
0809492
ESL 62X10
Insert strip, Sheet, white, unlabeled, can be labeled with: Office
printing systems, Plotter: Laser printer, Mounting type: Insert,
Lettering field: 62 x 10 mm
Labeling field, width: 12.2 mm
IB IL SCN-PWR IN
IB IL SCN-PWR IN-CP
Connector, for Inline power and segment terminal blocks
Connector, colored, for Inline power and segment terminal blocks
2727501
IB IL FIELD 2
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 2 / 3
Aug 13, 2014
IB IL 24 PWR IN/2F-D-2MBD-PAC
Order No.: 2863821
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=2863821
Address
PHOENIX CONTACT Deutschland GmbH
Flachsmarktstr. 8
32825 Blomberg,Germany
Phone +49 5235 3 12000
Fax +49 5235 3 41200
http://www.phoenixcontact.com
© 2014 Phoenix Contact
Technical modifications reserved;
